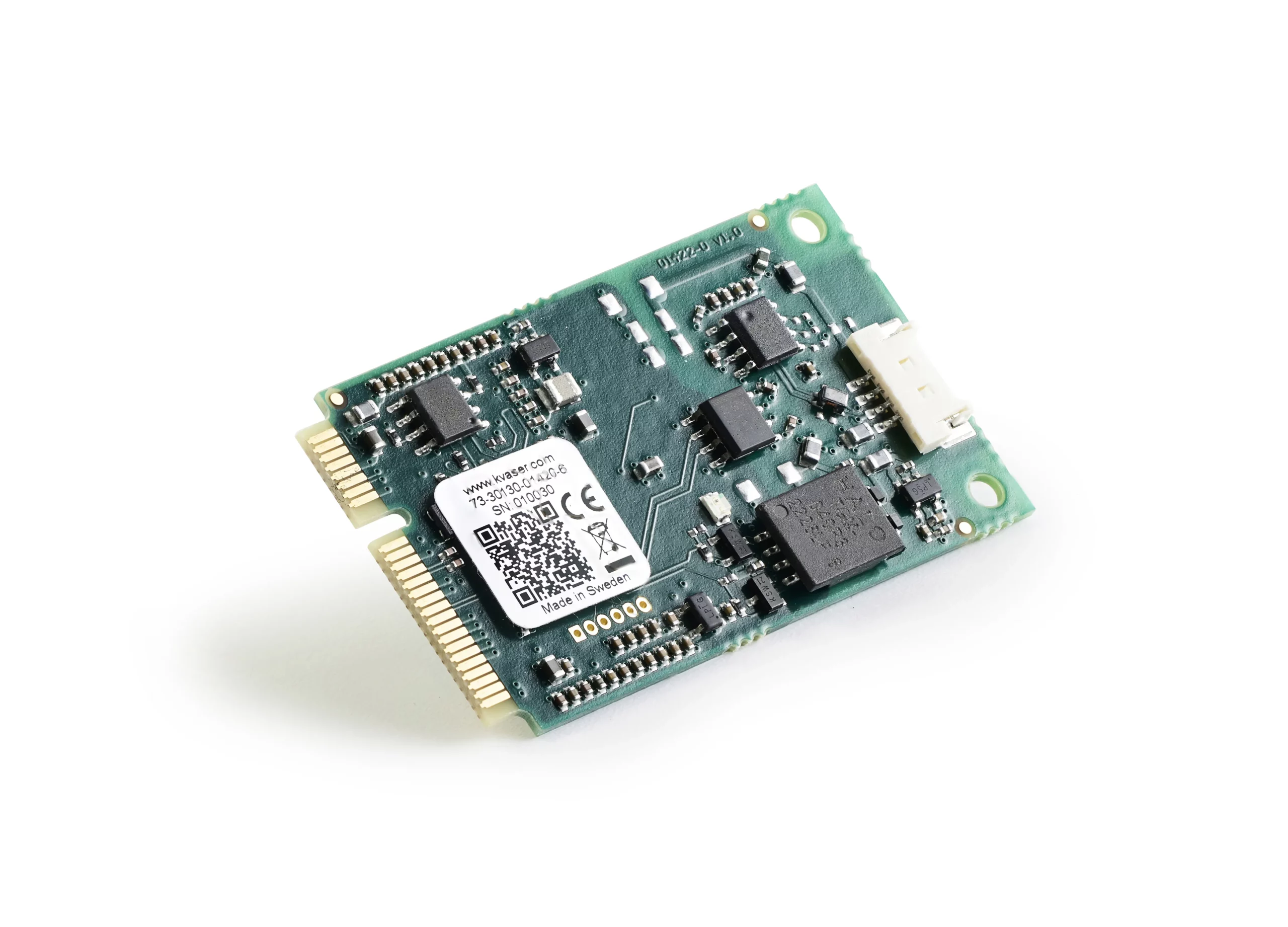

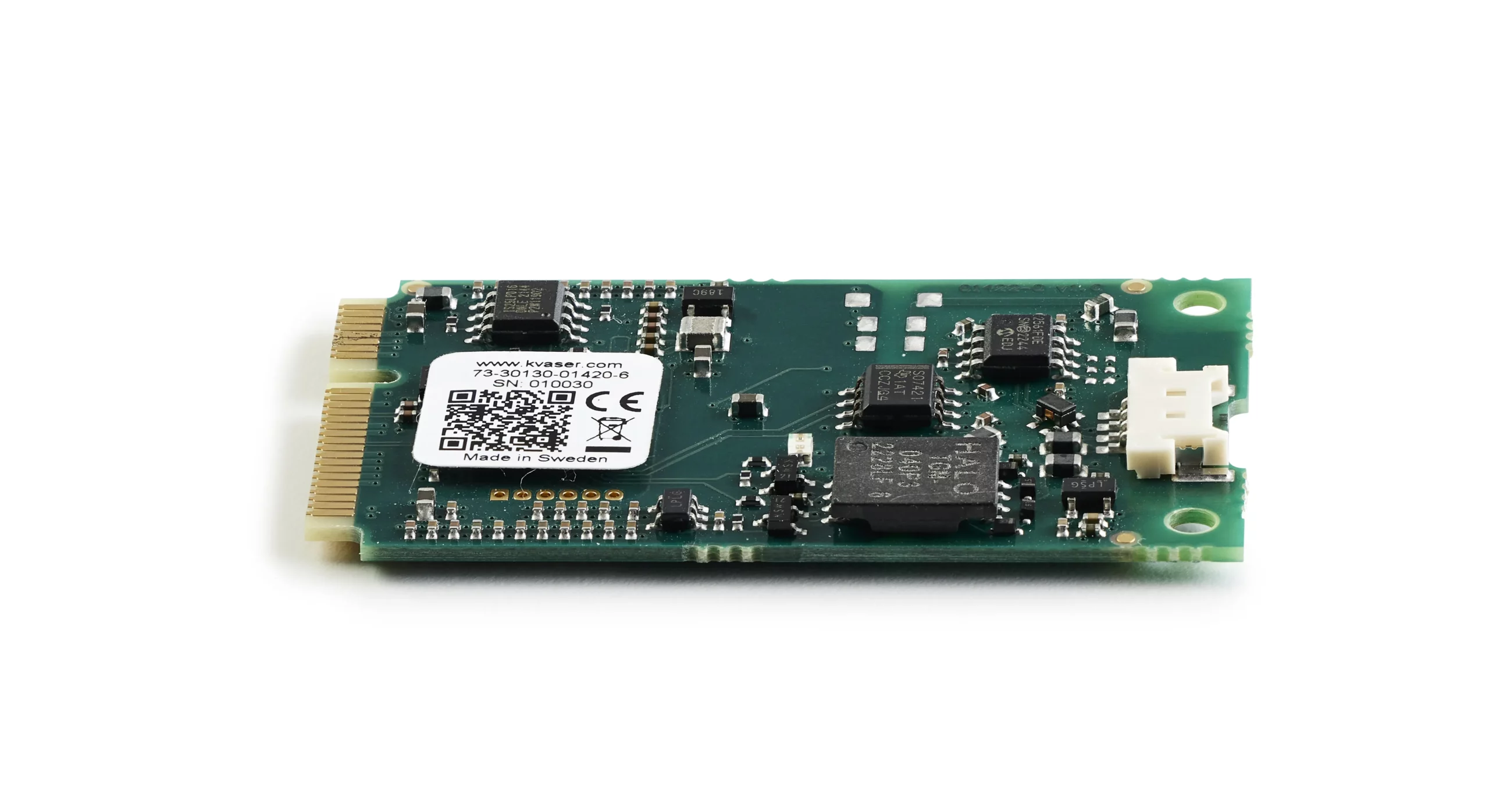

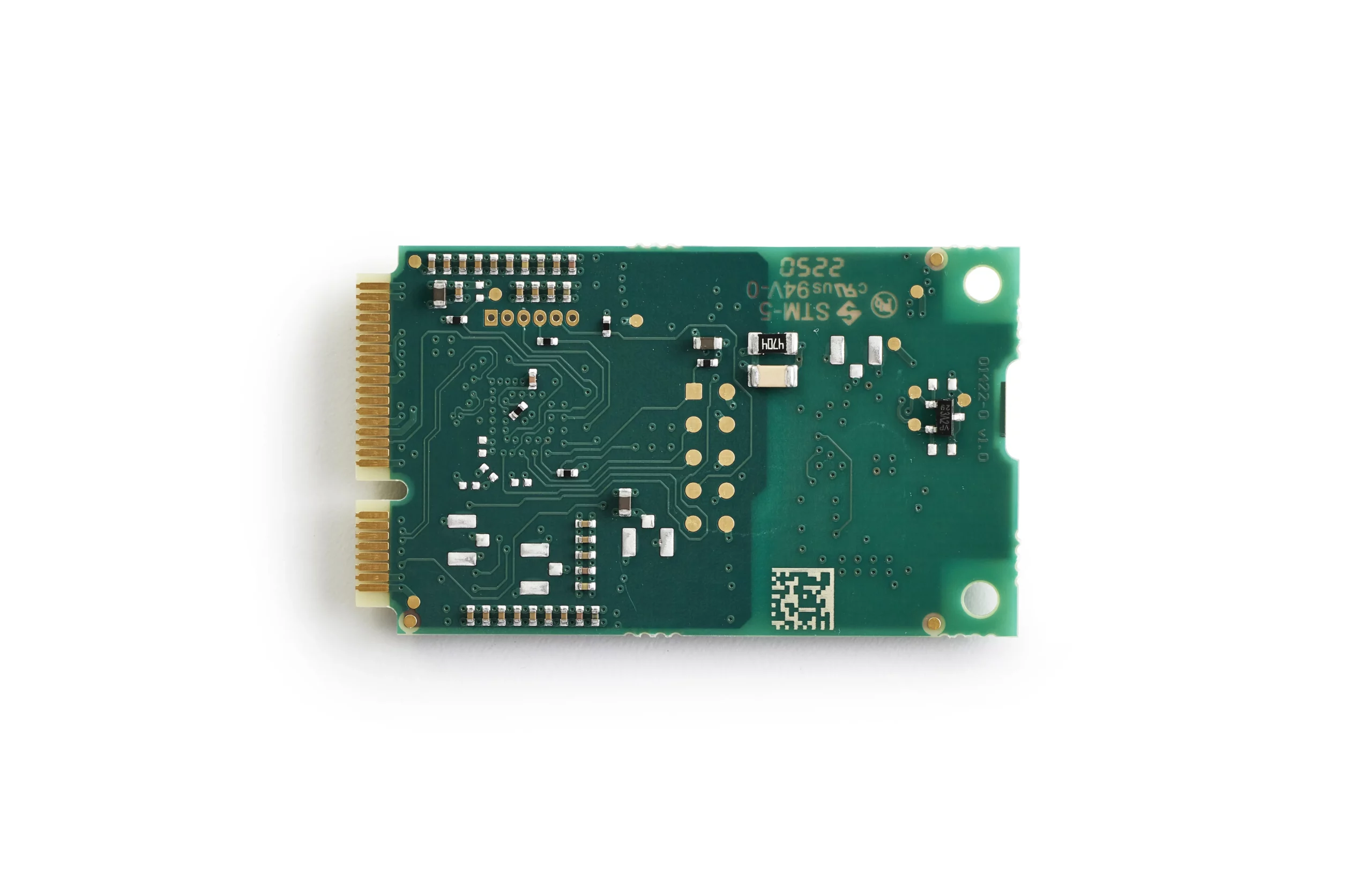

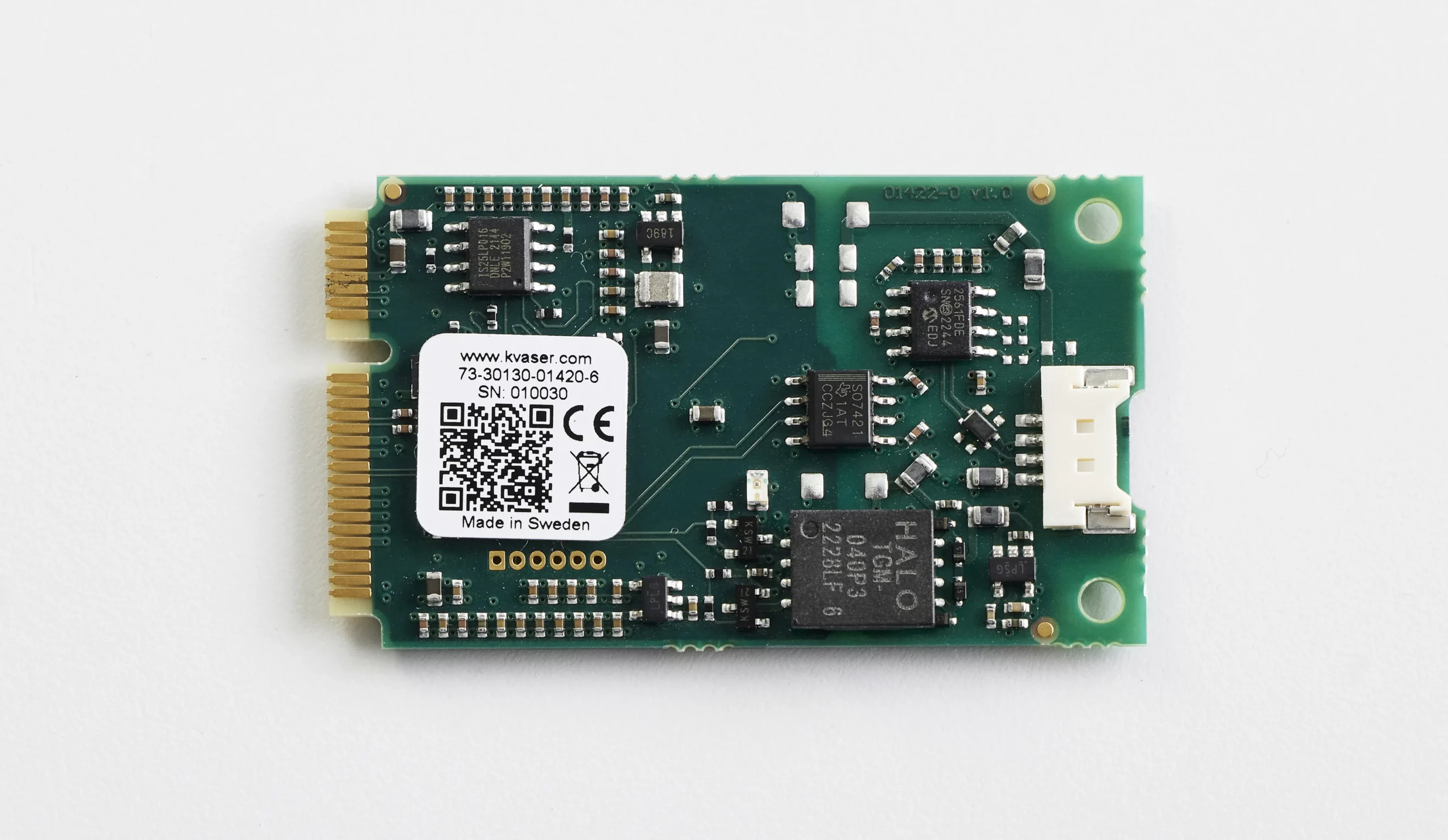

Kvaser Mini PCI Express 1xCAN v3
Price: USD 514.00
Kvaser Mini PCI Express 1xCAN v3 is a small, yet advanced, real time CAN interface that handles transmission and reception of standard and extended CAN messages on the bus with a high time stamp precision. The Kvaser Mini PCI Express 1xCAN v3 is compatible with applications that use Kvaser‘s CANlib.
- Mini PCI Express CAN interface.
- Supports CAN FD, up to 8 Mbit/s.
- Quick and easy plug-and-play installation.
- Supports both 11-bit (CAN 2.0A) and 29-bit (CAN 2.0B active) identifiers.
- 100 % compatible with applications written for other Kvaser CAN hardware with Kvaser CANlib.
- High-speed CAN connection (compliant with ISO 11898-2), up to 1 Mbit /s.
- Fully compatible with J1939, CANopen, NMEA 2000® and DeviceNet.
- Supports silent mode for analysis tools – listen to the bus without interfering.
- Supports simultaneous usage of multiple Kvaser interfaces.
- 2-Year Warranty. See our General Conditions and Policies for details.
- Free Technical Support on all products available by contacting [email protected].
- Documentation, software and drivers can be downloaded for free at www.kvaser.com/downloads.
Kvaser CANLIB SDK is a free resource that includes everything you need to develop software for the Kvaser CAN interfaces. Includes full documentation and many program samples, written in C, C++, C#, Delphi, and Visual Basic.
All Kvaser CAN interface boards share a common software API. Programs written for one interface type will run without modifications on the other interface types!
J2534 Application Programming Interface available.
RP1210A Application Programming Interface available.
On-line documentation in Windows HTML-Help and Adobe Acrobat format.
Up to 8 Mbit/s
CABLES, Interfaces, Hardware, CAN

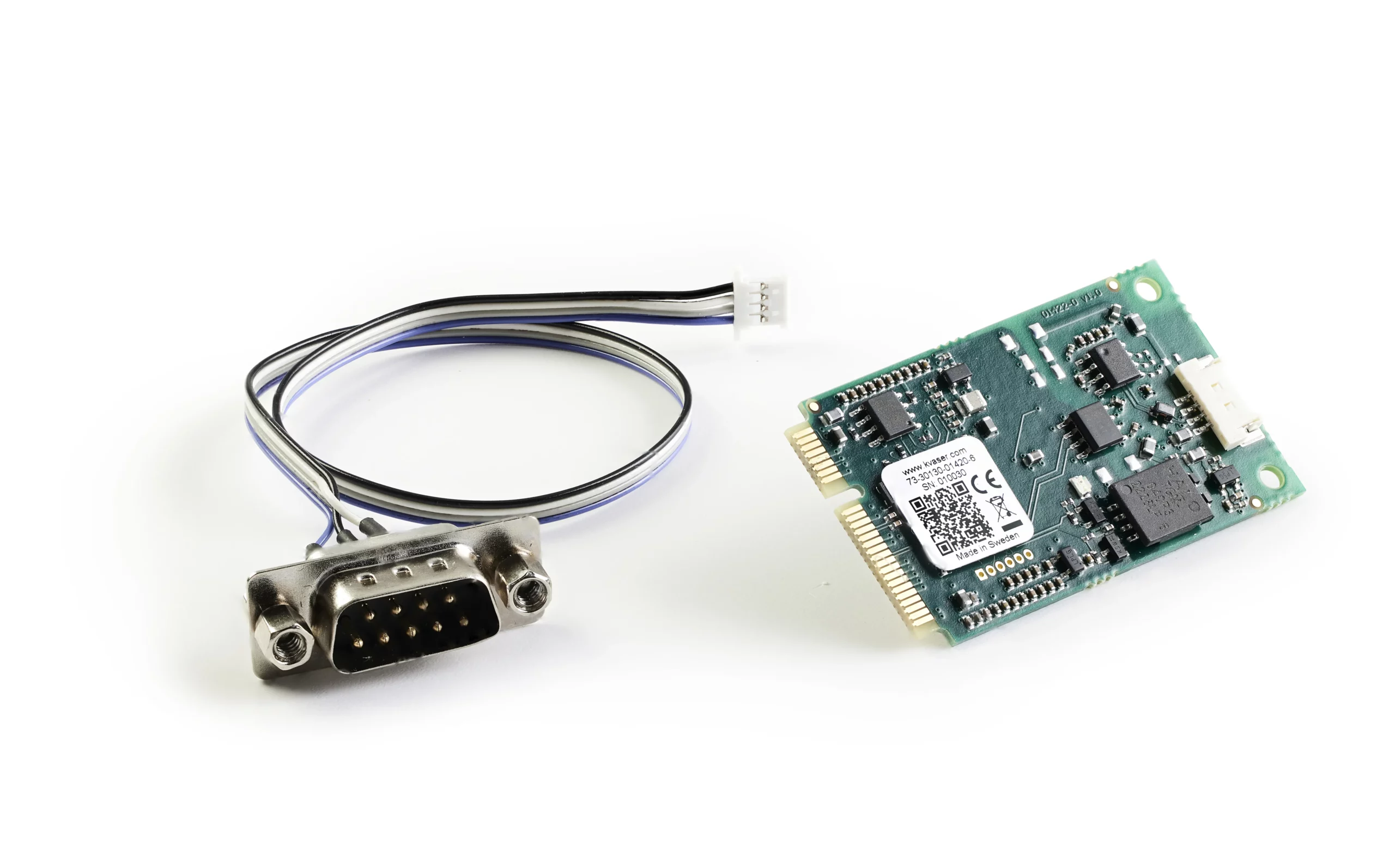

Molex 53780 PanelMate TM
Typically 180 mA at 3.3 V.
Mini PCI Express
Linux, Win 7, Win 10, Win 8
-40 °C to +85 °C
Linux drivers and SDK for most Kvaser devices. For using Kvaser proprietary API. Do not install if using SocketCAN.
This free driver for National Instrument's DIAdem supports all CAN hardware from Kvaser.
Windows drivers for all our CAN hardware. Please check the release notes for information on which Windows versions are supported. The package also contains a driver for a virtual CAN bus, for testing and evaluation when you don't have access to a physical CAN bus.
The Canlib module is a Python wrapper for Kvaser CANlib SDK.
Library for National Instrument's LabView. Version for all Kvaser CAN hardware.
Software development kit - everything you need to develop software for the Kvaser CAN and LIN interfaces. Libraries, header files, sample programs for e.g. C, C++, C#, Visual Basic and Delphi, documentation, and more. Note: you need to download and install the appropriate device drivers separately.
