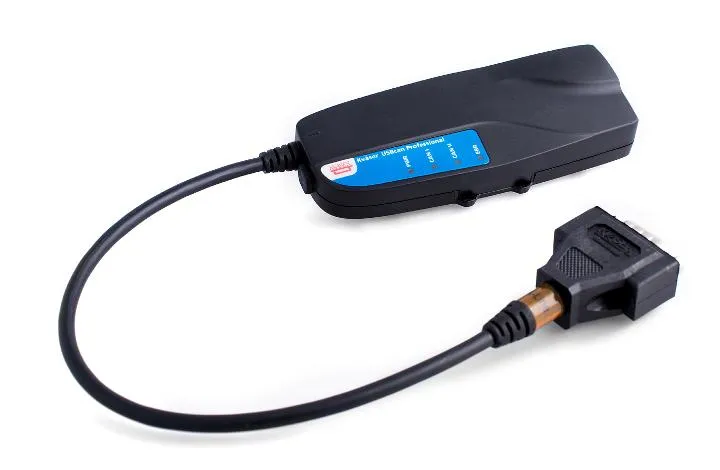

Kvaser USBcan Professional HS/K-Line

EAN: 73-30130-00676-8

The Kvaser USBcan Professional HS/K-Line is a USB to CAN and K-Line interface with both channels connected to a standard 9-pin DSUB connector. It can be used as a standard one channel CAN interface and is software compatible with all other Kvaser CAN interfaces.

Popular in the automotive industry where it is used to diagnose fault conditions and reprogram ECUs, this device locates both K-line and CAN-bus on the same connector, enabling parallel K-line and CAN communication using just one connection point. If the system uses only CAN or K-Line, one channel communication is achieved.

Based on the Kvaser USBcan Professional, the Kvaser USBcan Professional HS/K-Line has a 100KB bit rate, enabling very fast data transfer times when downloading code. It offers error frame generation and detection, an onboard buffer and full galvanic isolation. The K-line channel is accessible from the J2534 standard API defined for K-line communication. It can handle a standard 10KB/s bit-rate, as well as any other bit-rate up to 100KB/s.

With fast reaction times and high data throughput in a form factor and housing that makes it easy and comfortable to use, this is the ideal tool for rapid ECU re-flashing, and any advanced bus analysis or other development tasks. If your system's ECU supports higher bit rates, using this can reduce software download time by 90%, compared to other standard K-line interfaces!

Bitrate

40-1000 kbps

Categories

Interfaces, PC INTERFACES

Certificates

CE, RoHS

Connectors

DSUB 9

Error Counters Reading

Yes

Error Frame Generation

Yes

Galvanic Isolation

Yes

Height

25 mm

Interfaces

PCI Express

Length

90 mm

Material

PC-ABS

Messages Per Second Receive

20000 mps

Messages Per Second Sending

20000 mps

OS

Win XP, Linux, Win 7, Win Vista, Win 10, Win 8

Silent mode

Yes

Sound

No

Temp range

-40 - 85 °C

Timestamp R (µ)

2 µs

Weight

80 g

Firmware

Kvaser Firmware Update Tool

Firmware Update tool for most Kvaser devices.

Version V4.17.849 Download
Driver

Kvaser Linux Drivers and SDK

Linux drivers and SDK for most Kvaser devices.

Version V5.28.846 Download

Kvaser DIADEM driver

This free driver for National Instrument's DIAdem supports all CAN hardware from Kvaser.

Version V4.1.0 Download

Kvaser Drivers for Windows

Windows drivers for all our CAN hardware. Please check the release notes for information on which Windows versions are supported. The package also contains a driver for a virtual CAN bus, for testing and evaluation when you don't have access to a physical CAN bus.

Version V5.28.846 Download
Development Kits and Tools

Python module

The Canlib module is a Python wrapper for Kvaser CANlib SDK.

Version V1.10.102 Download

Kvaser LabView VI Library for CAN

Library for National Instrument's LabView. Version for all Kvaser CAN hardware.

Version V6.1.0 Download

Kvaser CANlib SDK

Software development kit - everything you need to develop software for the Kvaser CAN and LIN interfaces. Libraries, header files, sample programs for e.g. C, C++, C#, Visual Basic and Delphi, documentation, and more. Note: you need to download and install the appropriate device drivers separately.

Version V5.28.846 Download
Other

Kvaser CANKing

A free of charge, general-purpose CAN bus monitor. It works with all CAN interfaces from Kvaser and also with the virtual CAN bus.

Version V6.11.788 Download
Documentation

Kvaser USBcan Professional Users Guide

Kvaser USBcan Professional User's Guide

Version V5.1.0 Download
