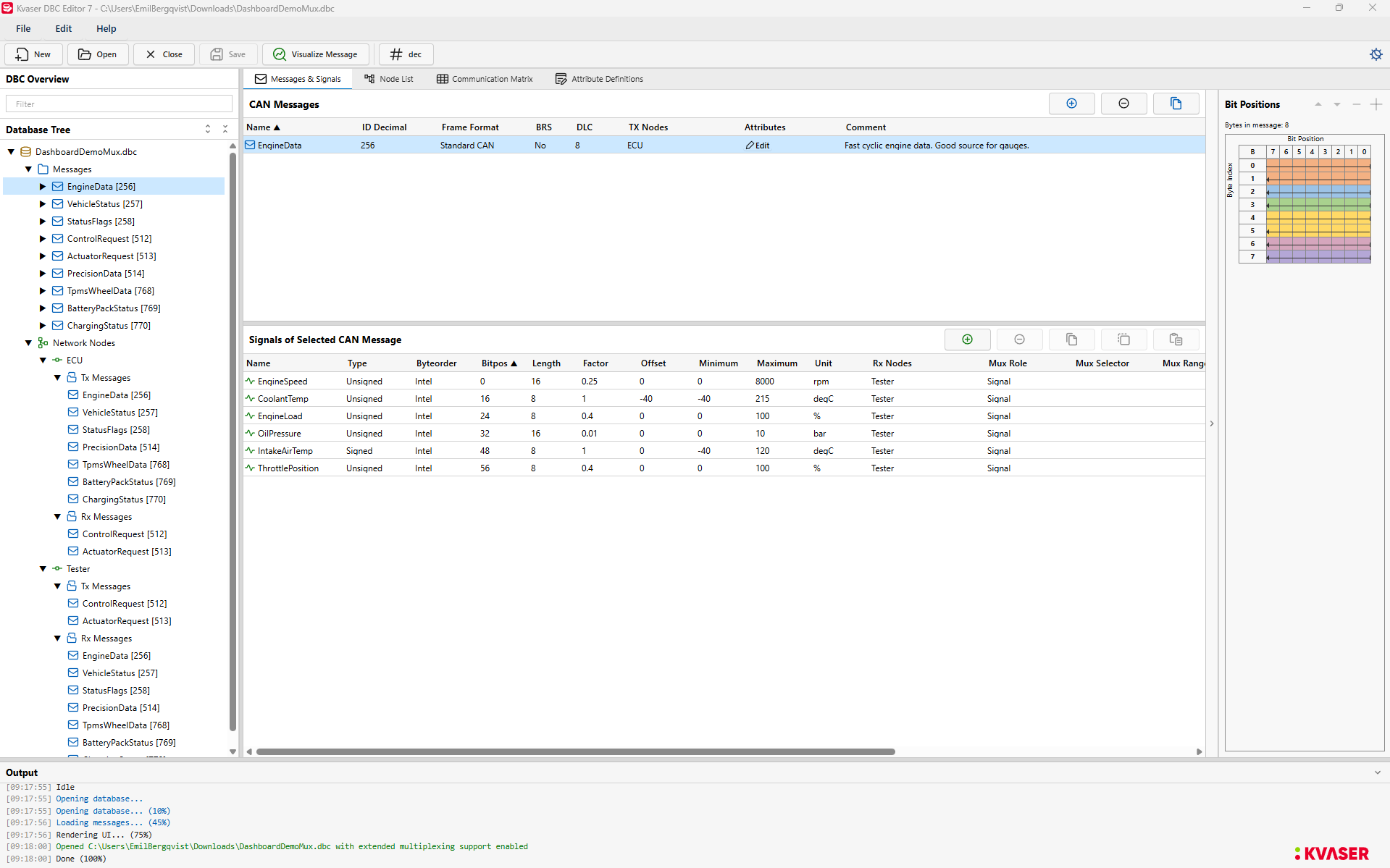

DBC Editor 7 – free CAN database editor

Create, edit, and validate DBC files for CAN networks with DBC Editor 7. Define CAN messages and signals, find inconsistencies, and prepare reliable DBC files for testing, diagnostics, and CAN analysis.

Maintain one DBC database and reuse the same message and signal definitions across tools for consistent CAN data interpretation.

DBC files turn raw CAN traffic into readable signal names, values, and units. Databases created or maintained in DBC Editor 7 can be used in CanKing 7 to monitor and analyze CAN traffic using the same message and signal definitions.

Available for Windows and Linux. Linux installations require CANlib SDK.

• Database consistency check
• Bit position visualization
• Extended multiplexed signals
• Anonymous export
• Node export
• Multiple languages
• Dark and light mode
• Windows and Linux support

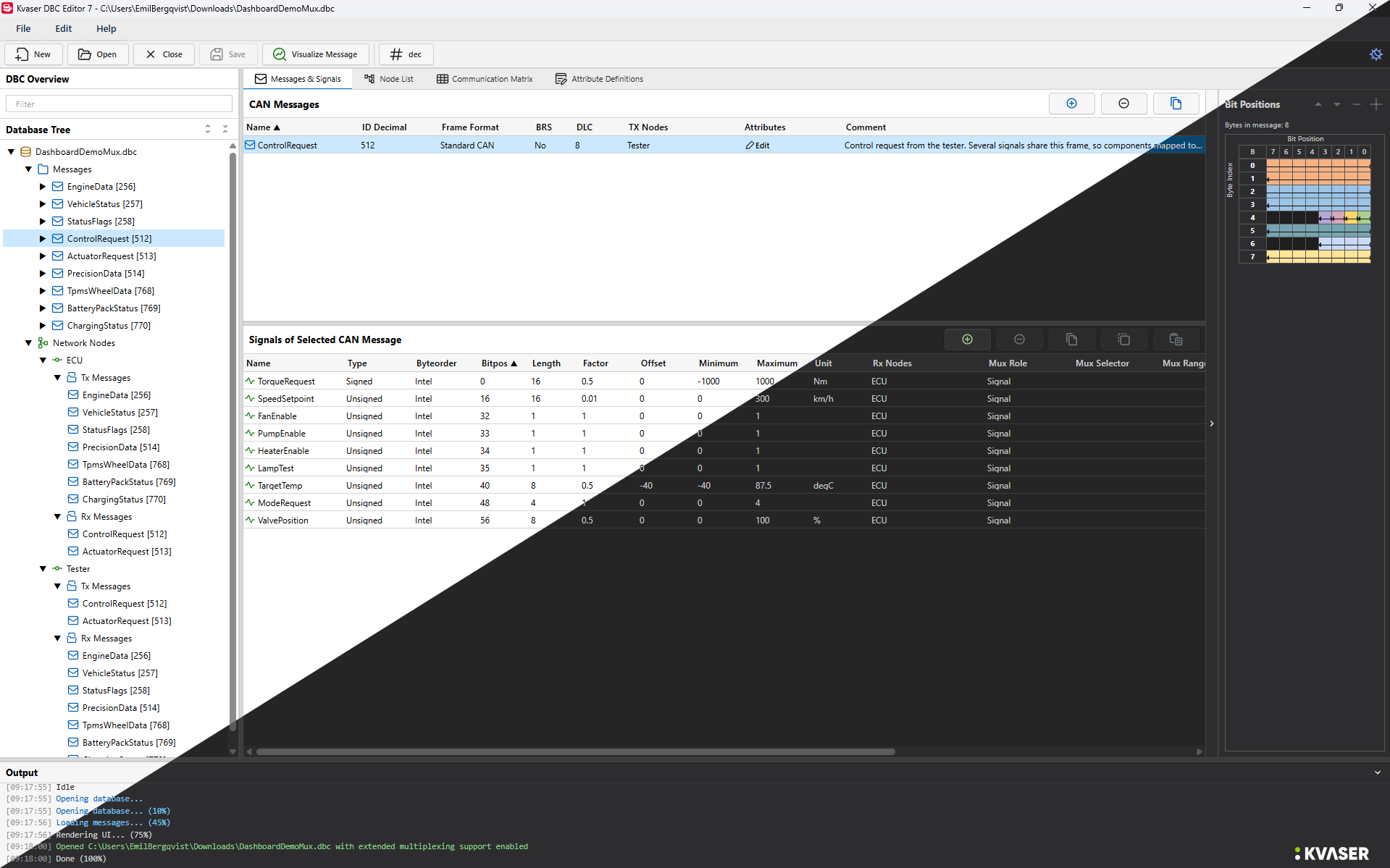

DBC Editor 7 supports dark and light modes, allowing users to switch the appearance of the application to match their working environment.

The built-in database consistency check helps identify problems before a DBC file is used in other applications. It helps ensure consistent message and signal definitions for testing, analysis, and diagnostics.

Bit position visualization shows where signals are located within a CAN message and how the available bits are allocated. It provides a visual overview of the CAN message layout instead of relying only on numerical bit positions.

DBC Editor 7 supports extended multiplexed signals for defining and maintaining more complex CAN message structures in a DBC file. Use extended multiplexing when working with more complex CAN message structures that require extended signal definitions.

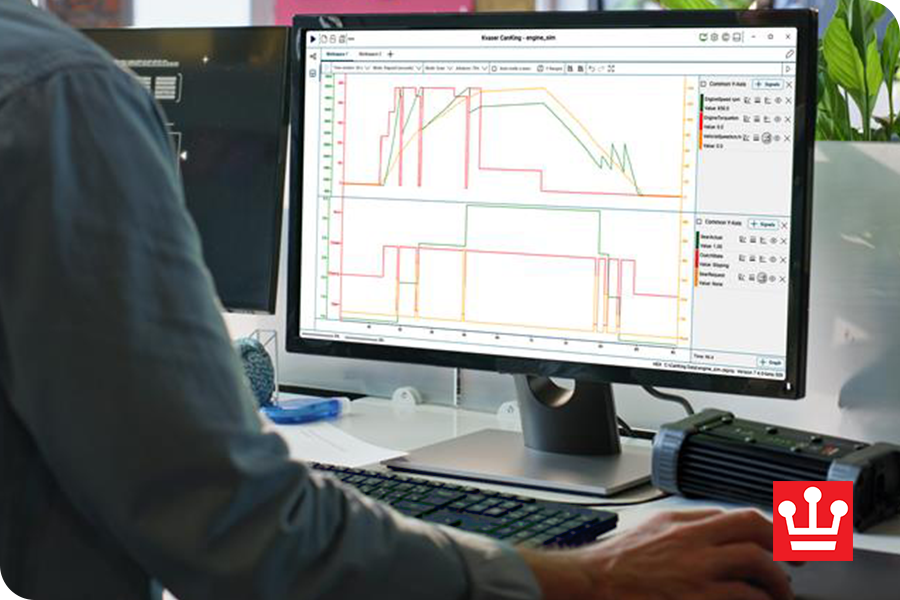

DBC files created or updated in DBC Editor 7 can be used in CanKing 7 when monitoring and analyzing CAN traffic.

Use the same message and signal definitions across both applications, keeping the DBC file consistent from validation through CAN analysis.

Validated DBC definitions help engineers interpret CAN traffic consistently during troubleshooting and analysis.
