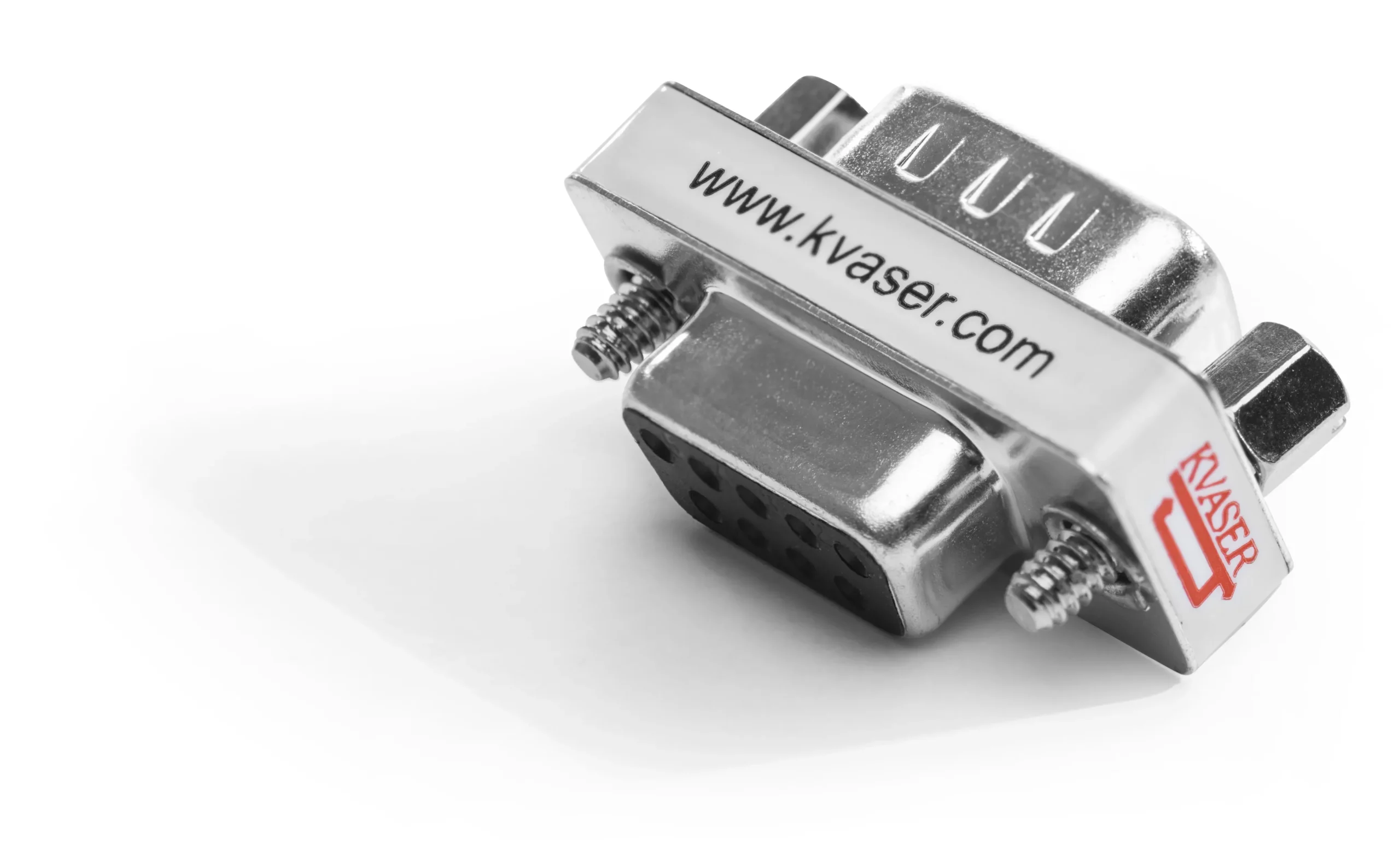

Kvaser D-sub 9 pin 120 Ohm termination adapter
EAN: 73-30130-00801-4
Price: USD 28.00
Log in for tax and shipping information.

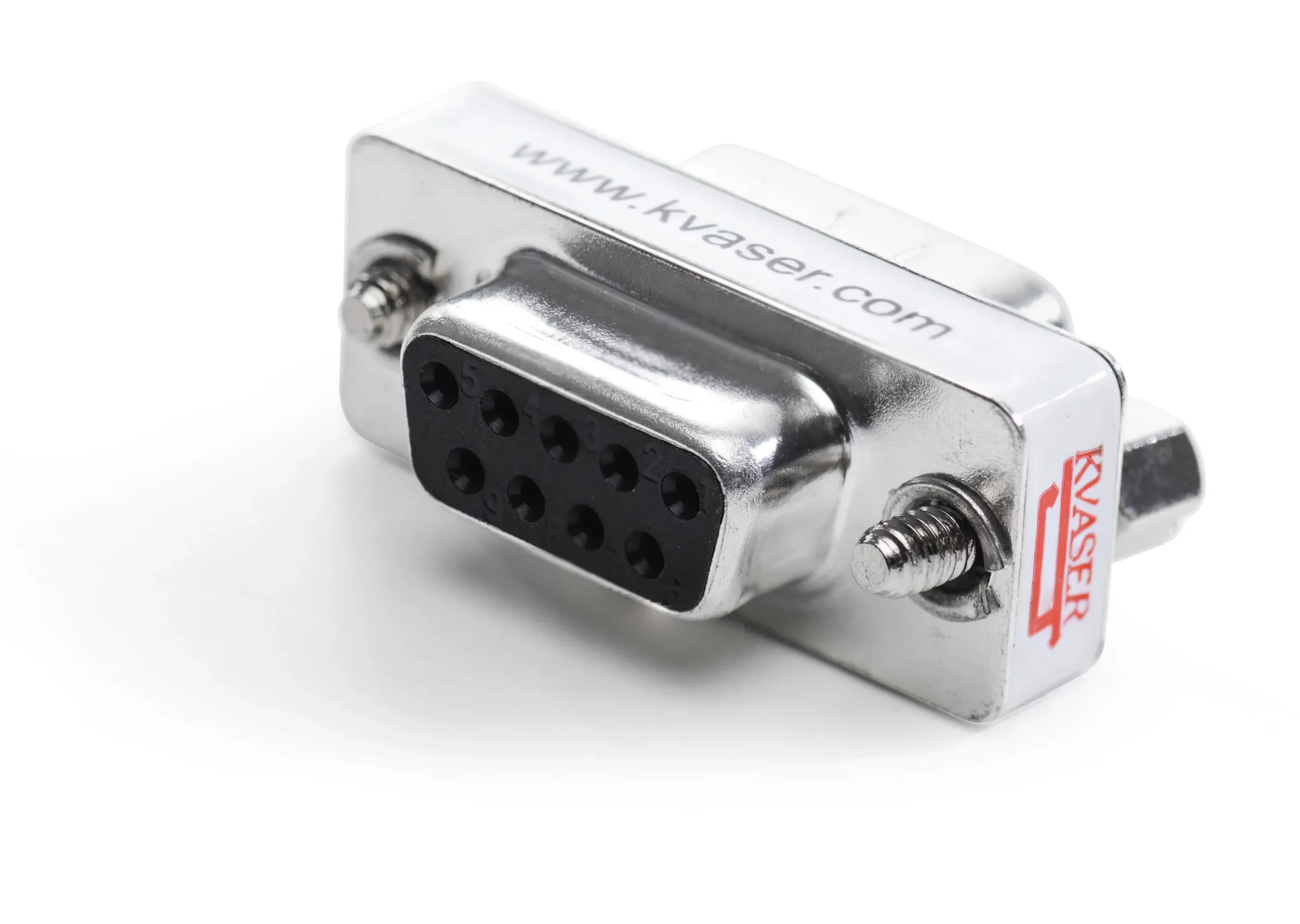

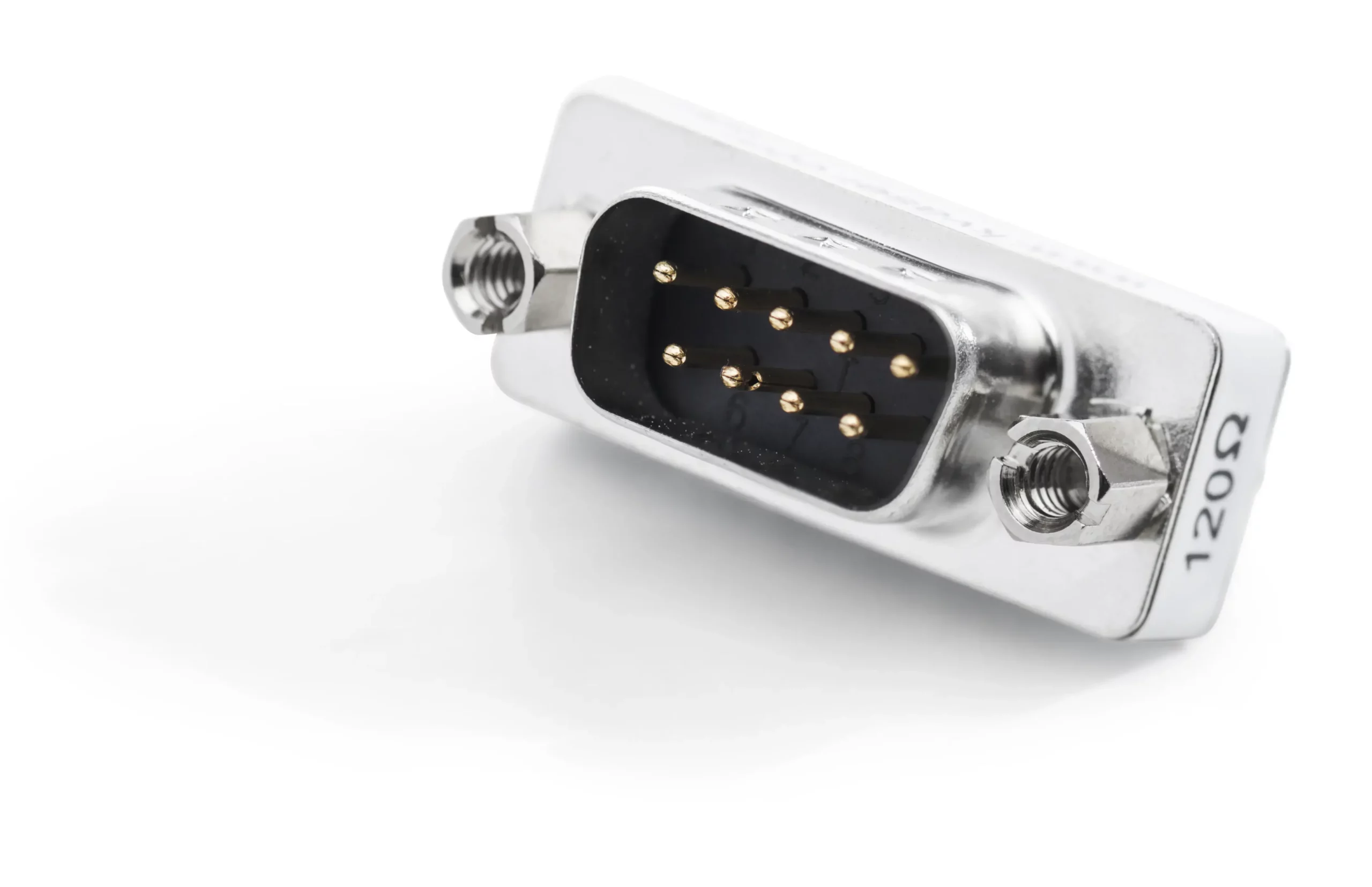

Kvaser D-sub 9 pin 120 Ohm termination adapter is a CAN adaptor with a 9-pin male D-Sub connector at one end and a 9-pin female D-Sub socket at the other. Between CAN High (pin 7) and CAN Low (pin 2) there is a built-in 120 Ohm CAN terminating resistor.
Share
This adapter provides quick and easy termination to any Kvaser high-speed CAN product. The Kvaser CAN termination adapter is used when there is a need to terminate a CAN node without internal termination or when no CAN node is connected to the bus. The Kvaser D-sub 9 pin 120 Ohm termination adapter has a 9-pin male D-Sub plug connector and a 9-pin female D-Sub socket. A 120 ohm terminating resistor sits between pins 2 and 7.
Major Features
9-pin D-Sub male, 9-pin D-Sub female
built-in 120 Ohm CAN terminating resistor
CE & RoHS certified
Warranty
2-Year Warranty. See our General Conditions and Policies for details. Register your product at kvaser.com/getting-started for an additional 1-year Warranty Extension.
Support
Free Technical Support on all products available by contacting [email protected]
Software
Documentation, software and drivers can be downloaded for free at kvaser.com/downloads.
Kvaser CANLIB SDK is a free resource that includes everything you need to develop software for the Kvaser CAN interfaces. Includes full documentation and many program samples, written in C, C++, C#, Delphi, and Visual Basic.
All Kvaser CAN interface boards share a common software API. Programs written for one interface type will run without modifications on the other interface types!
J2534 Application Programming Interface available.
RP1210A Application Programming Interface available.
Online documentation in Windows HTML-Help and Adobe Acrobat format.
- kbps
CABLES, Hardware, Accessories
CE, RoHS
DSUB 9
No
Cable
Linux, Win 7, Win 10, Win 8
No
-30 °C to +85 °C
