Kvaser Eagle

EAN: 73-30130-00567-9

NOTE: The Kvaser Eagle (73-30130-00567-9) has been marked "End of Life".  Existing customers are encouraged to migrate to the Kvaser Memorator Pro 2xHS v2 (73-30130-00819-9).

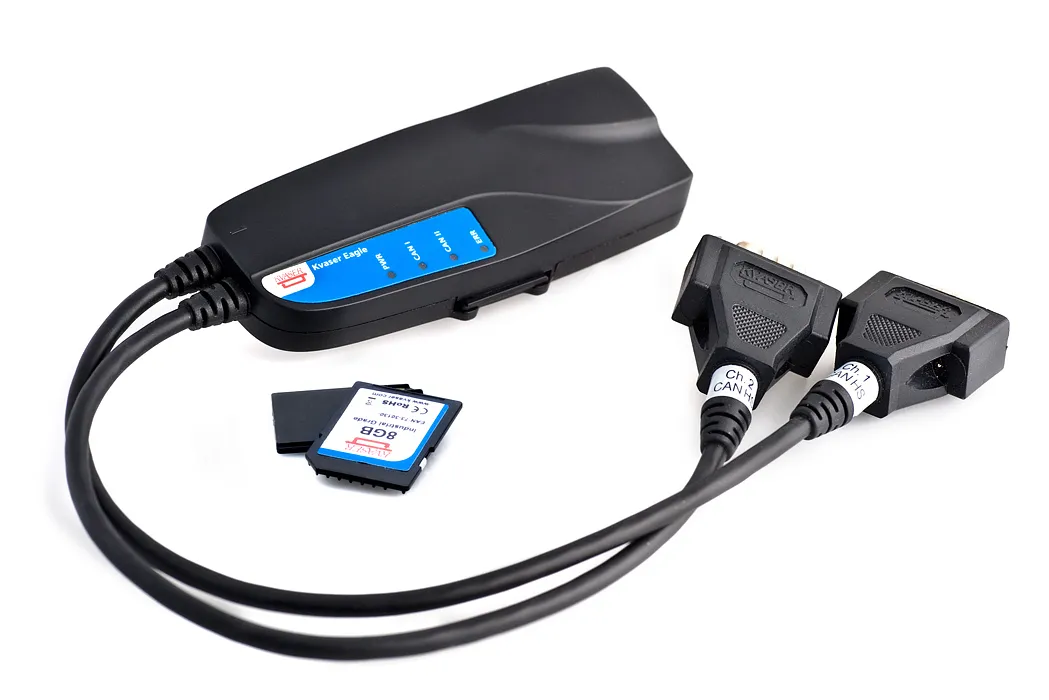

Kvaser Eagle is a powerful dual channel CAN to standard USB high-speed data logger that is capable of running user-developed scripts. As a flexible, versatile, enhanced evolution of the Kvaser Memorator Professional, Kvaser Eagle offers more advanced logging and statistics collection capabilities than most other CAN interface products on the market. Eagle is also capable of collecting signal triggered data and performing periodic information gathering over a much longer period of time, thanks to its high memory capacity and low current consumption.

Major Features

  • Supports both 11-bit (CAN 2.0A) and 29-bit (CAN 2.0B) identifiers.
  • CAN messages are time-stamped with 2 microseconds resolution.
  • Two high-speed CAN channels (compliant with ISO 11898-2), 10kbit/s up to 1 Mbit/s
  • Connect Eagle to a PC to configure bit rates, trigger conditions and filters using Kvaser’s CANlib or Kvaser Memorator Tools.
  • Kvaser Eagle's script functionality, allowing users to develop highly customised t-script applications written in the Kvaser t programming language.
  • Encryption of scripts to protect intellectual property.
  • Plug and play installation, and a comprehensive user guide to help make t script development quick and easy.
  • Three built-in microprocessors (MCUs) that ensure real-time CAN bus performance. One MCU is used to handle each CAN channel and another MCU handles the script, ensuring that Eagle can also handle very large and complex scripts.
  • 200MHz processor performance with minimal current consumption.
  • Large on-board RAM buffer for CAN messages and flashing LED light to alert the user to the buffer being overrun.
  • Higher level protocols such as ISO 15765 and J1939 can be implemented in t-script. Working sample code for ISO 15765-2 is already included.
  • Fully compatible with J1939, CANopen, NMEA 2000® and DeviceNet.

Filters

  • Log continuously, or logging can be triggered by creating advanced triggers based on messages, data signal values, error messages, external trigger's falling or rising edge, and I/O signals.
  • Pre- and post-triggers are available without buffer size restrictions, limited by disk space only.
  • Filter out selectable messages and/or signals to be logged. The identifiers can be picked from a database, or all messages can be logged.
  • Support for pass as well as stop filters.
  • Create a counting pass filter to have a message logged at enumerated occurrence.
  • Handles up to 20,000 msgs/s in standalone logger mode.
  • External digital output that can drive an LED or a buzzer.
  • Supports Silent Mode - Log bus traffic safely without interfering and "listen-only" mode for bus analysis tools.

Memory Cards and Functions

  • Supports SD and SDHC memory card formats.
  • Set up several devices in a daisy chain for larger logging capacity.
  • Configuration Software in the PC
  • Easy to use graphic configuration tool - Memorator Tools.
  • Configuration of the CAN controller, i.e. bit rate and filters.
  • Configuration of the trigger conditions.
  • Configuration of filter for messages to be stored.
  • Configuration upload and download via USB.
  • Using the included Kvaser Dispatcher software, a complete measurement setup can be turned into a self-installing package that is sent to a remote location to carry out a specific logging task.

Warranty

  • 2-Year Warranty. See our General Conditions and Policies for details.

Support

Software

  • Documentation, software and drivers can be downloaded for free at www.kvaser.com/downloads.
  • Kvaser CANLIB SDK is a free resource that includes everything you need to develop software for the Kvaser CAN interfaces. Includes full documentation and many program samples, written in C, C++, C#, Delphi, and Visual Basic.
  • All Kvaser CAN interface boards share a common software API. Programs written for one interface type will run without modifications on the other interface types!
  • J2534 Application Programming Interface available.
  • RP1210A Application Programming Interface available.
  • On-line documentation in Windows HTML-Help and Adobe Acrobat format.
Bitrate

50-1000 kbps

Categories

Dataloggers, PC INTERFACES

Certificates

CE, RoHS

Channels

2

Connectors

DSUB 9

Current Consumption

Typical values are: 150mA if powered from the USB (~ 5V) 900mW when powered from the CAN bus

Error Counters Reading

Yes

Error Frame Generation

Yes

Galvanic Isolation

Yes

Height

25 mm

Included Card Size

8GB

Interfaces

USB

Length

90 mm

Material

PC-ABS

Max Card Size

32

Messages Per Second Receive

20000 mps

Messages Per Second Sending

20000 mps

OS

Win XP, Linux, Win 7, Win Vista, Win 10, Win 8

Silent mode

Yes

Sound

No

Temp range

-30 - 85 °C

Timestamp R (µ)

1 µs

Weight

150 g

Firmware

Kvaser Firmware Update Tool

Firmware Update tool for most Kvaser devices.

Version V4.17.849 Download
Driver

Kvaser DIADEM driver

This free driver for National Instrument's DIAdem supports all CAN hardware from Kvaser.

Version V4.1.0 Download

Kvaser Drivers for Windows

Windows drivers for all our CAN hardware. Please check the release notes for information on which Windows versions are supported. The package also contains a driver for a virtual CAN bus, for testing and evaluation when you don't have access to a physical CAN bus.

Version V5.28.846 Download
Development Kits and Tools

Linux SDK library

Linux SDK library.

Version V5.28.846 Download

Python module

The Canlib module is a Python wrapper for Kvaser CANlib SDK.

Version V1.10.102 Download

Kvaser LabView VI Library for CAN

Library for National Instrument's LabView. Version for all Kvaser CAN hardware.

Version V6.1.0 Download

Kvaser CANlib SDK

Software development kit - everything you need to develop software for the Kvaser CAN and LIN interfaces. Libraries, header files, sample programs for e.g. C, C++, C#, Visual Basic and Delphi, documentation, and more. Note: you need to download and install the appropriate device drivers separately.

Version V5.28.846 Download
Other

Kvaser Database Editor 3

Kvaser Database Editor 3 (candbfd)

Version V3.7.715 Download

Kvaser Database editor

Standalone installer for Kvaser Database Editor.

Version V2.5.475 Download

Kvaser Memorator Tools

Logger setup and configuration program for Kvaser Memorator Professional, Kvaser Memorator and Kvaser Memorator Light.

Version V4.16.847 Download

Kvaser CANKing

A free of charge, general-purpose CAN bus monitor. It works with all CAN interfaces from Kvaser and also with the virtual CAN bus.

Version V6.11.788 Download
Documentation

Specification of Kvaser Memorator Device configuration XML format

Specification of Kvaser Memorator Device configuration XML format

Version V2.0.190512 Download

Kvaser Eagle Users Guide

User guide for Kvaser Eagle

Version V1.1.0 Download

Kvaser Database Editor Users Guide

Kvaser Database Editor User's Guide

Version V2.0.0 Download

Kvaser t Programming Language

Documentation for the t programming language

Version V4.14.190512 Download
Images

Videos

Kvaser Eagle

Kvaser Eagle

TRX Guide

TRX Guide
