Kvaser Hybrid CAN/LIN
EAN: 73-30130-01284-4
Price: USD 551.00
Log in for tax and shipping information.
Kvaser Hybrid CAN/LIN is a flexible, single channel interface that can be assigned as CAN or LIN. This makes the Kvaser Hybrid CAN/LIN a must-have ’universal interface’ for every engineer involved in automotive communications!

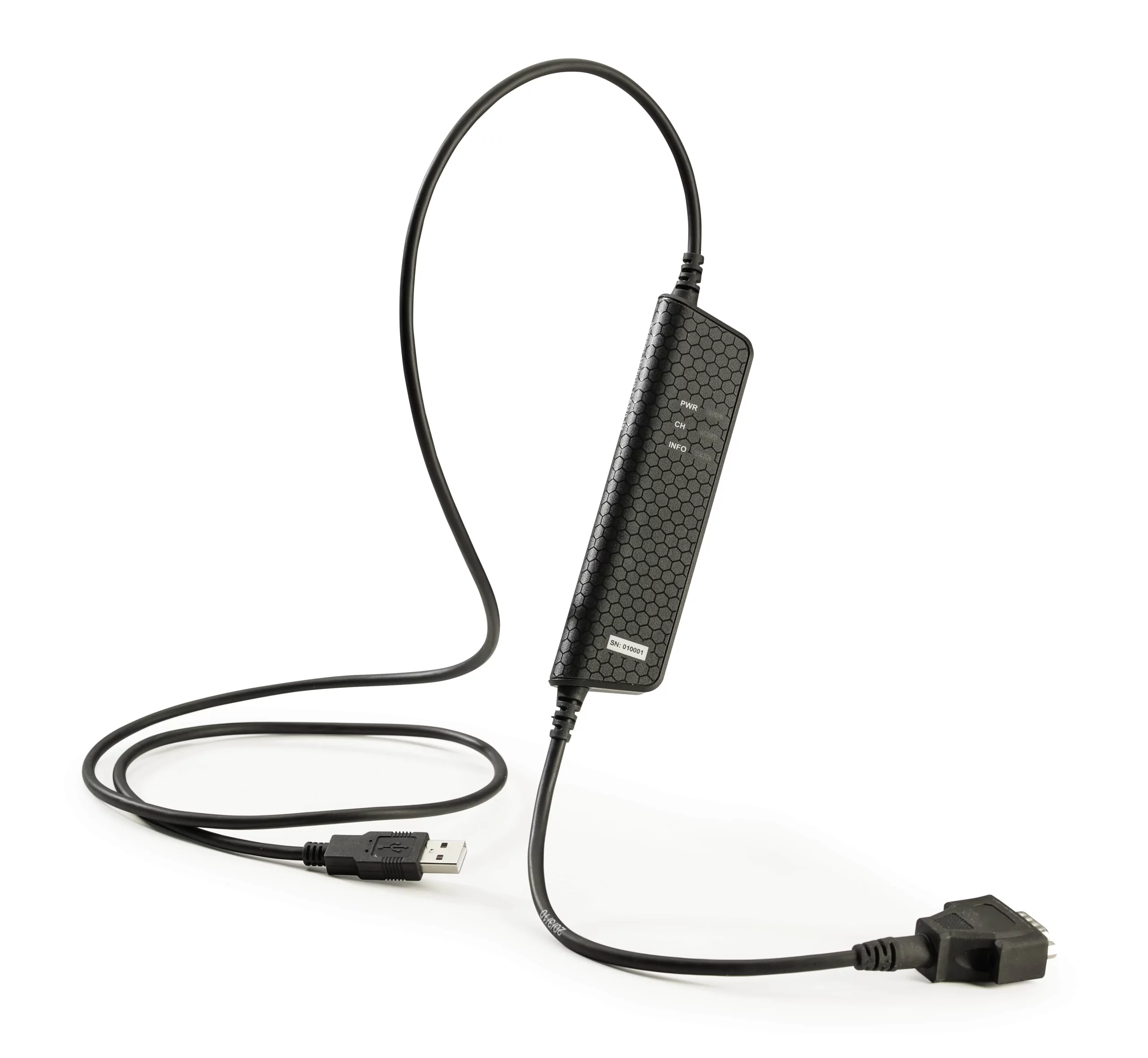

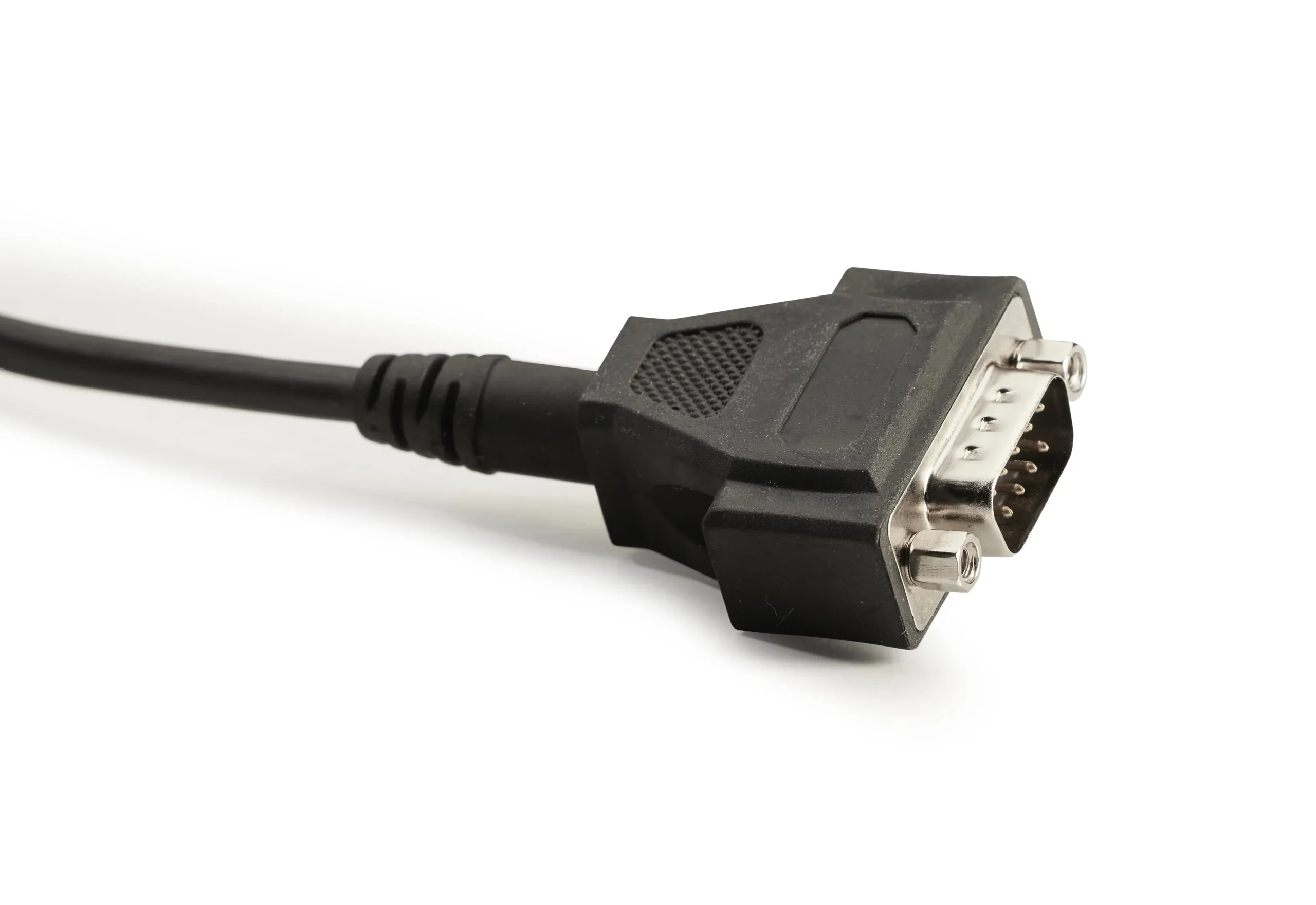

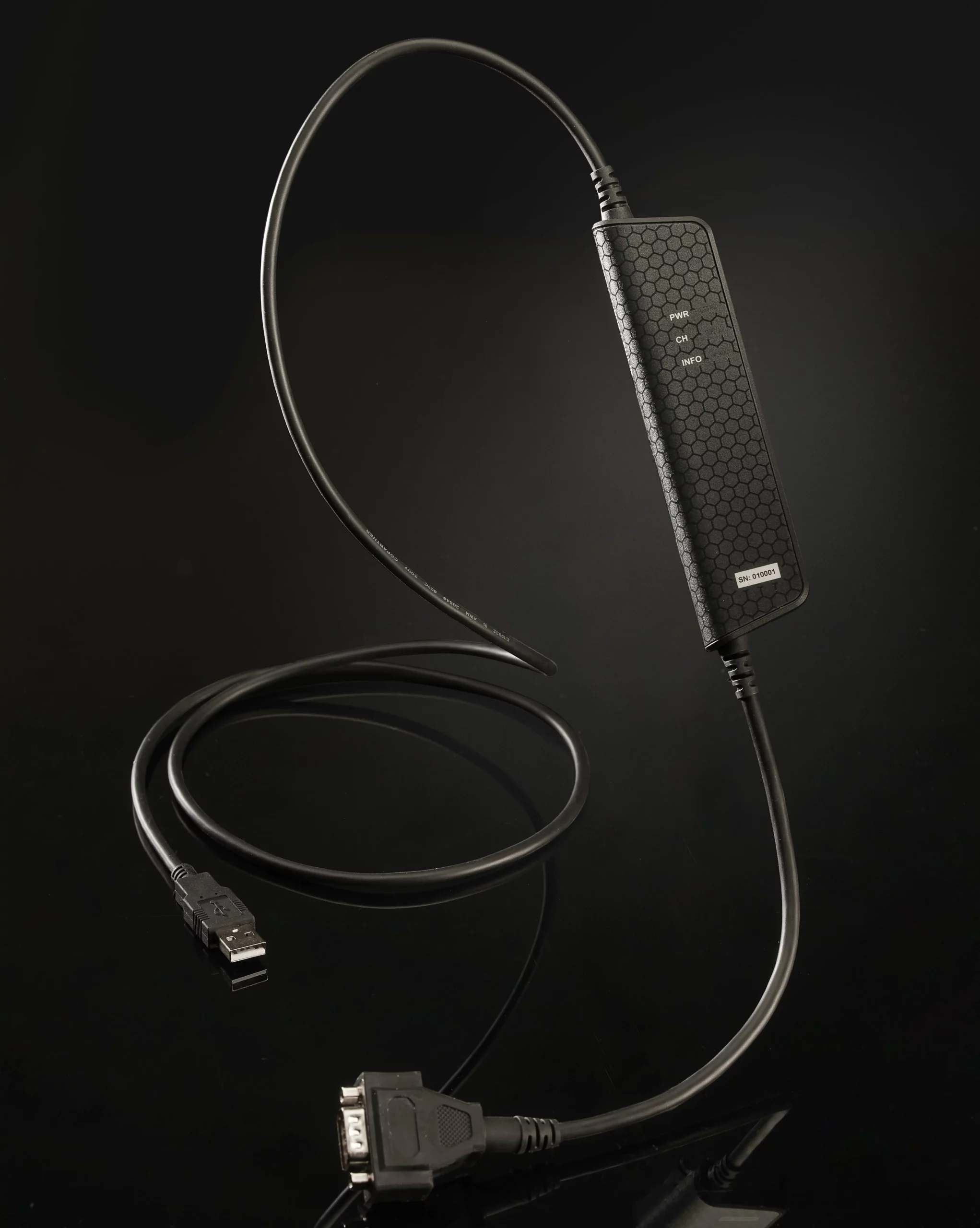

With a standard USB connector and a CAN/LIN channel with a 9-pin D-SUB connector, this high-speed interface can connect a PC to CAN, CAN FD or LIN.
Share
Major Features
- Supports High Speed CAN (ISO 11898-2) up to 1Mbit/s and LIN 2.2A (ISO 17987 Part 1-7) up to 20 kbit/s.
- Capable of sending up to 20000 messages per second.
- Supports CAN FD up to 5Mbit/s (with proper physical layer implementation).
- Quick and easy plug-and-play installation.
- Supports CAN 2.0 A and CAN 2.0 B active.
- Power is taken from the USB bus.

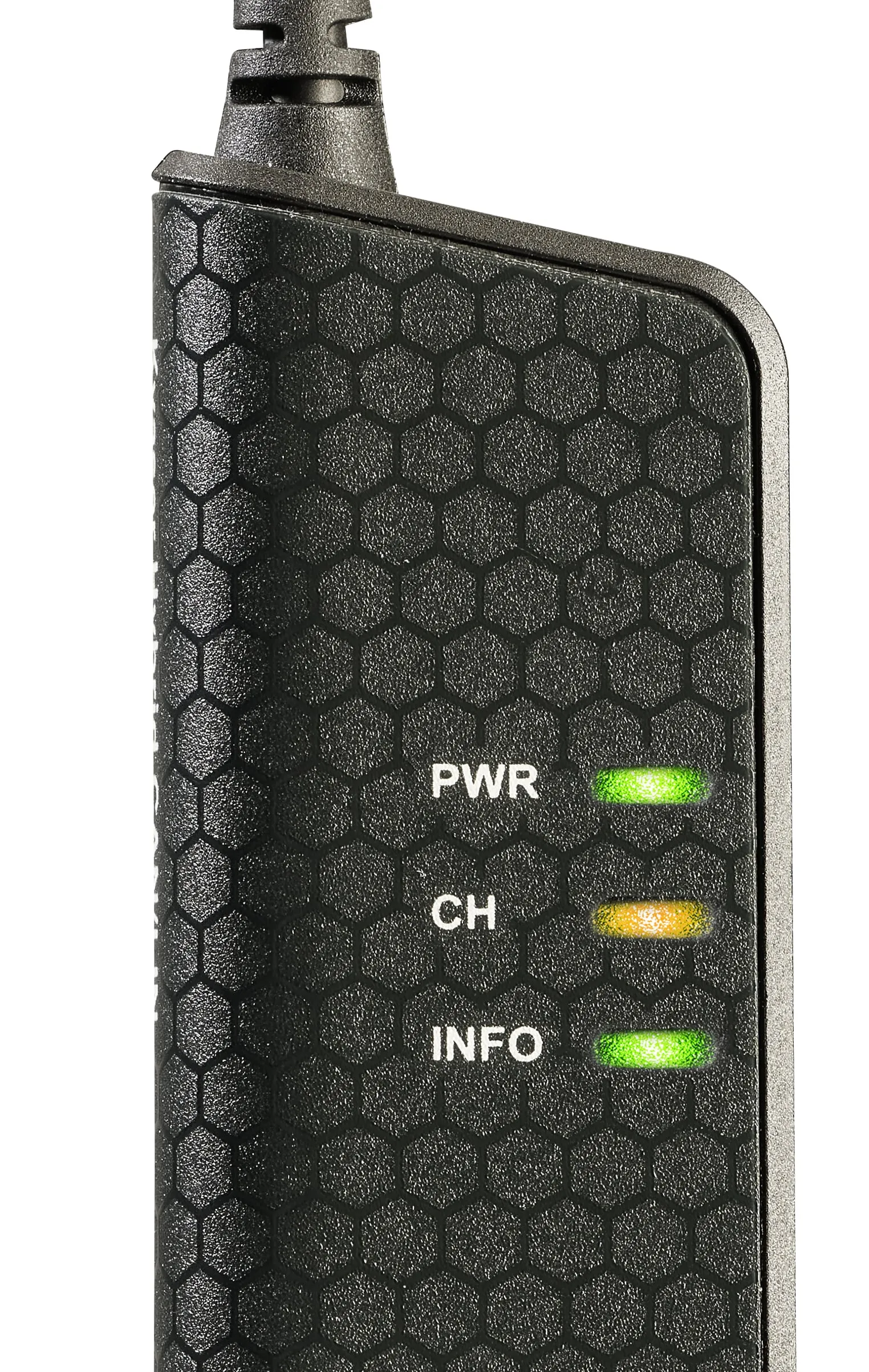

- LED lights alert user to device status.
- Galvanically isolated CAN bus drivers.
- Fully compatible with J1939, CANopen, NMEA 2000 and DeviceNet.
- Supplied with Kvaser CANlib and Kvaser LINlib, free software APIs that are common to all Kvaser hardware and enable the channels to be configured intuitively and fast.
- Extended operating temperature range from -40 to 85 °C.
Warranty
- 2-Year Warranty. See our General Conditions and Policies for details. Register your product at kvaser.com/getting-started for an additional 1-year Warranty Extension.
Support
- Free Technical Support on all products available by contacting [email protected].
Software
- Documentation, software and drivers can be downloaded for free at kvaser.com/downloads.
- Kvaser CANLIB SDK is a free resource that includes everything you need to develop software for the Kvaser CAN interfaces. Includes full documentation and many program samples, written in C, C++, C#, Delphi, and Visual Basic.
- All Kvaser CAN interface boards share a common software API. Programs written for one interface type will run without modifications on the other interface types!
- J2534 Application Programming Interface available.
- RP1210A Application Programming Interface available.
- On-line documentation in Windows HTML-Help and Adobe Acrobat format.
50-1000 kbps
5 Mbit/s
LIN, Interfaces, Hardware, CAN
CE, RoHS
1
DSUB 9
Max 195mA
No
No
Yes
17 mm
USB
165 mm
1-20
PC-ABS
20000 mps
20000 mps
Linux, Win 7, Win 10, Win 8
No
No
-40 °C to +85 °C
50 µs
120 g
Kvaser SocketCAN Drivers for Linux. For using generic SocketCAN API. Only needed if current kernel version of SocketCAN does not recognize new hardware.
Linux drivers and SDK for most Kvaser devices. For using Kvaser proprietary API. Do not install if using SocketCAN.
Windows drivers for all our CAN hardware. Please check the release notes for information on which Windows versions are supported. The package also contains a driver for a virtual CAN bus, for testing and evaluation when you don't have access to a physical CAN bus.
Firmware Update tool for most Kvaser devices.
Kvaser Hybrid CAN/LIN User's Guide
Kvaser CANlib Android Library
The Canlib module is a Python wrapper for Kvaser CANlib SDK.
Software development kit - everything you need to develop software for the Kvaser CAN and LIN interfaces. Libraries, header files, sample programs for e.g. C, C++, C#, Visual Basic and Delphi, documentation, and more. Note: you need to download and install the appropriate device drivers separately.
A free of charge LIN bus viewer. This demo version only operates in slave mode and only monitors the LIN bus. Works with Kvaser Leaf Professional LIN and Hybrid family of products.
A free of charge, general-purpose CAN bus monitor. It works with all CAN interfaces from Kvaser and also with the virtual CAN bus.
