Kvaser Hybrid Pro CAN/LIN
Price: USD 833.00

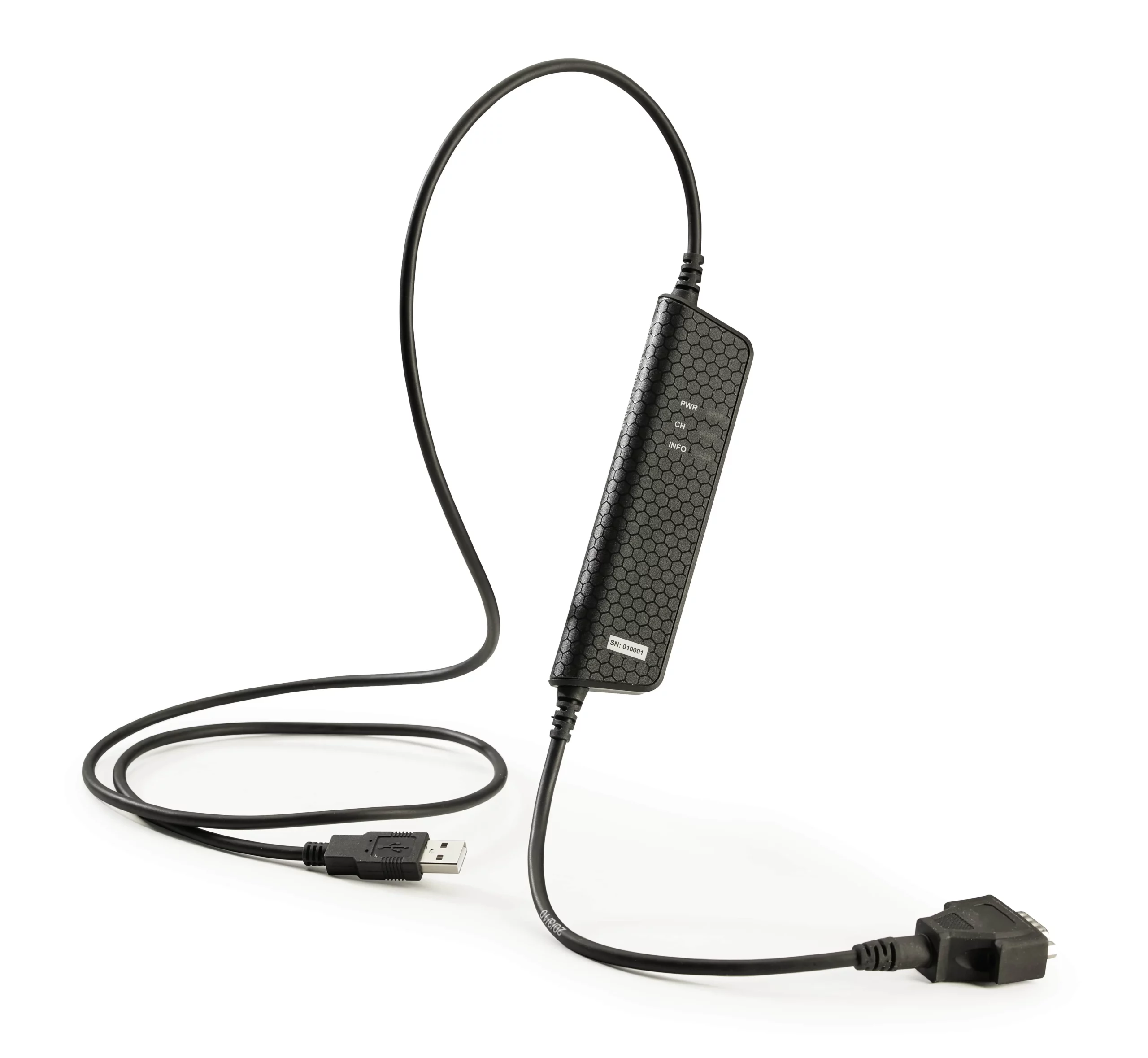

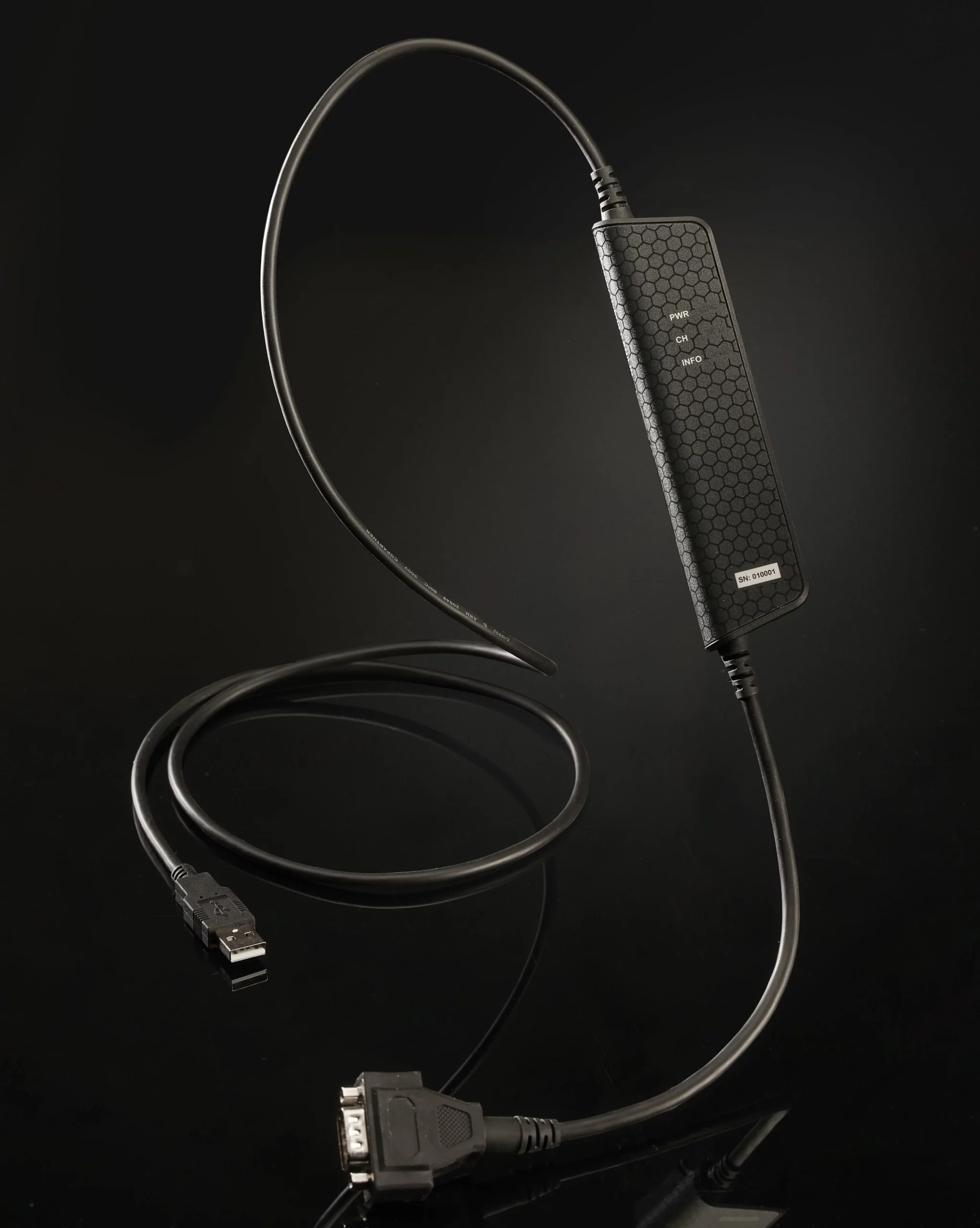

Kvaser Hybrid Pro CAN/LIN is a flexible, single channel interface that can be assigned as either CAN, CAN/FD or LIN. This makes the Kvaser Hybrid Pro CAN/LIN a must-have ’universal interface’ for every engineer involved in automotive communications!
The Pro version offers advanced features such as support for Silent Mode, Error Frame Detection and Generation and Kvaser MagiSync™ automatic clock synchronization. Silent Mode allows you to listen in on a CAN bus without injecting new information that other nodes will detect, whilst Kvaser MagiSync™ synchronizes timestamps across multiple Kvaser MagiSync™-enabled devices without needing extra wires.

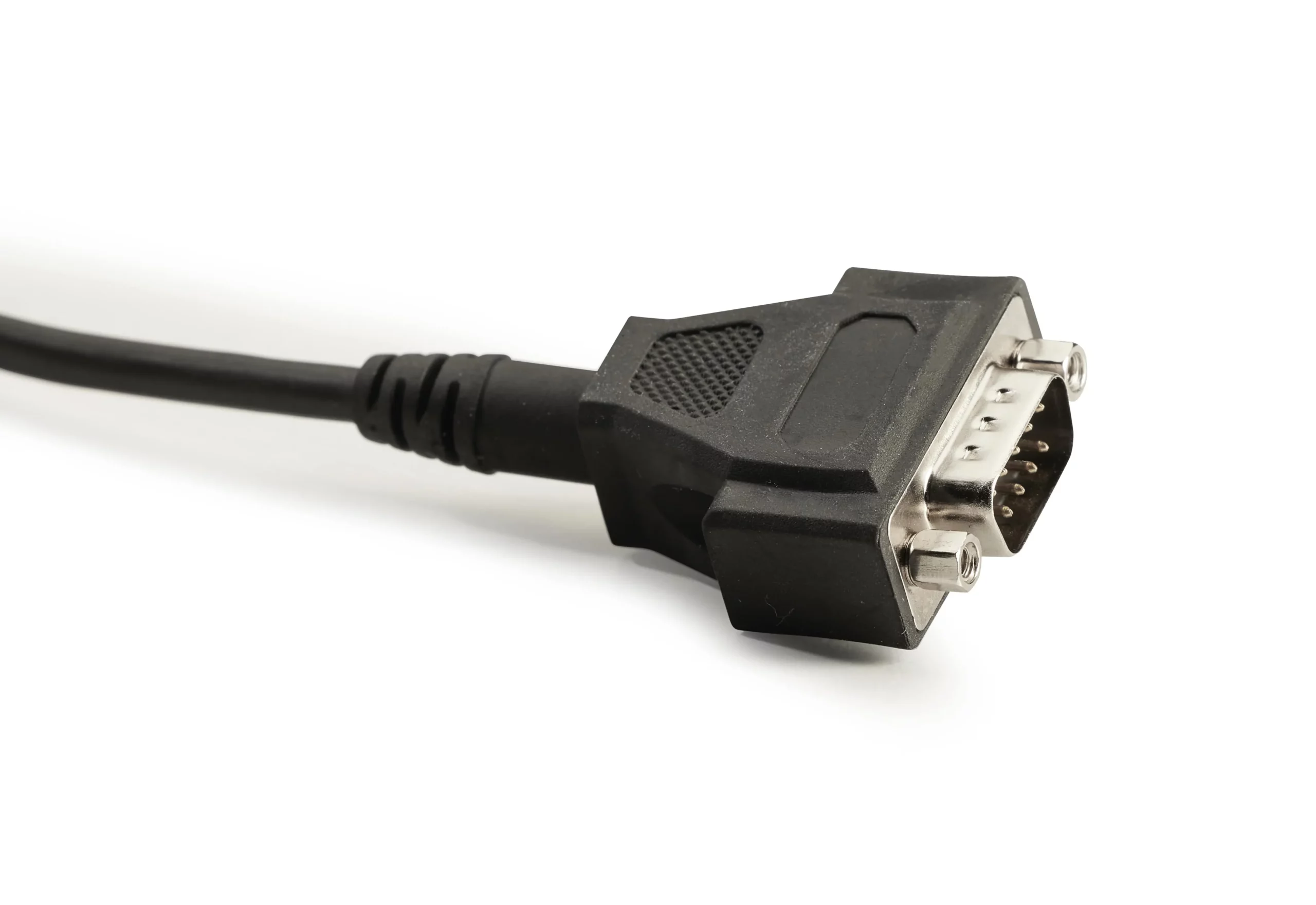

- Hybrid USB CAN/LIN interface with a 9-pin D-SUB.
- t programming allows users to set up complex triggers and filters on the device, perform ECU simulation or transform your device into a gateway/bridge.
- Supports CAN FD, up to 5 Mbit/s (with proper physical layer).
- Supports High Speed CAN (ISO 11898-2) up to 1Mbit/s and LIN 2.2A (ISO 17987 Part 1-7) up to 20 kbit/s.
- Capable of sending up to 20000 messages per second.
- Quick and easy plug-and-play installation.
- Supports CAN 2.0 A and CAN 2.0 B active.
- USB powered (bus V+ reference required for LIN).
- Kvaser MagiSync – automatic time synchronization.

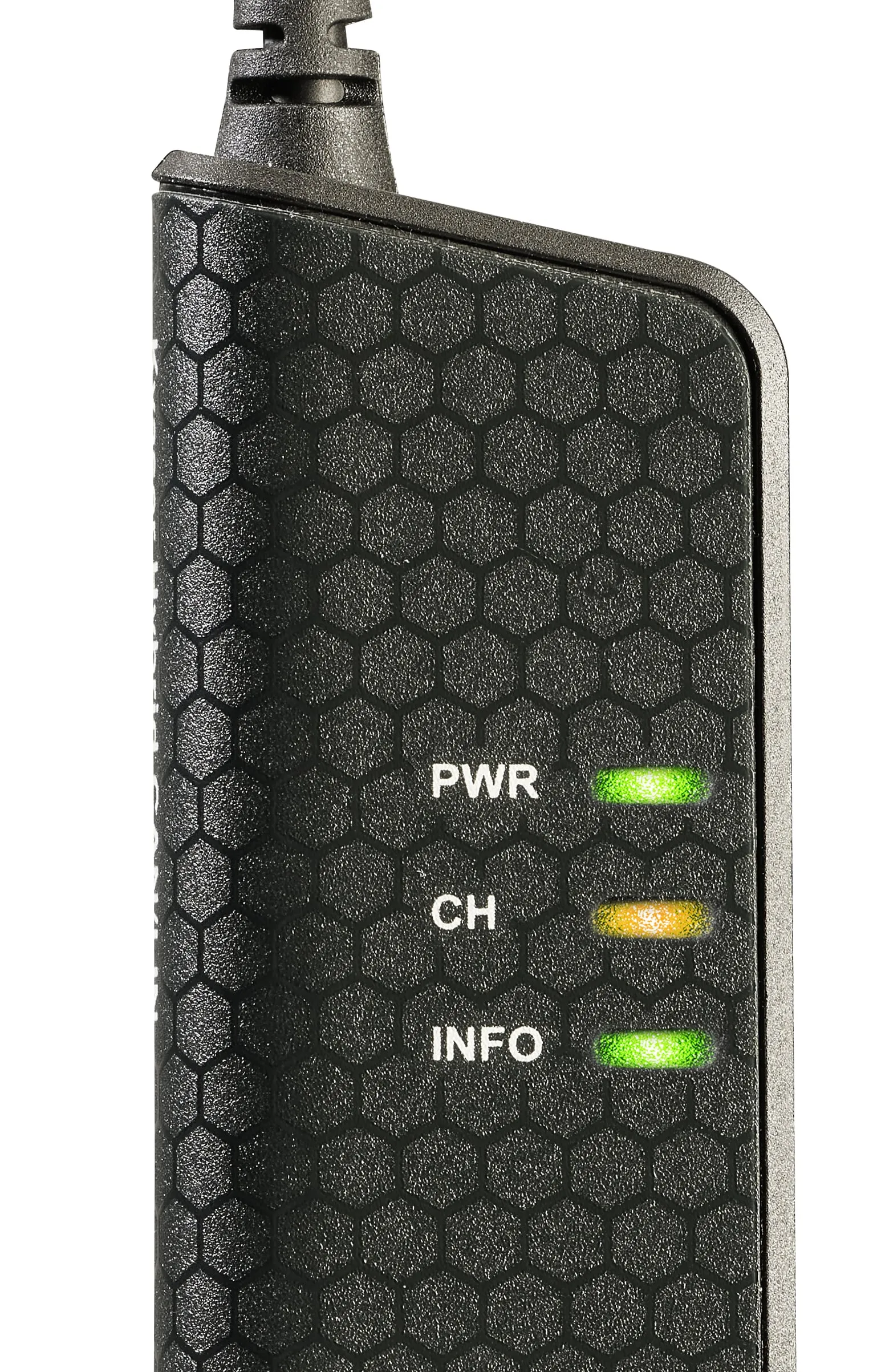

- LED lights alert user to device status.
- Fully compatible with J1939, CANopen, NMEA 2000 and DeviceNet.
- Supplied with Kvaser CANlib and Kvaser LINlib, free software APIs that are common to all Kvaser hardware and enable the channels to be configured intuitively and fast.
- Extended operating temperature range from -40 to 85 °C.
- 2-Year Warranty. See our General Conditions and Policies for details. Register your product at kvaser.com/getting-started for an additional 1-year Warranty Extension.
- Free Technical Support on all products available by contacting [email protected].
- Documentation, software and drivers can be downloaded for free at kvaser.com/downloads.
- Kvaser CANLIB SDK is a free resource that includes everything you need to develop software for the Kvaser CAN interfaces. Includes full documentation and many program samples, written in C, C++, C#, Delphi, and Visual Basic.
- All Kvaser CAN interface boards share a common software API. Programs written for one interface type will run without modifications on the other interface types!
- J2534 Application Programming Interface available.
- RP1210A Application Programming Interface available.
- On-line documentation in Windows HTML-Help and Adobe Acrobat format.
LIN, Interfaces, Hardware, CAN
Linux, Win 7, Win 10, Win 8
-40 °C to +85 °C
Kvaser SocketCAN Drivers for Linux. For using generic SocketCAN API. Only needed if current kernel version of SocketCAN does not recognize new hardware.
Linux drivers and SDK for most Kvaser devices. For using Kvaser proprietary API. Do not install if using SocketCAN.
Windows drivers for all our CAN hardware. Please check the release notes for information on which Windows versions are supported. The package also contains a driver for a virtual CAN bus, for testing and evaluation when you don't have access to a physical CAN bus.
Kvaser CANlib Android Library
The Canlib module is a Python wrapper for Kvaser CANlib SDK.
Software development kit - everything you need to develop software for the Kvaser CAN and LIN interfaces. Libraries, header files, sample programs for e.g. C, C++, C#, Visual Basic and Delphi, documentation, and more. Note: you need to download and install the appropriate device drivers separately.
A free of charge LIN bus viewer. This demo version only operates in slave mode and only monitors the LIN bus. Works with Kvaser Leaf Professional LIN and Hybrid family of products.
A free of charge, general-purpose CAN bus monitor. It works with all CAN interfaces from Kvaser and also with the virtual CAN bus.
