Kvaser Leaf Light HS v2 OBDII

EAN: 73-30130-00732-1
Price: USD 358.00

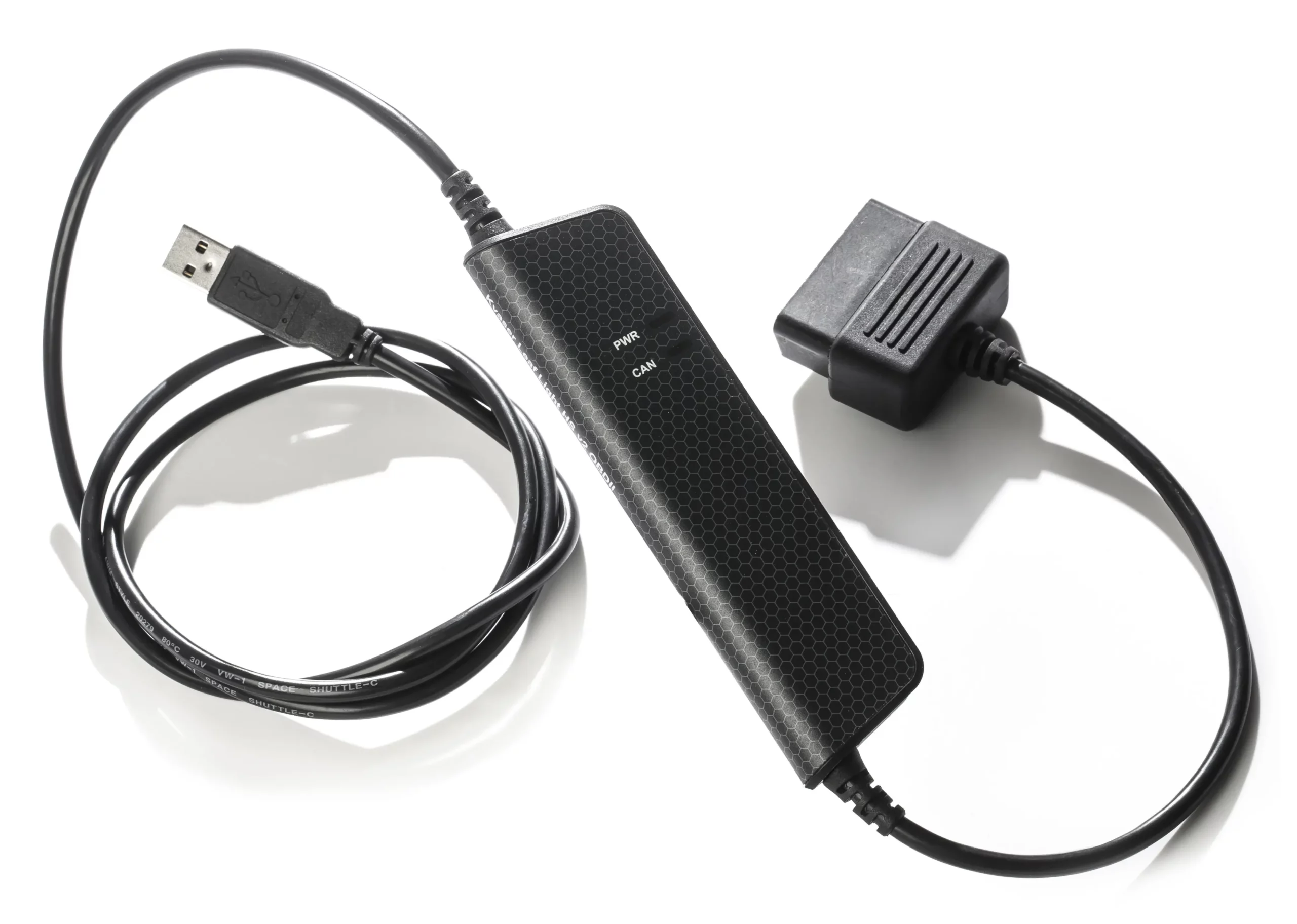

The Leaf Light v2 OBDII provides a simple way of connecting a PC with a vehicle’s on-board computer by means of USB 2.0 connector and a 16-pin OBDII-compliant CAN connector. Having made its name as the work-horse of USB to CAN interfaces, Kvaser's Leaf Light product series provides reliable, low cost tools for connecting any CAN network to a PC or mobile computer in vehicle diagnostic applications and beyond.

Major Features

  • The Kvaser Leaf Light HS V2 OBDII offers loss free transmission and reception of standard and extended CAN messages on the CAN bus.
  • Supports high speed USB and has an OBD2-compliant connector.
  • 8000 messages per second, each time-stamped with 100 microsecond accuracy.
  • Supports both 11-bit (CAN 2.0A) and 29-bit (CAN 2.0B active) identifiers.
  • High-speed CAN connection (compliant with ISO 11898-2), up to 1 Mbit/s.
  • Galvanic isolation, enhancing protection from power surges or electrical shocks.
  • Support for SocketCAN, see elinux.org for details.

Warranty

  • 2-Year Warranty. See our General Conditions and Policies for details.

Support

Software

  • Documentation, software and drivers can be downloaded for free at www.kvaser.com/downloads.
  • Kvaser CANLIB SDK is a free resource that includes everything you need to develop software for the Kvaser CAN interfaces. Includes full documentation and many program samples, written in C, C++, C#, Delphi, and Visual Basic.
  • All Kvaser CAN interface boards share a common software API. Programs written for one interface type will run without modifications on the other interface types!
  • J2534 Application Programming Interface available.
  • RP1210A Application Programming Interface available.
  • On-line documentation in Windows HTML-Help and Adobe Acrobat format.
Bitrate

40-1000 kbps

Buffers

On Board Buffer

Categories

Interfaces, PC INTERFACES

Certificates

CE, RoHS

Channels

1

Connectors

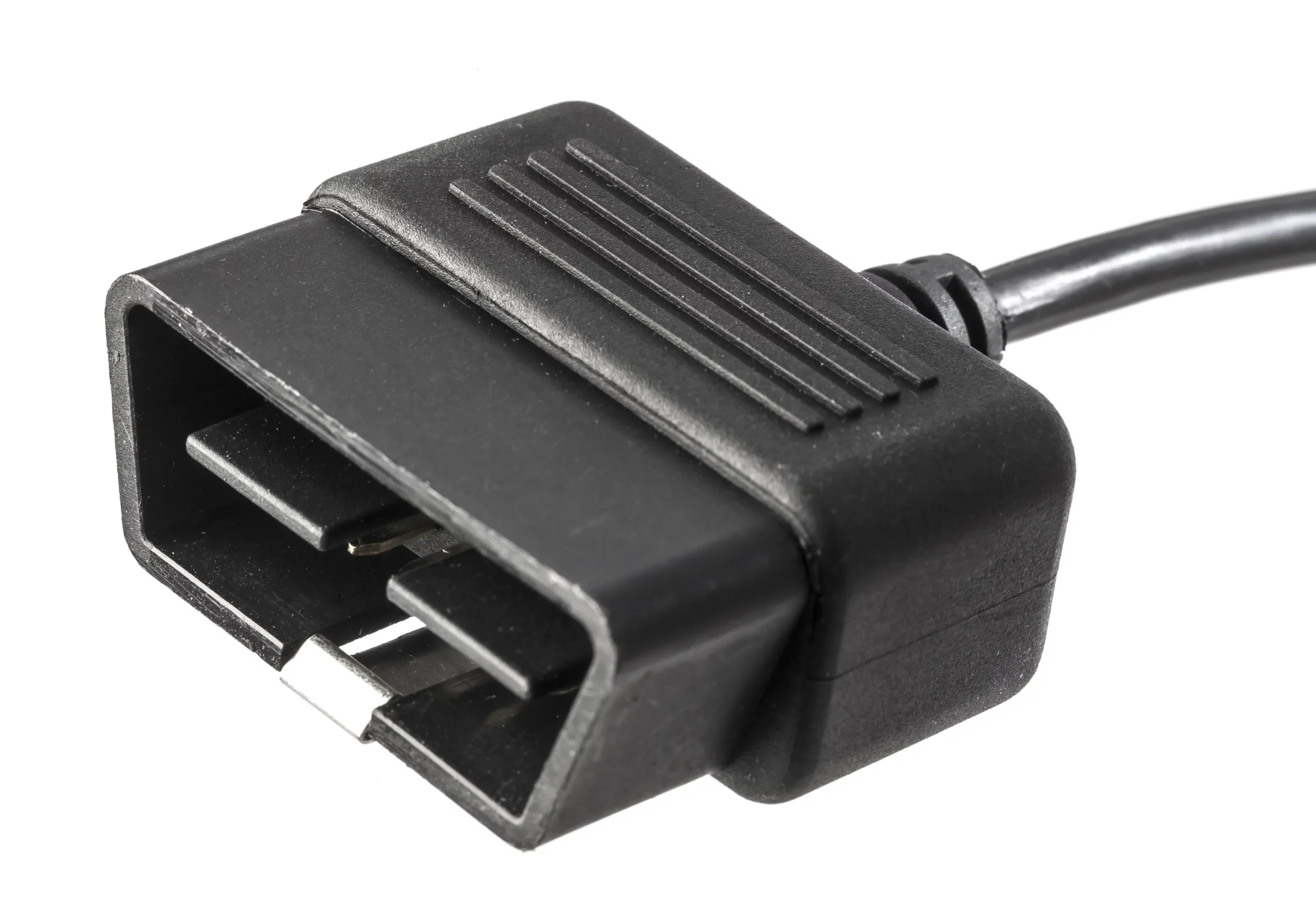

OBD-II /J1962

Current Consumption

Typical 90mA

Error Counters Reading

No

Error Frame Generation

No

Galvanic Isolation

Yes

Height

20 mm

Interfaces

USB

Length

100 mm

Material

PA66

Messages Per Second Receive

8000 mps

Messages Per Second Sending

8000 mps

OS

Win XP, Linux, Win 7, Win Vista, Win 10, Win 8

Silent mode

No

Sound

No

Temp range

-20 - 70 °C

Timestamp R (µ)

100 µs

Weight

100 g

Driver

Kvaser Drivers for Windows

Windows drivers for all our CAN hardware. Please check the release notes for information on which Windows versions are supported. The package also contains a driver for a virtual CAN bus, for testing and evaluation when you don't have access to a physical CAN bus.

Version V5.27.776 Download

Kvaser Linux Drivers and SDK

Linux drivers and SDK for most Kvaser devices.

Version V5.27.776 Download

Kvaser DIADEM driver

This free driver for National Instrument's DIAdem supports all CAN hardware from Kvaser.

Version V4.1.0 Download
Firmware

Kvaser Firmware Update Tool

Firmware Update tool for most Kvaser devices.

Version V4.16.779 Download
Development Kits and Tools

Kvaser CANlib SDK

Software development kit - everything you need to develop software for the Kvaser CAN and LIN interfaces. Libraries, header files, sample programs for e.g. C, C++, C#, Visual Basic and Delphi, documentation, and more. Note: you need to download and install the appropriate device drivers separately.

Version V5.27.776 Download

Kvaser LabView VI Library for CAN

Library for National Instrument's LabView. Version for all Kvaser CAN hardware.

Version V6.1.0 Download

Python module

The Canlib module is a Python wrapper for Kvaser CANlib SDK.

Version V1.9.909 Download
Other

Kvaser CANKing

A free of charge, general-purpose CAN bus monitor. It works with all CAN interfaces from Kvaser and also with the virtual CAN bus.

Version V6.10.753 Download
Documentation

Kvaser Leaf v2 User Guide

User's guide for Leaf Light v2

Version V12.0.190303 Download

Kvaser Leaf Installation Guide

Kvaser Leaf Installation Guide

Version V4.1.0 Download
