Kvaser Leaf Light R v2
EAN: 73-30130-00921-9
Price: USD 506.00

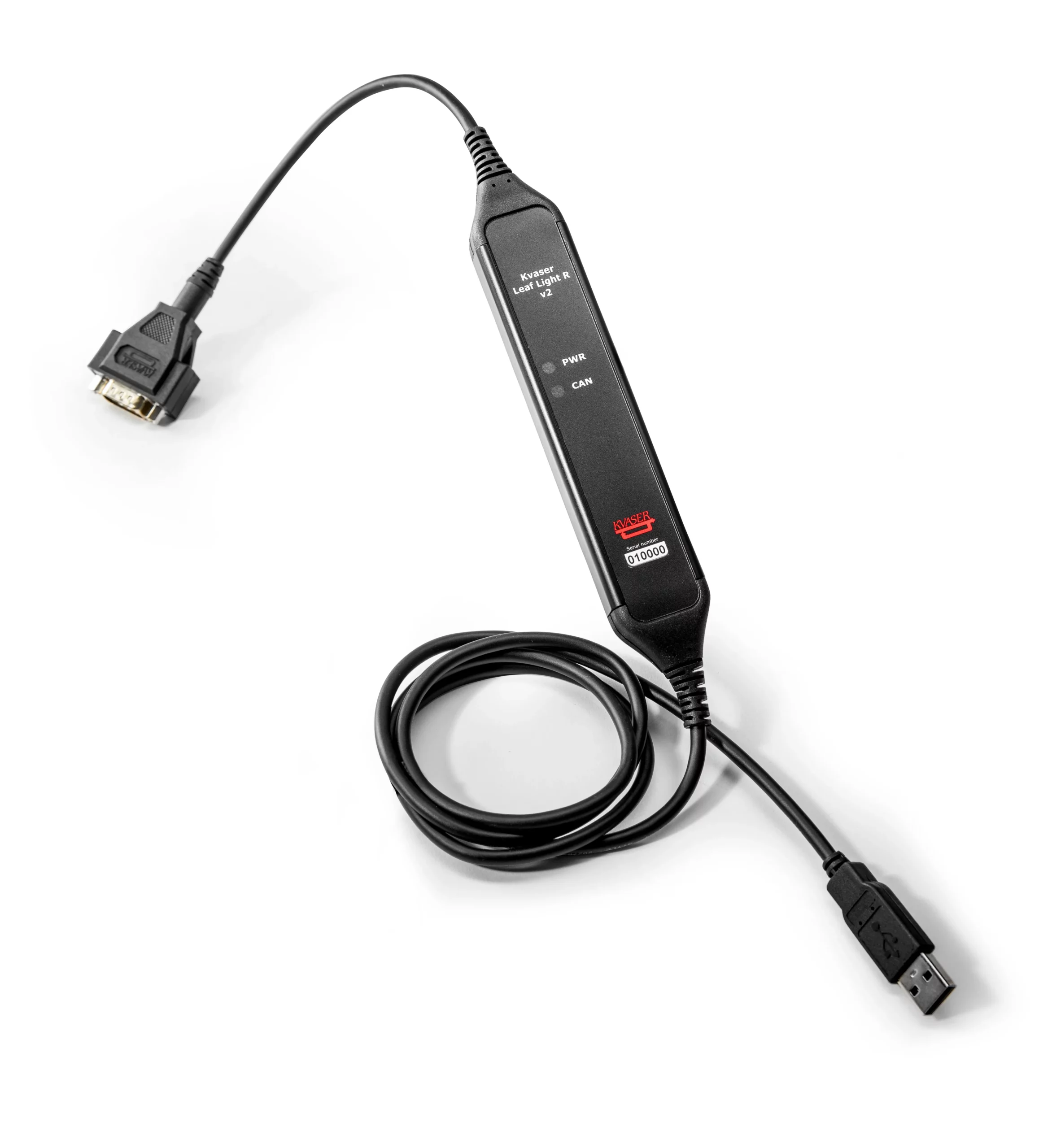

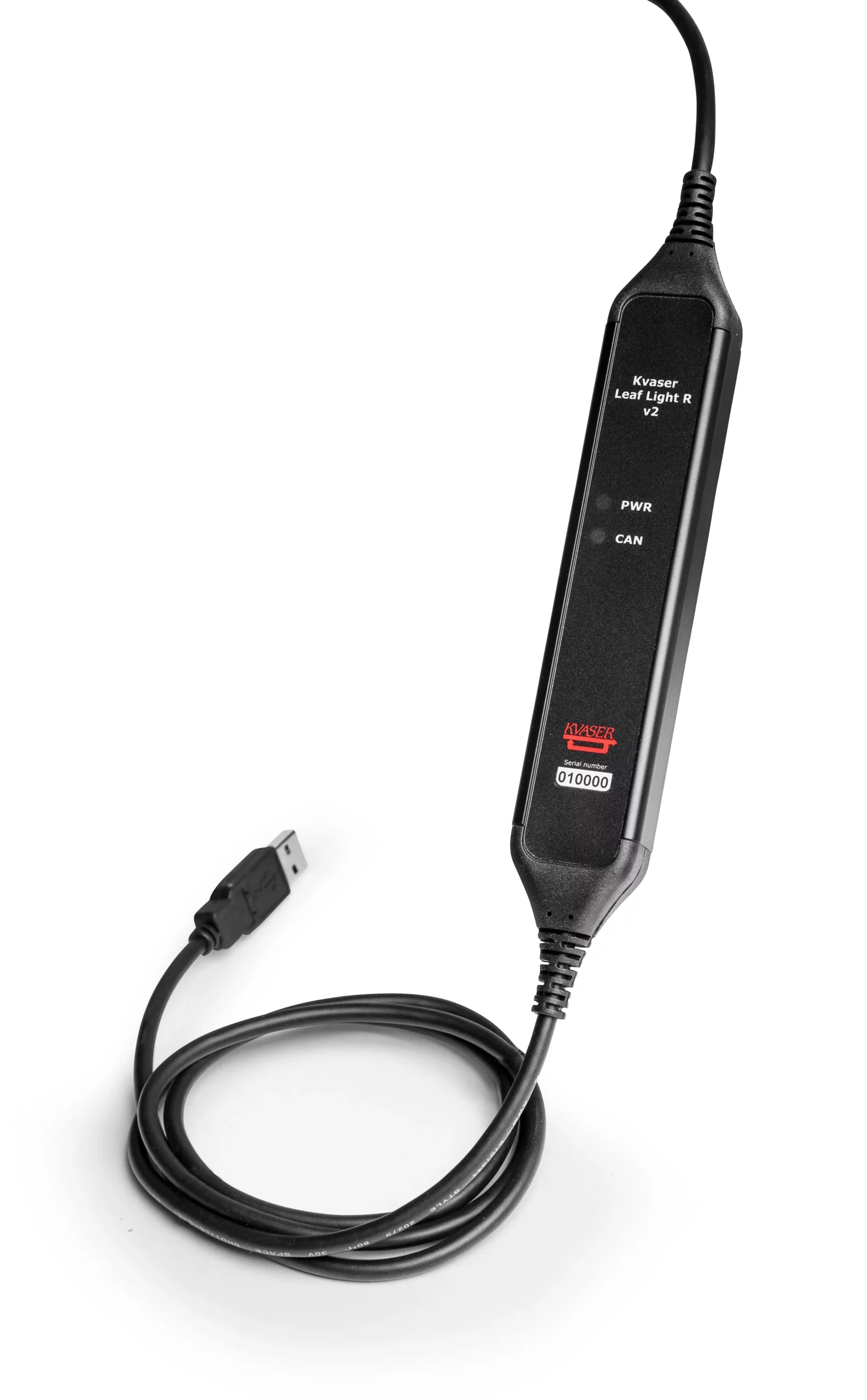

The Kvaser Leaf Light R v2 is the rugged version of Kvaser’s popular Leaf Light v2 interface. This is a single channel CAN bus interface with a lightweight yet highly durable, IP65-rated housing that assures reliable protection against water and dust ingress. Vibration, shock and drop proof, this interface belongs to Kvaser’s Rugged range and operates over a temperature range of -40 to +70°C.
With a standard USB2.0 connection and a high-speed CAN channel in a 9-pin D-SUB CAN connector, the Kvaser Leaf Light R v2 handles transmission and reception of standard and extended CAN messages, with a time stamp precision of 100 microseconds. Features include error frame detection and LED indicators for power and CAN channel status.
Major Features:
- USB CAN interface. IP65 rated lightweight aluminum housing, sealed with polyurethane coating.
- Capable of sending up to 8000 messages per second, time-stamped with 100 microsecond accuracy.
- Quick and easy plug-and-play installation.
- Supports High Speed CAN (ISO 11898-2) up to 1Mbit/s.
- Supports both 11-bit (CAN 2.0A) and 29-bit (CAN 2.0B active) identifiers.
- Power is taken from the USB bus.
- Detection of error frames.
- LED lights alert user to device status.
- 100% compatible with applications written for other Kvaser CAN hardware with Kvaser CANlib.
- Fully compatible with J1939, CANopen, NMEA 2000R and DeviceNet.
- Operating temperature range from -40 to 70°C.
Warranty
-
2-Year Warranty. See our General Conditions and Policies for details. Register your product at kvaser.com/getting-started for an additional 1-year Warranty Extension.
Support
-
Free Technical Support on all products available by contacting [email protected]
Software
- Documentation, software and drivers can be downloaded for free at kvaser.com/downloads.
- Kvaser CANLIB SDK is a free resource that includes everything you need to develop software for the Kvaser CAN interfaces. Includes full documentation and many program samples, written in C, C++, C#, Delphi, Java, Python and Visual Basic.
- All Kvaser CAN interface boards share a common software API. Programs written for one interface type will run without modifications on the other interface types!
- J2534 Application Programming Interface available.
- RP1210A Application Programming Interface available.
- On-line documentation in Windows HTML-Help and Adobe Acrobat format.
Bitrate
50-1000 kbps
Categories
Interfaces, Hardware, CAN
Certificates
CE, RoHS
Channels
1
Connectors
DSUB 9
Current Consumption
Typical 90mA
Error Counters Reading
No
Error Frame Generation
No
Galvanic Isolation
Yes
Height
30 mm
Interfaces
USB
Length
200 mm
Material
Aluminium
Messages Per Second Receive
8000 mps
Messages Per Second Sending
8000 mps
OS
Linux, Win 7, Win 10, Win 8
Silent mode
No
Sound
No
Temp range
-40 °C to +70 °C
Timestamp Resolution (µs)
100 µs
Weight
148 g
Driver
Kvaser Linux Drivers and SDK
Linux drivers and SDK for most Kvaser devices.
Kvaser DIADEM driver
This free driver for National Instrument's DIAdem supports all CAN hardware from Kvaser.
Kvaser Drivers for Windows
Windows drivers for all our CAN hardware. Please check the release notes for information on which Windows versions are supported. The package also contains a driver for a virtual CAN bus, for testing and evaluation when you don't have access to a physical CAN bus.
Firmware
Kvaser Firmware Update Tool
Firmware Update tool for most Kvaser devices.
Development Kits and Tools
Python module
The Canlib module is a Python wrapper for Kvaser CANlib SDK.
Kvaser LabView VI Library for CAN
Library for National Instrument's LabView. Version for all Kvaser CAN hardware.
Kvaser CANlib SDK
Software development kit - everything you need to develop software for the Kvaser CAN and LIN interfaces. Libraries, header files, sample programs for e.g. C, C++, C#, Visual Basic and Delphi, documentation, and more. Note: you need to download and install the appropriate device drivers separately.
Documentation
Kvaser Leaf Light R v2 User's Guide
User's Guide for Kvaser Leaf Light R v2
Other
Kvaser CANKing
A free of charge, general-purpose CAN bus monitor. It works with all CAN interfaces from Kvaser and also with the virtual CAN bus.
