Kvaser Leaf Pro HS v2

EAN: 73-30130-00843-4
Price: USD 842.00

Kvaser Leaf Pro HS v2 is an evolution of the Leaf family that bring programmability to user’s fingertips, as well as CAN with Flexible Data-Rate (CAN FD). Kvaser’s Pro versions boast a high transmit capability that meets the needs of CAN FD frames. It also supports customisation using Kvaser’s t programming language. For example, users can run a t program to speed up file transfer protocols or to emulate ECUs and other devices by generating traffic and handling protocols. This model has a standard 9-pin DSUB, bus is also available with a 16-pin OBDII connector. Please see Kvaser Leaf Pro HS v2 OBDII for details.

Features

• Supports CAN FD.
• Quick and easy plug-and-play installation.
• Supports both 11-bit (CAN 2.0A) and 29-bit (CAN 2.0B active) identifiers.
• Power is taken from the USB bus.
• Galvanic isolation.
• High-speed CAN connection (compliant with ISO 11898-2), up to 1 Mbit/s.
• Fully compatible with J1939, CANopen, NMEA 2000 and DeviceNet.
• Kvaser MagiSync provides automatic time synchronization between several PC-to-bus interfaces connected to the same PC.
• Programming functionality to support interface mode e.g. Optimize protocol handling, pre-filter CAN messages directly on the interface, or simulate missing hardware.
• Simultaneous operation of multiple devices.
• Supported by SocketCAN.

Warranty

• 2-Year Warranty. See our General Conditions and Policies for details.

Support

• Free Technical Support on all products available by contacting [email protected]

Software

• Documentation, software and drivers can be downloaded for free at www.kvaser.com/downloads.
• Kvaser CANLIB SDK is a free resource that includes everything you need to develop software for the Kvaser CAN interfaces. Includes full documentation and many program samples, written in C, C++, C#, Delphi, and Visual Basic.
• All Kvaser CAN interface boards share a common software API. Programs written for one interface type will run without modifications on the other interface types!
• J2534 Application Programming Interface available.
• RP1210A Application Programming Interface available.
• On-line documentation in Windows HTML-Help and Adobe Acrobat format.

Bitrate

40-1000 kbps

Buffers

Auto TX Buffers, On Board Buffer

Categories

Interfaces, PC INTERFACES

Certificates

CE, RoHS

Channels

1

Connectors

DSUB 9

Current Consumption

Max 195mA

Error Counters Reading

Yes

Error Frame Generation

Yes

Galvanic Isolation

Yes

Height

17 mm

Interfaces

USB

Length

165 mm

Material

PA66

Messages Per Second Receive

20000 mps

Messages Per Second Sending

20000 mps

OS

Win XP, Linux, Win 7, Win Vista, Win 10, Win 8

Silent mode

Yes

Sound

No

Temp range

-40 - 85 °C

Timestamp R (µ)

1 µs

Weight

120 g

Driver

Kvaser Drivers for Windows

Windows drivers for all our CAN hardware. Please check the release notes for information on which Windows versions are supported. The package also contains a driver for a virtual CAN bus, for testing and evaluation when you don't have access to a physical CAN bus.

Version V5.26.679 Download

Kvaser Linux Drivers and SDK

Linux drivers and SDK for most Kvaser devices.

Version V5.26.679 Download

Kvaser DIADEM driver

This free driver for National Instrument's DIAdem supports all CAN hardware from Kvaser.

Version V4.1.0 Download
Firmware

Kvaser Firmware Update Tool

Firmware Update tool for most Kvaser devices.

Version V4.15.682 Download
Development Kits and Tools

Kvaser CANlib SDK

Software development kit - everything you need to develop software for the Kvaser CAN and LIN interfaces. Libraries, header files, sample programs for e.g. C, C++, C#, Visual Basic and Delphi, documentation, and more. Note: you need to download and install the appropriate device drivers separately.

Version V5.26.679 Download

Python module

The Canlib module is a Python wrapper for Kvaser CANlib SDK.

Version V1.8.812 Download

Kvaser LabView VI Library for CAN

Library for National Instrument's LabView. Version for all Kvaser CAN hardware.

Version V6.1.0 Download
Other

Kvaser CANKing

A free of charge, general-purpose CAN bus monitor. It works with all CAN interfaces from Kvaser and also with the virtual CAN bus.

Version V6.9.704 Download
Documentation

Kvaser Leaf Pro HS v2 Users Guide

Kvaser Leaf Pro HS v2 User's Guide

Version V3.0.181126 Download

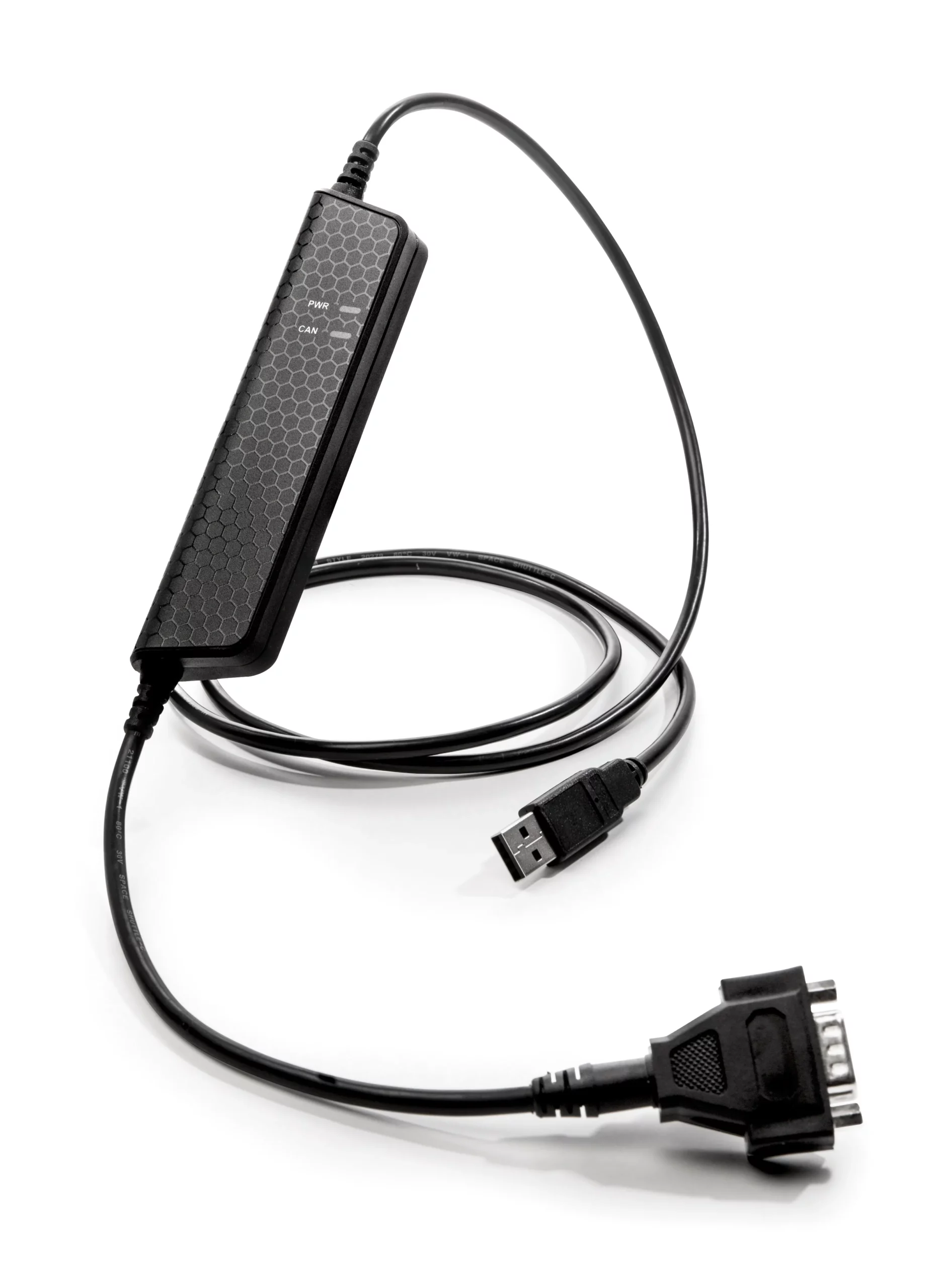

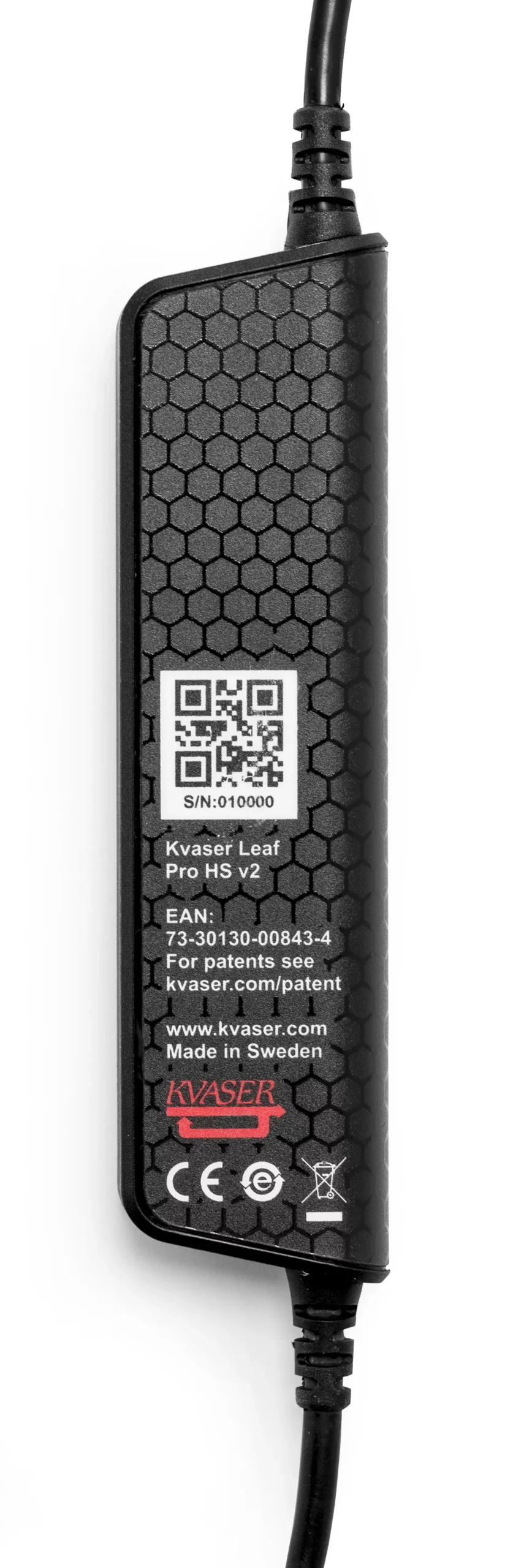

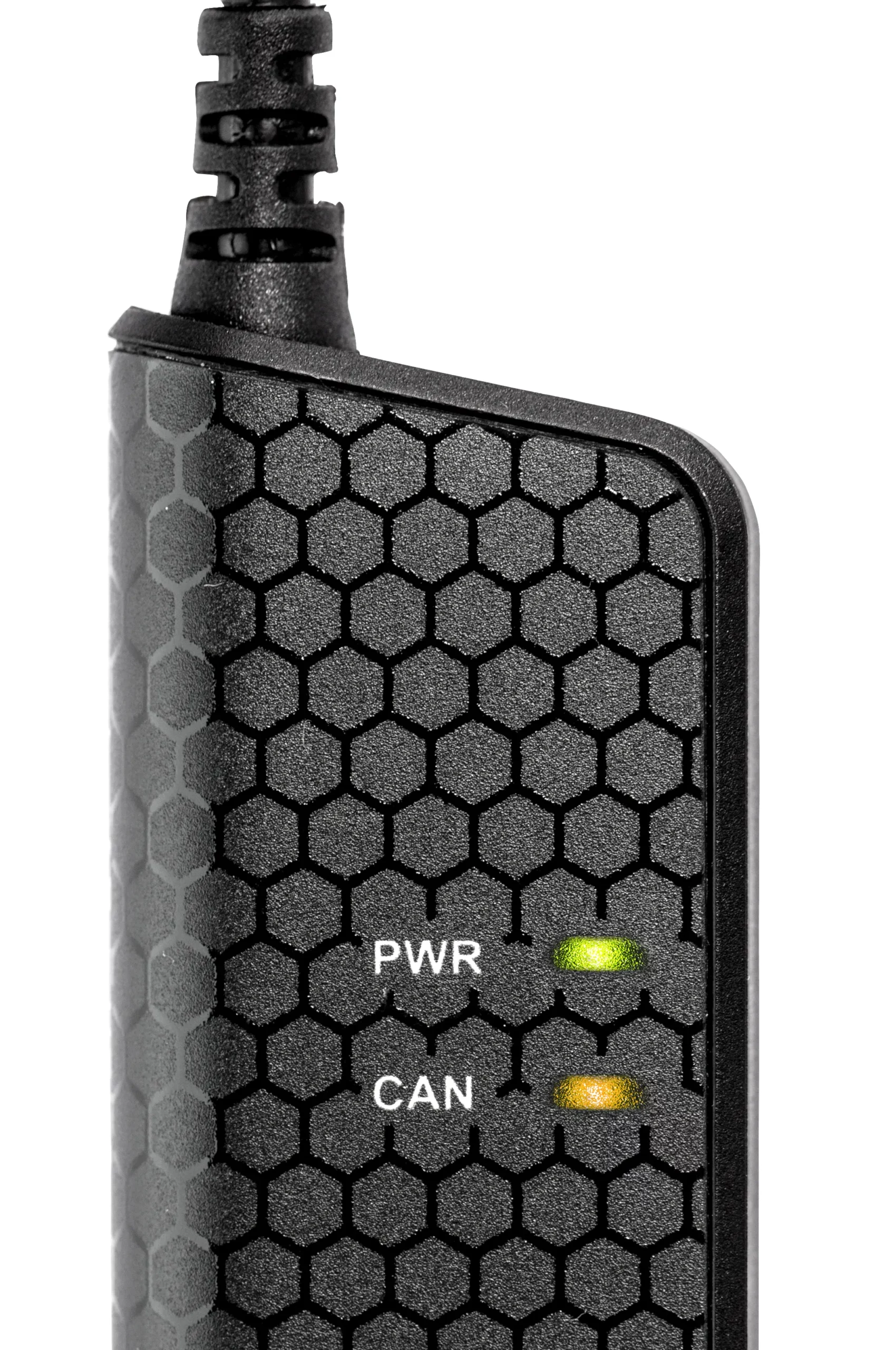

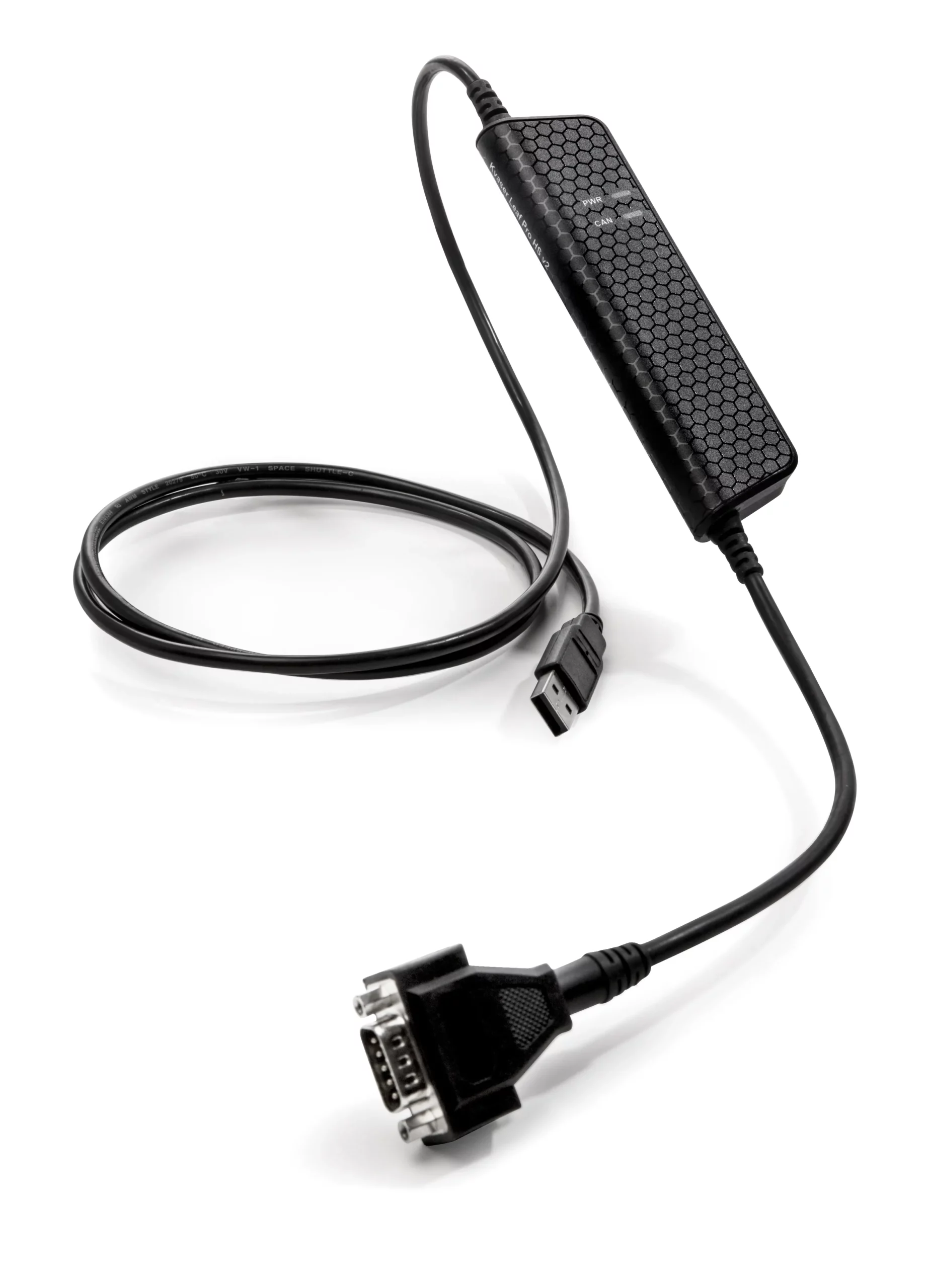

Images
