Kvaser Memorator 2xHS v2

EAN: 73-30130-00821-2
Price: USD 1,552.00

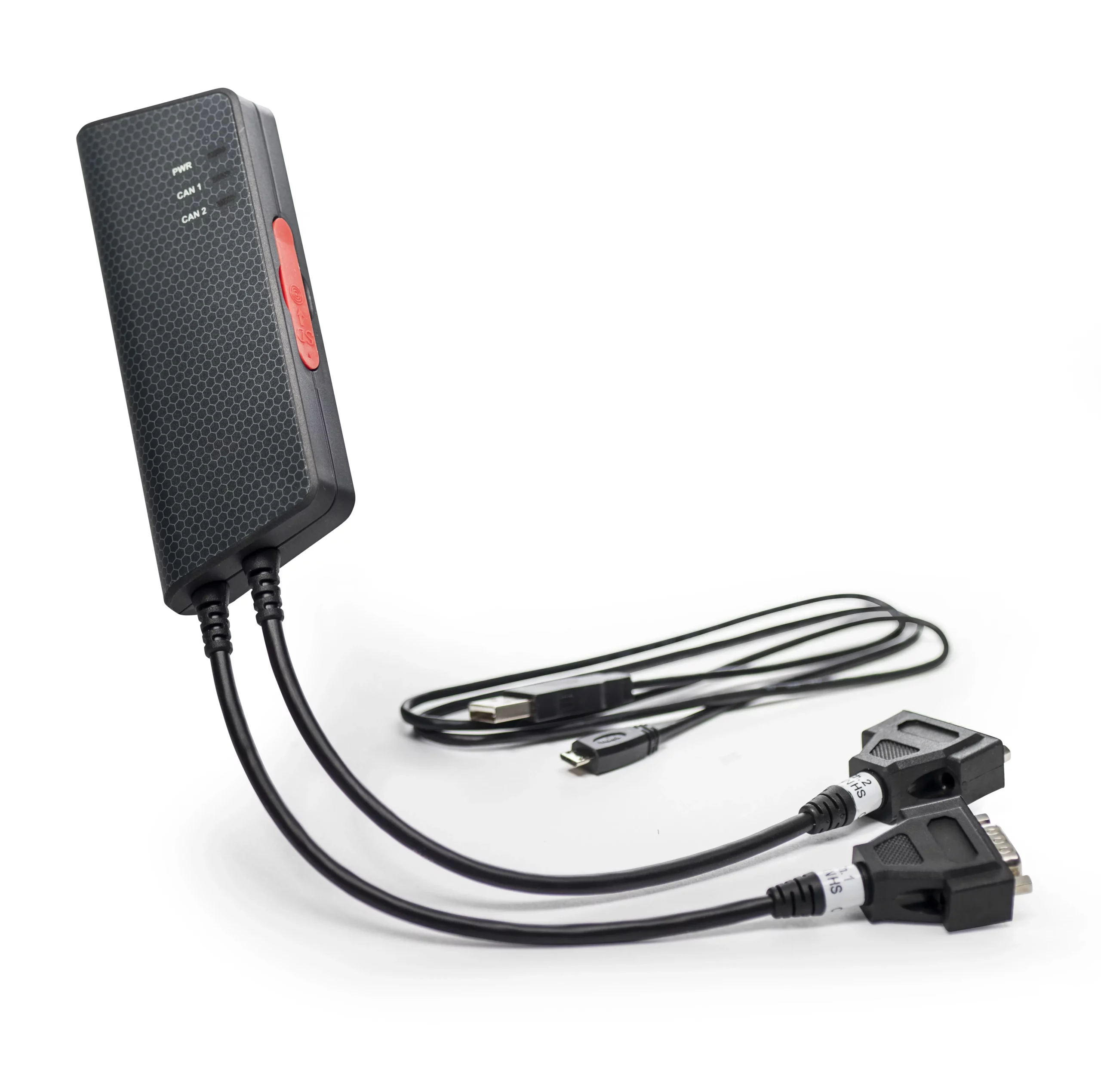

The Kvaser Memorator 2xHS v2 is a compact, dual channel CAN bus interface and standalone datalogger that allows users to monitor and collect data from two high speed CAN channels simultaneously. Standalone mode logs data to an SD card; interface mode provides a real-time connection between the CAN network and a PC, via USB.

As a data logger, Memorator makes for a perfect flight recorder due to its compact design. Triggers and filters can be set on this device by means of a user-friendly configuration program and stored on the standard SD card (supplied).

The Kvaser Memorator 2xHS v2 is an intermediate level device. For an easy-to-use single channel data logger with no preconfiguration required, visit the Kvaser Memorator Light (00513-6). For advanced trigger and filter options and the ability to run user-developed scripts, plus on-device buffering, opt for the Kvaser Memorator Pro 2xHS v2 (00819-9).

Major Features of Kvaser Memorator 2xHS v2:

  • Monitor two CAN channels simultaneously using just one device.
  • Quick and easy plug-and-play installation.
  • Supports both 11-bit (CAN 2.0A) and 29-bit (CAN 2.0B active) identifiers.
  • CAN messages are time-stamped with 100 microseconds resolution.
  • Supports silent mode for analysis tools – listens to the bus without interfering.
  • Fully compatible with applications written for other Kvaser CAN hardware using Kvaser CANlib.
  • One SD slot that accepts SD flash disks, currently up to 64 GB.
  • Two high-speed CAN connections (compliant with ISO 11898-2), up to 1 Mbit/s.

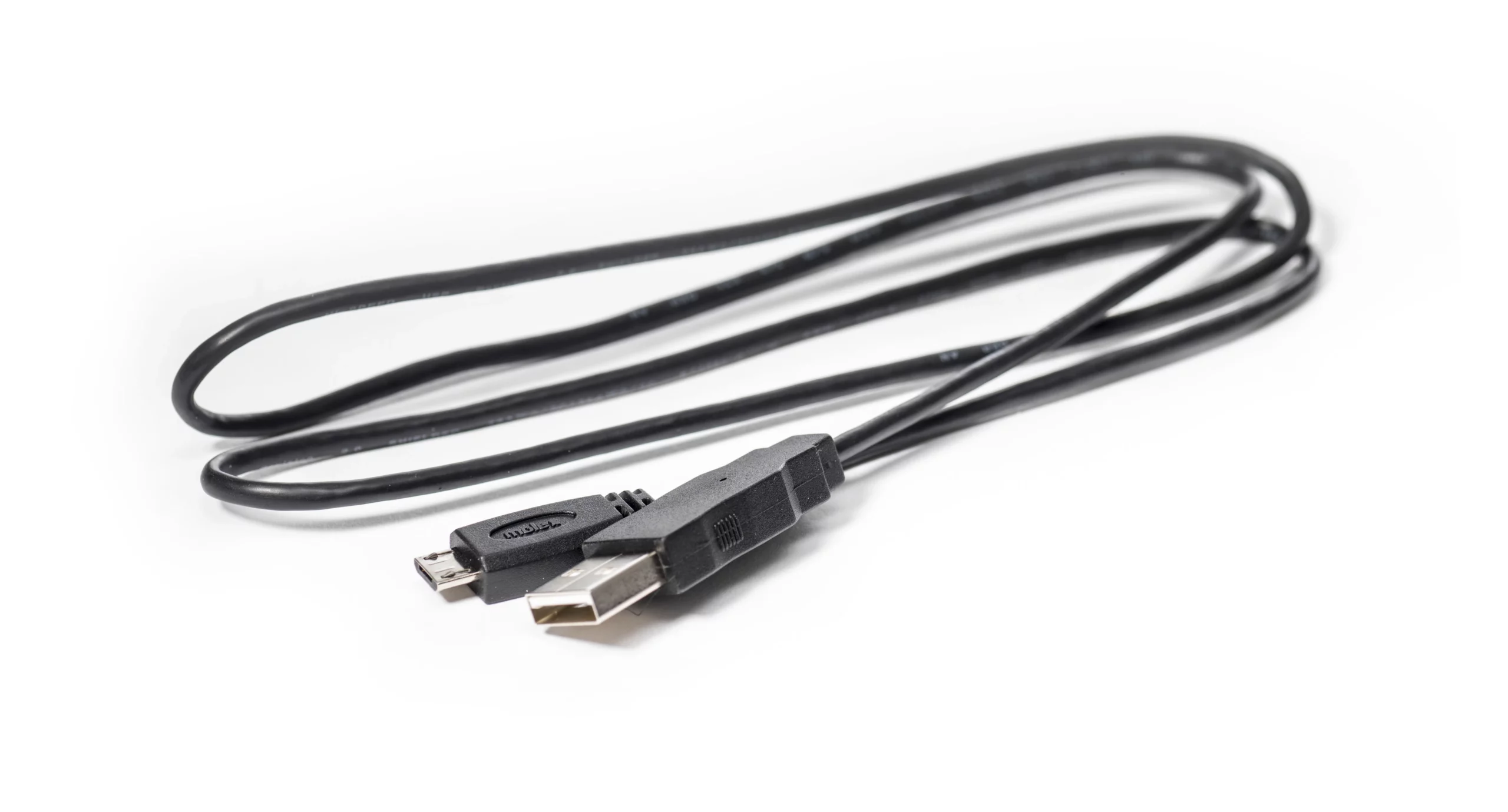

  • Connects to a PC with a standard USB 2.0 connection.
  • Power from CAN bus or from the USB side.
  • Built-in real time (calendar) clock with battery backup.
  • Logger status is indicated by externally visible LEDs.
  • Plastic housing with dimension WLH about 55 x 150 x 23 mm (circa 2 x 6 x 1 inch).
  • Compatible with J1939, CANopen, NMEA 2000® and DeviceNet.
  • Galvanic isolation.
  • Support for SocketCAN, see for details.


  • 2-Year Warranty. See our General Conditions and Policies for details. Register your product at for an additional 1-year Warranty Extension.



  • Documentation, software and drivers can be downloaded for free at
  • Kvaser CANLIB SDK is a free resource that includes everything you need to develop software for the Kvaser CAN interfaces. Includes full documentation and many program samples, written in C, C++, C#, Delphi, Java, Python and Visual Basic.
  • All Kvaser CAN interface boards share a common software API. Programs written for one interface type will run without modifications on the other interface types!
  • J2534 Application Programming Interface is available.
  • RP1210A Application Programming Interface is available.
  • Documentation in Windows HTML-Help and Adobe Acrobat format.

50-1000 kbps


Hardware, Dataloggers, CAN







Current Consumption

Up to 3W

Error Frame Generation


Galvanic Isolation



23 mm

Included Card Size





150 mm



Max Card Size


Messages Per Second Receive

8000 mps

Messages Per Second Sending

8000 mps


Linux, Win 7, Win 10, Win 8

Silent mode




Temp range

-20 °C to +70 °C

Timestamp Resolution (µs)

100 µs


155 g


Kvaser SocketCAN Device Drivers

Kvaser SocketCAN Drivers for Linux

Version V1.12.682 Download

Kvaser Linux Drivers and SDK

Linux drivers and SDK for most Kvaser devices.

Version V5.40.102 Download

Kvaser DIADEM driver

This free driver for National Instrument's DIAdem supports all CAN hardware from Kvaser.

Version V4.1.0 Download

Kvaser Drivers for Windows

Windows drivers for all our CAN hardware. Please check the release notes for information on which Windows versions are supported. The package also contains a driver for a virtual CAN bus, for testing and evaluation when you don't have access to a physical CAN bus.

Version V5.40.102 Download

Kvaser Memorator firmware

Firmware update for Kvaser Memorator. Note: this version REQUIRES driver 3.7 or later.

Version V3.7.115 Download
Development Kits and Tools

Linux SDK library

Linux SDK library.

Version V5.40.102 Download

Python module

The Canlib module is a Python wrapper for Kvaser CANlib SDK.

Version V1.22.565 Download

Kvaser LabView VI Library for CAN

Library for National Instrument's LabView. Version for all Kvaser CAN hardware.

Version V19.3.0 Download

Kvaser CANlib SDK

Software development kit - everything you need to develop software for the Kvaser CAN and LIN interfaces. Libraries, header files, sample programs for e.g. C, C++, C#, Visual Basic and Delphi, documentation, and more. Note: you need to download and install the appropriate device drivers separately.

Version V5.40.102 Download

Kvaser Database Editor 3

Kvaser Database Editor 3 (candbfd)

Version V3.19.102 Download

Kvaser Database editor

Standalone installer for Kvaser Database Editor.

Version V2.5.475 Download

Kvaser Memorator Tools

Logger setup and configuration program for Kvaser Memorator Professional, Kvaser Memorator and Kvaser Memorator Light.

Version V4.28.102 Download

Kvaser CANKing

A free of charge, general-purpose CAN bus monitor. It works with all CAN interfaces from Kvaser and also with the virtual CAN bus.

Version V6.23.390 Download

Kvaser Memorator 2xHS v2 Users Guide

Kvaser Memorator 2xHS v2 User's Guide

Version V4.5.220908 Download

Kvaser Memorator Trigger Guide

Kvaser Memorator Setup Tool - Trigger Guide

Version V2.0.0 Download

Kvaser Memorator Users Guide

Kvaser Memorator Professional User's Guide

Version V12.4.220908 Download

Getting Started Kvaser Memorator / Memorator Professional as Datalogger

Getting Started Kvaser Memorator/Memorator Professional as Datalogger

Version V2.0.0 Download

Kvaser Memorator Example

Kvaser Memorator Tools Setup Example

Version V2.0.1 Download

Kvaser Memorator Tools Introduction

Introduction to Kvaser Memorator Tools for Kvaser Memorator Professional.

Version V1.0.0 Download
