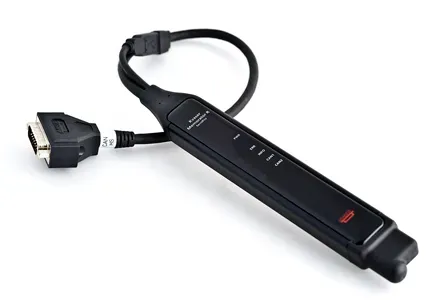

Kvaser Memorator R SemiPro

EAN: 73-30130-00490-0
Price: USD 2,035.00

Kvaser Memorator R SemiPro is an advanced, rugged, two channel CAN (controller area network) to USB interface and standalone data logger - two products in one! To ruggedize the design, Kvaser has soldered the SD card to the PCB to make sure it works error free even when exposed to vibration and shocks. Galvanic isolation and an aluminium housing complete the package.
In standalone mode, this device logs data to an SD card, whilst in interface mode, it connects the CAN bus to the PC via USB. Connect this datalogger to a PC to configure baud rates, trigger conditions and filters using the Kvaser Memorator Tools software, included.

Major Features

  • One device for desktop and laptop, combining a standalone CAN bus data logger and a USB CAN bus interface.
  • Quick and easy plug-and-play installation.
  • Supports both 11-bit (CAN 2.0A) and 29-bit (CAN 2.0B) identifiers.
  • CAN messages are time-stamped with 2 microseconds resolution.
  • Large on-board RAM buffer for CAN messages.
  • Two high-speed CAN channels (compliant with ISO 11898-2), 10kbit/s up to 1 Mbit/s.
  • Galvanic isolation to protect the hardware.
  • Power from CAN bus or from the USB side.
  • Built-in real time (calendar) clock with battery backup.
  • Logger status is indicated with five externally visible LEDs.
  • Driver support for major operating systems.
  • Support for Kvaser Linx J1587.
  • IP65 rated lightweight aluminium housing protects against dust and moisture.

Filters

  • Log continuously, or logging can be triggered by creating advanced triggers based on messages, data signal values, error messages, external trigger's falling or rising edge, and I/O signals.
  • Pre- and post-triggers are available without buffer size restrictions, limited by disk space only.
  • Filter out selectable messages and/or signals to be logged. The identifiers can be picked from a database, or all messages can be logged.
  • Support for pass as well as stop filters.
  • Create a counting pass filter to have a message logged at enumerated occurrence.
  • Handles up to 20,000 msgs/s in standalone logger mode.
  • External digital output that can drive an LED or a buzzer.
  • Less than 250 ms boot up time.
  • Supports Silent Mode - Log bus traffic safely without interfering and "listen-only" mode for bus analysis tools.

Memory Cards and Functions

  • One fixed 4GB memory card.
  • Set up several devices in a daisy chain for larger logging capacity.
  • Upload logged data via USB at 1.2 MB/s when connected via USB 2.0 HiSpeed.

Configuration Software in the PC

  • Easy to use graphic configuration tool - Memorator Tools.
  • Configuration of the CAN controller, i.e. bit rate and filters.
  • Configuration of the trigger conditions.
  • Configuration of filter for messages to be stored.
  • Configuration upload and download via USB.
  • Using the included Kvaser Dispatcher software, a complete measurement setup can be turned into a self-installing package that is sent to a remote location to carry out a specific logging task.

Warranty

  • 2-Year Warranty. See our General Conditions and Policies for details.

Support

Software

  • Documentation, software and drivers can be downloaded for free at www.kvaser.com/downloads.
  • Kvaser CANLIB SDK is a free resource that includes everything you need to develop software for the Kvaser CAN interfaces. Includes full documentation and many program samples, written in C, C++, C#, Delphi, and Visual Basic.
  • All Kvaser CAN interface boards share a common software API. Programs written for one interface type will run without modifications on the other interface types!
  • J2534 Application Programming Interface available.
  • RP1210A Application Programming Interface available.
  • On-line documentation in Windows HTML-Help and Adobe Acrobat format.
Bitrate

10-1000 kbps

Categories

Dataloggers, PC INTERFACES

Certificates

CE, RoHS

Channels

2

Connectors

DSUB 15

Current Consumption

1W

Error Counters Reading

Yes

Error Frame Generation

Yes

Galvanic Isolation

Yes

Height

20 mm

Interfaces

USB

Internal Memory

4

Length

200 mm

Material

Aluminium

Messages Per Second Receive

20000 mps

Messages Per Second Sending

20000 mps

OS

Win XP, Linux, Win 7, Win Vista, Win 10, Win 8

Silent mode

Yes

Sound

No

Temp range

-40 - 85 °C

Timestamp R (µ)

2 µs

Weight

190 g

Driver

Kvaser Linux Drivers and SDK

Linux drivers and SDK for most Kvaser devices.

Version V5.30.995 Download

Kvaser DIADEM driver

This free driver for National Instrument's DIAdem supports all CAN hardware from Kvaser.

Version V4.1.0 Download

Kvaser Drivers for Windows

Windows drivers for all our CAN hardware. Please check the release notes for information on which Windows versions are supported. The package also contains a driver for a virtual CAN bus, for testing and evaluation when you don't have access to a physical CAN bus.

Version V5.30.995 Download
Development Kits and Tools

Linux SDK library

Linux SDK library.

Version V5.30.995 Download

Python module

The Canlib module is a Python wrapper for Kvaser CANlib SDK.

Version V1.12.251 Download

Kvaser LabView VI Library for CAN

Library for National Instrument's LabView. Version for all Kvaser CAN hardware.

Version V19.3.0 Download

Kvaser CANlib SDK

Software development kit - everything you need to develop software for the Kvaser CAN and LIN interfaces. Libraries, header files, sample programs for e.g. C, C++, C#, Visual Basic and Delphi, documentation, and more. Note: you need to download and install the appropriate device drivers separately.

Version V5.30.995 Download
Documentation

Kvaser Memorator R SemiPro Users Guide

User guide for Memorator R SemiPro

Version V6.1.191008 Download

Trigger Kit for the Kvaser Memorator Family

Trigger Kit for the Kvaser Memorator Family

Version V2.0.0 Download

Kvaser Memorator Professional Trigger Guide

Introduction to Kvaser Memorator Tools for Kvaser Memorator Professional.

Version V2.0.0 Download

Kvaser Database Editor Users Guide

Kvaser Database Editor User's Guide

Version V2.0.0 Download

Kvaser Memorator Tools Introduction

Introduction to Kvaser Memorator Tools for Kvaser Memorator Professional.

Version V1.0.0 Download
Other

Kvaser Database editor

Standalone installer for Kvaser Database Editor.

Version V2.5.475 Download

Kvaser Memorator Tools

Logger setup and configuration program for Kvaser Memorator Professional, Kvaser Memorator and Kvaser Memorator Light.

Version V4.18.996 Download

Kvaser CANKing

A free of charge, general-purpose CAN bus monitor. It works with all CAN interfaces from Kvaser and also with the virtual CAN bus.

Version V6.13.862 Download
