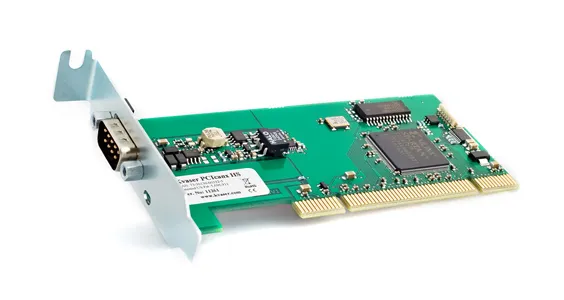

Kvaser PCIcan HS
The Kvaser PCIcan is a CAN interface board for the PCI bus. It is available in three versions: the one CAN channel PCIcan HS, the four CAN channel PCIcan 4xHS, and the one CAN channel PCIcan II, which is compliant with PCI 2.2.
The Kvaser PCIcan product family
is a family of CAN/PCI interface boards and comprises three members: Kvaser PCIcan 4xHS, PCIcan HS/HS and PCIcan HS.
- Compliant with PCI 2.2
- Dimensions 140 x 100 mm (approx.
5.5 x 4 in.)
- I/O mapped
- Quick and easy plug-and-play installation (even under
Windows NT 4.0!)
- CAN Controllers: SJA1000 from Philips, with
64-byte receive FIFO
- Supports CAN 2.0 A and 2.0 B (active)
- High-speed ISO 11898 compliant driver circuits
- Interfaces the CAN bus with DSUB CAN connector
- CAN oscillator frequency: 16 MHz
- Galvanic isolation between the CAN-controller and the CAN-driver
PCIcan 4xHS only:
- The CAN controllers can individually be connected
to a common CAN bus on the card
- The common CAN bus has a built-in optional
PCIcan HS/HS and HS only:
- The PCIcan HS/HS and PCIcan HS can optionally be
delivered with exchangeable CAN drivers, supporting e.g. single-wire CAN.
Error Counters Reading
Error Frame Generation
Messages Per Second Receive
Messages Per Second Sending
Win XP, Linux, Win 7, Win Vista, Win 10, Win 8
-40 °C to +85 °C
