Kvaser U100P
EAN: 73-30130-01174-8
Price: USD 939.00
Log in for tax and shipping information.

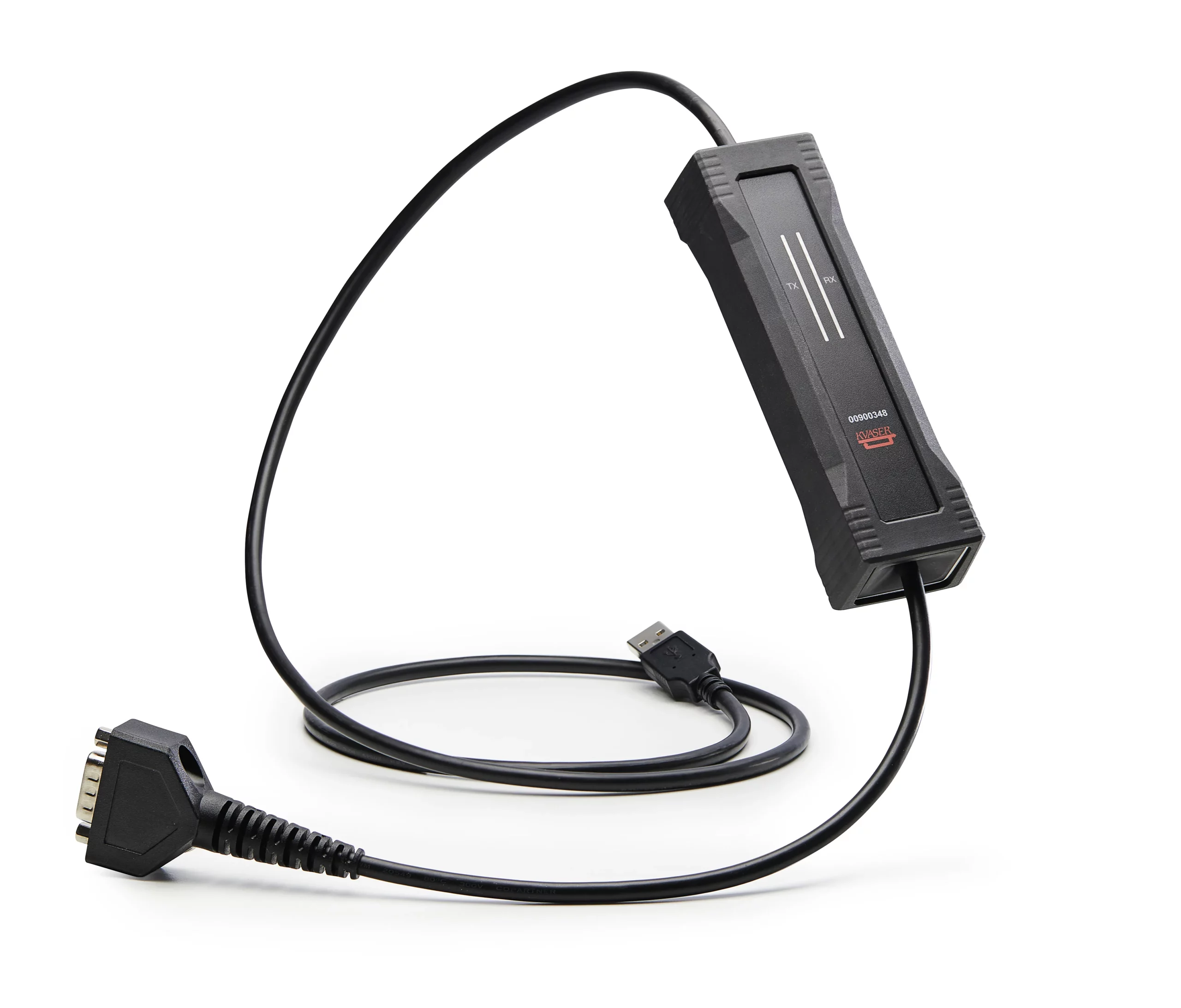

The Kvaser U100P is the Precision version of Kvaser’s U100 range of CAN to USB interfaces. The Kvaser U100P delivers advanced features for engineers working in system development and difficult troubleshooting situations. Get more precise timestamping, synced time measurements across multiple devices, and listen to the CANbus in silent mode.
The Kvaser U100P is also available with J1939, M12 or OBD-II CAN connectors.
Share
Robust, galvanically-reinforced (Tested according EN 60335) and signal and power isolated, the Kvaser U100 range offers enhanced electrical protection, a vibration, shock and drop-proof housing and high-quality cabling that establishes a new reference in CAN interface design. This model builds on the Kvaser U100 (01173-1).
Major Features
- Supports CAN FD, up to 8 Mbit/s (with correct physical layer implementation).
- Supports both 11-bit (CAN 2.0A) and 29-bit (CAN 2.0B active) identifiers.
- Supports silent mode for analysis tools – listen to the bus without interfering.
- Reinforced Galvanic Isolation. (Tested according EN 60335-1:2012 paragraph 13, 5000VAC rms applied for 60 seconds)
- 20 000 msg/s, timestamped with a resolution of 1 μs.
- Kvaser MagiSync™ – automatic time synchronization.
- Industrial grade temperature range, −40 oC to +85 oC.
- Powered through the USB connector.
- Supports bit rates from 10 Kbit/sec up to 1 Mbit/sec.
- Lightweight, glass fibre reinforced polyamide housing, overmolded with TPE.
- IP67 rated.

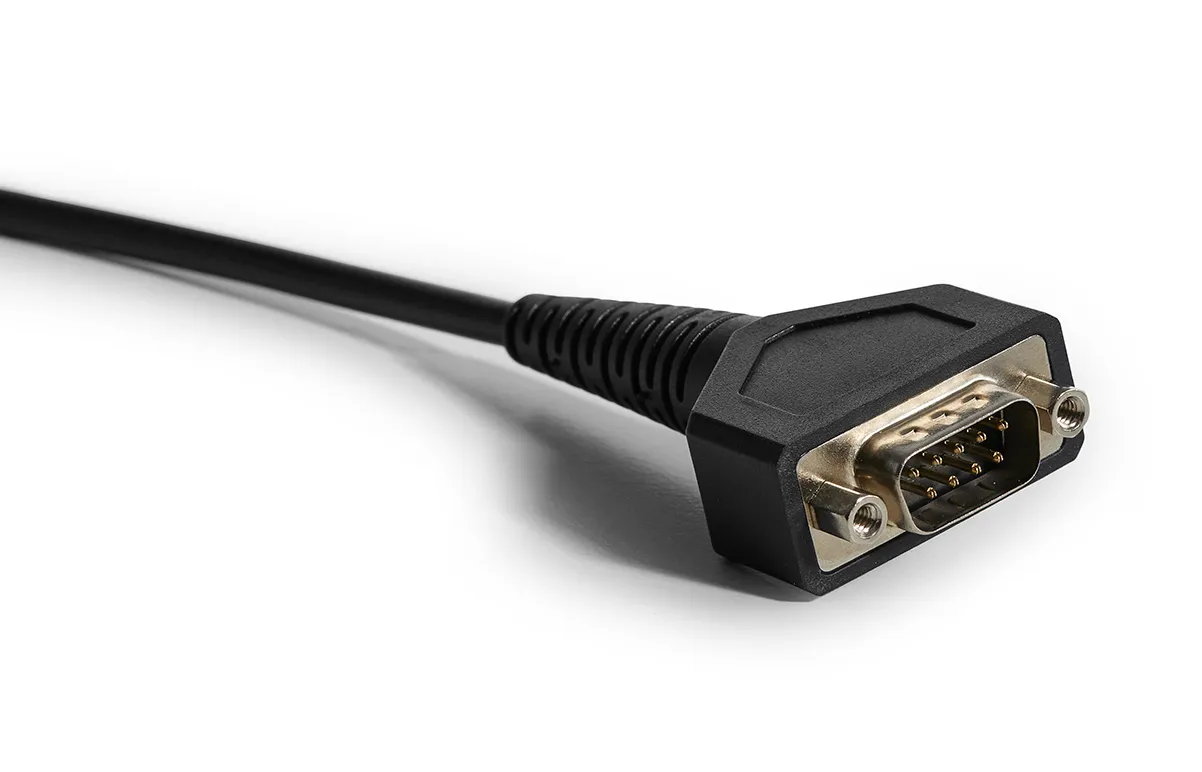

- DB-9 connector (other connectors available).
- Intuitive LED UI.
- Support for SocketCAN.
- Compatible with J1939, CANopen, NMEA 2000® and DeviceNet.
- Fully compatible with applications written for other Kvaser CAN hardware
- with Kvaser CANlib.
Software
- Documentation, software and drivers can be downloaded for free at www.kvaser.com/downloads.
- Kvaser CANLIB SDK is a free resource that includes everything you need to develop software for the Kvaser CAN interfaces. Includes full documentation and many program samples, written in C, C++, C#, Delphi, and Visual Basic.
- All Kvaser CAN interface boards share a common software API. Programs written for one interface type will run without modifications on the other interface types!
- J2534 Application Programming Interface available.
- RP1210A Application Programming Interface available.
- On-line documentation in Windows HTML-Help and Adobe Acrobat format.
Warranty
- 2-Year Warranty. See our General Conditions and Policies for details.
Support
- Free Technical Support on all products available by contacting [email protected]
10-1000 kbps
Up to 8 Mbit/s
CABLES, Interfaces, Hardware, CAN
CE, RoHS
1
DSUB 9
Typical 250 mA
Yes
Yes
Yes
26 mm
USB
128 mm
2K, TPE surface on top of glass fibre reinforced polyamide
20000 mps
20000 mps
Linux, Win 7, Win 10, Win 8
Yes
No
-40 °C to +85 °C
1 µs
170 g
Kvaser SocketCAN Drivers for Linux. For using generic SocketCAN API. Only needed if current kernel version of SocketCAN does not recognize new hardware.
Linux drivers and SDK for most Kvaser devices. For using Kvaser proprietary API. Do not install if using SocketCAN.
Windows drivers for all our CAN hardware. Please check the release notes for information on which Windows versions are supported. The package also contains a driver for a virtual CAN bus, for testing and evaluation when you don't have access to a physical CAN bus.
Firmware Update tool for most Kvaser devices.
Kvaser U100P User's Guide
The Canlib module is a Python wrapper for Kvaser CANlib SDK.
Library for National Instrument's LabView. Version for all Kvaser CAN hardware.
Software development kit - everything you need to develop software for the Kvaser CAN and LIN interfaces. Libraries, header files, sample programs for e.g. C, C++, C#, Visual Basic and Delphi, documentation, and more. Note: you need to download and install the appropriate device drivers separately.
A free of charge, general-purpose CAN bus monitor. It works with all CAN interfaces from Kvaser and also with the virtual CAN bus.
