Kvaser USBcan Pro 2xHS v2
EAN: 73-30130-00752-9
Price: USD 1,196.00
Log in for tax and shipping information.

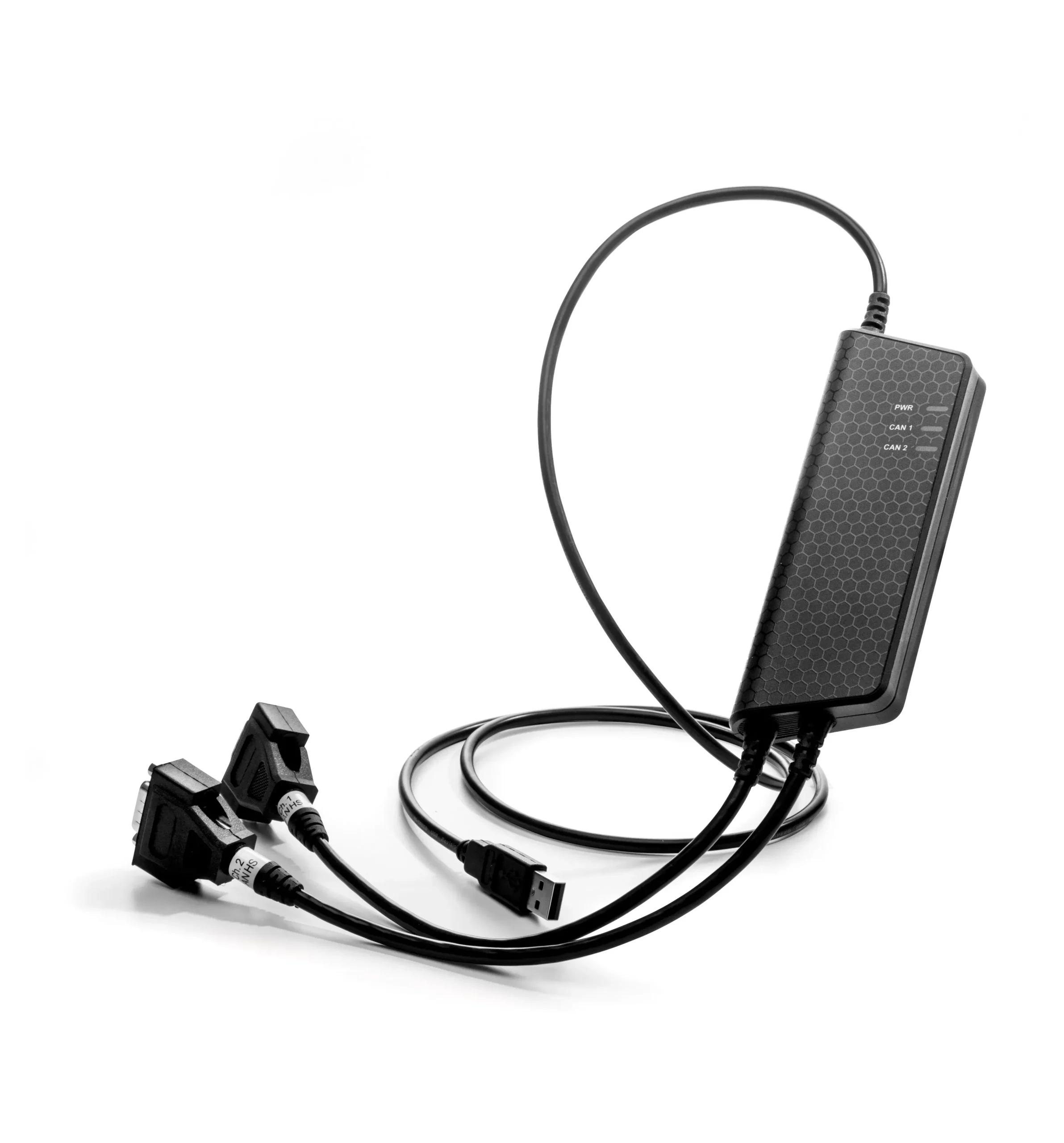

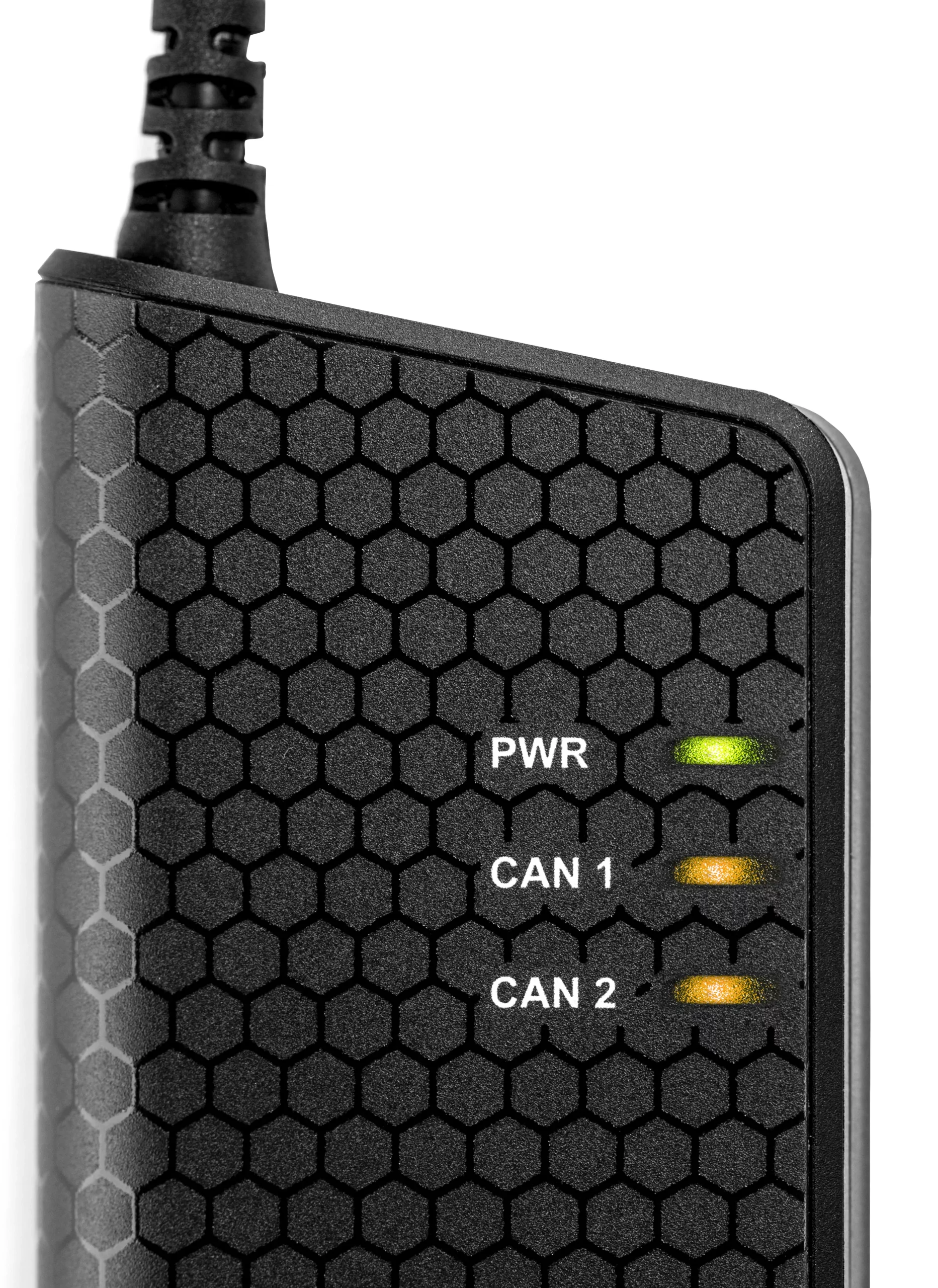

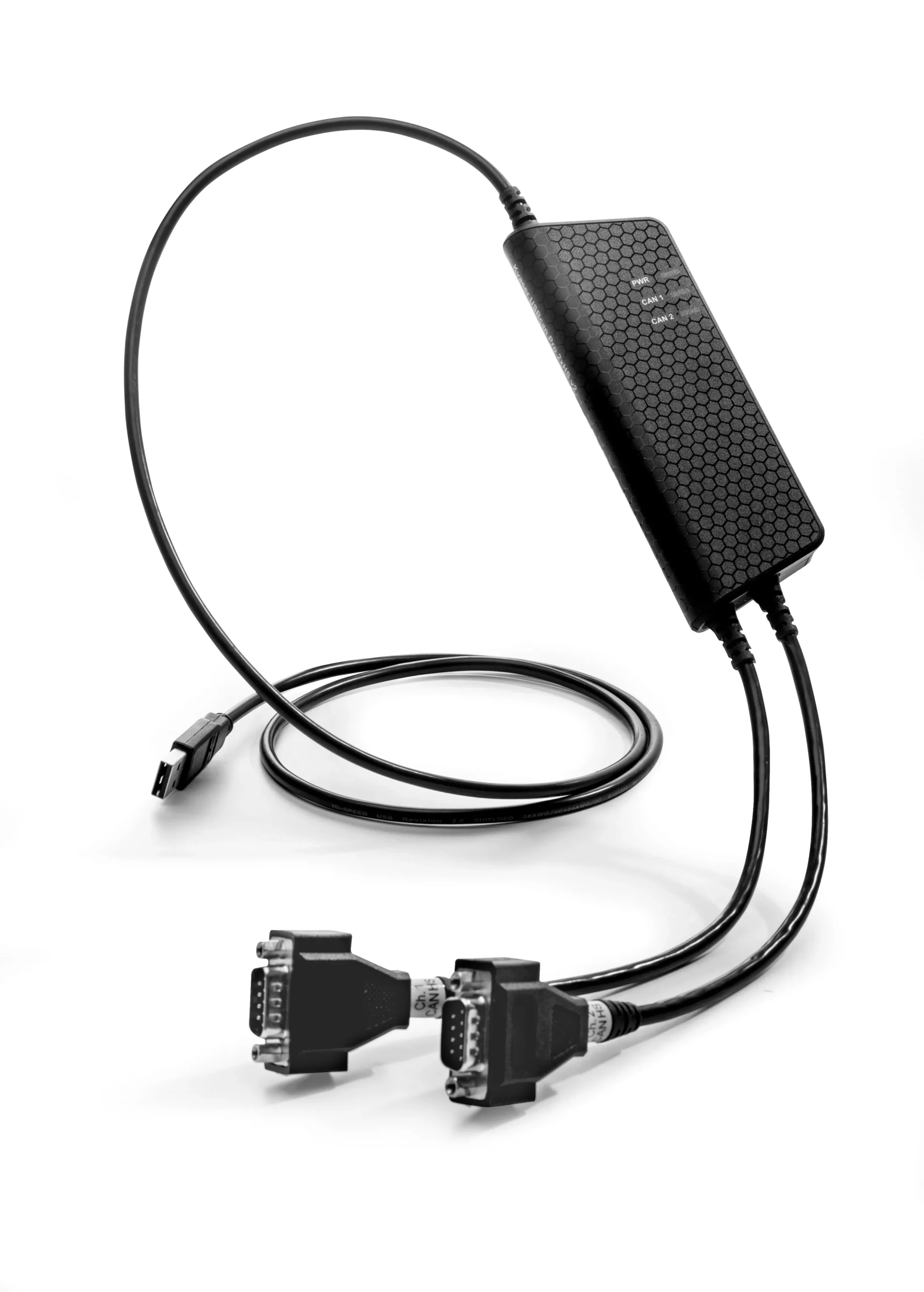

The USBcan Pro 2xHS v2 is a USB to dual-channel CAN or CAN FD interface with scripting capability. With a standard USB connector and two high-speed CAN channels with ISO 11898-2 compliant CAN transceivers in two separate 9-pin D-SUB CAN connectors, it is high-performance, yet compact, and can be used as a simple dual-channel interface to connect two high speed CAN buses to a PC or mobile computer, or can be programmed to do more. The Pro version is shipped with Kvaser TRX, a lightweight development environment that lowers the bar when starting out programming the device.
Share
Major Features
- USB CAN interface with Kvaser t programmability.
- Supports CAN FD, up to 8 Mbit/s (with correct physical layer implementation).
- High-speed CAN connection (compliant with ISO 11898-2), up to 1 Mbit/s.
- Supports both 11-bit (CAN2.0A) and 29- bit (CAN 2.0B active) identifiers.
- Power is taken from the USB bus.
- Galvanic isolation.
- Quick and easy plug-and-play installation.
- Fully compatible with J1939, CANopen, NMEA 2000 and DeviceNet.
- Kvaser MagiSync provides automatic time synchronization between several PC-to- bus interfaces connected to the same PC.
- Programming functionality to support interface mode e.g. optimize protocol handling, pre-filter CAN messages directly on the interface or simulate missing hardware.
- Simultaneous operation of multiple devices.
- Support for SocketCAN, see elinux.org for details.
Warranty
- 2-Year Warranty. See our General Conditions and Policies for details. Register your product at kvaser.com/getting-started for an additional 1-year Warranty Extension.
Support
- Free Technical Support on all products available by contacting [email protected].
Software
- Documentation, software and drivers can be downloaded for free at kvaser.com/downloads.
- Kvaser CANLIB SDK is a free resource that includes everything you need to develop software for the Kvaser CAN interfaces. Includes full documentation and many program samples, written in C, C++, C#, Delphi, Java, Python and Visual Basic.
- All Kvaser CAN interface boards share a common software API. Programs written for one interface type will run without modifications on the other interface types!
- J2534 Application Programming Interface is available.
- RP1210A Application Programming Interface is available.
- Documentation in Windows HTML-Help and Adobe Acrobat format.
50-8000 kbps
Up to 8 Mbit/s
Interfaces, Hardware
CE, RoHS
2
DSUB 9
Max 500mA
Yes
Yes
Yes
20 mm
USB
170 mm
PA66
20000 mps
20000 mps
Linux, Win 7, Win 10, Win 8
Yes
No
-40 °C to +85 °C
1 µs
170 g
Kvaser SocketCAN Drivers for Linux. For using generic SocketCAN API. Only needed if current kernel version of SocketCAN does not recognize new hardware.
Linux drivers and SDK for most Kvaser devices. For using Kvaser proprietary API. Do not install if using SocketCAN.
This free driver for National Instrument's DIAdem supports all CAN hardware from Kvaser.
Windows drivers for all our CAN hardware. Please check the release notes for information on which Windows versions are supported. The package also contains a driver for a virtual CAN bus, for testing and evaluation when you don't have access to a physical CAN bus.
Firmware Update tool for most Kvaser devices.
The Canlib module is a Python wrapper for Kvaser CANlib SDK.
Library for National Instrument's LabView. Version for all Kvaser CAN hardware.
Software development kit - everything you need to develop software for the Kvaser CAN and LIN interfaces. Libraries, header files, sample programs for e.g. C, C++, C#, Visual Basic and Delphi, documentation, and more. Note: you need to download and install the appropriate device drivers separately.
Kvaser USBcan Pro 2xHS User's Guide
A free of charge, general-purpose CAN bus monitor. It works with all CAN interfaces from Kvaser and also with the virtual CAN bus.
