Kvaser USBcan Pro 4xCAN Silent

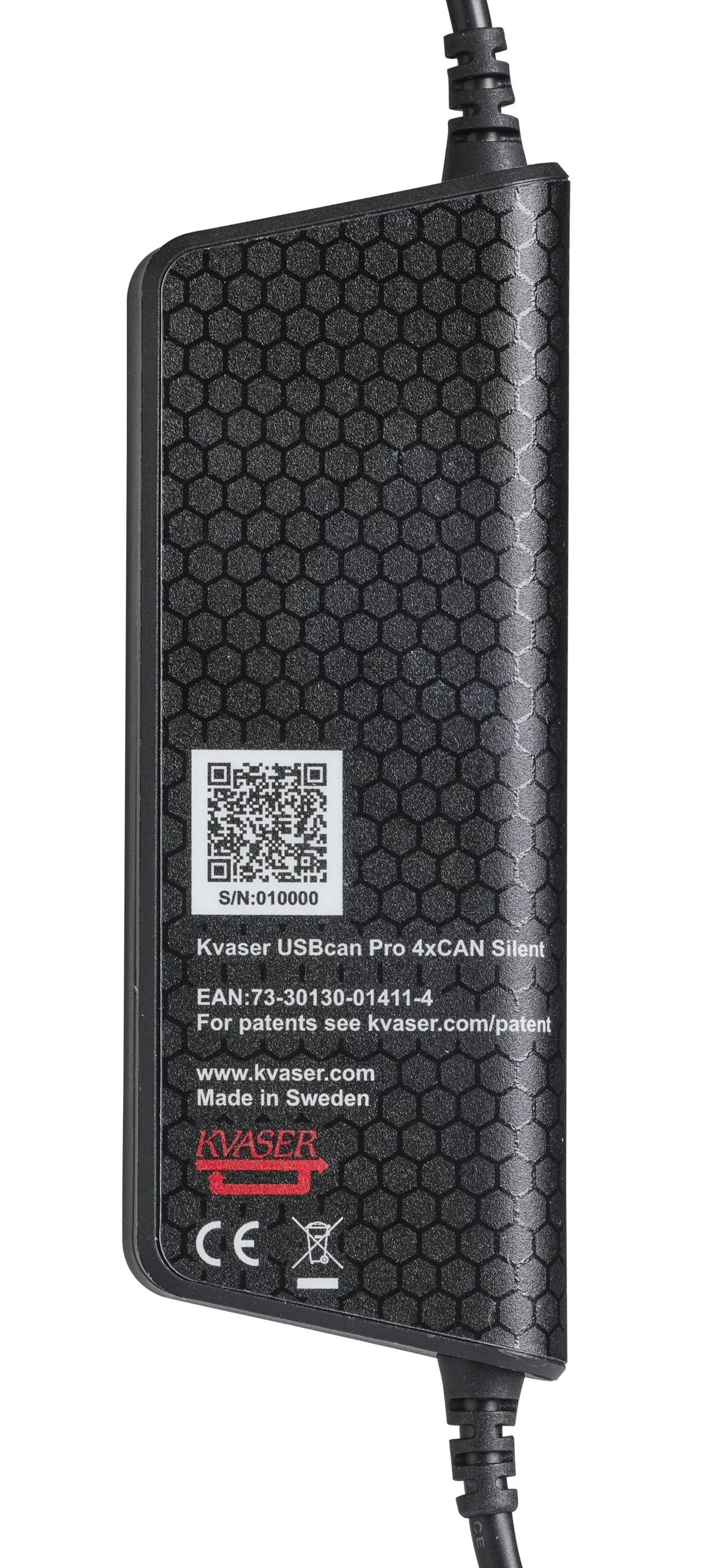

EAN: 73-30130-01411-4
Price: USD 1,596.00

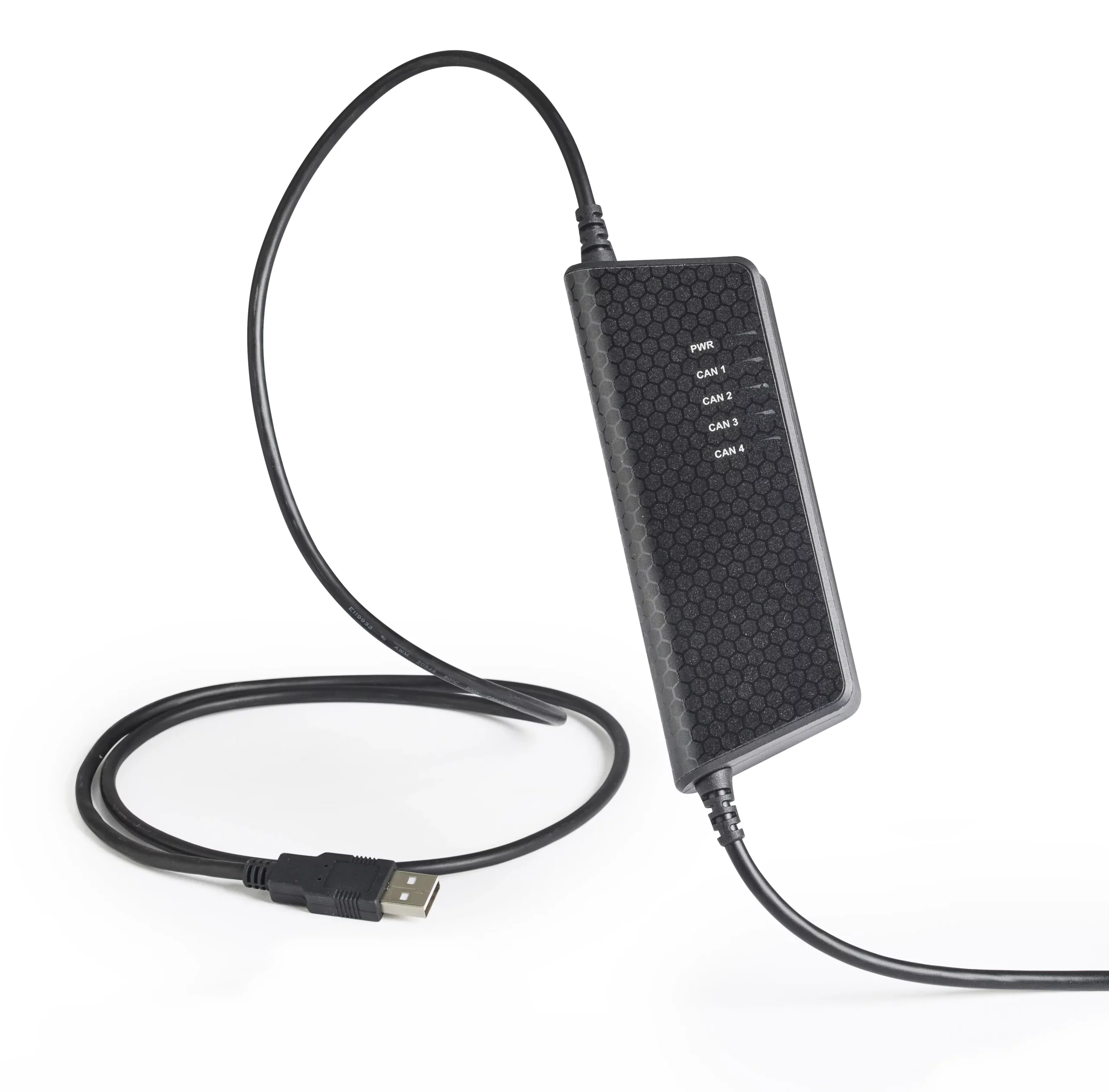

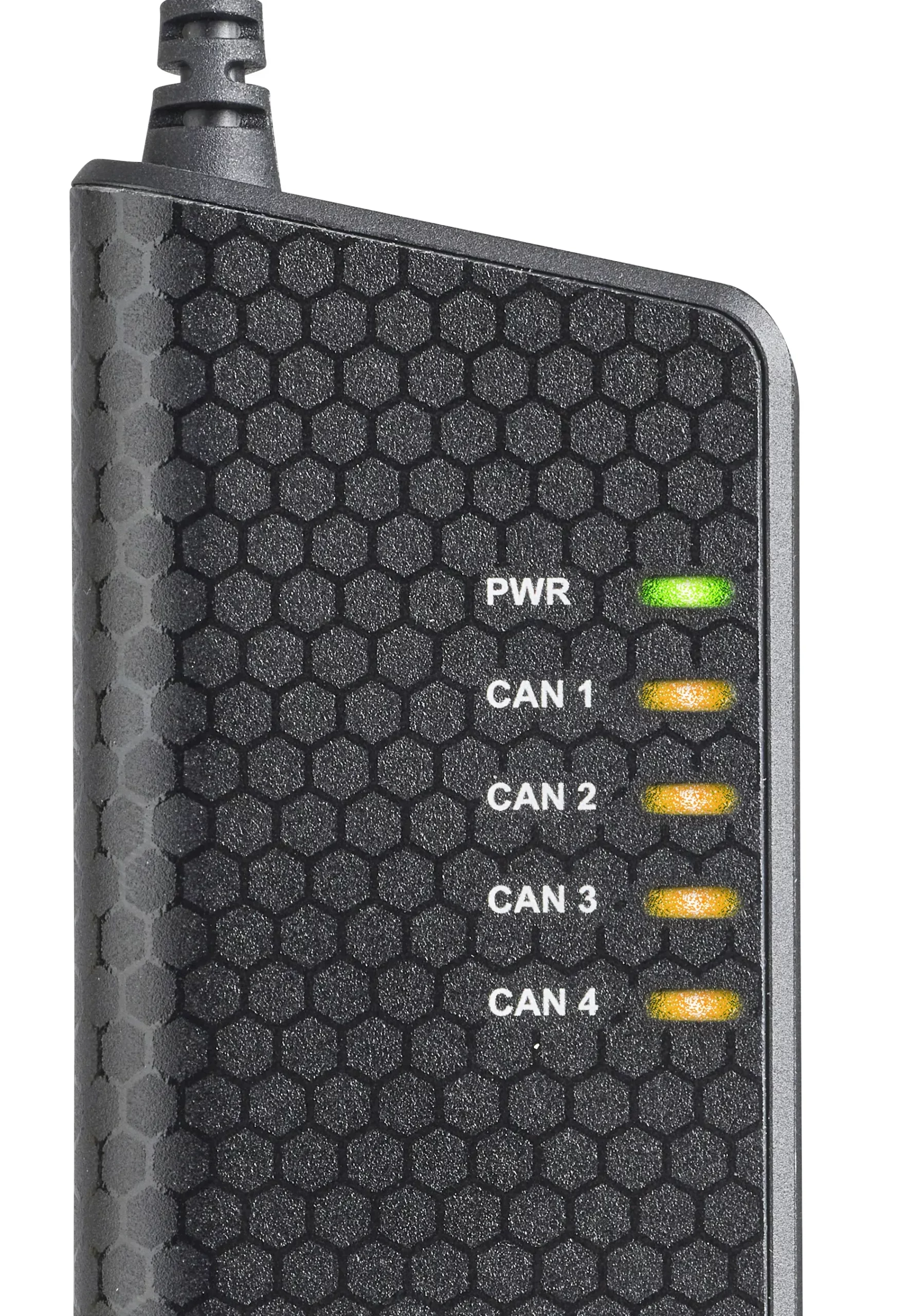

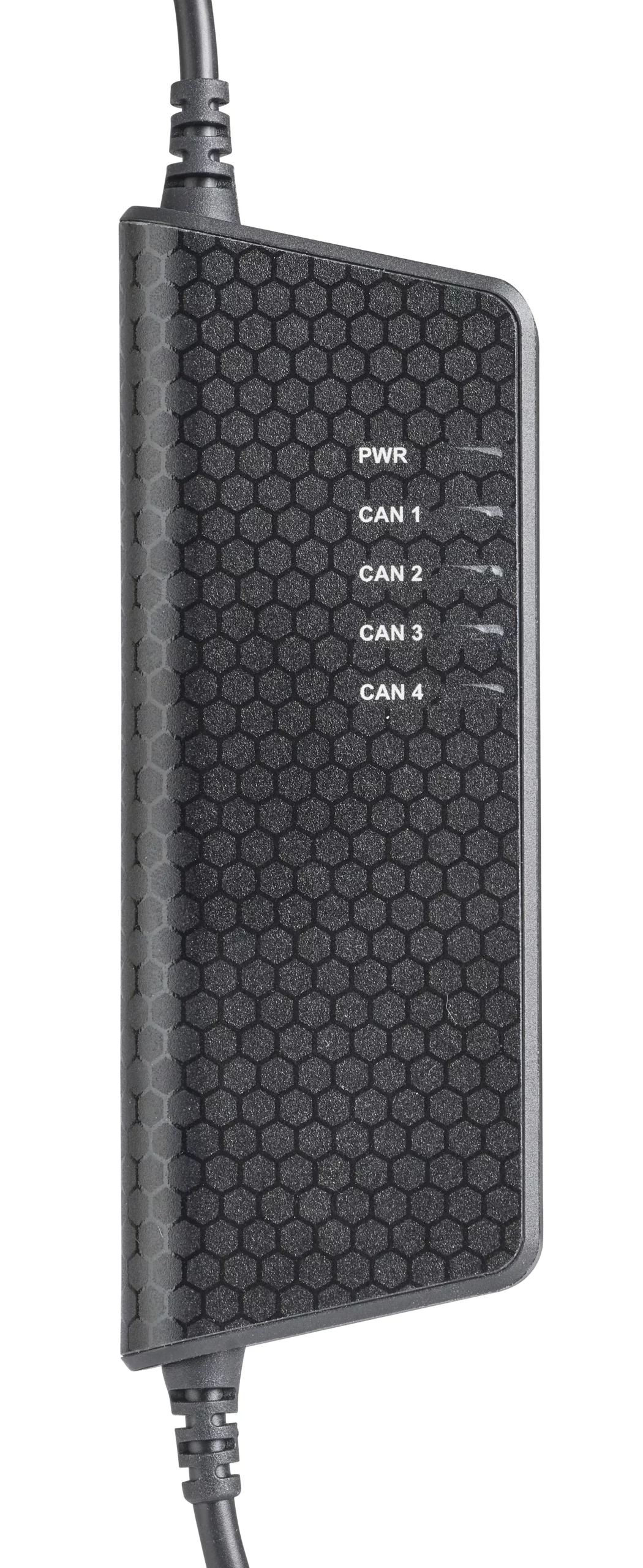

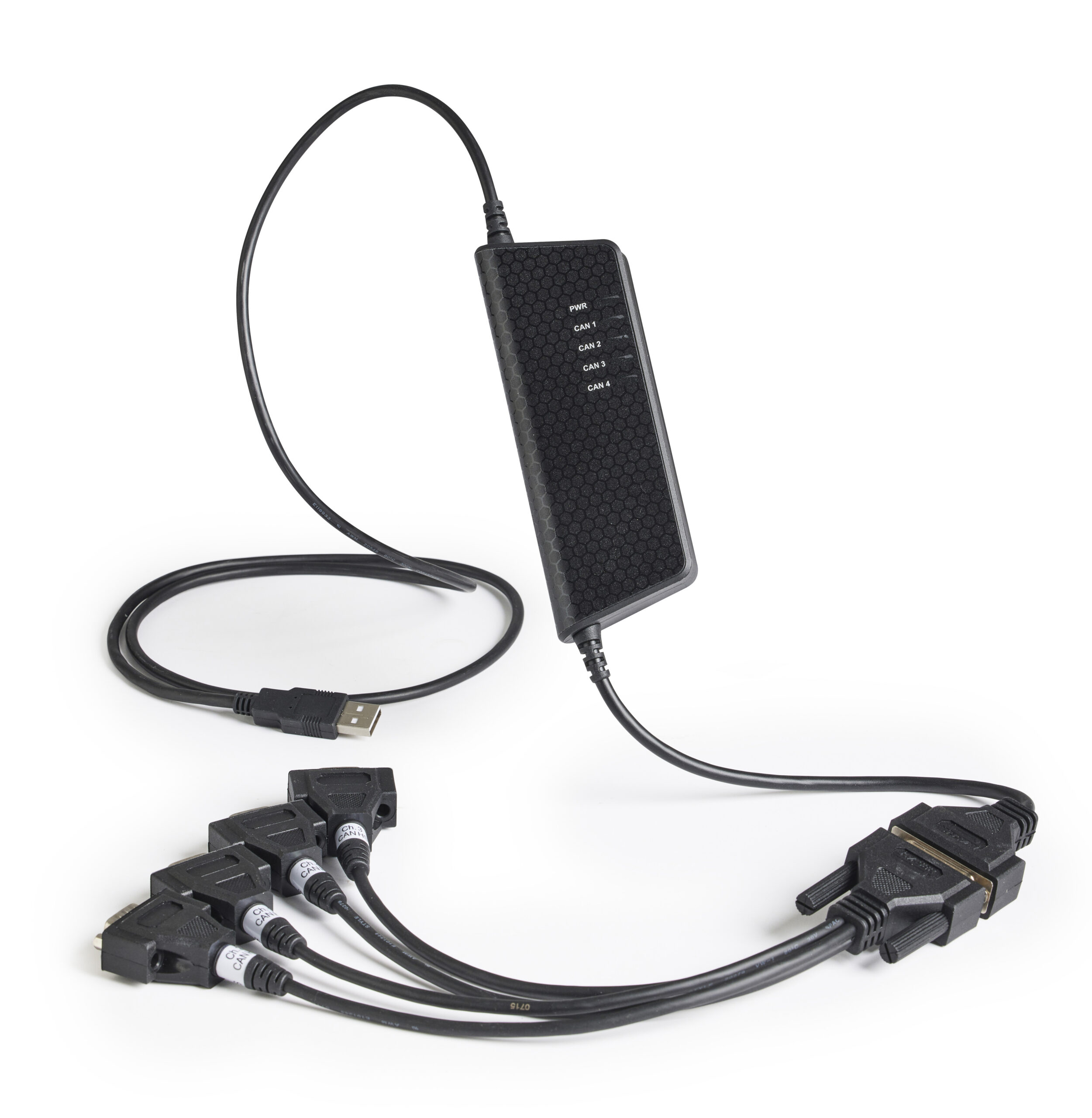

The USBcan Pro 4xCAN Silent, a compact, multichannel four-channel CAN/CAN FD to USB real-time interface that is always silent on the CAN bus (‘listen only’). This CAN interface is made silent through hardware and thus, cannot transmit on bus.

Standard CAN interfaces receive and transmit CAN messages, enabling them to be used to configure the system to which they are connected. However, certain customers, particularly those developing highly sensitive autonomous or safety-critical systems, require CAN interfaces capable of listening only, so that the interface has no impact on the bus or surrounding systems. Listen-only interfaces are also used to prevent any application or third-party, such as a hacker, from impacting the CANbus and its related systems through the Kvaser device.

Major Features

  • USB CAN interface with Kvaser t programmability.
  • Always silent – listens to the bus without interfering it.
  • Supports CAN FD, up to 8 Mbit/s.
  • Quick and easy plug-and-play installation.
  • Supports both 11-bit (CAN 2.0A) and 29-bit (CAN 2.0B active) identifiers.
  • Power is taken from the USB port.
  • 100% compatible with applications written for other Kvaser CAN hardware with Kvaser CANlib.
  • High-speed CAN connection (compliant with ISO 11898-2), up to 1 Mbit/s.
  • Fully compatible with J1939, CANopen, NMEA 2000® and DeviceNet.
  • Kvaser MagiSync – automatic time synchronization (see Section 4.7, Kvaser MagiSync, on Page 19 for more details).
  • Supports simultaneous usage of multiple Kvaser interfaces.

Warranty

  • 2-Year Warranty. See our General Conditions and Policies for details.

Support

Software

  • Documentation, software and drivers can be downloaded for free at www.kvaser.com/downloads.
  • Kvaser CANLIB SDK is a free resource that includes everything you need to develop software for the Kvaser CAN interfaces. Includes full documentation and many program samples, written in C, C++, C#, Delphi, and Visual Basic.
  • All Kvaser CAN interface boards share a common software API. Programs written for one interface type will run without modifications on the other interface types!
  • J2534 Application Programming Interface available.
  • RP1210A Application Programming Interface available.
  • On-line documentation in Windows HTML-Help and Adobe Acrobat format.
Bitrate

20-1000 kbps

CAN FD Bitrate

Up to 8 Mbit/s

Categories

Interfaces, Hardware, CAN

Certificates

CE, RoHS

Channels

4

Connectors

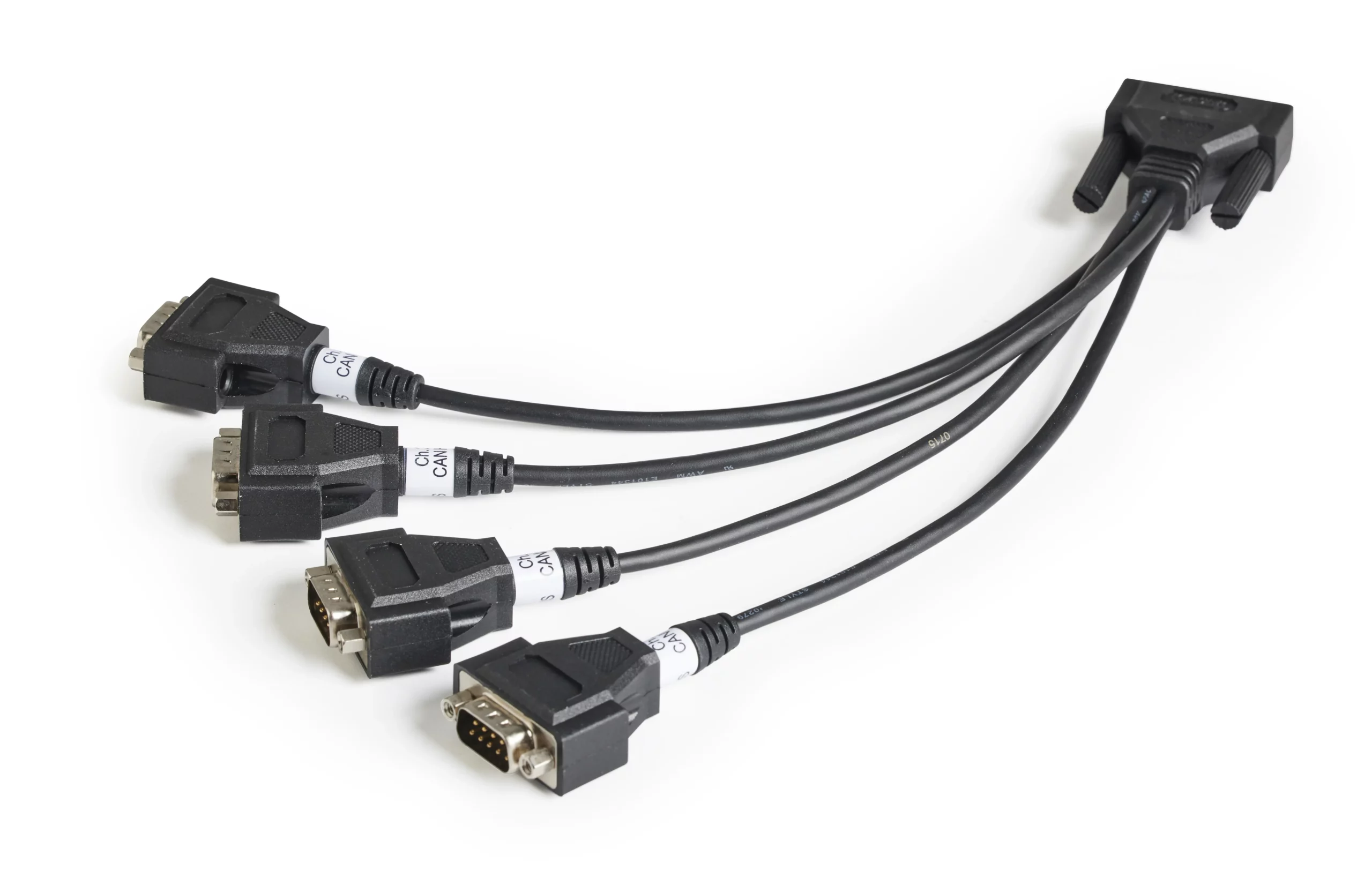

26-pin HD D-SUB

Current Consumption

Typical 150 mA

Error Counters Reading

Yes

Error Frame Generation

No

Galvanic Isolation

Yes

Height

20 mm

Interfaces

USB

Length

170 mm

Material

PA66

Messages Per Second Receive

20000 mps

OS

Linux, Win 7, Win 10

Silent mode

Yes

Sound

No

Temp range

-40 °C to +85 °C

Timestamp Resolution (µs)

1 µs

Weight

400 g

Driver
Kvaser SocketCAN Device Drivers

Kvaser SocketCAN Drivers for Linux. For using generic SocketCAN API. Only needed if current kernel version of SocketCAN does not recognize new hardware.

Download
Version V1.15.409
Kvaser Linux Drivers and SDK

Linux drivers and SDK for most Kvaser devices. For using Kvaser proprietary API. Do not install if using SocketCAN.

Download
Version V5.44.630
Kvaser DIADEM driver

This free driver for National Instrument's DIAdem supports all CAN hardware from Kvaser.

Download
Version V4.1.0
Kvaser Drivers for Windows

Windows drivers for all our CAN hardware. Please check the release notes for information on which Windows versions are supported. The package also contains a driver for a virtual CAN bus, for testing and evaluation when you don't have access to a physical CAN bus.

Download
Version V5.44.630
Firmware
Kvaser Firmware Update Tool

Firmware Update tool for most Kvaser devices.

Download
Version V4.32.630
Documentation
Kvaser USBcan Pro 4xCAN Silent User's Guide

User's Guide for Kvaser USBcan Pro 4xCAN Silent

Download
Version V1.0.240218
Development Kits and Tools
Python module

The Canlib module is a Python wrapper for Kvaser CANlib SDK.

Download
Version V1.25.393
Kvaser LabView VI Library for CAN

Library for National Instrument's LabView. Version for all Kvaser CAN hardware.

Download
Version V23.1.0
Kvaser CANlib SDK

Software development kit - everything you need to develop software for the Kvaser CAN and LIN interfaces. Libraries, header files, sample programs for e.g. C, C++, C#, Visual Basic and Delphi, documentation, and more. Note: you need to download and install the appropriate device drivers separately.

Download
Version V5.44.630
Other
Kvaser CANKing

A free of charge, general-purpose CAN bus monitor. It works with all CAN interfaces from Kvaser and also with the virtual CAN bus.

Download
Version V6.26.654
