Kvaser USBcan Pro 5xHS

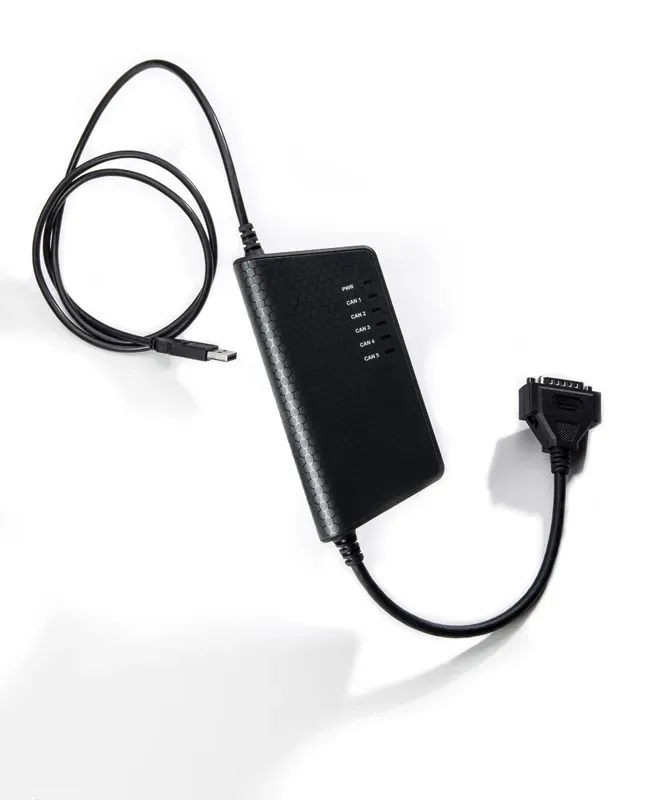

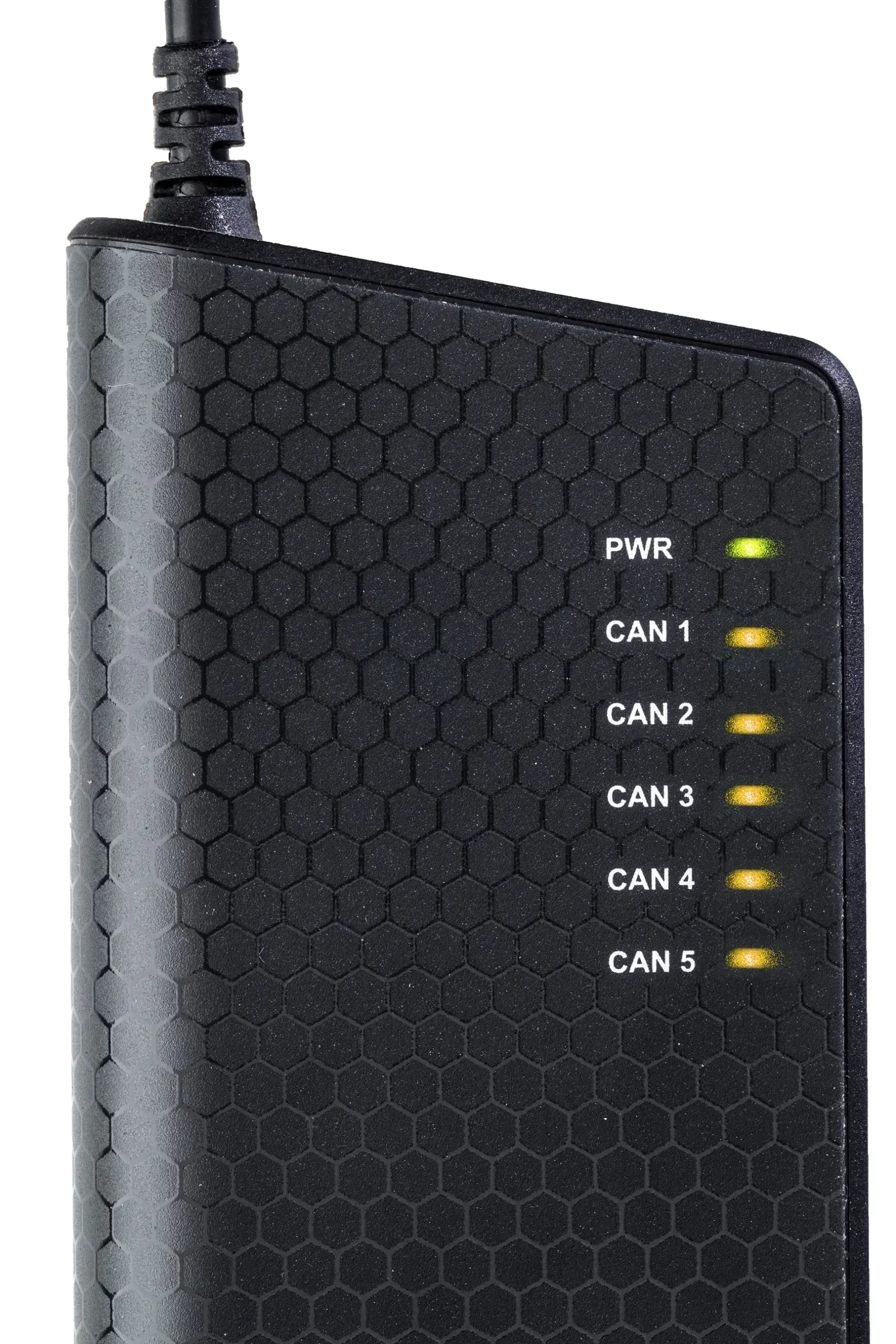

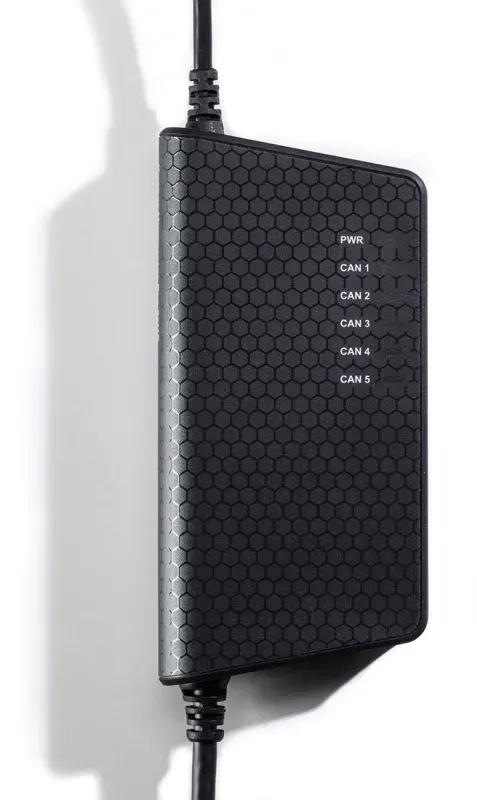

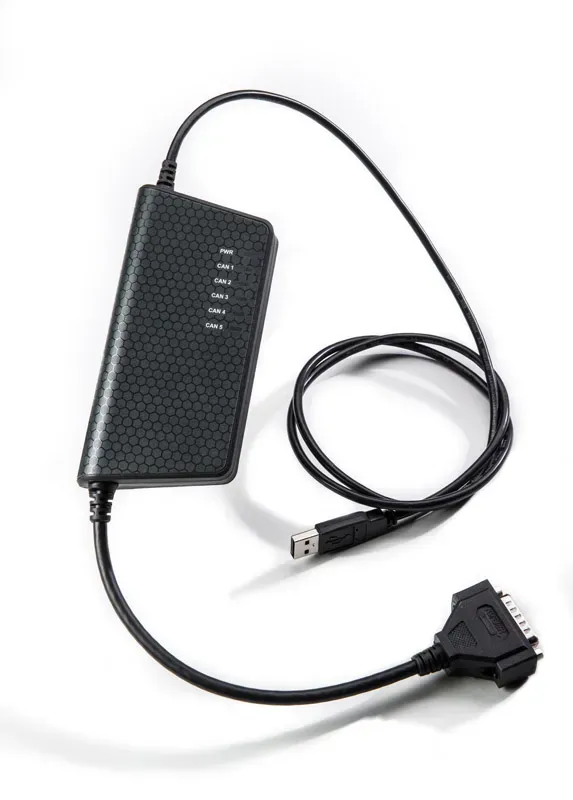

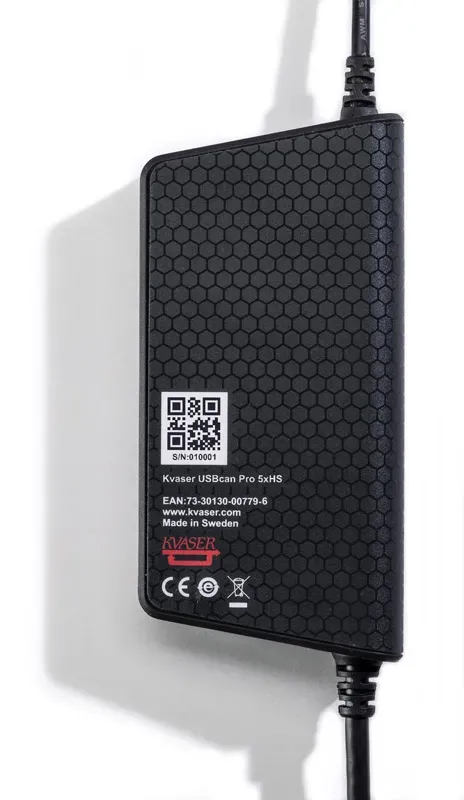

Kvaser USBcan Pro 5xHS is a five channel, high performance, CAN bus interface that provides a quick and flexible way to connect your PC to multiple CAN bus, in real-time. With all channels configured for High Speed CAN (ISO 11898-2), the Kvaser USBcan Pro 5xHS handles transmission and reception of standard and extended CAN messages on the bus with a high time stamp precision. This device supports CAN FD.
- Supports CAN FD.
- Quick and easy plug-and-play installation.
- Supports both 11-bit (CAN 2.0A) and 29-bit (CAN 2.0B active) identifiers.
- Power is taken from the USB bus.
- Galvanic isolation.
- High-speed CAN connection (compliant with ISO 11898-2), up to 1 Mbit/s.
- Fully compatible with J1939, CANopen, NMEA 2000.
- Kvaser MagiSync provides automatic time synchronization between several PC-to-bus interfaces connected to the same PC.
- Programming functionality to support interface mode e.g. Optimize protocol handling, pre-filter CAN messages directly on the interface, or simulate missing hardware.
- Simultaneous operation of multiple devices.
- Five CAN channels integrated in a single 26-pin HD D-SUB connector.
- Includes 5 channel breakout cable.
- Support for SocketCAN, see elinux.org for details.
- 2-Year Warranty. See our General Conditions and Policies for details. Register your product at kvaser.com/getting-started for an additional 1-year Warranty Extension.
- Free Technical Support on all products available by contacting [email protected]
- Documentation, software and drivers can be downloaded for free at kvaser.com/downloads.
- Kvaser CANLIB SDK is a free resource that includes everything you need to develop software for the Kvaser CAN interfaces. Includes full documentation and many program samples, written in C, C++, C#, Delphi, and Visual Basic.
- All Kvaser CAN interface boards share a common software API. Programs written for one interface type will run without modifications on the other interface types!
- J2534 Application Programming Interface available.
- RP1210A Application Programming Interface available.
- On-line documentation in Windows HTML-Help and Adobe Acrobat format.
DSUB 26 or 5xDSUB 9 with co-sent splitter cable
Linux, Win 7, Win 10, Win 8
-40 °C to +85 °C
Kvaser SocketCAN Drivers for Linux. For using generic SocketCAN API. Only needed if current kernel version of SocketCAN does not recognize new hardware.
Linux drivers and SDK for most Kvaser devices. For using Kvaser proprietary API. Do not install if using SocketCAN.
This free driver for National Instrument's DIAdem supports all CAN hardware from Kvaser.
Windows drivers for all our CAN hardware. Please check the release notes for information on which Windows versions are supported. The package also contains a driver for a virtual CAN bus, for testing and evaluation when you don't have access to a physical CAN bus.
Firmware Update tool for most Kvaser devices.
The Canlib module is a Python wrapper for Kvaser CANlib SDK.
Library for National Instrument's LabView. Version for all Kvaser CAN hardware.
Software development kit - everything you need to develop software for the Kvaser CAN and LIN interfaces. Libraries, header files, sample programs for e.g. C, C++, C#, Visual Basic and Delphi, documentation, and more. Note: you need to download and install the appropriate device drivers separately.
A free of charge, general-purpose CAN bus monitor. It works with all CAN interfaces from Kvaser and also with the virtual CAN bus.
