Kvaser Air Bridge Light HS (FCC)

EAN: 73-30130-01008-6
Price:

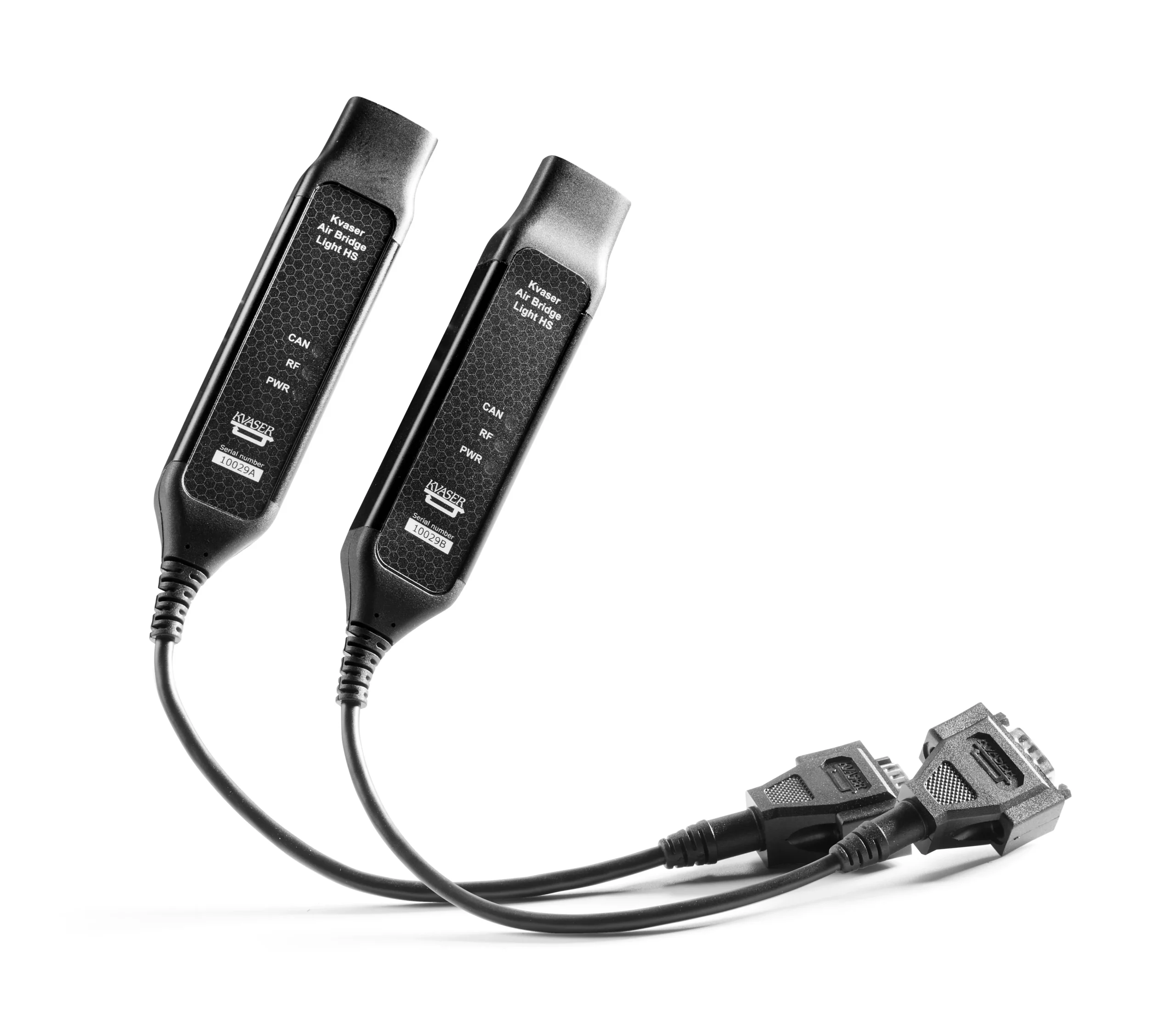

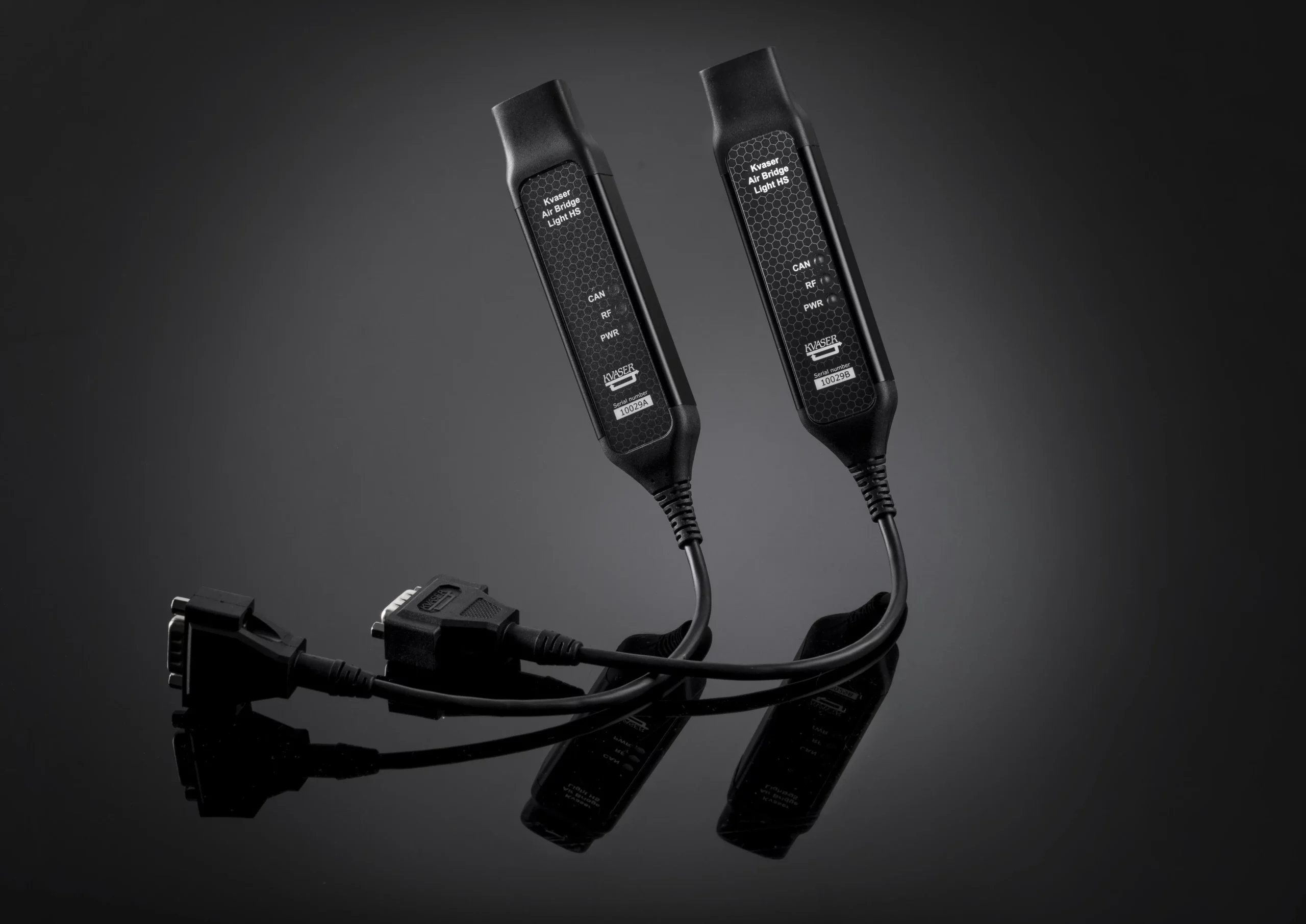

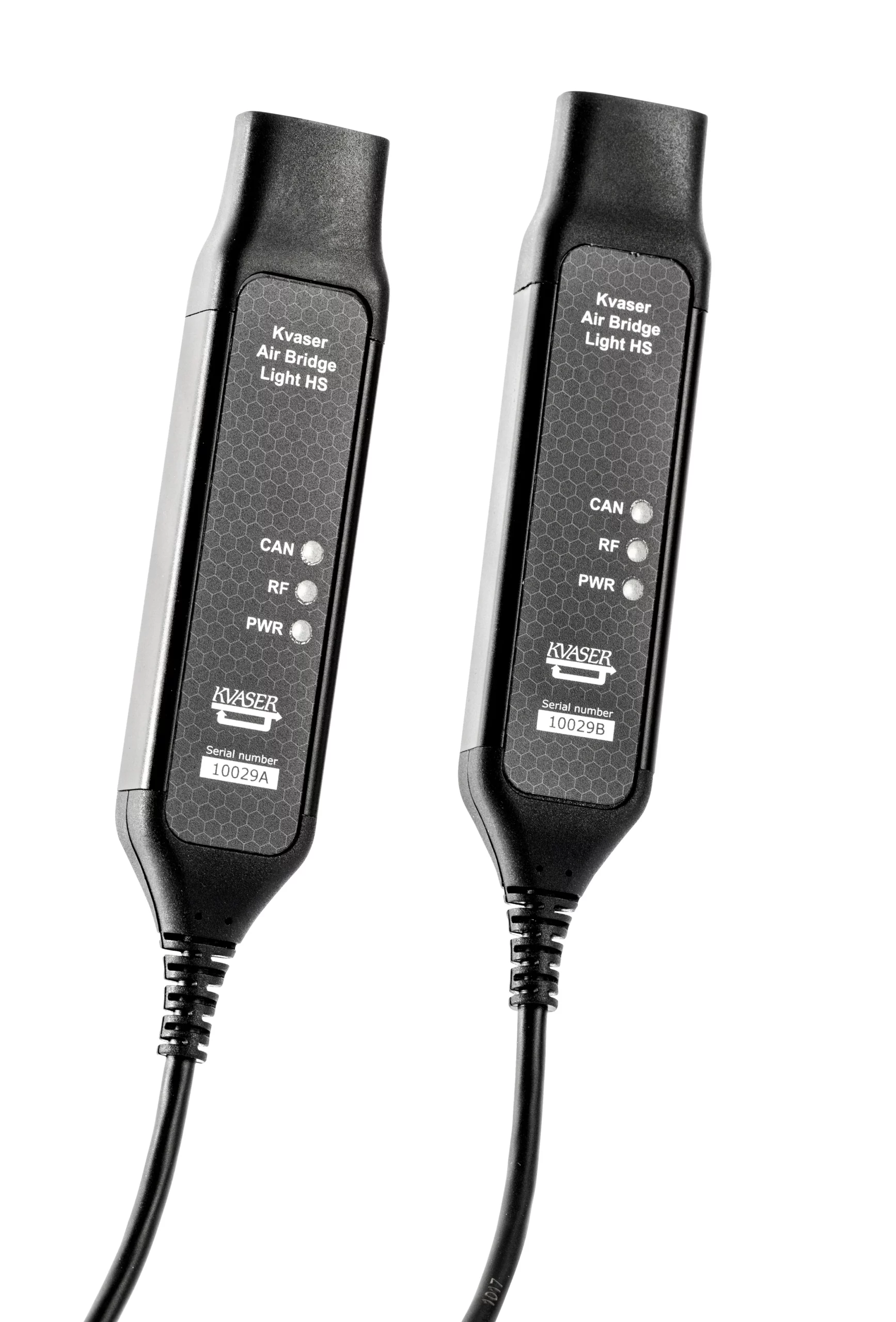

Kvaser Air Bridge Light HS is a configuration-free wireless CAN bridge that achieves predictable latency, without sacrificing stability or range. Comprising a preconfigured pair of plug-and-play units to rapidly exchange raw CAN data, the Kvaser Air Bridge Light HS is designed for environments or situations that make wired connection unsuitable or challenging e.g. between two moving parts that are connected by CAN.

There are two versions: Kvaser Air Bridge Light HS (FCC) (01008-6) complies with US certification, while Kvaser Air Bridge Light HS (00808-3) is approved for the European Union. Both share the same functionality but have different radio transmission schemes due to regulatory differences.

Major Features

  • A preconfigured pair of units that acts as a wireless CAN bridge.
  • Plug and Play, Driver Free and Configuration Free.
  • Automatic Baudrate Detection (125K, 250K, 500K, 1M).
  • Point to Point Radio Link.
  • 2.4 GHz Proprietary Protocol.
  • Internal Antenna Design, Antenna Output Power max 18 dBm approx.
  • High-Speed CAN Connection (compliant with ISO 11898-2), up to 1 Mbit/s.
  • Supports both 11-bit (CAN2.0A) and 29- bit (CAN 2.0B active) identifiers.
  • Power Supplied through the CAN Bus Interface.
  • Rugged Aluminum Housing.
  • Note: Error Frames and Arbitration information are not transmitted by the Air Bridge units across the wireless link.

Warranty

  • 2-Year Warranty. See our General Conditions and Policies for details. Register your product at www.kvaser.com/getting-started for an additional 1-year Warranty Extension.

Support

Certifications

  • The Kvaser Air Bridge Light HS (FCC) (EAN: 73-30130-01008-6) has been tested and found to comply with part 15 of FCC Rules. See User Guide for full FCC Compliance Information Statement..
Categories

PC INTERFACES

Certificates

CE, RoHS

Channels

1

Connectors

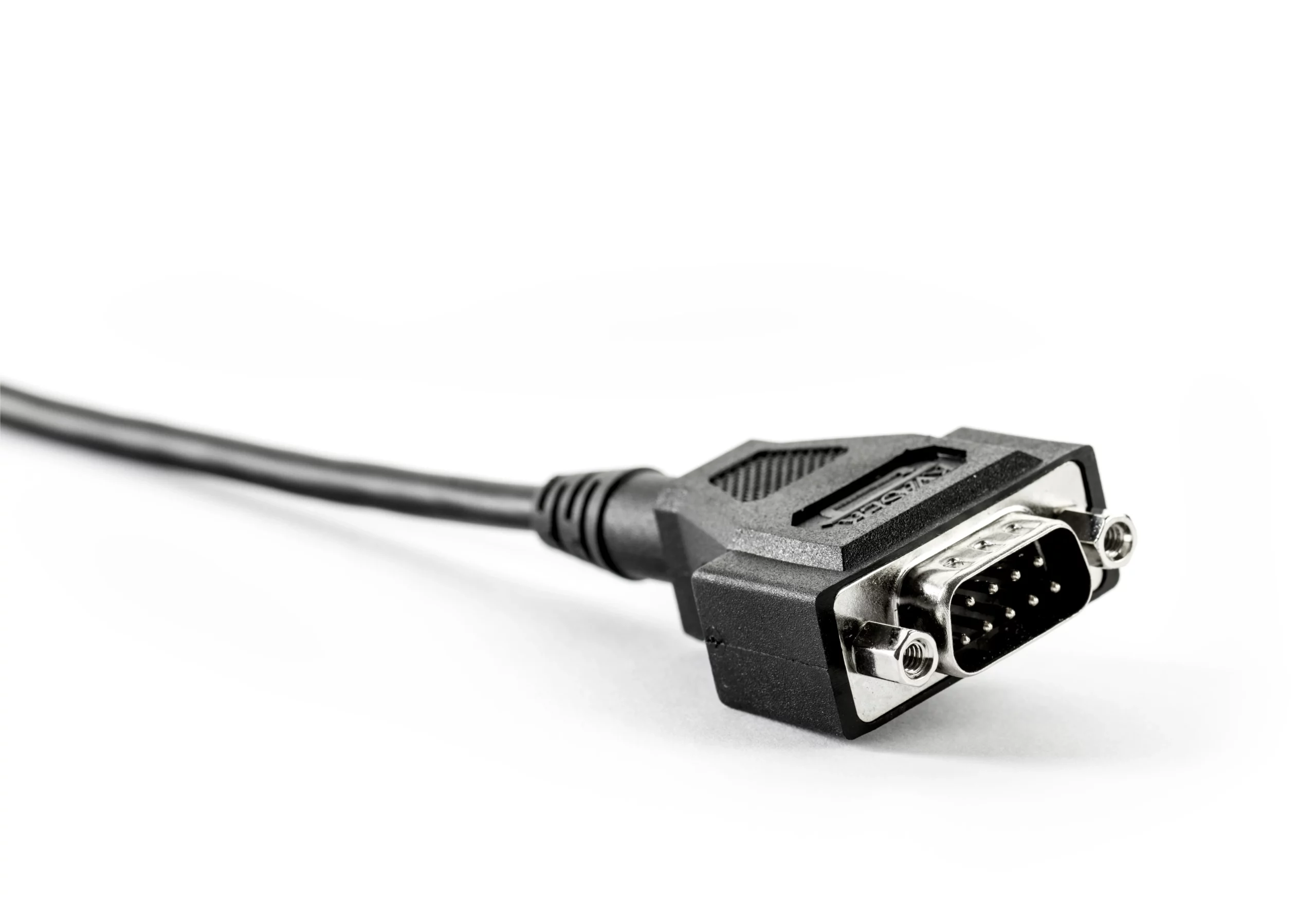

DSUB 9

Current Consumption

Allowed operating voltage 9 V-36V DC. Maximum input voltage 48 V DC. Approx. 2 W.

Error Counters Reading

No

Error Frame Generation

No

Galvanic Isolation

Yes

Height

17 mm

Length

151 mm

Material

Aluminium

Messages Per Second Receive

1200 mps

Messages Per Second Sending

1200 mps

Silent mode

No

Sound

No

Temp range

-40 °C to +70 °C

Weight

200 g

Documentation

Kvaser Air Bridge Light HS User's Guide

Kvaser Air Bridge Light HS/HS (FCC) User's Guide

Version V3.0.200527 Download
