Kvaser DIN Rail SE410S-X10

EAN: 73-30130-01118-2
Price: USD 1,600.00

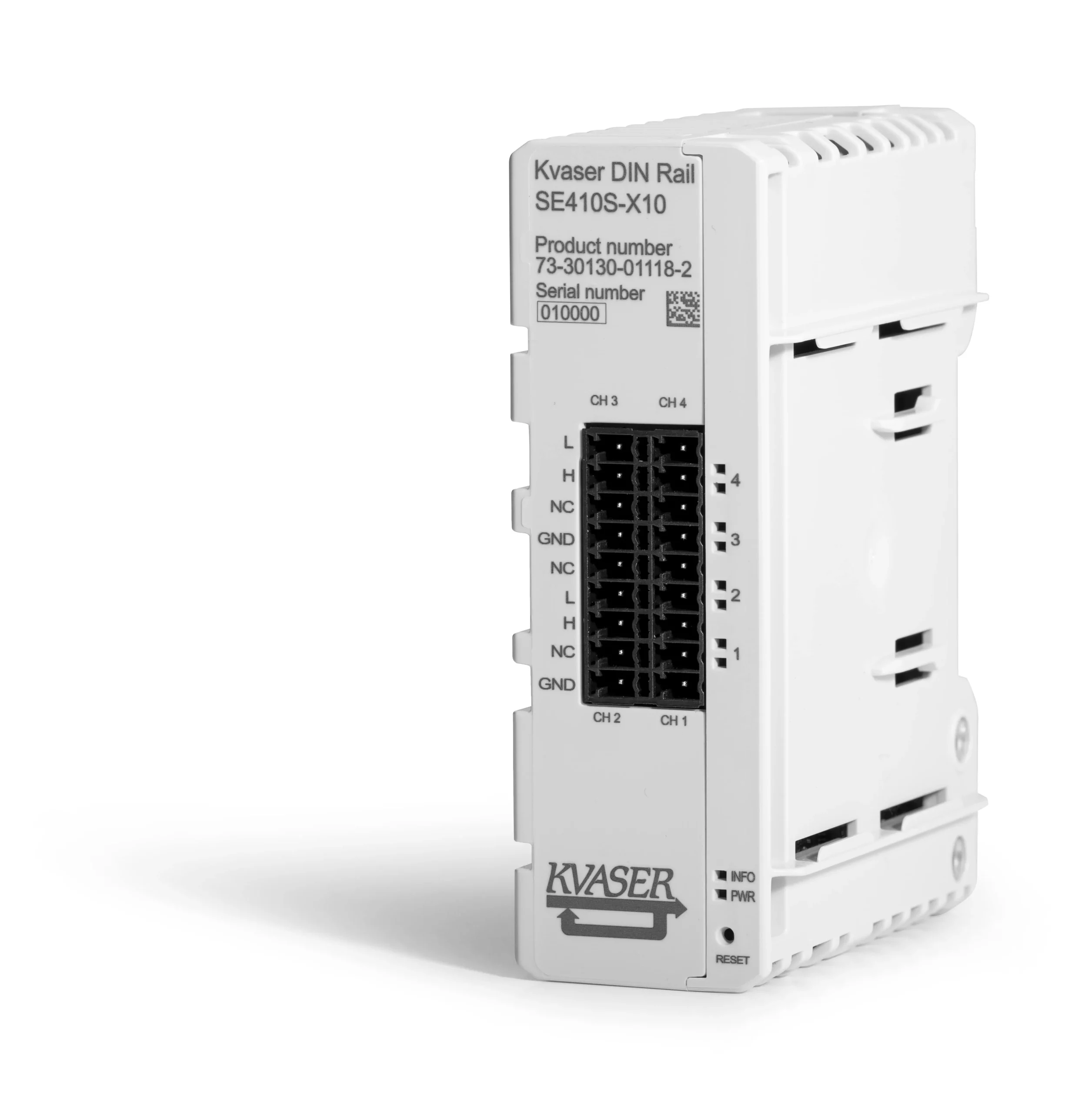

Kvaser DIN Rail SE410S-X10 is a powerful Ethernet to CAN/CAN FD interface with support for Kvaser t programs. It has 4 CAN/CAN FD channels, support for I/O via add-on modules and 16GB flash storage. Kvaser DIN Rail SE410S-X10 acts as a master for the add-ons. The housing has a smart mounting clip that attaches to a DIN rail for easy installation. The communication between the I/O modules and the Kvaser DIN Rail SE410S-X10 uses an optical bus, thus there is no need for cables in between. The I/O modules can be controlled either from Kvaser’s CANlib SDK (over Ethernet) or directly on the unit using Kvaser t programs. The Kvaser DIN Rail SE410S-X10 is compatible with applications that use Kvaser’s CANlib SDK.

Major Features

  • Quick and easy installation.
  • Multi channel CAN to Ethernet interface.

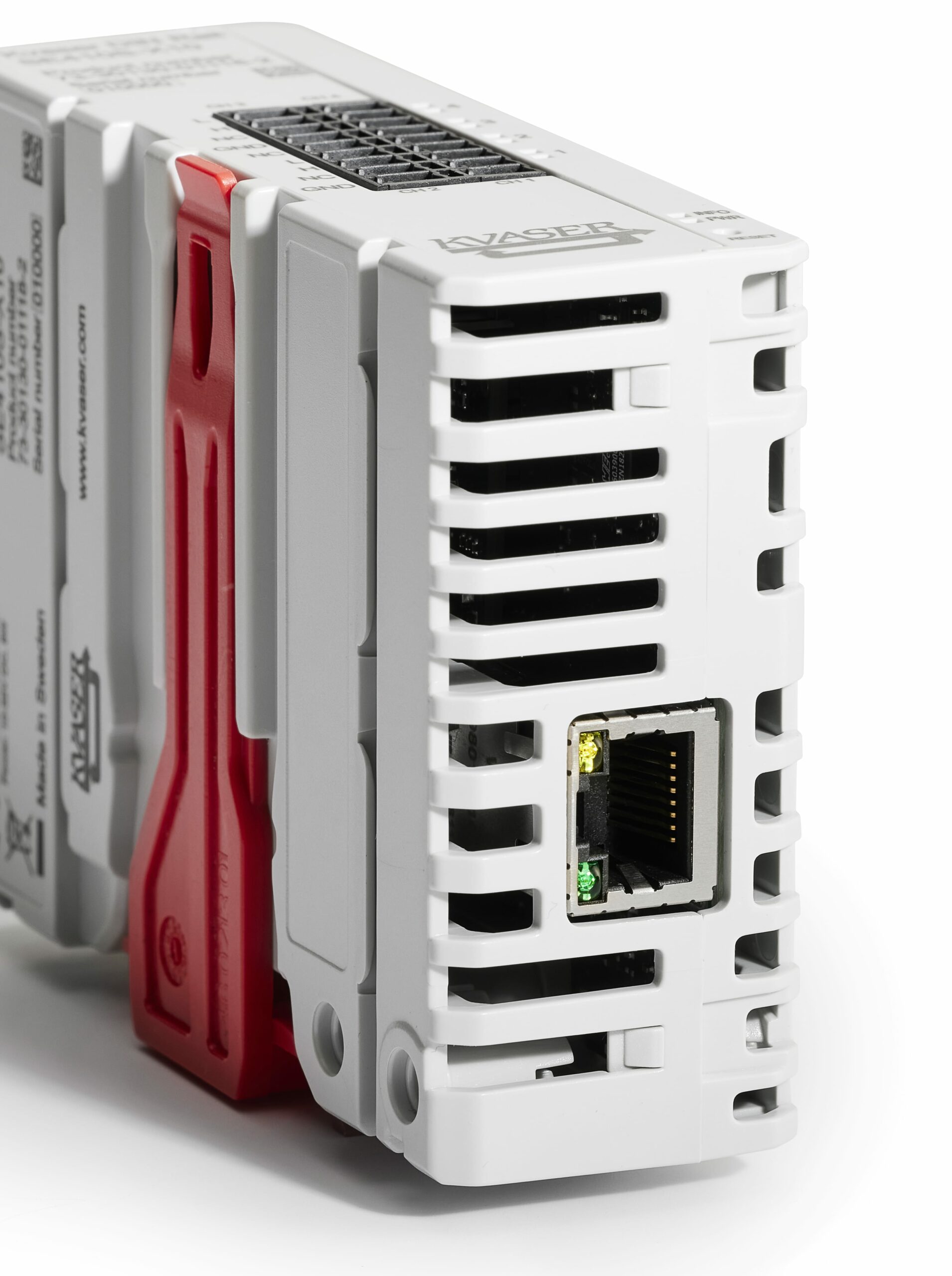

  • Ethernet connection with auto-MDIX using a standard shielded RJ45 socket.
  • Galvanically isolated CAN channels.
  • Fully compatible with J1939, CANopen, NMEA 2000 and DeviceNet.

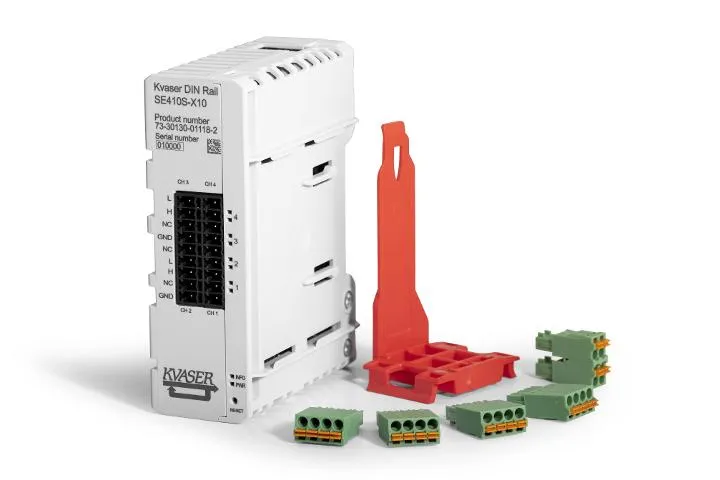

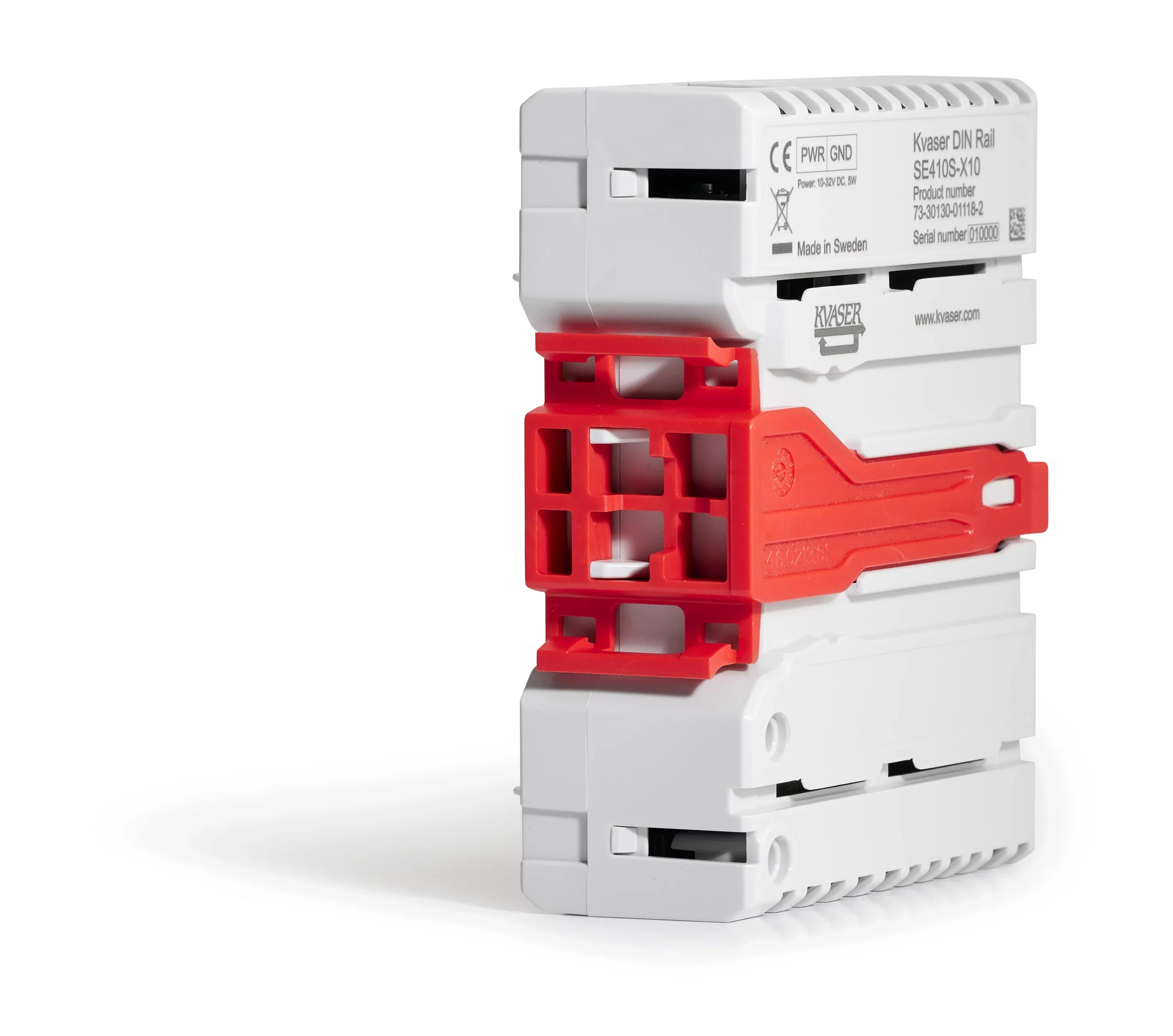

  • Lightweight plastic housing for easy mounting on DIN Rail, no tools needed.
  • Can use up to four add-on modules for digital and or analog inputs and outputs, controllable through Kvaser CANlib.
  • Supports programs written in the Kvaser t programming language, enables e.g. gateway functionality.
  • Compatible with all applications written for Kvaser hardware, such as PCIcan and USBcan, using Kvaser CANlib.
  • Allows users to save programs written in Kvaser t programming language to flash storage.
  • Automatically start t programs at power on.

Warranty

  • 2-Year Warranty. See our General Conditions and Policies for details. Register your product at kvaser.com/getting-started for an additional 1-year Warranty Extension.

Support

Software

  • Documentation, software and drivers can be downloaded for free at kvaser.com/downloads.
  • Kvaser CANLIB SDK is a free resource that includes everything you need to develop software for the Kvaser CAN interfaces. Includes full documentation and many program samples, written in C, C++, C#, Delphi, and Visual Basic.
  • All Kvaser CAN interface boards share a common software API. Programs written for one interface type will run without modifications on the other interface types!
  • J2534 Application Programming Interface available.
  • RP1210A Application Programming Interface available.
  • On-line documentation in Windows HTML-Help and Adobe Acrobat format.
Bitrate

50-1000 kbps

CAN FD Bitrate

Up to 8 Mbit/s

Categories

DIN Rail, Interfaces, Hardware, CAN

Certificates

CE, RoHS

Channels

4

Connectors

RJ45

Current Consumption

Idle 2.0 W, load 3.2 W

Error Frame Generation

Yes

Galvanic Isolation

Yes

Height

101 mm

Interfaces

Ethernet RJ45

Length

75 mm

Messages Per Second Receive

20000 mps

Messages Per Second Sending

20000 mps

OS

Win 7, Win 11, Win 10, Win 8

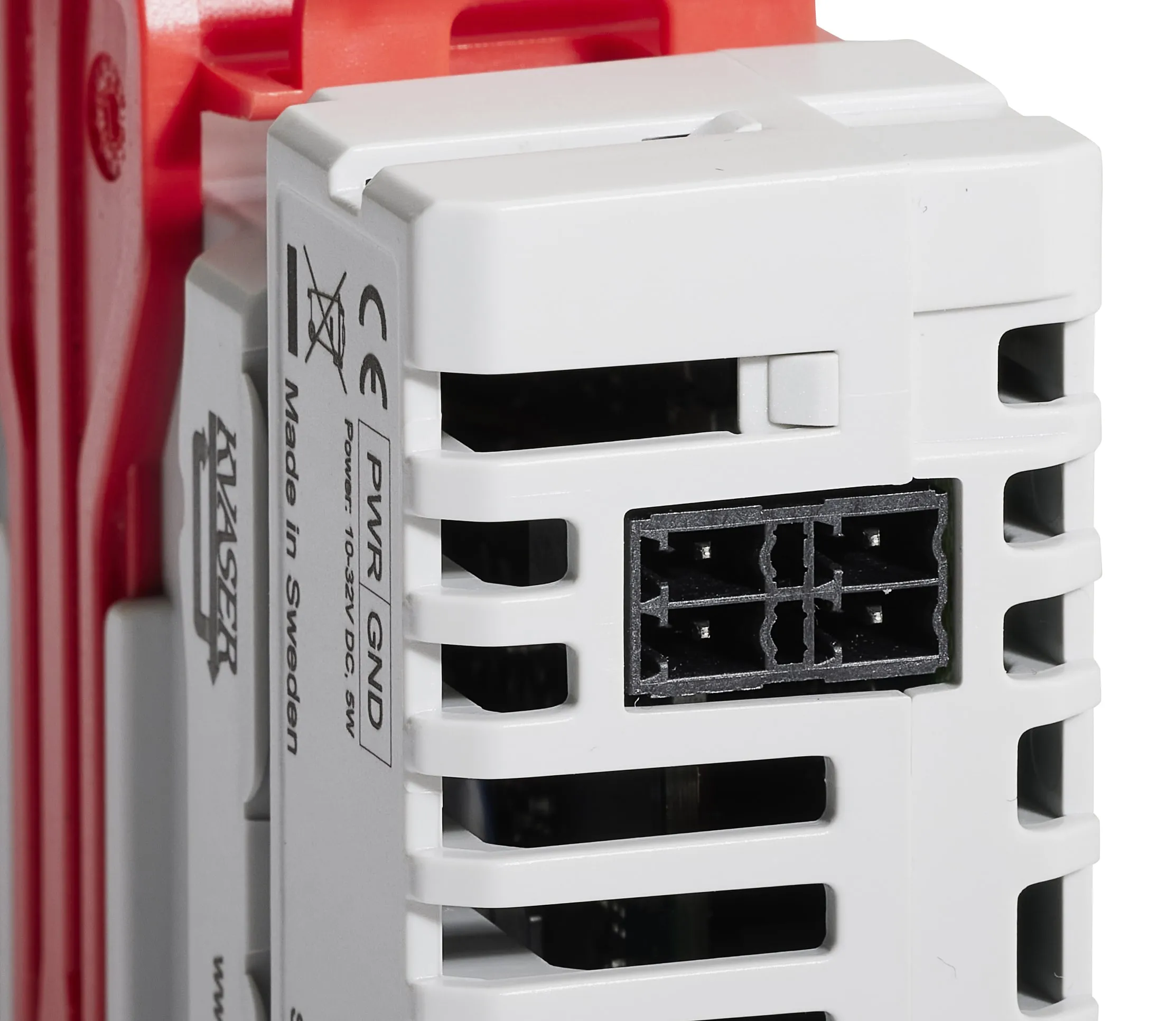

Power Supply Voltage

+9 V to +35 V DC

Silent mode

Yes

Sound

No

Temp range

+5 °C to +65 °C

Timestamp Resolution (µs)

100 µs

Weight

120 g

Firmware
Kvaser Firmware Update Tool

Firmware Update tool for most Kvaser devices.

Download
Version V4.32.630
Driver
Kvaser DIADEM driver

This free driver for National Instrument's DIAdem supports all CAN hardware from Kvaser.

Download
Version V4.1.0
Kvaser Drivers for Windows

Windows drivers for all our CAN hardware. Please check the release notes for information on which Windows versions are supported. The package also contains a driver for a virtual CAN bus, for testing and evaluation when you don't have access to a physical CAN bus.

Download
Version V5.44.630
Documentation
Kvaser DIN Rail SE410S-X10 User's Guide

Kvaser DIN Rail SE410S-X10 User's Guide

Download
Version V1.6.240218
Kvaser Remote Device Configuration XML Format

Description of the XML configuration format for Kvaser Remote devices.

Download
Version V4.10.240218
Development Kits and Tools
Python module

The Canlib module is a Python wrapper for Kvaser CANlib SDK.

Download
Version V1.25.393
Kvaser LabView VI Library for CAN

Library for National Instrument's LabView. Version for all Kvaser CAN hardware.

Download
Version V23.1.0
Kvaser CANlib SDK

Software development kit - everything you need to develop software for the Kvaser CAN and LIN interfaces. Libraries, header files, sample programs for e.g. C, C++, C#, Visual Basic and Delphi, documentation, and more. Note: you need to download and install the appropriate device drivers separately.

Download
Version V5.44.630
Other
Kvaser CANKing

A free of charge, general-purpose CAN bus monitor. It works with all CAN interfaces from Kvaser and also with the virtual CAN bus.

Download
Version V6.26.654
