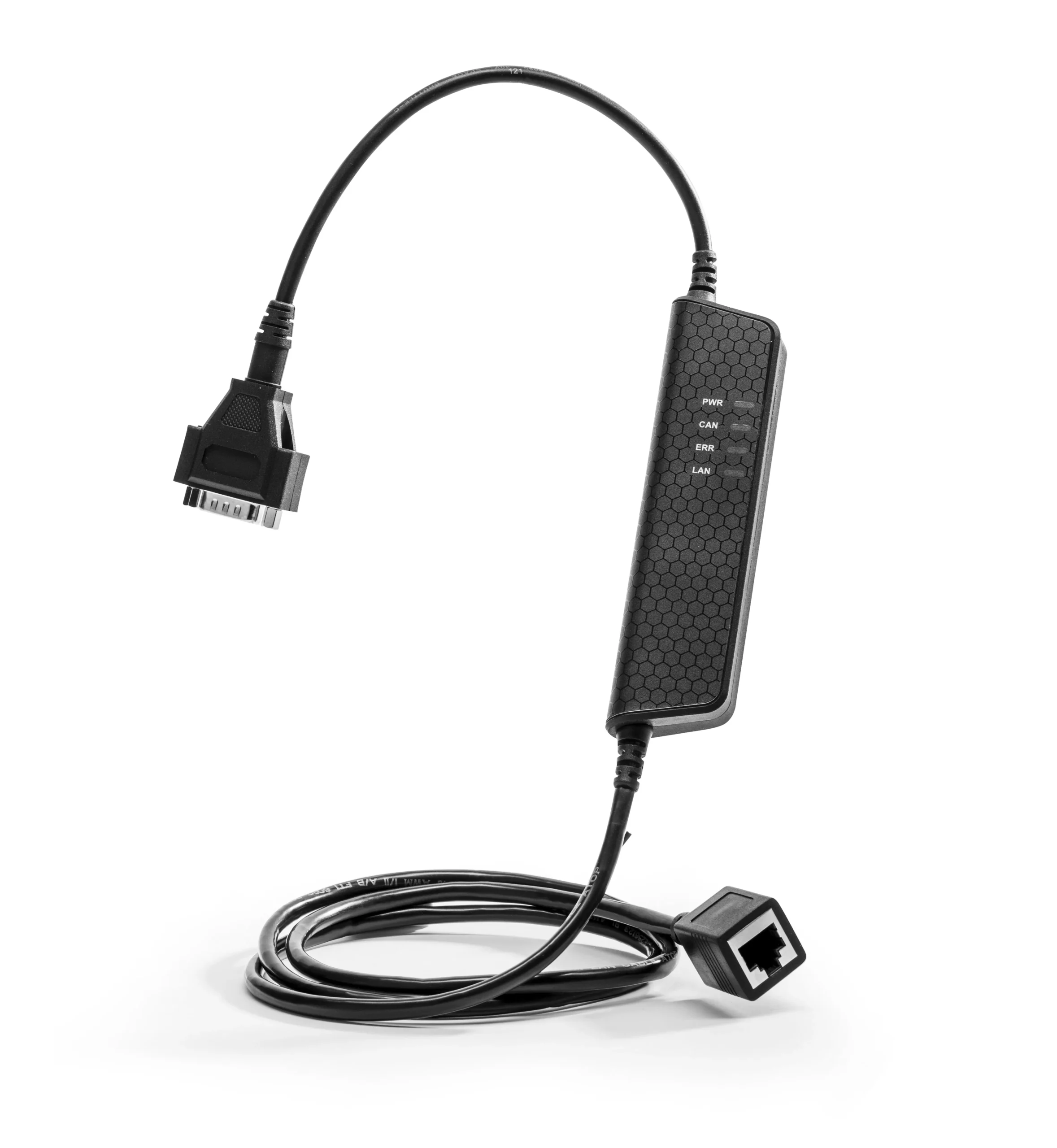

Kvaser Ethercan HS

EAN: 73-30130-00976-9
Price: USD 812.00

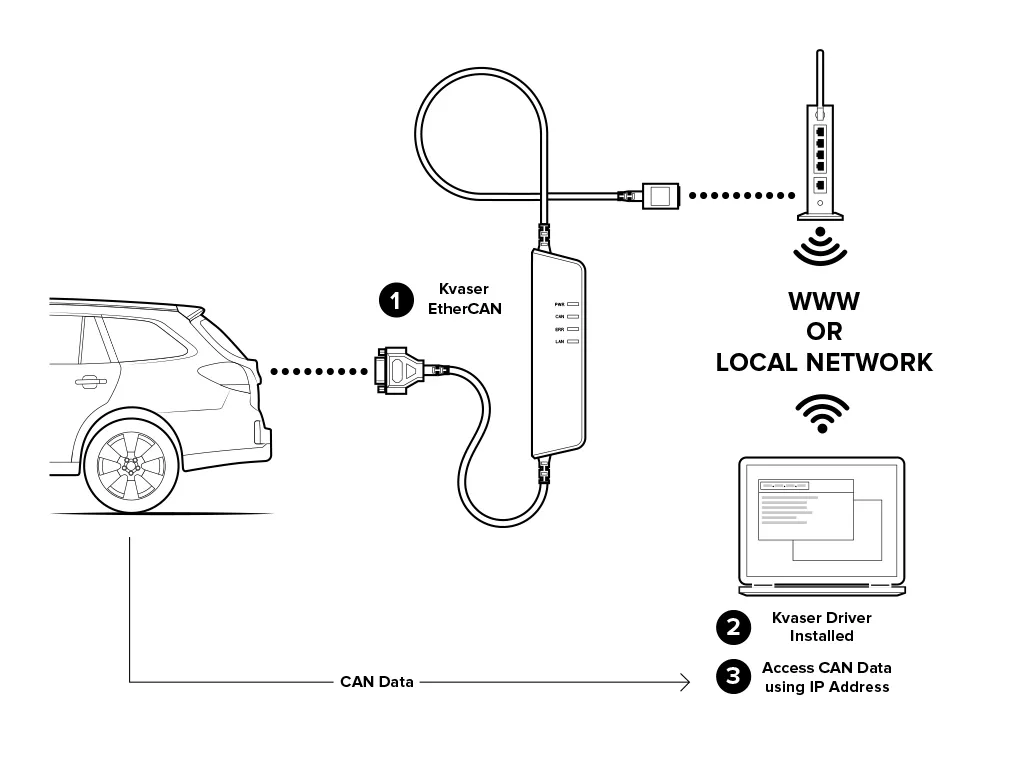

The Kvaser Ethercan HS is a powerful, real-time Ethernet to CAN interface that, when linked over the Internet to an Ethernet-equipped PC, allows CAN data to be remotely accessed from anywhere in the world. Built-in Power over Ethernet (PoE) eliminates the need for a separate power cable when you can't power the device from the CAN bus.

Kvaser’s Ethercan product range makes it easy to implement the Internet of Things (IoT) concept by enabling data from any CAN product or system to be sent over a corporate network or WAN, using the standard Kvaser CANlib API. Users of the Kvaser Ethercan HS can also choose to connect to the device using the built-in REST API for web-enabled devices, such as smartphones.
As a programmable interface, the Kvaser Ethercan HS is suited to advanced applications, such as ECU reflashing. For example, a t program could be created to process CAN messages locally in the device, removing the latency of WiFi and/or Ethernet.

Major Features:

  • High-speed CAN connection (compliant with ISO 11898-2), up to 1 Mbit/s.
  • Networked CAN interface with Kvaser t programmability.
  • Supports Kvaser REST API, enabling CAN data exchange with a variety of web-enabled devices.
  • Time stamp accuracy of 25 µs.
  • Ethernet connection has auto-MDIX, so it automatically detects and adjusts for the Ethernet cable being used.
  • Built-in Power over Ethernet (PoE) - receives data and power over the Ethernet cable.
  • Also receives power over CAN so the Ethercan can be powered through devices such as the Kvaser DB9-Power Inlet.
  • Small, lightweight plastic housing with galvanic isolation.
  • Fully compatible with J1939, CANopen, NMEA 2000® and DeviceNet.
  • Includes Ethercan Factory Reset Device. This device provides the ability to reset the Ethercan's IP address to factory defaults at the push of a button.
  • Supports Windows Vista or later.

Warranty

  • 2-Year Warranty. See our General Conditions and Policies for details. Register your product at www.kvaser.com/getting-started for an additional 1-year Warranty Extension.

Support

Software

  • Documentation, Kvaser CANlib SDK and drivers can be downloaded for free at www.kvaser.com/downloads.
  • Kvaser CANlib SDK is a free resource that includes everything you need to develop software for the Kvaser CAN interfaces. Includes full documentation and many program samples, written in C, C++, C#, Delphi, Visual Basic, Python and the Kvaser t programming language.
  • All Kvaser CAN interface boards share the common software API, CANlib SDK. Programs written for one interface type will run without modifications on the other interface types.
  • J2534 Application Programming Interface available.
  • RP1210A Application Programming Interface available.
  • HTML-Help and online documentation are included in the CANlib SDK.
Bitrate

40-1000 kbps

Categories

LIN, CABLES, DIN Rail, Interfaces, Hardware, Dataloggers, CAN, Accessories

Certificates

CE, RoHS

Channels

1

Connectors

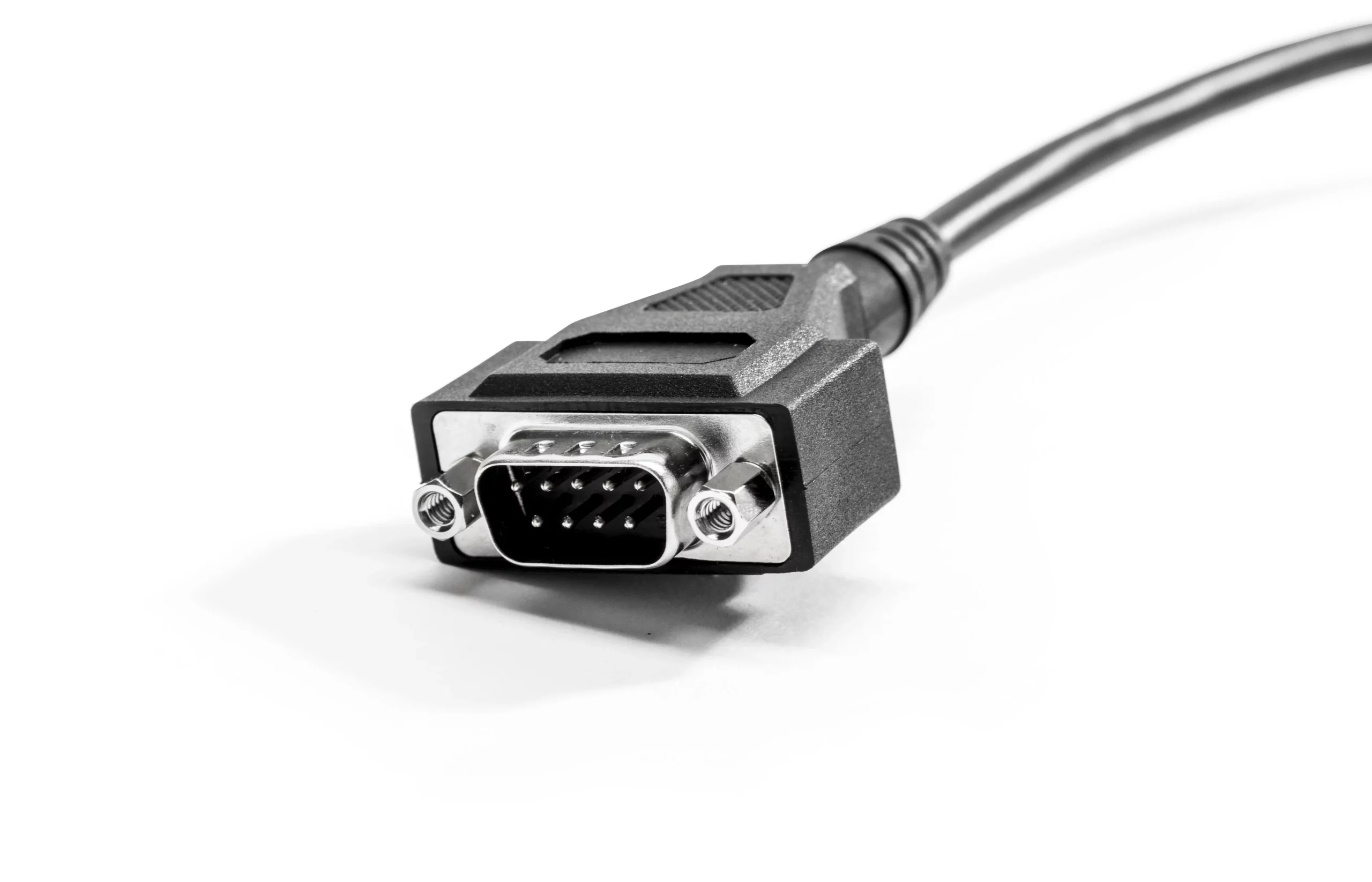

DSUB 9

Current Consumption

PoE (Power over Ethernet) IEEE 802.3af or CAN +9V to +35V DC

Error Counters Reading

No

Error Frame Generation

No

Galvanic Isolation

Yes

Height

17 mm

Interfaces

Ethernet RJ45

Length

165 mm

Material

PA66

Messages Per Second Receive

20000 mps

Messages Per Second Sending

20000 mps

OS

Win 7, Win Vista, Win 10, Win 8

Silent mode

No

Sound

No

Temp range

-20 °C to +70 °C

Timestamp R (µ)

25 µs

Weight

120 g

Firmware

Kvaser Firmware Update Tool

Firmware Update tool for most Kvaser devices.

Version V4.22.212 Download
Driver

Kvaser DIADEM driver

This free driver for National Instrument's DIAdem supports all CAN hardware from Kvaser.

Version V4.1.0 Download

Kvaser Drivers for Windows

Windows drivers for all our CAN hardware. Please check the release notes for information on which Windows versions are supported. The package also contains a driver for a virtual CAN bus, for testing and evaluation when you don't have access to a physical CAN bus.

Version V5.33.212 Download
Documentation

Kvaser Ethercan HS User's Guide

Kvaser Ethercan HS User's Guide

Version V2.3.200527 Download

Kvaser Remote Device Configuration XML Format

Description of the XML configuration format for Kvaser Remote devices.

Version V4.9.200527 Download
Development Kits and Tools

Python module

The Canlib module is a Python wrapper for Kvaser CANlib SDK.

Version V1.15.483 Download

Kvaser LabView VI Library for CAN

Library for National Instrument's LabView. Version for all Kvaser CAN hardware.

Version V19.3.0 Download

Kvaser CANlib SDK

Software development kit - everything you need to develop software for the Kvaser CAN and LIN interfaces. Libraries, header files, sample programs for e.g. C, C++, C#, Visual Basic and Delphi, documentation, and more. Note: you need to download and install the appropriate device drivers separately.

Version V5.33.212 Download
Other

Kvaser CANKing

A free of charge, general-purpose CAN bus monitor. It works with all CAN interfaces from Kvaser and also with the virtual CAN bus.

Version V6.16.978 Download
