Kvaser Hybrid Pro 2xCAN/LIN

EAN: 73-30130-01042-0
Price: USD 1,184.00

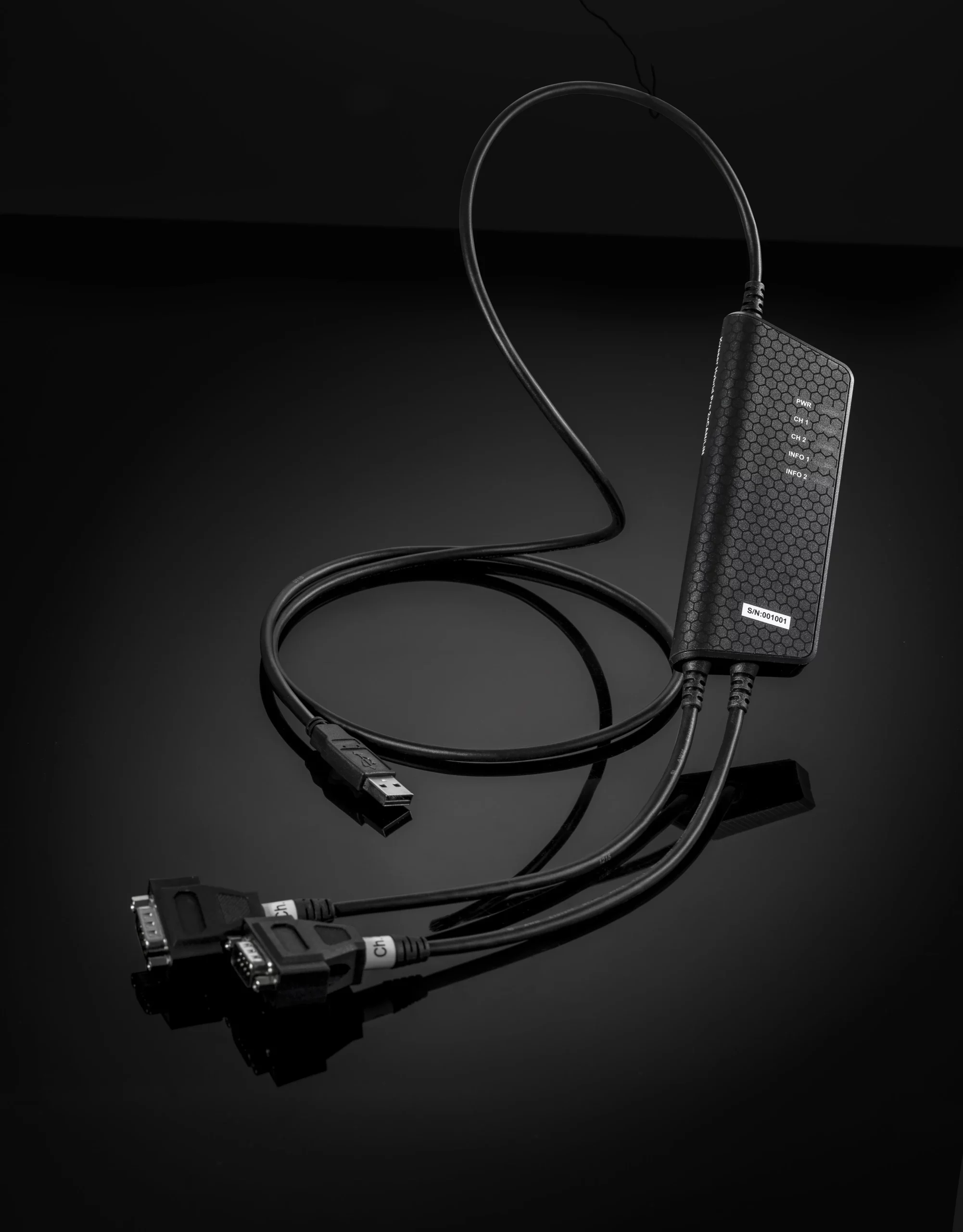

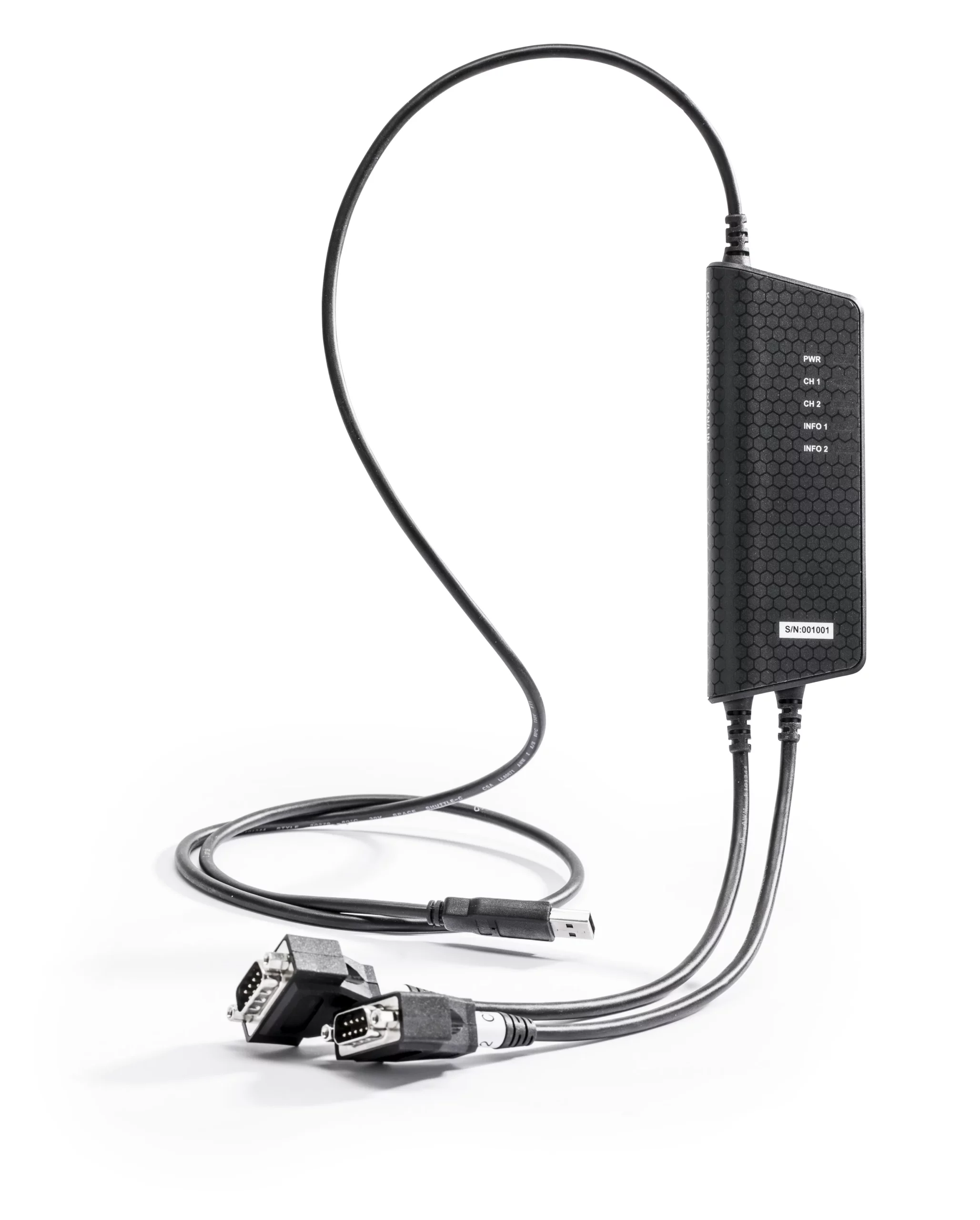

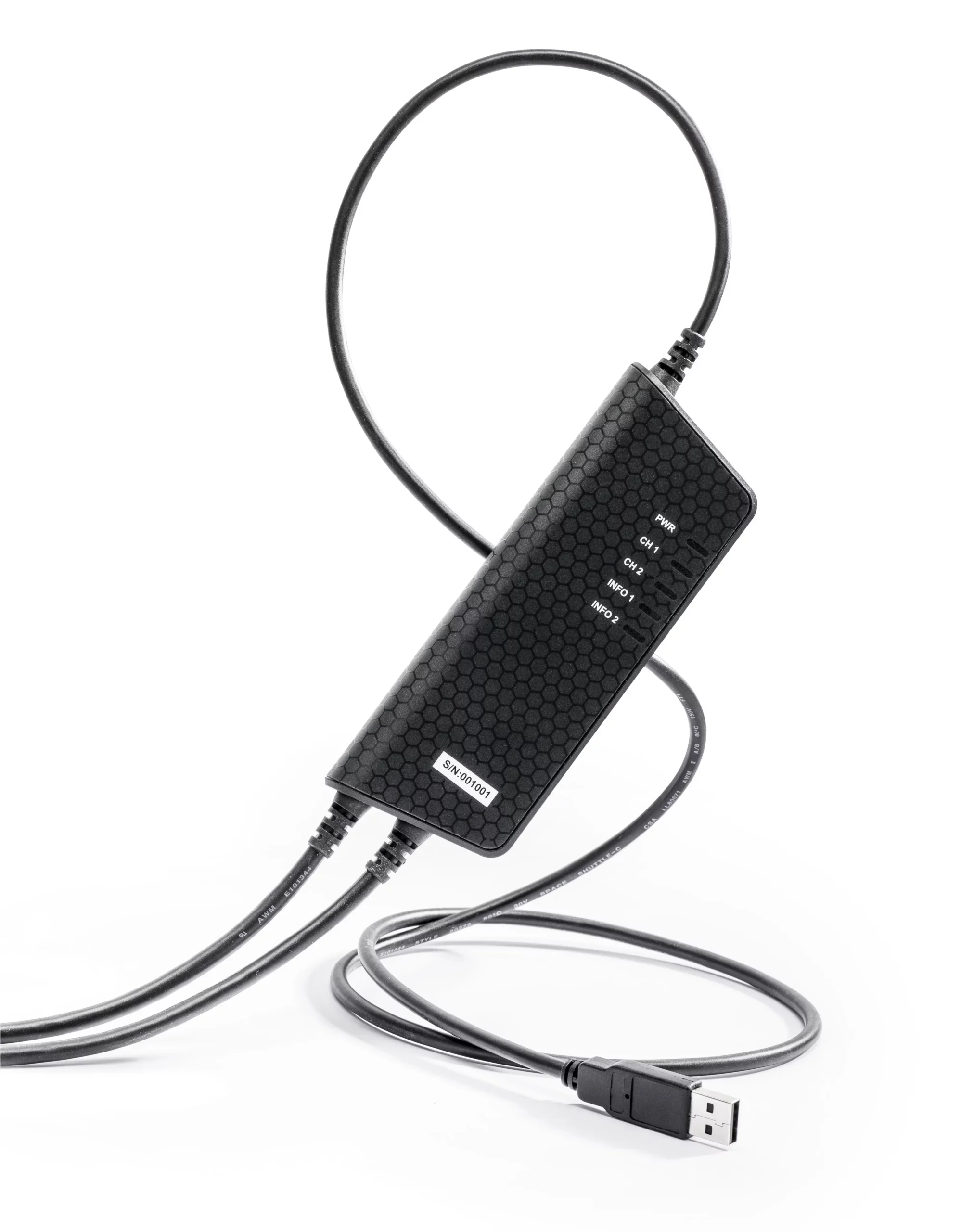

Kvaser Hybrid Pro 2xCAN/LIN is a flexible, dual channel interface that allows each channel to be assigned independently as CAN, CAN FD or LIN. This makes the Kvaser Hybrid Pro 2xCAN/LIN a must-have ’universal interface’ for every engineer involved in automotive communications!

The Kvaser Hybrid Pro 2xCAN/LIN offers advanced features such as support for CAN FD, Silent Mode, Single Shot, Error Frame Generation and Kvaser MagiSync automatic clock synchronization. As a Pro-level device, this interface can host user-developed programs, created using resources provided within Kvaser’s free CANlib SDK. These can be designed to accomplish a range of advanced tasks, such as CAN node simulation and CAN flashing, or create a LIN to CAN gateway. Guidance and code examples are provided.

Main Features:

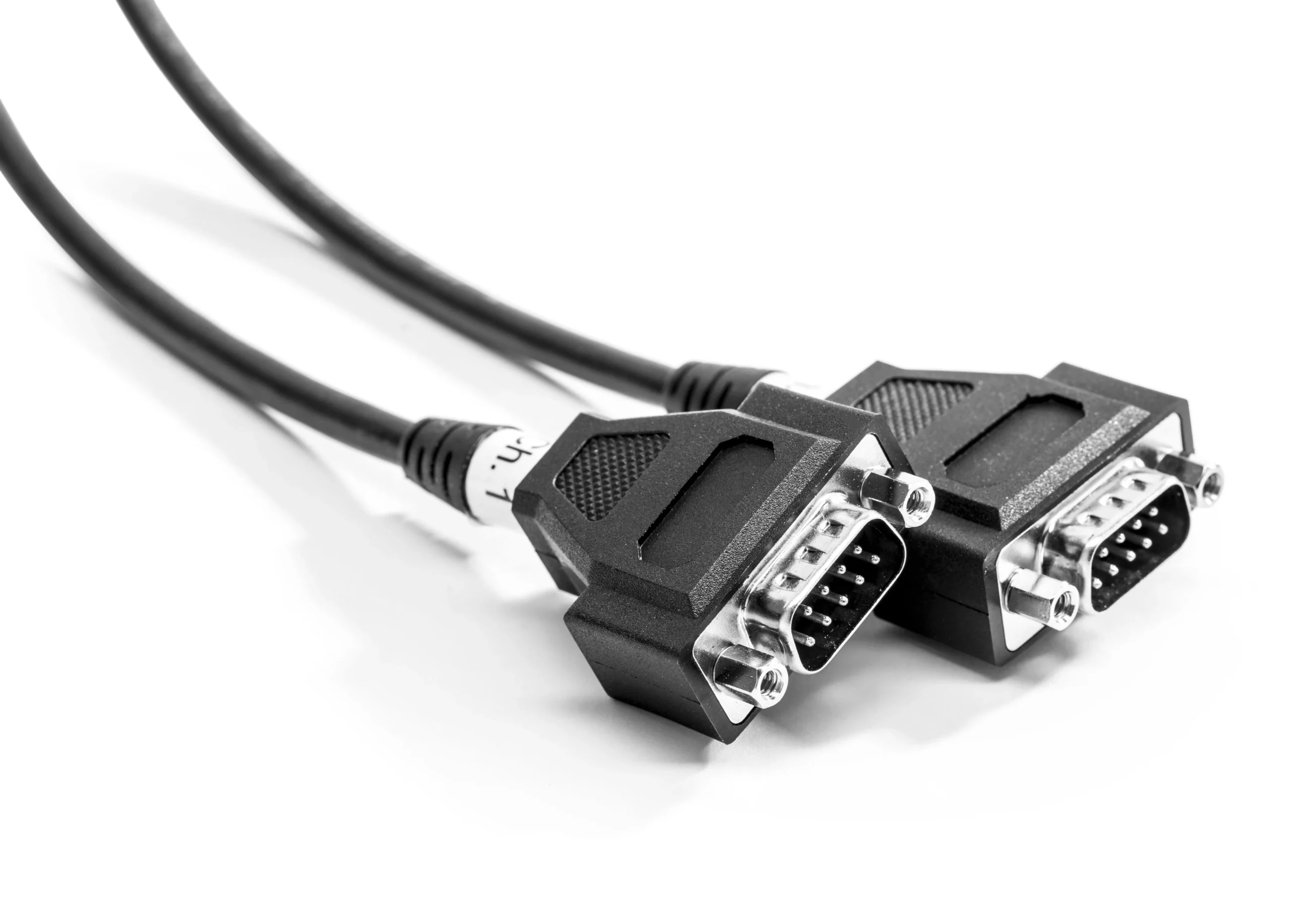

  • Hybrid USB CAN/LIN two channel interface with two separate 9-pin D-SUBs.
  • t programs allow users to customise the Hybrid Pro 2xCAN/LIN’s behaviour.
  • Supports High Speed CAN (ISO 11898-2) up to 1Mbit/s and LIN 2.2A (ISO 17987 Part 1-7) up to 20 kbit/s.
  • Supports CAN FD (ISO 11898-1) up to 5 Mbit/s (with correct physical layer implementation).
  • Capable of sending up to 20000 messages per second, per CAN channel, time-stamped with a 1 microsecond accuracy.
  • USB powered (bus V+ reference required for LIN).
  • Kvaser MagiSync – automatic time synchronization between MagiSync-enabled Kvaser interfaces connected to the same PC.
  • Single shot function ensures that failed CAN transmissions will not retry.
  • CAN Error Frame Generation and Error Counters.

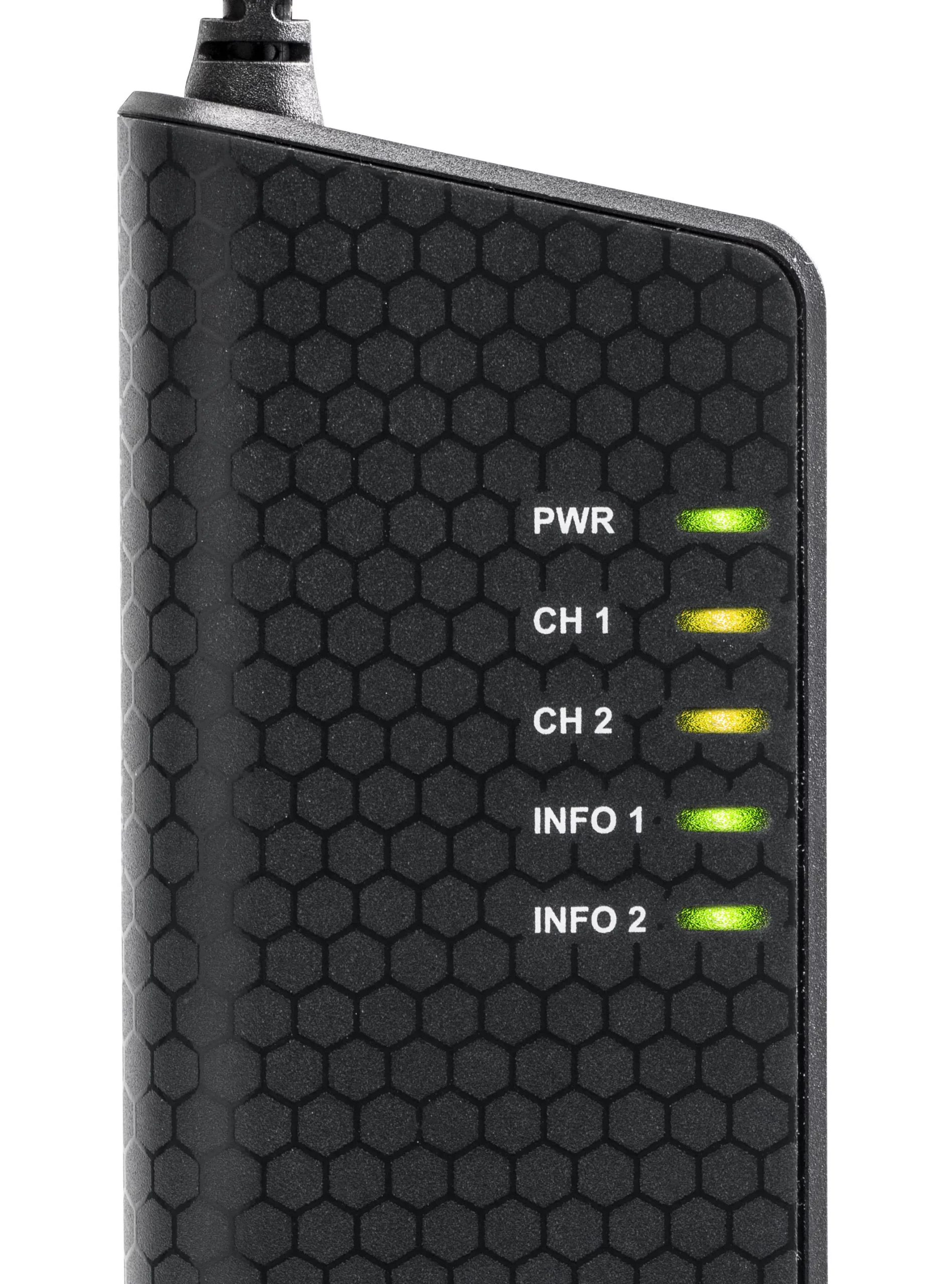

  • LED lights indicate device status.
  • Fully compatible with J1939, CANopen, NMEA 2000 and DeviceNet.
  • Supplied with Kvaser CANlib and Kvaser LINlib, free software APIs that are common to all Kvaser hardware and enable the channels to be configured intuitively and fast.
  • Extended operating temperature range from -40 to 85 °C.
  • Support for SocketCAN, see elinux.org for details.

Warranty

  • 2-Year Warranty. See our General Conditions and Policies for details. Register your product at www.kvaser.com/getting-started for an additional 1-year Warranty Extension.

Support

Software

  • Documentation, Kvaser CANlib SDK and drivers can be downloaded for free at www.kvaser.com/downloads.
  • Kvaser CANlib SDK is a free resource that includes everything you need to develop software for the Kvaser CAN and LIN interfaces. Includes full documentation and many program samples, written in C, C++, C#, Delphi, Visual Basic, Python, as well as Kvaser’s t Programming language.
  • All Kvaser CAN interface boards share the common software API, CANlib SDK. Programs written for one interface type will run without modifications on the other interface types.
  • J2534 Application Programming Interface available.
  • RP1210A Application Programming Interface available.
  • HTML-Help and online documentation in Windows and Linux.
Bitrate

50-5000 kbps

Categories

LIN, PC INTERFACES, CAN

Certificates

CE, RoHS

Channels

2

Connectors

DSUB 9

Current Consumption

max 280 mA

Error Counters Reading

Yes

Error Frame Generation

Yes

Galvanic Isolation

Yes

Height

20 mm

Interfaces

USB

Length

170 mm

Lin Bitrate

1-20

Material

PA66

Messages Per Second Receive

20000 mps

Messages Per Second Sending

20000 mps

OS

Linux, Win 7, Win Vista, Win 10, Win 8

Silent mode

Yes

Sound

No

Temp range

-40 - 85 °C

Timestamp R (µ)

1 µs

Weight

170 g

Firmware

Kvaser Firmware Update Tool

Firmware Update tool for most Kvaser devices.

Version V4.19.998 Download
Driver

Kvaser Linux Drivers and SDK

Linux drivers and SDK for most Kvaser devices.

Version V5.30.995 Download

Kvaser Drivers for Windows

Windows drivers for all our CAN hardware. Please check the release notes for information on which Windows versions are supported. The package also contains a driver for a virtual CAN bus, for testing and evaluation when you don't have access to a physical CAN bus.

Version V5.30.995 Download
Documentation

Kvaser Hybrid Pro 2xCAN/LIN User's Guide

Kvaser Hybrid Pro 2xCAN/LIN User's Guide

Version V2.2.191008 Download

Kvaser t Programming Language

Documentation for the t programming language

Version V4.15.191008 Download
Development Kits and Tools

Kvaser Canlib Android Library

Kvaser CANlib Android Library

Version V1.1.0 Download

Python module

The Canlib module is a Python wrapper for Kvaser CANlib SDK.

Version V1.12.251 Download

Kvaser CANlib SDK

Software development kit - everything you need to develop software for the Kvaser CAN and LIN interfaces. Libraries, header files, sample programs for e.g. C, C++, C#, Visual Basic and Delphi, documentation, and more. Note: you need to download and install the appropriate device drivers separately.

Version V5.30.995 Download
Other

XTM, Free LIN Viewer

A free of charge LIN bus viewer. Works with Kvaser Leaf Professional LIN, and/or Kvaser LAPcan + DRVLIN.

Version V3.8.36 Download

Kvaser CANKing

A free of charge, general-purpose CAN bus monitor. It works with all CAN interfaces from Kvaser and also with the virtual CAN bus.

Version V6.13.862 Download
