Kvaser Leaf Light HS v2 CB

EAN: 73-30130-00733-8
Price: USD 394.00

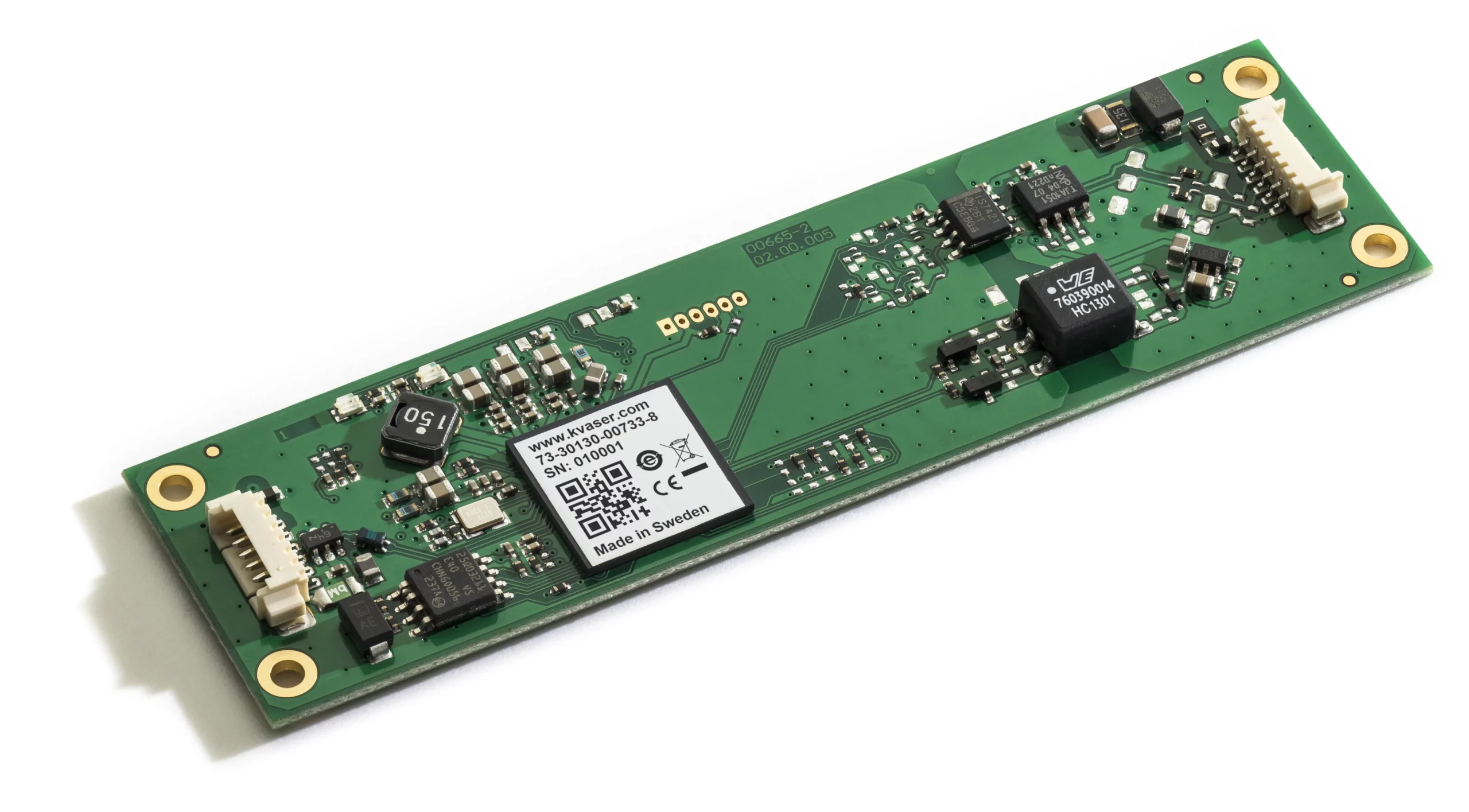

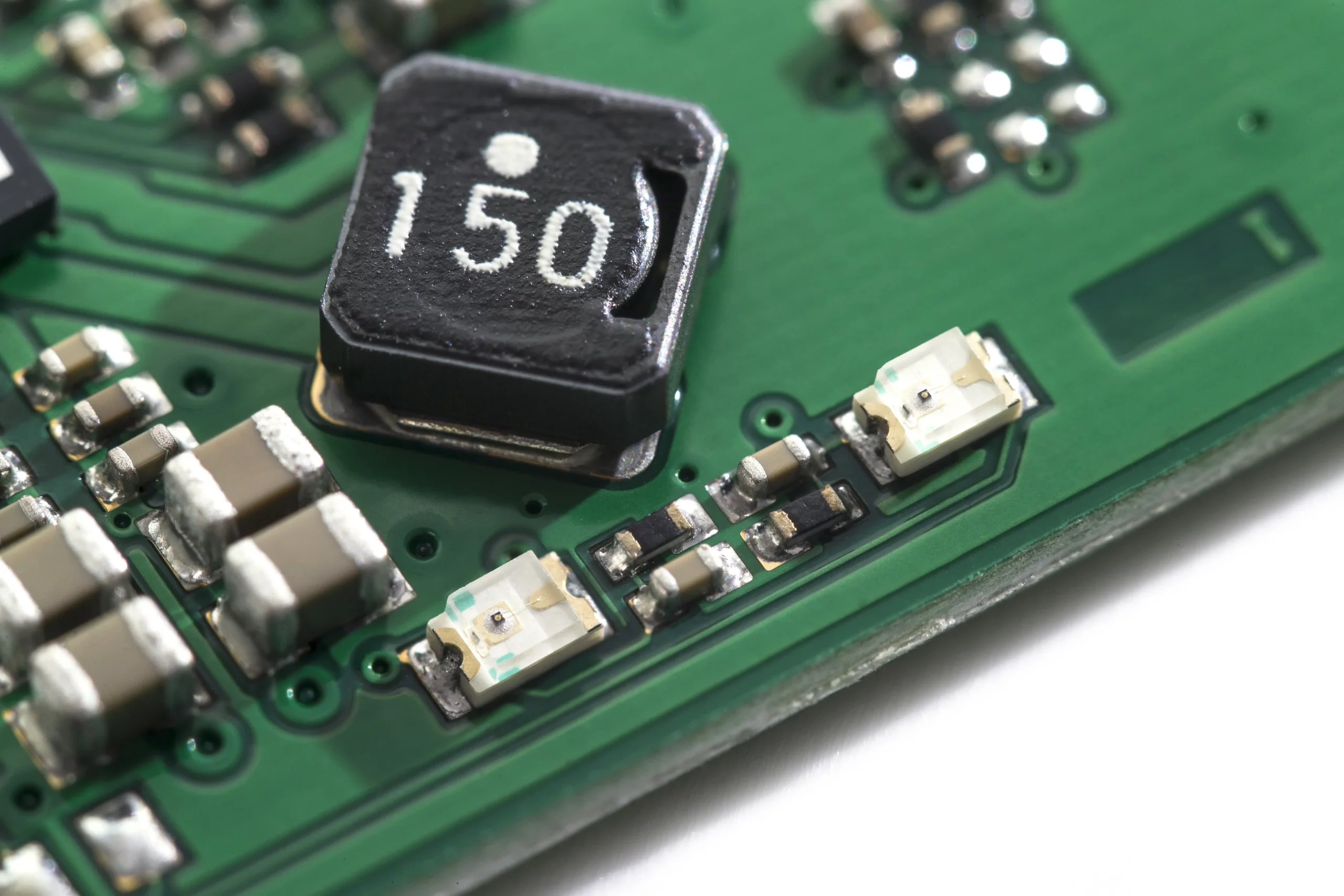

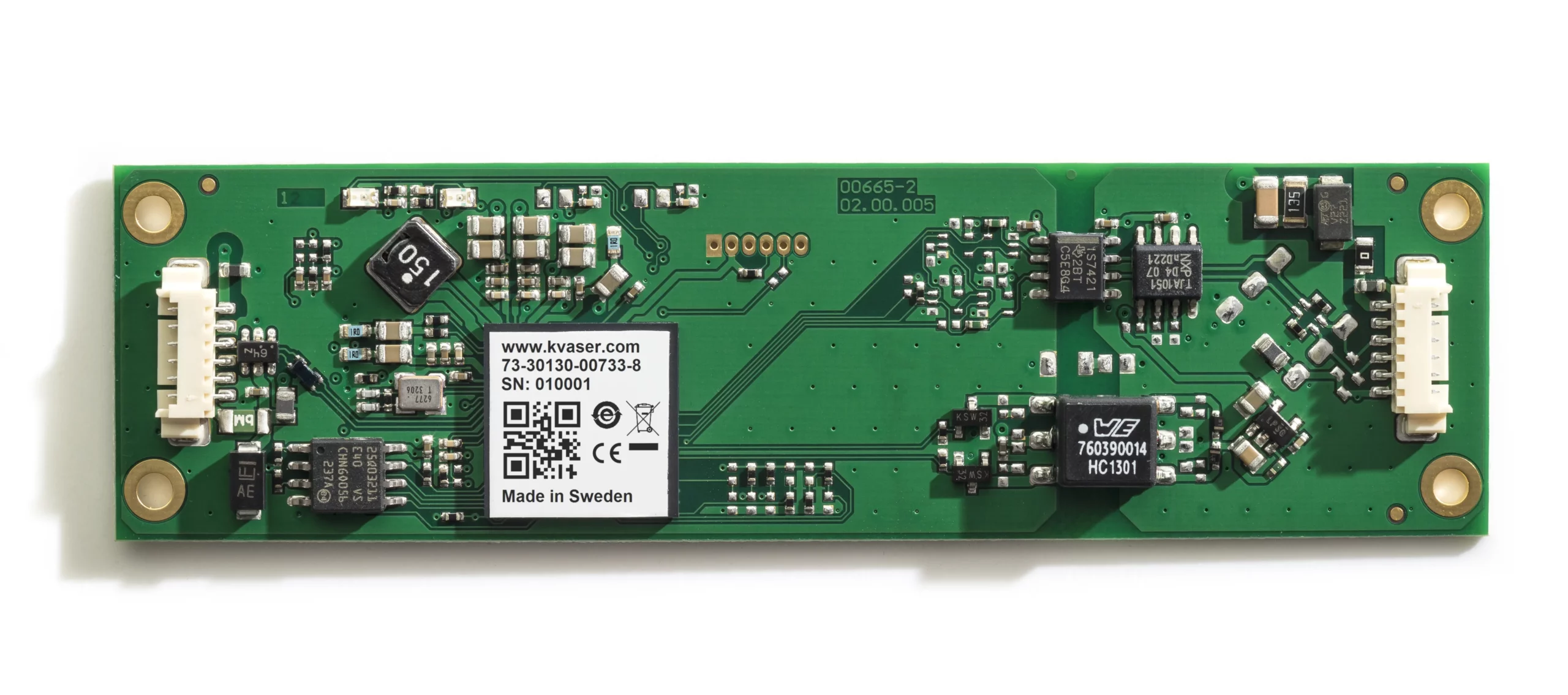

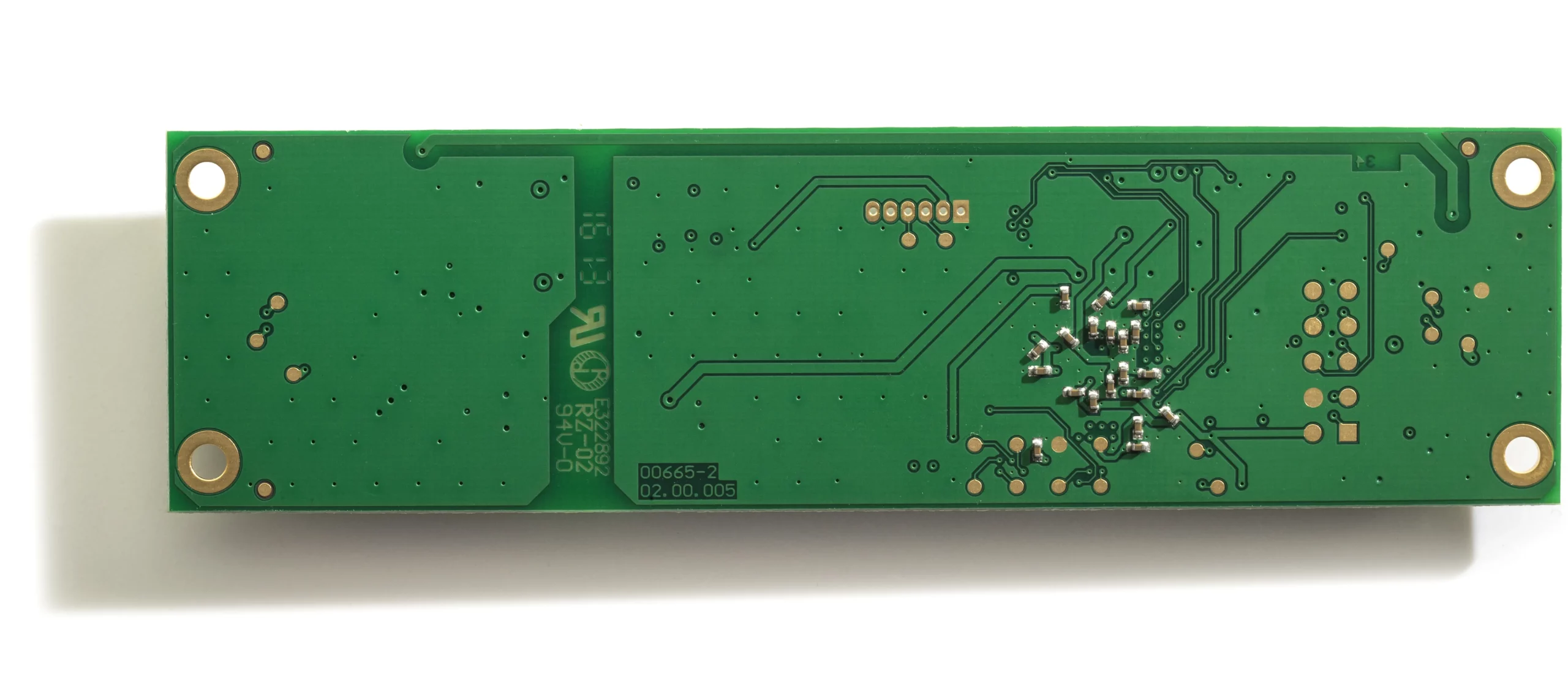

The Leaf Light v2 CB is the bare circuit board version of Kvaser's popular Leaf Light v2 interface - a single-channel, high speed, USB-to-CANbus interface. Having made its name as the work-horse of USB to CAN interfaces, Kvaser's Leaf Light product series provides reliable, low cost connection to the PC.

Major Features

  • The Kvaser Leaf Light HS V2 CB is a high speed USB interface for CAN that offers loss free transmission and reception of standard and extended CAN messages on the CAN bus.

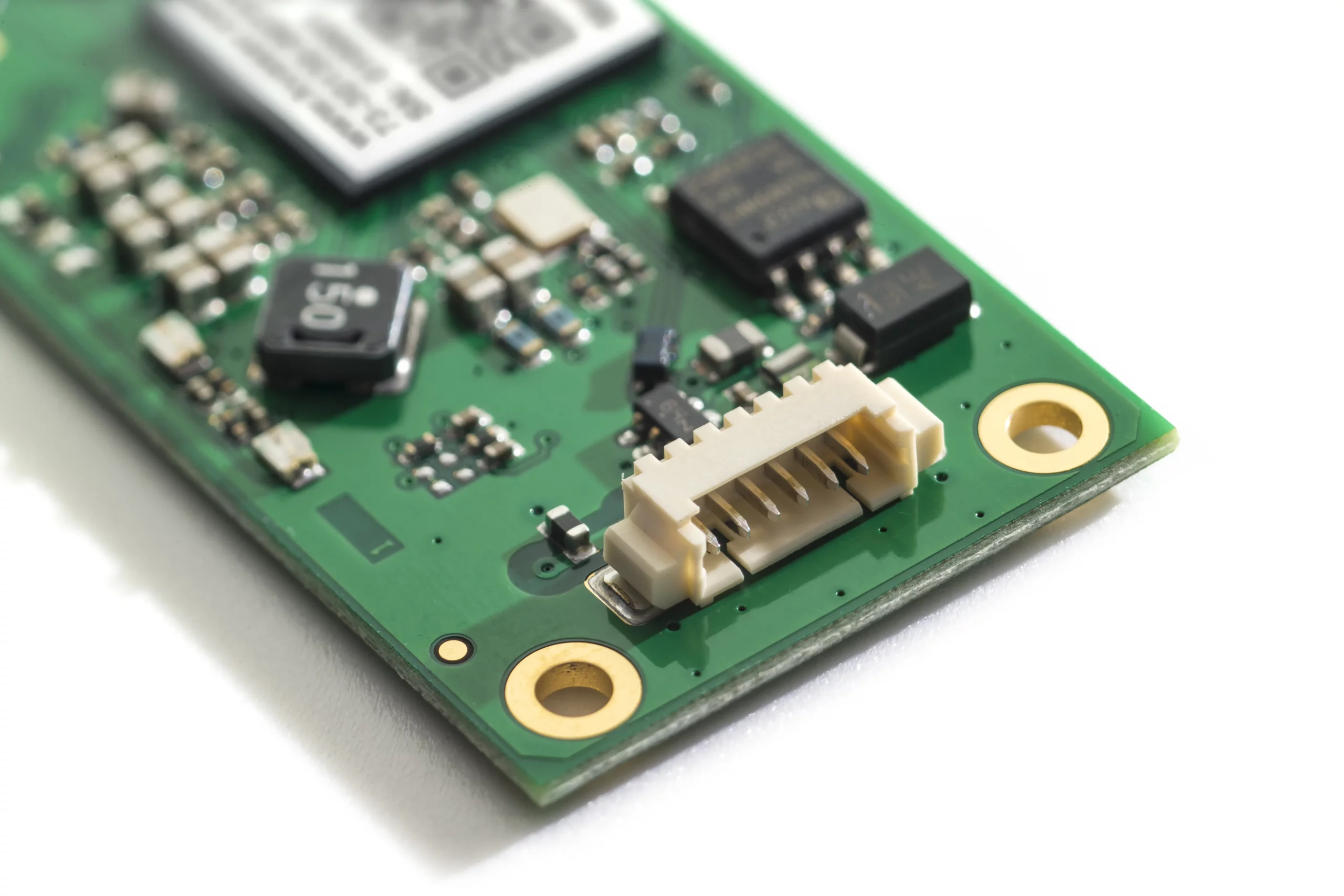

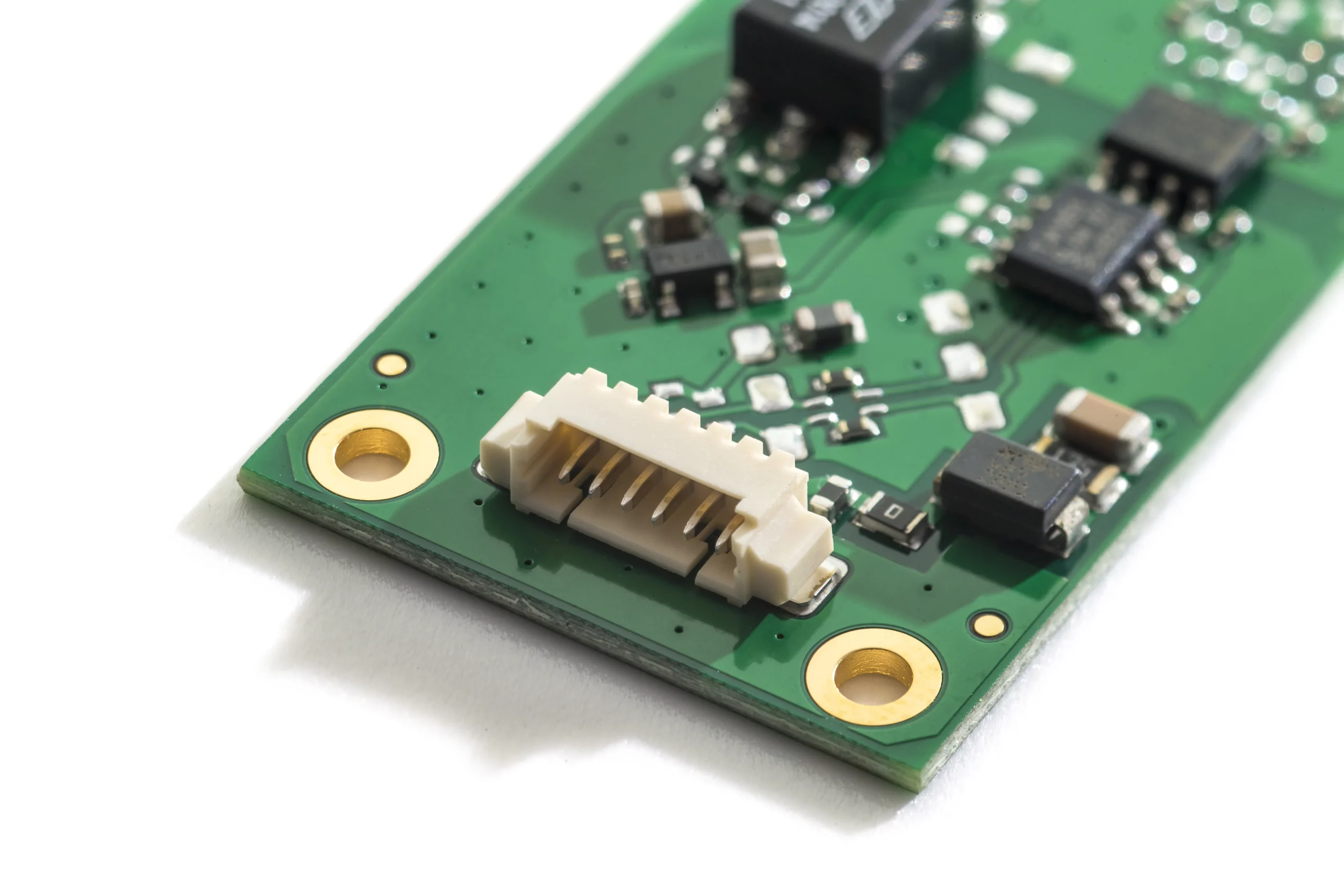

  • Both USB and CAN are connected using 6-way connectors and mate with Molex 51021 PicoBladeTM (e.g. housing 51021-0600 and terminal 50079-8000).
  • 8000 messages per second, each time-stamped with 100 microsecond accuracy.
  • Supports both 11-bit (CAN 2.0A) and 29-bit (CAN 2.0B active) identifiers.
  • High-speed CAN connection (compliant with ISO 11898-2), up to 1 Mbit/s.
  • Galvanic isolation, enhancing protection from power surges or electrical shocks.
  • Local buffering and preprocessing results in high performance and a reduction of time critical tasks for the PC.

Warranty

  • 2-Year Warranty. See our General Conditions and Policies for details. Register your product at kvaser.com/getting-started for an additional 1-year Warranty Extension.

Support

Software

  • Documentation, software and drivers can be downloaded for free at kvaser.com/downloads.
  • Kvaser CANLIB SDK is a free resource that includes everything you need to develop software for the Kvaser CAN interfaces. Includes full documentation and many program samples, written in C, C++, C#, Delphi, and Visual Basic.
  • All Kvaser CAN interface boards share a common software API. Programs written for one interface type will run without modifications on the other interface types!
  • J2534 Application Programming Interface available.
  • RP1210A Application Programming Interface available.
  • On-line documentation in Windows HTML-Help and Adobe Acrobat format.
Bitrate

40-1000 kbps

Categories

Interfaces, Hardware

Certificates

CE, RoHS

Channels

1

Connectors

MOLEX 6-PIN

Current Consumption

90mA

Error Counters Reading

No

Error Frame Generation

No

Galvanic Isolation

Yes

Height

5 mm

Interfaces

USB

Length

100 mm

Material

PA66

Messages Per Second Receive

8000 mps

Messages Per Second Sending

8000 mps

OS

Linux, Win 7, Win 10, Win 8

Silent mode

No

Sound

No

Temp range

-20 °C to +70 °C

Timestamp Resolution (µs)

100 µs

Weight

100 g

Driver
Kvaser SocketCAN Device Drivers

Kvaser SocketCAN Drivers for Linux. For using generic SocketCAN API. Only needed if current kernel version of SocketCAN does not recognize new hardware.

Download
Version V1.15.409
Kvaser Linux Drivers and SDK

Linux drivers and SDK for most Kvaser devices. For using Kvaser proprietary API. Do not install if using SocketCAN.

Download
Version V5.44.630
Kvaser DIADEM driver

This free driver for National Instrument's DIAdem supports all CAN hardware from Kvaser.

Download
Version V4.1.0
Kvaser Drivers for Windows

Windows drivers for all our CAN hardware. Please check the release notes for information on which Windows versions are supported. The package also contains a driver for a virtual CAN bus, for testing and evaluation when you don't have access to a physical CAN bus.

Download
Version V5.44.630
Firmware
Kvaser Firmware Update Tool

Firmware Update tool for most Kvaser devices.

Download
Version V4.32.630
Development Kits and Tools
Python module

The Canlib module is a Python wrapper for Kvaser CANlib SDK.

Download
Version V1.25.393
Kvaser LabView VI Library for CAN

Library for National Instrument's LabView. Version for all Kvaser CAN hardware.

Download
Version V23.1.0
Kvaser CANlib SDK

Software development kit - everything you need to develop software for the Kvaser CAN and LIN interfaces. Libraries, header files, sample programs for e.g. C, C++, C#, Visual Basic and Delphi, documentation, and more. Note: you need to download and install the appropriate device drivers separately.

Download
Version V5.44.630
Documentation
Kvaser Leaf v2 CB User Guide

User's guide for Leaf Light v2

Download
Version V4.3.240218
Other
Kvaser CANKing

A free of charge, general-purpose CAN bus monitor. It works with all CAN interfaces from Kvaser and also with the virtual CAN bus.

Download
Version V6.26.654
