Kvaser Leaf Light HS v2 M12
EAN: 73-30130-00881-6
Price: USD 407.00
Log in for tax and shipping information.

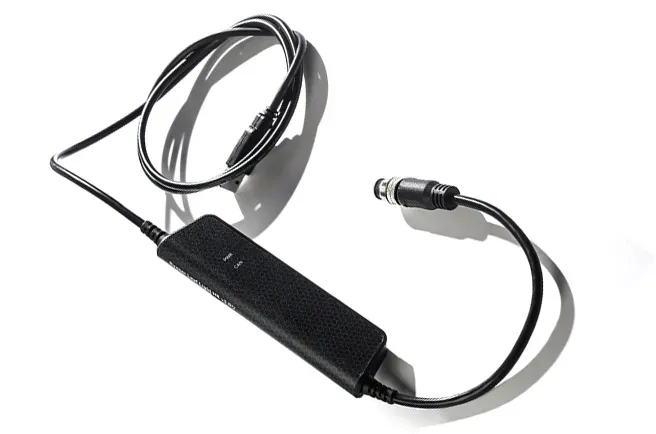

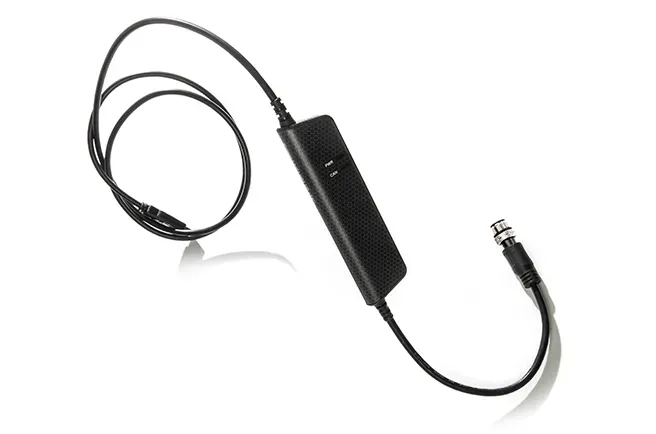

The Leaf Light HS v2 M12 is the marine version of Kvaser’s popular Leaf Light v2 interface. This device provides a simple way of connecting a PC with a marine electronics system by means of its standard USB 2.0 connector and a NMEA compatible 5-pin connector.
The Leaf Light HS v2 M12 is ideal for diagnosing NMEA bus issues, configuring and flashing NMEA bus nodes, monitoring NMEA bus traffic and load conditions and stimulating or emulating NMEA nodes.
Please note: This product is not an NMEA 2000® Certified Product that complies with the NMEA’s current test procedures. ‘NMEA’ in this context refers simply to the type of CAN connector used.
Share
Major Features of Kvaser Leaf Light HS v2 M12

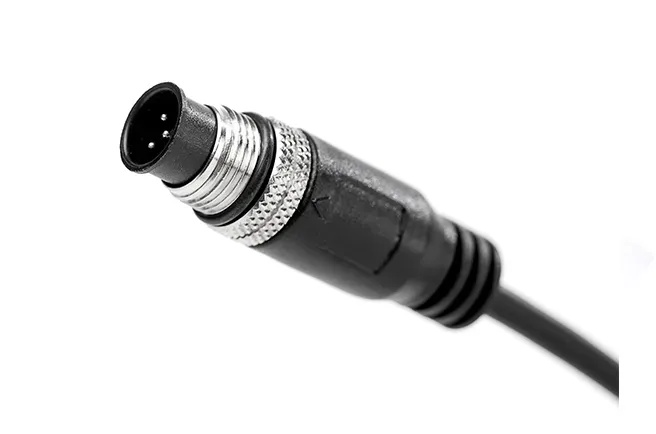

- Standard type “A” USB connector and an NMEA-approved male CAN connector.
- Capable of sending up to 8000 messages per second, each time-stamped with 100 microsecond accuracy.
- Supports both 11-bit (CAN 2.0A) and 29-bit (CAN 2.0B active) identifiers.
- High-speed CAN connection (compliant with ISO 11898-2), up to 1 Mbit/s.
- Galvanic isolation, enhancing protection from power surges or electrical shocks.
- Support for SocketCAN, see elinux.org for details.
Warranty
-
2-Year Warranty. See our General Conditions and Policies for details. Register your product at kvaser.com/getting-started for an additional 1-year Warranty Extension
Support
-
Free Technical Support on all products available by contacting [email protected].
Software
- Documentation, software and drivers can be downloaded for free at kvaser.com/downloads.
- Kvaser CANLIB SDK is a free resource that includes everything you need to develop software for the Kvaser CAN interfaces. Includes full documentation and many program samples, written in C, C++, C#, Delphi, Java, Python and Visual Basic.
- All Kvaser CAN interface boards share a common software API. Programs written for one interface type will run without modifications on the other interface types!
- J2534 Application Programming Interface available.
- RP1210A Application Programming Interface available.
- On-line documentation in Windows HTML-Help and Adobe Acrobat format.
40-1000 kbps
Interfaces, Hardware, CAN
CE, RoHS
1
M12 5 pin
Typical 90mA
No
No
Yes
17 mm
USB
165 mm
PA66
8000 mps
8000 mps
Linux, Win 7, Win 10, Win 8
No
No
-20 °C to +70 °C
100 µs
110 g
Kvaser SocketCAN Drivers for Linux. For using generic SocketCAN API. Only needed if current kernel version of SocketCAN does not recognize new hardware.
Linux drivers and SDK for most Kvaser devices. For using Kvaser proprietary API. Do not install if using SocketCAN.
This free driver for National Instrument's DIAdem supports all CAN hardware from Kvaser.
Windows drivers for all our CAN hardware. Please check the release notes for information on which Windows versions are supported. The package also contains a driver for a virtual CAN bus, for testing and evaluation when you don't have access to a physical CAN bus.
Firmware Update tool for most Kvaser devices.
The Canlib module is a Python wrapper for Kvaser CANlib SDK.
Library for National Instrument's LabView. Version for all Kvaser CAN hardware.
Software development kit - everything you need to develop software for the Kvaser CAN and LIN interfaces. Libraries, header files, sample programs for e.g. C, C++, C#, Visual Basic and Delphi, documentation, and more. Note: you need to download and install the appropriate device drivers separately.
User's guide for Leaf Light v2
A free of charge, general-purpose CAN bus monitor. It works with all CAN interfaces from Kvaser and also with the virtual CAN bus.
