Kvaser Mini PCI Express 2xHS v2
EAN: 73-30130-01029-1

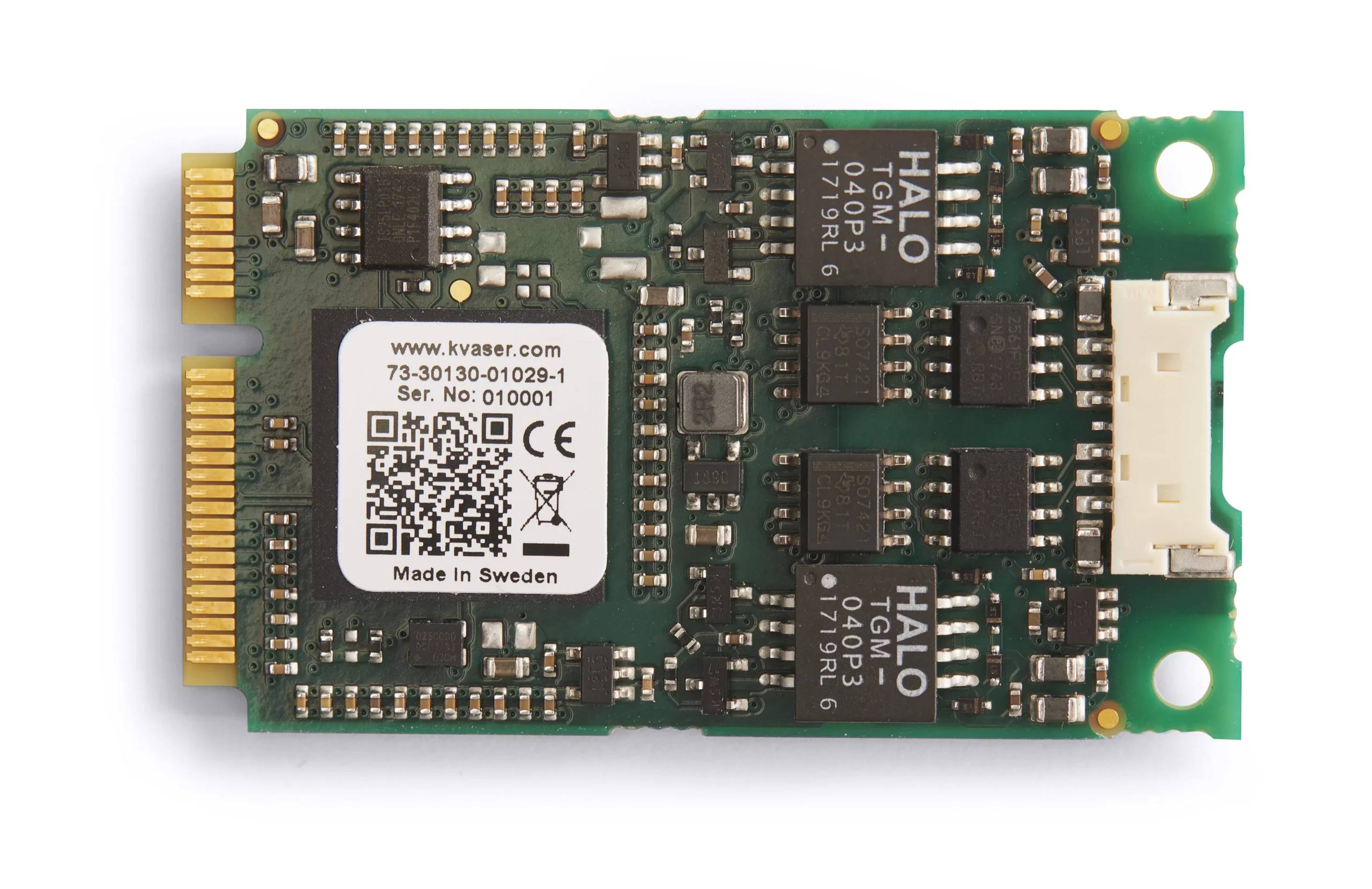

The Kvaser Mini PCI Express 2xHS v2 is a small (30 x 51mm), yet advanced, real time CAN interface that adds two high speed CAN or CAN FD channels to any standard computer with mini PCI Express capability. PC communication is over the PCI Express system bus, making for extremely low latency with a time stamp accuracy of 1 µs.
Share
Major Features
- Fully compliant to the PCIe bus specification 1.2, Type F2 form factor (Full-Mini with bottom-side keep outs).
- High-speed CAN connection (compliant with ISO 11898-2), supporting a bit rate from 50 to 1000 kbit/s for Classical CAN and up to 8Mbit/s for CAN FD.
- High transmission rate of up to 20000 messages/s on each channel.
- Time stamp accuracy of 1 µs.
- Galvanic isolation.
- Suitable for industrial environments.

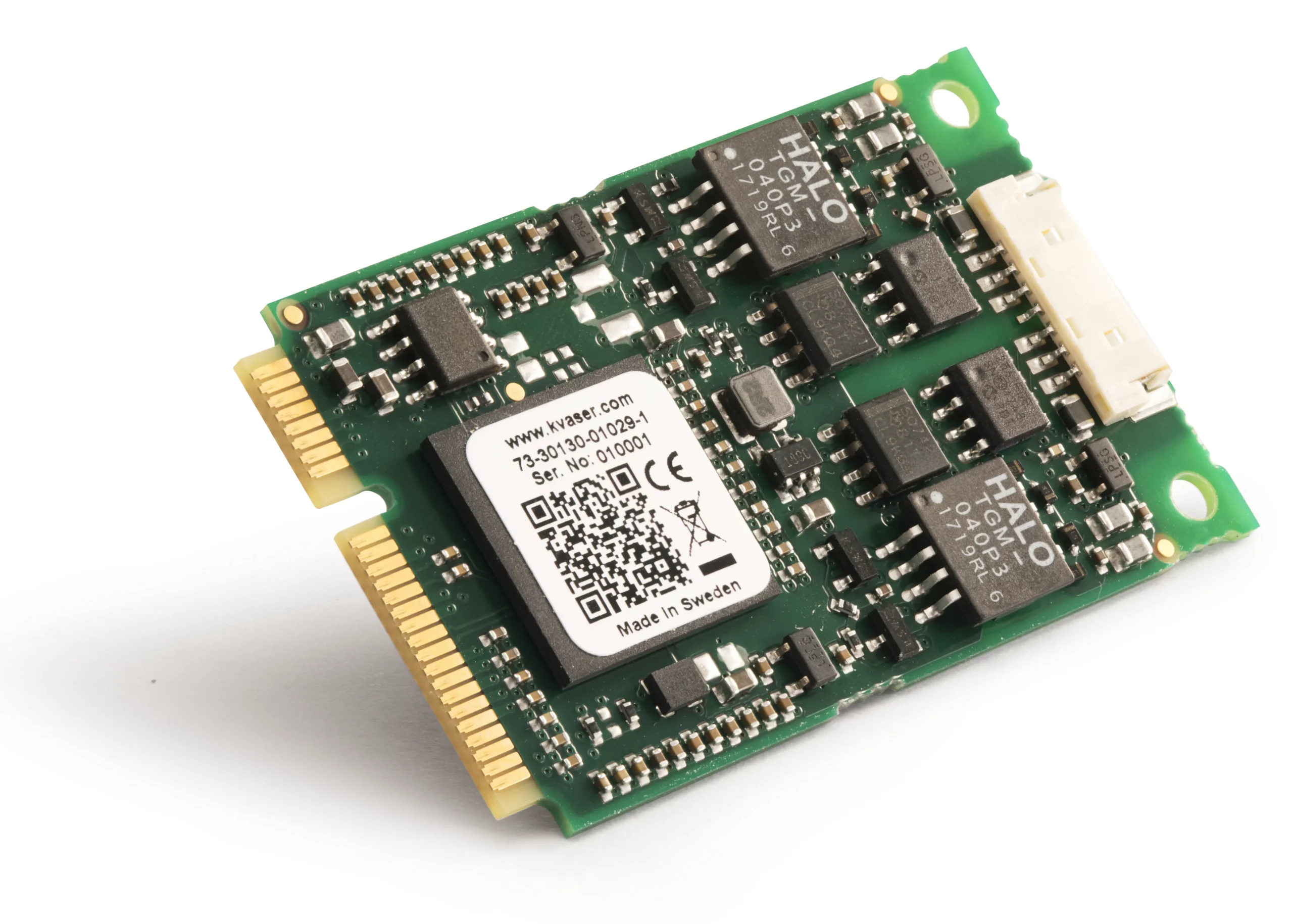

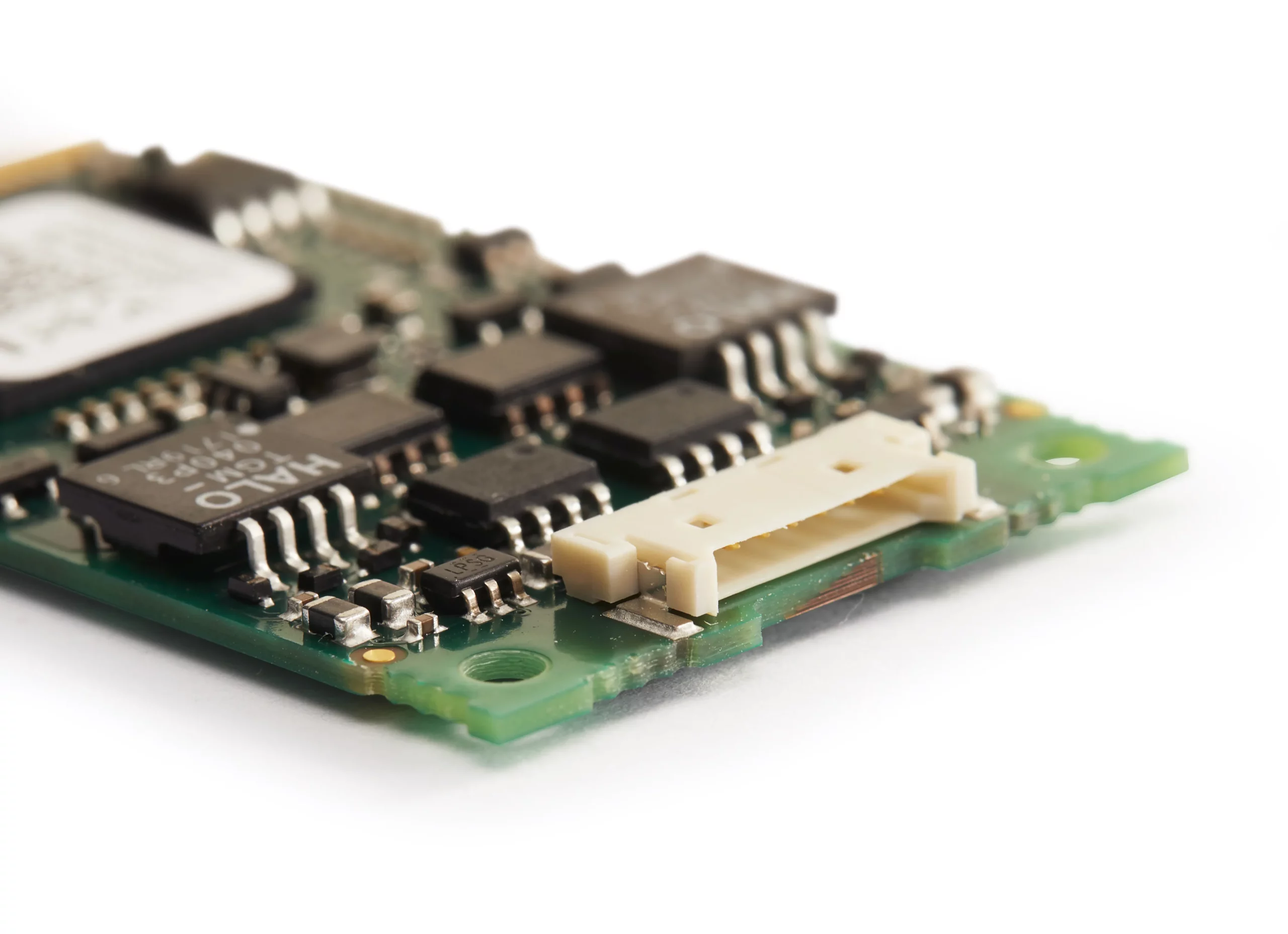

- Low profile mini PCI Express-compliant 7-pin Molex connector provides CAN channel access.

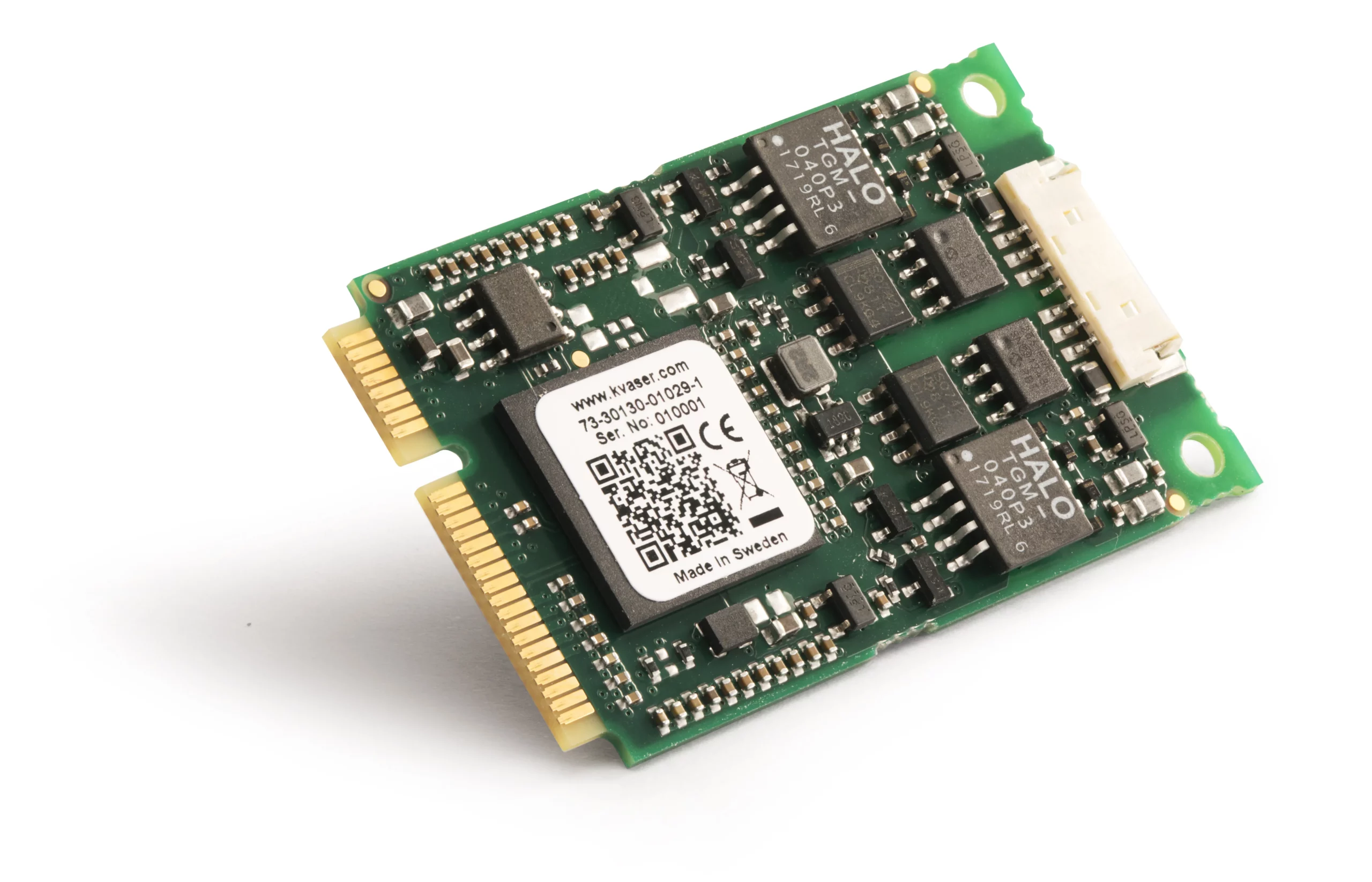

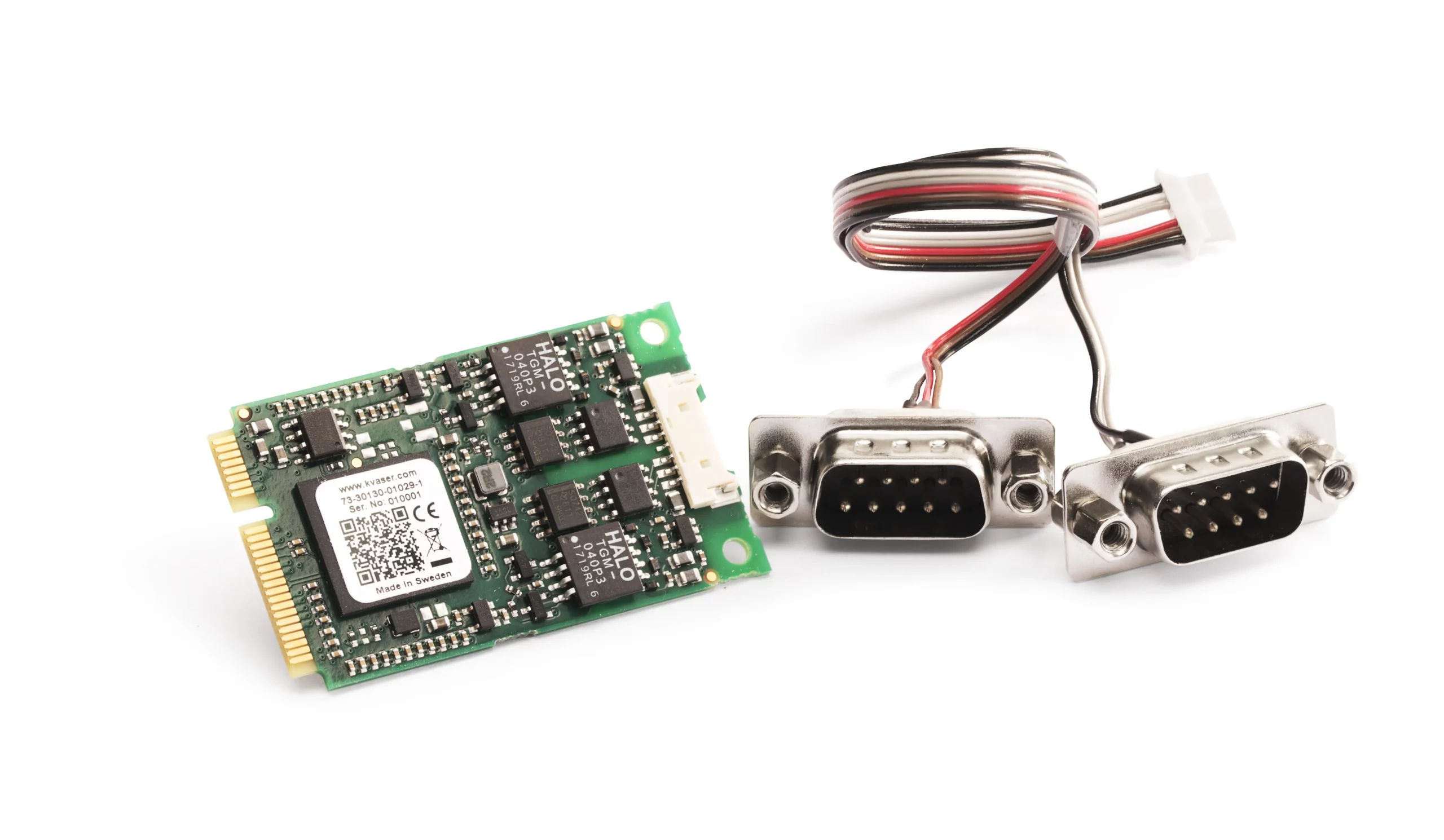

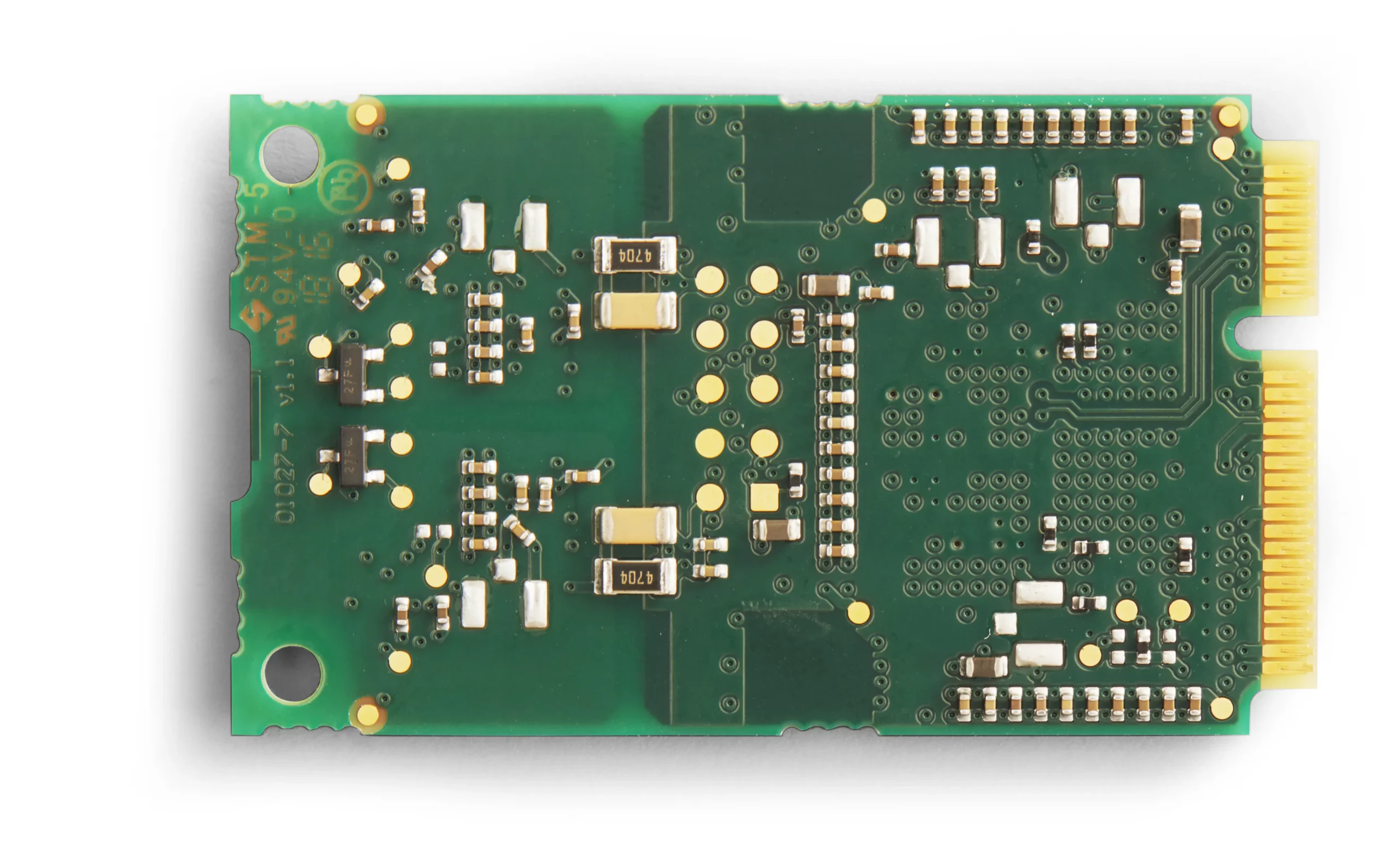

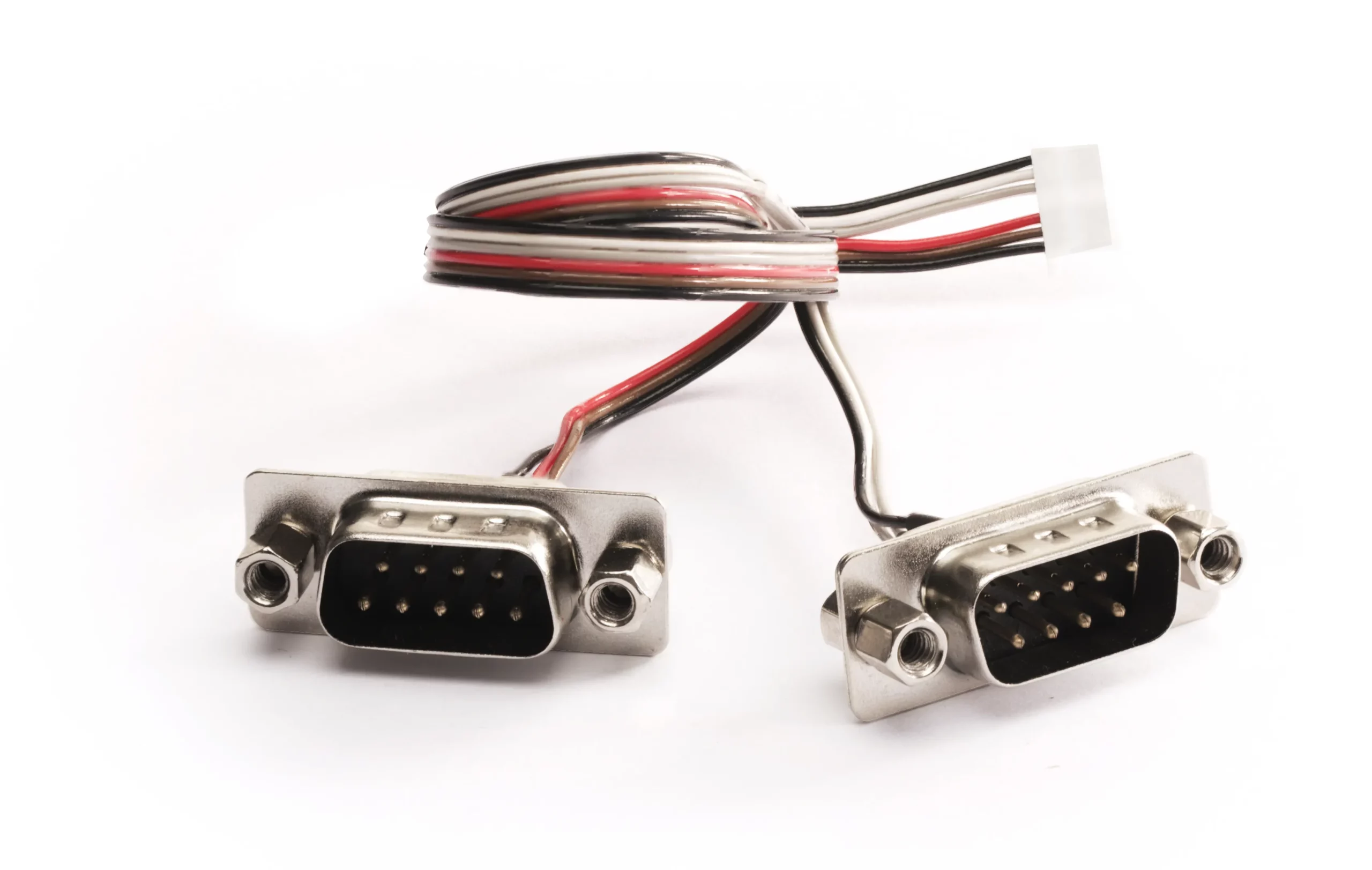

- Includes Molex to DSUB9 cable adapter.
- Complies with EN 61000-6-2:2005, specifying EMC immunity for industrial environments.
- Operates over the industrial temperature range of -40 to +85°C.
- Kvaser’s free of charge CANLIB SDK can be used to develop software for the Mini PCI Express HS
- board. Windows DLL library and examples included.
- Supports Windows Vista or later.
- Linux drivers and a dedicated SDK are available as a separate download.
- Support for SocketCAN, see elinux.org for details.
- Extended operating temperature range from -40 to 85 °C.
- Note: Kvaser's already-existing Kvaser Mini PCI Express HS and Kvaser Mini PCI Express 2xHS products will remain available for sale. The primary difference is that these previous versions utilize the USB system bus for communication with the PC.
Warranty
- 2-Year Warranty. See our General Conditions and Policies for details. Register your product at kvaser.com/getting-started for an additional 1-year Warranty Extension.
Support
- Free Technical Support on all products available by contacting [email protected].
Software
- Documentation, Kvaser CANlib SDK and drivers can be downloaded for free at kvaser.com/downloads.
- Kvaser CANLIB SDK is a free resource that includes everything you need to develop software for the
- Kvaser CAN interfaces. Includes full documentation and many program samples, written in C, C++, C#,
- Delphi, Visual Basic, Python and t Script.
- All Kvaser CAN interface boards share the common software API, CANLib SDK. Programs written for one
- interface type will run without modifications on the other interface types.
- J2534 Application Programming Interface available.
- RP1210A Application Programming Interface available.
- HTML-Help and online documentation in Windows and Linux.
50-1000 kbps
Up to 8 Mbit/s
Interfaces, Hardware
CE, RoHS
2
Molex 53780 PanelMate TM
Typically 700 mW idle plus max 150 mW per channel, i.e. max 850 mW for a single channel interface. Only uses 3.3 V.
No
Yes
Yes
5 mm
Mini PCI Express
30 mm
20000 mps
20000 mps
Linux, Win 7, Win 10, Win 8
Yes
No
-40 °C to +85 °C
1 µs
6 g
Kvaser SocketCAN Drivers for Linux. For using generic SocketCAN API. Only needed if current kernel version of SocketCAN does not recognize new hardware.
Linux drivers and SDK for most Kvaser devices. For using Kvaser proprietary API. Do not install if using SocketCAN.
This free driver for National Instrument's DIAdem supports all CAN hardware from Kvaser.
Windows drivers for all our CAN hardware. Please check the release notes for information on which Windows versions are supported. The package also contains a driver for a virtual CAN bus, for testing and evaluation when you don't have access to a physical CAN bus.
Kvaser Mini PCI Express 2xHS v2 User's Guide
The Canlib module is a Python wrapper for Kvaser CANlib SDK.
Library for National Instrument's LabView. Version for all Kvaser CAN hardware.
Software development kit - everything you need to develop software for the Kvaser CAN and LIN interfaces. Libraries, header files, sample programs for e.g. C, C++, C#, Visual Basic and Delphi, documentation, and more. Note: you need to download and install the appropriate device drivers separately.
A free of charge, general-purpose CAN bus monitor. It works with all CAN interfaces from Kvaser and also with the virtual CAN bus.
