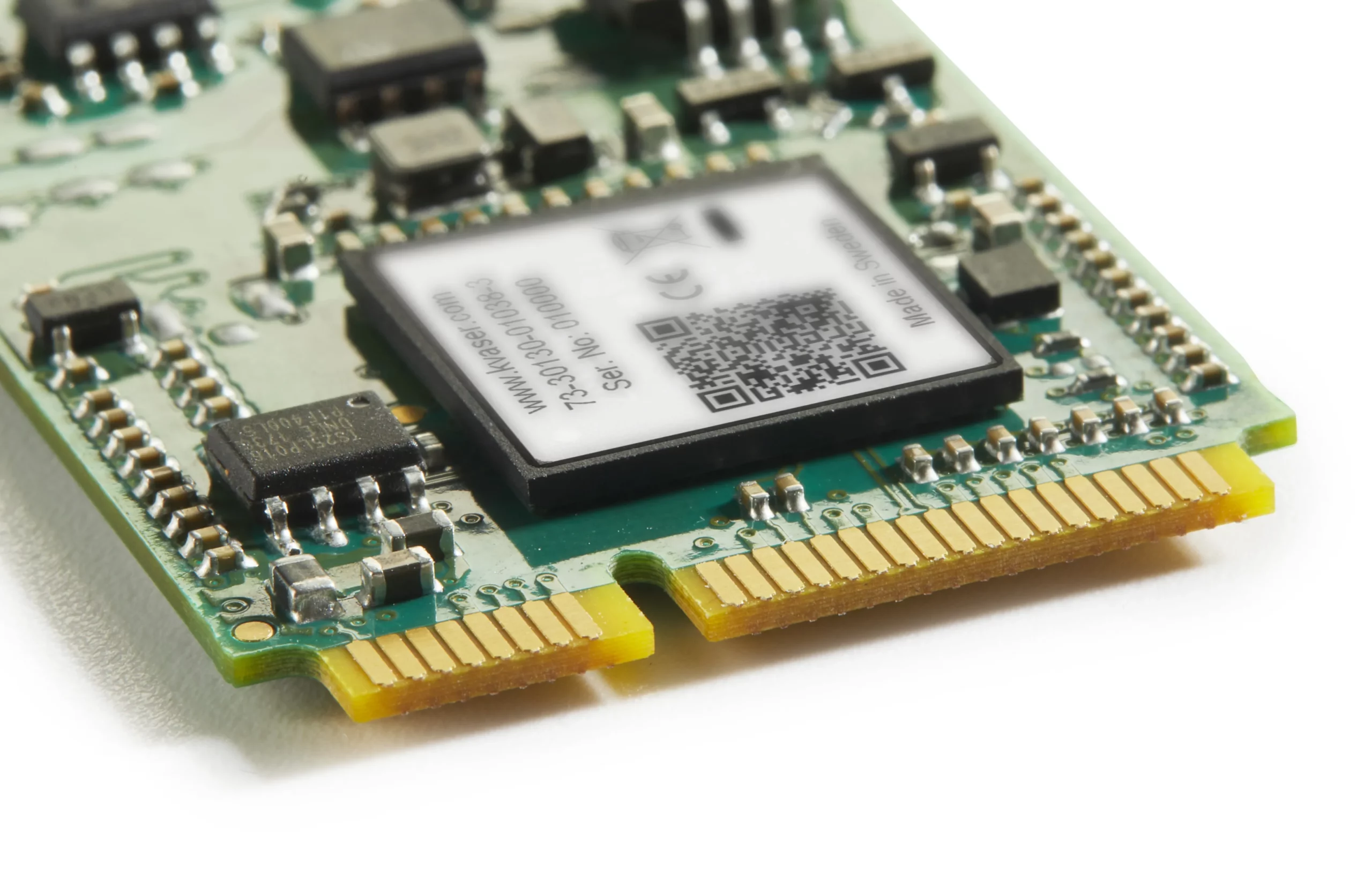

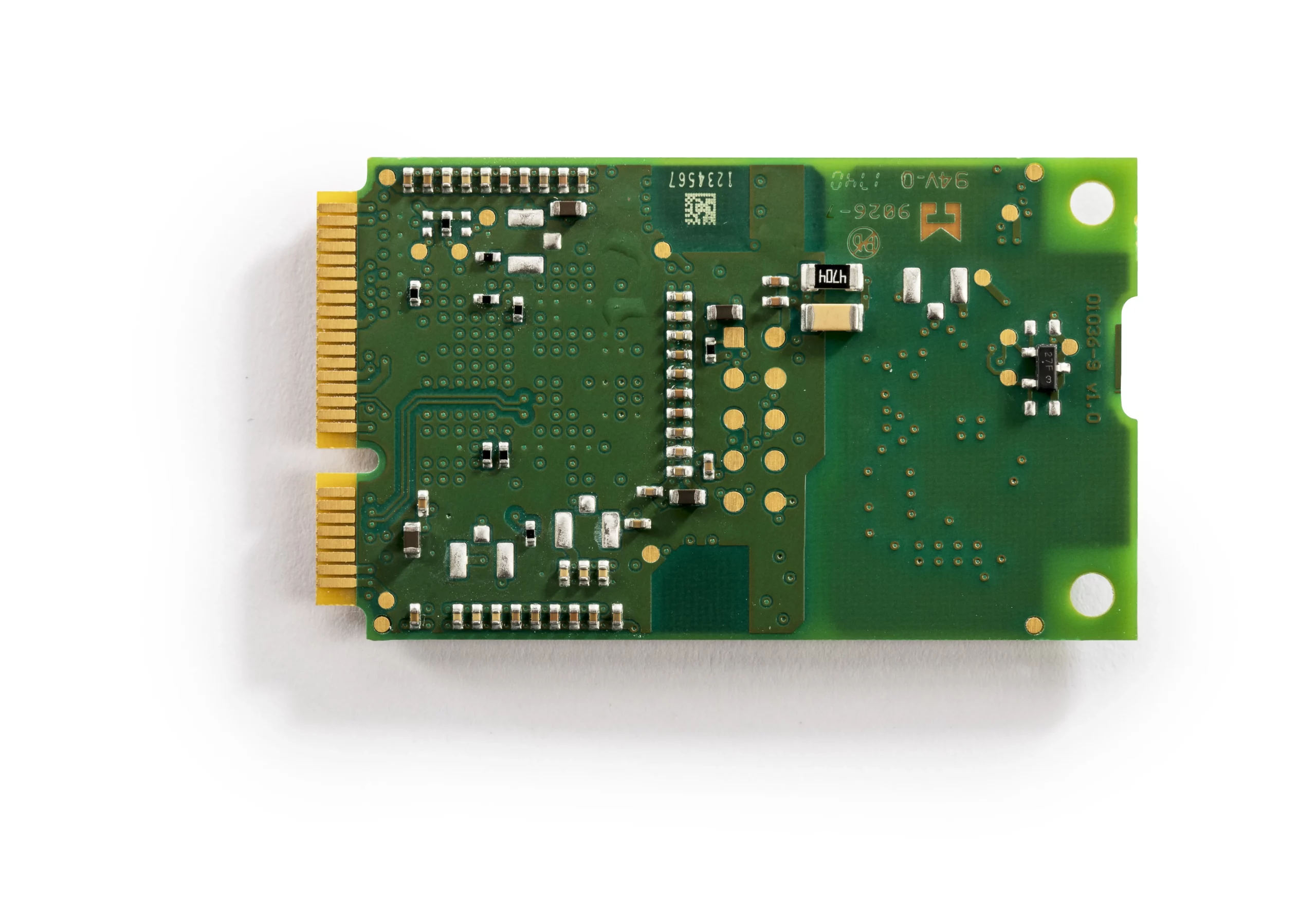

Kvaser Mini PCI Express HS v2

EAN: 73-30130-01038-3
Price: USD 456.00

The Kvaser Mini PCI Express HS v2 is a small (30 x 51mm), yet advanced, real time CAN interface that adds one high speed CAN or CAN FD channel to any standard computer with mini PCI Express capability. PC communication is over the PCI Express system bus, making for extremely low latency with a time stamp accuracy of 1 µs.

Major Features

  • Fully compliant to the PCIe bus specification 1.2, Type F2 form factor (Full-Mini with bottom-side keep outs).
  • High-speed CAN connection (compliant with ISO 11898-2), supporting a bit rate from 50 to 1000 kbit/s for Classical CAN and up to 8Mbit/s for CAN FD.
  • High transmission rate of up to 20000 messages/s.
  • Time stamp accuracy of 1 µs.
  • Galvanic isolation.
  • Suitable for industrial environments.

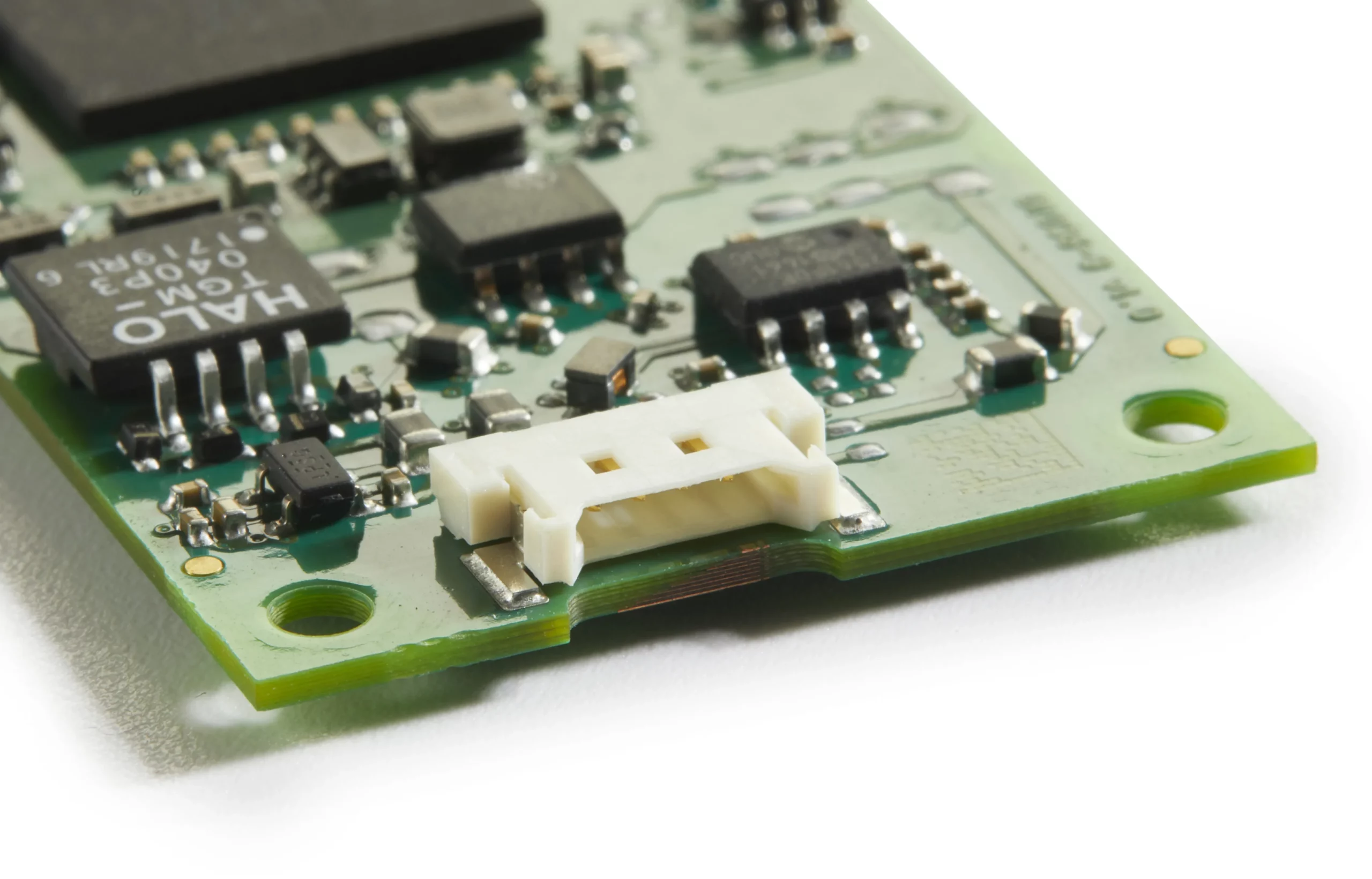

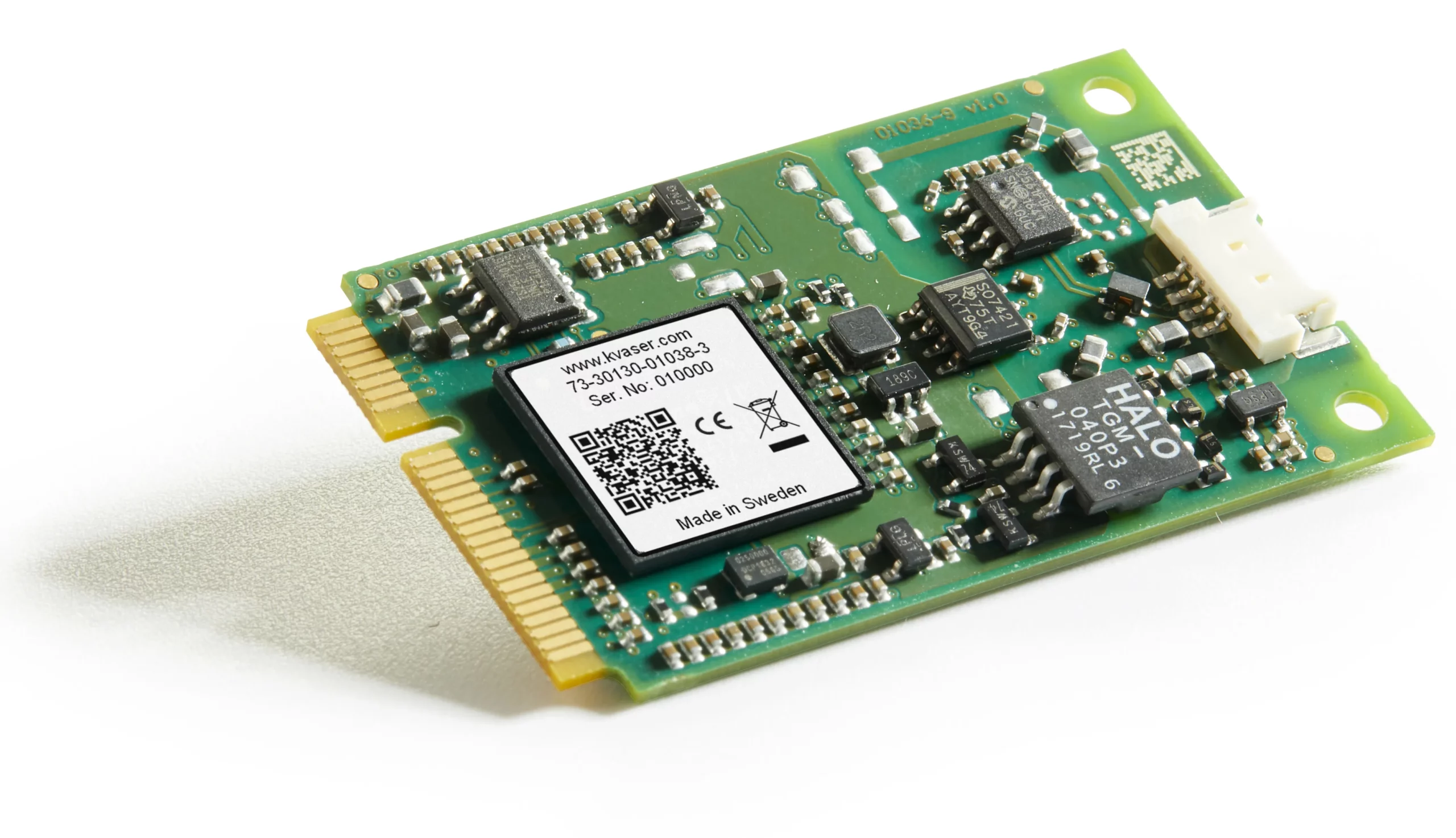

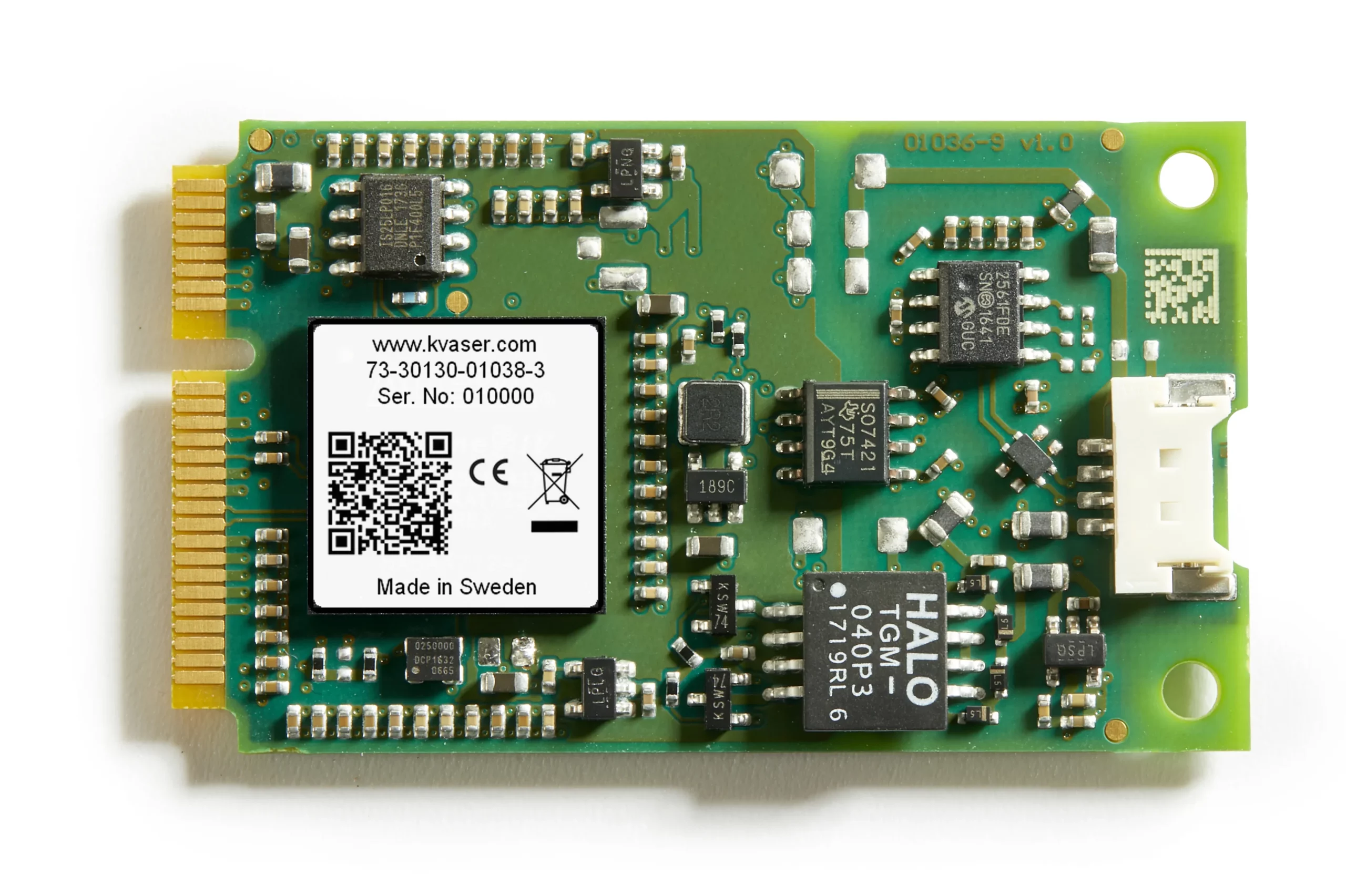

  • Low profile mini PCI Express-compliant 4-pin Molex connector provides CAN channel access.

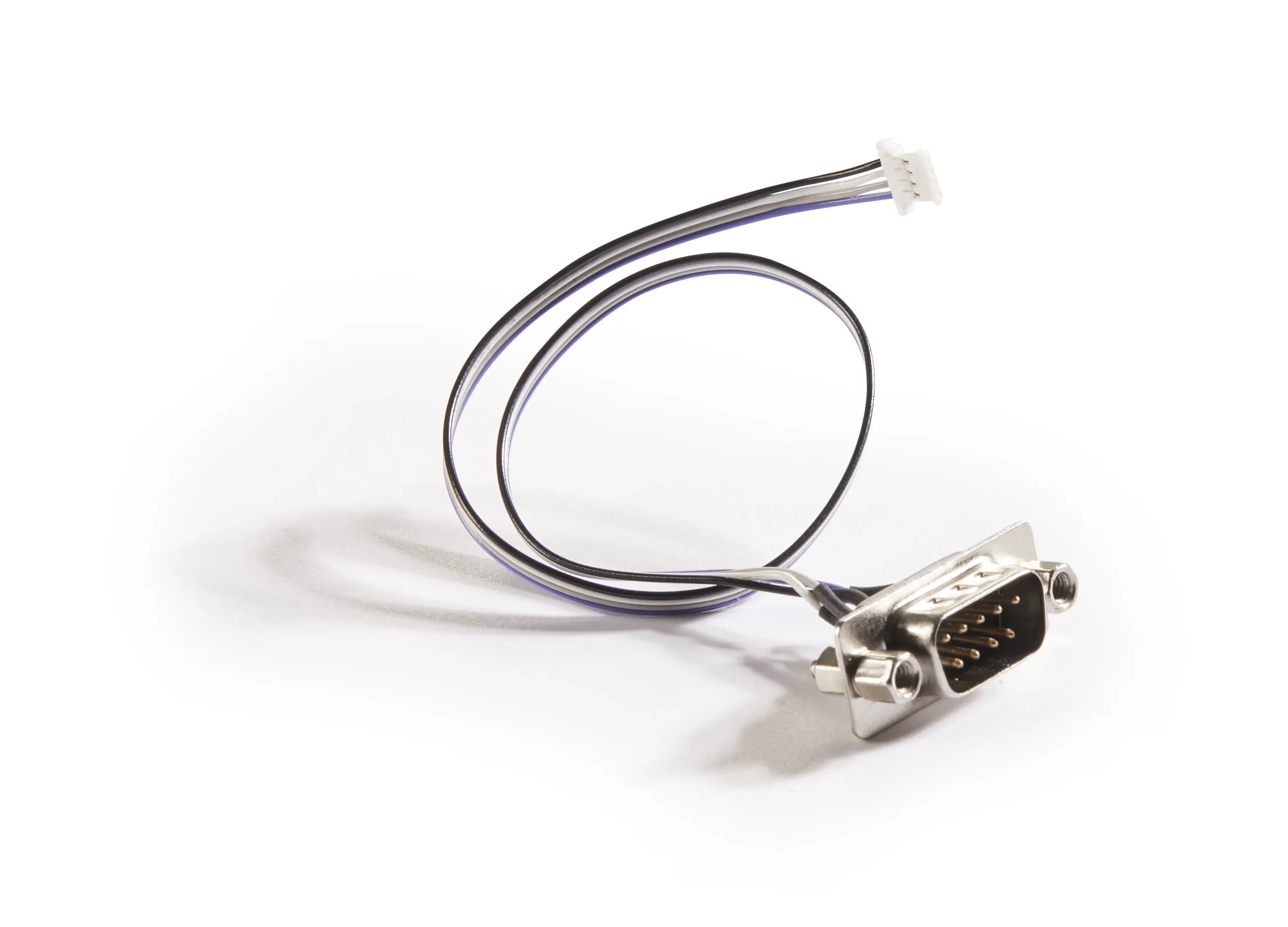

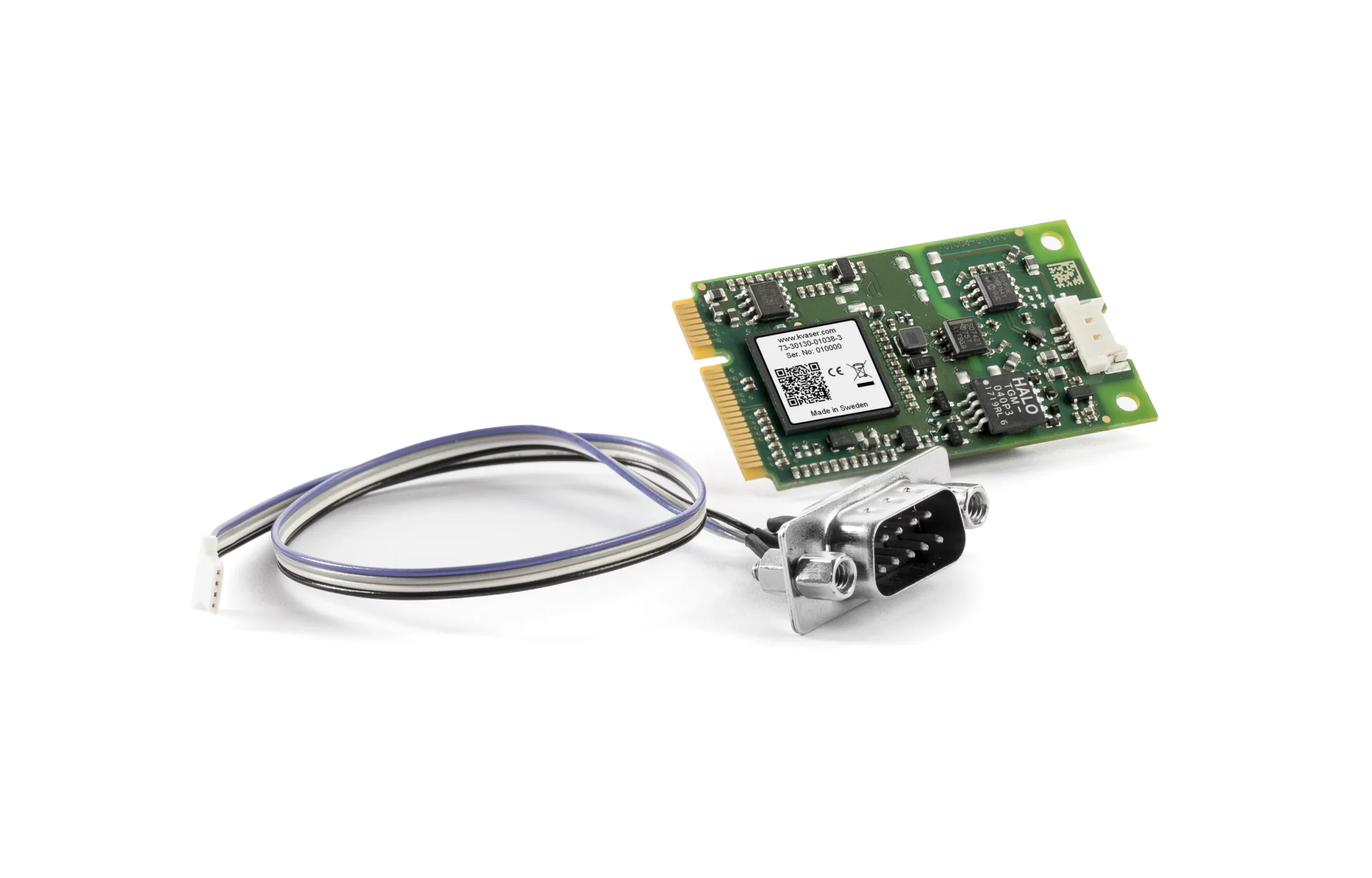

  • Includes Molex to DSUB9 cable adapter.
  • Complies with EN 61000-6-2:2005, specifying EMC immunity for industrial environments.
  • Operates over the industrial temperature range of -40 to +85°C.
  • Kvaser’s free of charge CANLIB SDK can be used to develop software for the Mini PCI Express HS
  • board. Windows DLL library and examples included.
  • Supports Windows Vista or later.
  • Linux drivers and a dedicated SDK are available as a separate download.
  • Support for SocketCAN, see elinux.org for details.
  • Extended operating temperature range from -40 to 85 °C.
  • Note: Kvaser's already-existing Kvaser Mini PCI Express HS and Kvaser Mini PCI Express 2xHS products will remain available for sale. The primary difference is that these previous versions utilize the USB system bus for communication with the PC.

Warranty

  • 2-Year Warranty. See our General Conditions and Policies for details. Register your product at www.kvaser.com/getting-started for an additional 1-year Warranty Extension.

Support

Software

  • Documentation, Kvaser CANlib SDK and drivers can be downloaded for free at
  • www.kvaser.com/downloads.
  • Kvaser CANlib SDK is a free resource that includes everything you need to develop software for the
  • Kvaser CAN interfaces. Includes full documentation and many program samples, written in C, C++, C#,
  • Delphi, Visual Basic, Python and t Script.
  • All Kvaser CAN interface boards share the common software API, CANlib SDK. Programs written for one
  • interface type will run without modifications on the other interface types.
  • J2534 Application Programming Interface available.
  • RP1210A Application Programming Interface available.
  • HTML-Help and online documentation in Windows and Linux.
Bitrate

50-8000 kbps

Categories

PC INTERFACES

Certificates

CE, RoHS

Channels

1

Connectors

Molex 53780 PanelMate TM

Current Consumption

Typically 700 mW idle plus max 150 mW per channel, i.e. max 850 mW for a single channel interface. Only uses 3.3 V.

Error Counters Reading

No

Error Frame Generation

Yes

Galvanic Isolation

Yes

Height

5 mm

Interfaces

Mini PCI Express

Length

51 mm

Messages Per Second Receive

20000 mps

Messages Per Second Sending

20000 mps

OS

Linux, Win 7, Win Vista, Win 10, Win 8

Silent mode

Yes

Sound

No

Temp range

-40 - 85 °C

Timestamp R (µ)

1 µs

Weight

6 g

Driver

Kvaser Linux Drivers and SDK

Linux drivers and SDK for most Kvaser devices.

Version V5.30.995 Download

Kvaser DIADEM driver

This free driver for National Instrument's DIAdem supports all CAN hardware from Kvaser.

Version V4.1.0 Download

Kvaser Drivers for Windows

Windows drivers for all our CAN hardware. Please check the release notes for information on which Windows versions are supported. The package also contains a driver for a virtual CAN bus, for testing and evaluation when you don't have access to a physical CAN bus.

Version V5.30.995 Download
Documentation

Kvaser Mini PCI Express HS v2 User's Guide

Kvaser Mini PCI Express HS v2 User's Guide

Version V2.2.191008 Download
Development Kits and Tools

Python module

The Canlib module is a Python wrapper for Kvaser CANlib SDK.

Version V1.12.251 Download

Kvaser LabView VI Library for CAN

Library for National Instrument's LabView. Version for all Kvaser CAN hardware.

Version V19.3.0 Download

Kvaser CANlib SDK

Software development kit - everything you need to develop software for the Kvaser CAN and LIN interfaces. Libraries, header files, sample programs for e.g. C, C++, C#, Visual Basic and Delphi, documentation, and more. Note: you need to download and install the appropriate device drivers separately.

Version V5.30.995 Download
Other

Kvaser CANKing

A free of charge, general-purpose CAN bus monitor. It works with all CAN interfaces from Kvaser and also with the virtual CAN bus.

Version V6.13.862 Download
