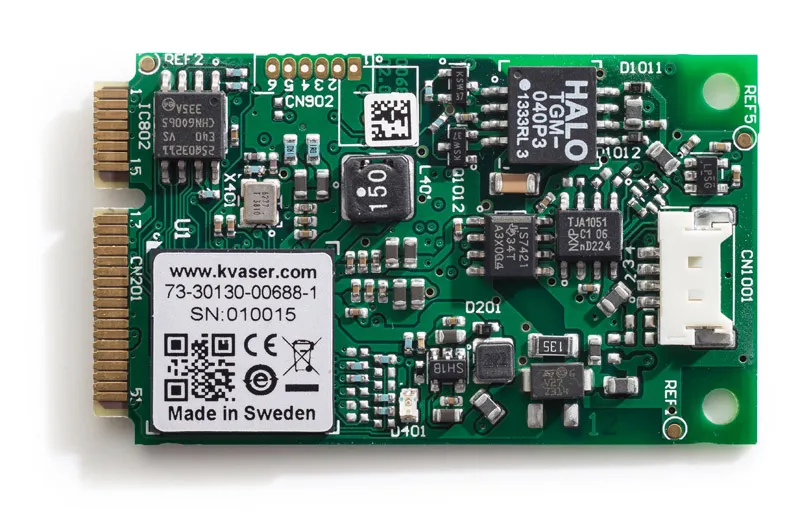

Kvaser Mini PCI Express HS

EAN: 73-30130-00688-1
Price: USD 435.00

The Kvaser Mini PCI Express HS is a highly-integrated CAN (controller area network) add-on board that lets embedded system developers add CAN functionality to any standard computer board with mini PCI Express capability.
The add on board offers a single channel, high speed CAN interface with error frame detection and on-board buffer. This board has a low profile connector that complies with the mini PCI Express standard, which connects via a cable to a DSUB connector (or other type) at the computer housing. With just the CAN communication link itself exposed, total system EMC performance is protected because all the electronics remain inside the computer housing.

Major Features

  • Supports a bit rate from 40 to 1000 kbit/s and a CAN transfer rate up to 20000 messages/s.
  • Time stamp accuracy is 25 µs.
  • Low profile connector complies with the mini PCI Express standard, which connects via a cable to a DSUB (or other type) at the computer housing.

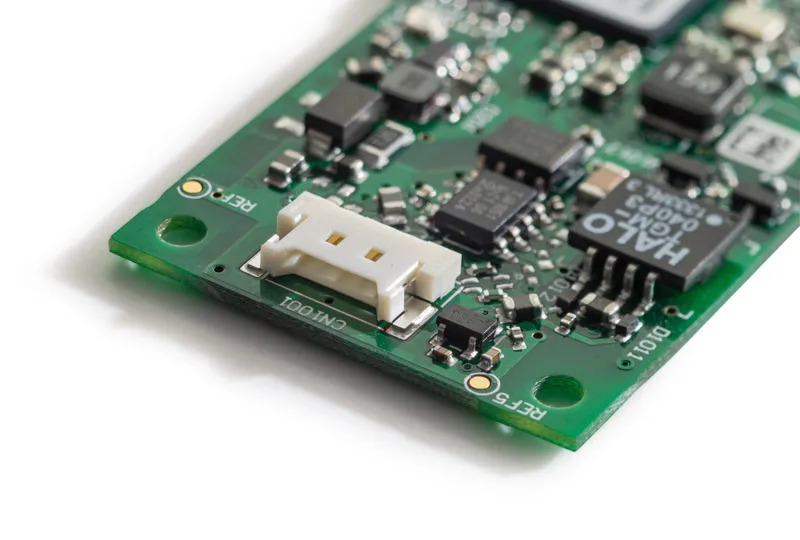

  • A 4 pin Molex connector provides single CAN channel access.
  • Complies with EN 61000-6-2:2005, specifying EMC immunity for industrial environments.
  • Operates over the industrial temperature range of -40 to +85°C.
  • Kvaser’s free of charge CANLIB SDK can be used to develop software for the Mini PCI Express HS board.
  • Support for Linux, in the form of drivers and a dedicated SDK, are available as a separate download
  • Support for SocketCAN, see elinux.org for details.

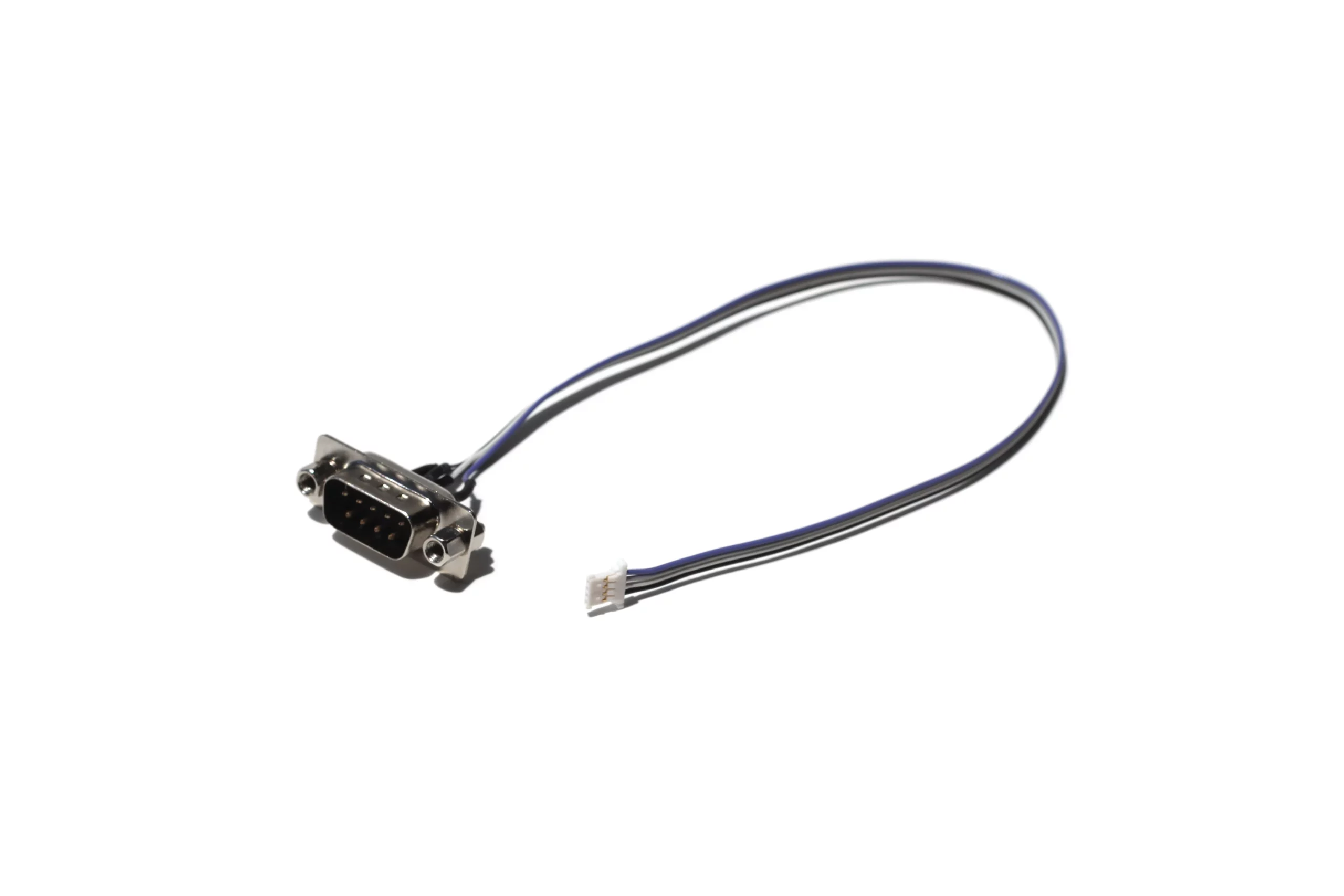

  • Includes Molex to DSUB9 cable adapter.

Warranty

  • 2-Year Warranty. See our General Conditions and Policies for details

Support

Software

  • Documentation, software and drivers can be downloaded for free at www.kvaser.com/downloads.
  • Kvaser CANLIB SDK is a free resource that includes everything you need to develop software for the Kvaser CAN interfaces. Includes full documentation and many program samples, written in C, C++, C#, Delphi, and Visual Basic.
  • All Kvaser CAN interface boards share a common software API. Programs written for one interface type will run without modifications on the other interface types!
  • J2534 Application Programming Interface available.
  • RP1210A Application Programming Interface available.
  • On-line documentation in Windows HTML-Help and Adobe Acrobat format.
Bitrate

40-1000 kbps

Categories

Interfaces, Hardware

Certificates

CE, RoHS

Channels

1

Connectors

Molex 53780 PanelMate TM

Current Consumption

Typical values are (@ 3.3V from Mini PCI Express slot): 180mA (Kvaser Mini PCI Express HS), 280mA (Kvaser Mini PCI Express 2xHS)

Error Counters Reading

No

Error Frame Generation

No

Galvanic Isolation

Yes

Height

5 mm

Interfaces

Mini PCI Express

Length

51 mm

Messages Per Second Receive

20000 mps

Messages Per Second Sending

18000 mps

OS

Win XP, Linux, Win 7, Win Vista, Win 10, Win 8

Silent mode

Yes

Sound

No

Temp range

-40 °C to +85 °C

Timestamp R (µ)

25 µs

Weight

5 g

Driver

Kvaser SocketCAN Device Drivers

Kvaser SocketCAN Drivers for Linux

Version V1.4.0 Download

Kvaser Linux Drivers and SDK

Linux drivers and SDK for most Kvaser devices.

Version V5.33.212 Download

Kvaser DIADEM driver

This free driver for National Instrument's DIAdem supports all CAN hardware from Kvaser.

Version V4.1.0 Download

Kvaser Drivers for Windows

Windows drivers for all our CAN hardware. Please check the release notes for information on which Windows versions are supported. The package also contains a driver for a virtual CAN bus, for testing and evaluation when you don't have access to a physical CAN bus.

Version V5.33.212 Download
Firmware

Kvaser Firmware Update Tool

Firmware Update tool for most Kvaser devices.

Version V4.22.212 Download
Development Kits and Tools

Python module

The Canlib module is a Python wrapper for Kvaser CANlib SDK.

Version V1.15.483 Download

Kvaser LabView VI Library for CAN

Library for National Instrument's LabView. Version for all Kvaser CAN hardware.

Version V19.3.0 Download

Kvaser CANlib SDK

Software development kit - everything you need to develop software for the Kvaser CAN and LIN interfaces. Libraries, header files, sample programs for e.g. C, C++, C#, Visual Basic and Delphi, documentation, and more. Note: you need to download and install the appropriate device drivers separately.

Version V5.33.212 Download
Documentation

Kvaser Mini PCI Express Users Guide

User guide for Kvaser Mini PCI Express

Version V7.2.200527 Download
Other

Kvaser CANKing

A free of charge, general-purpose CAN bus monitor. It works with all CAN interfaces from Kvaser and also with the virtual CAN bus.

Version V6.16.978 Download

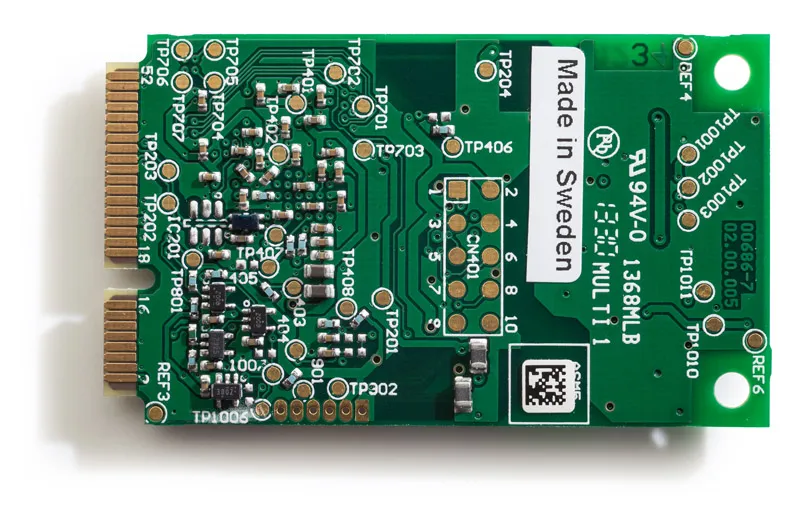

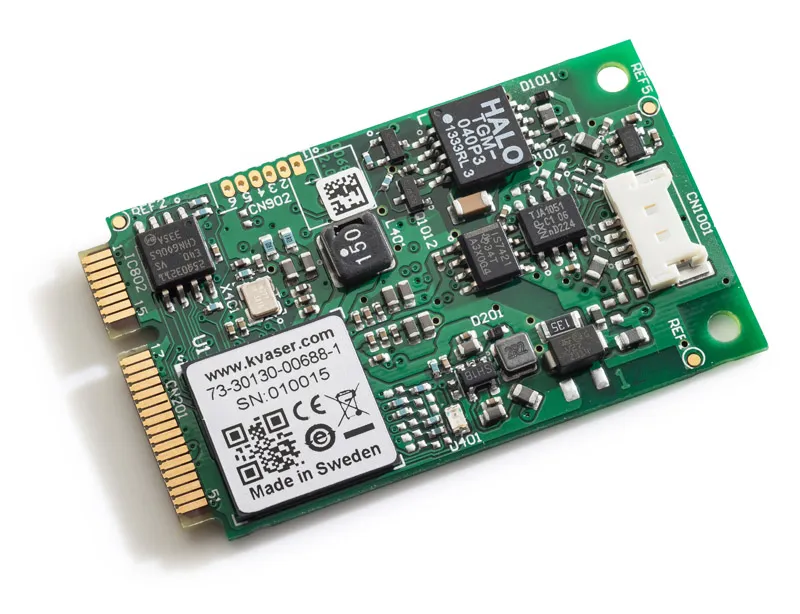

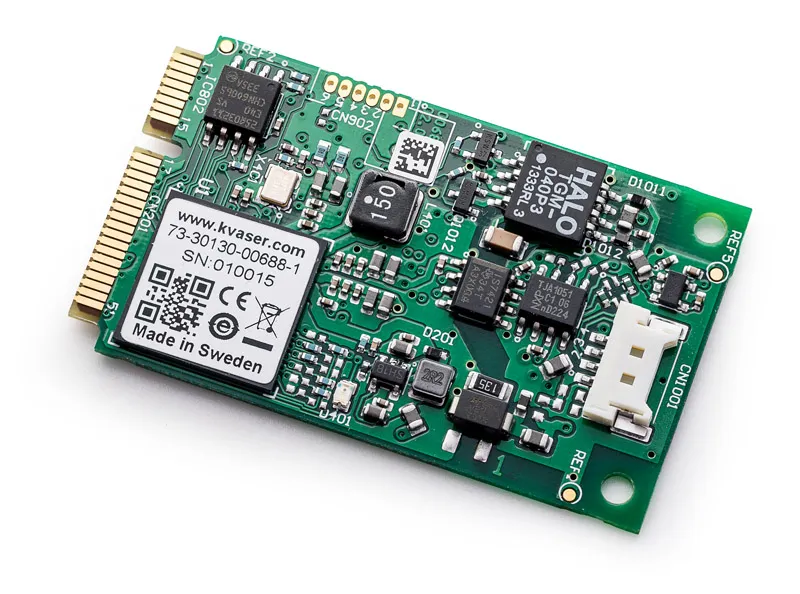

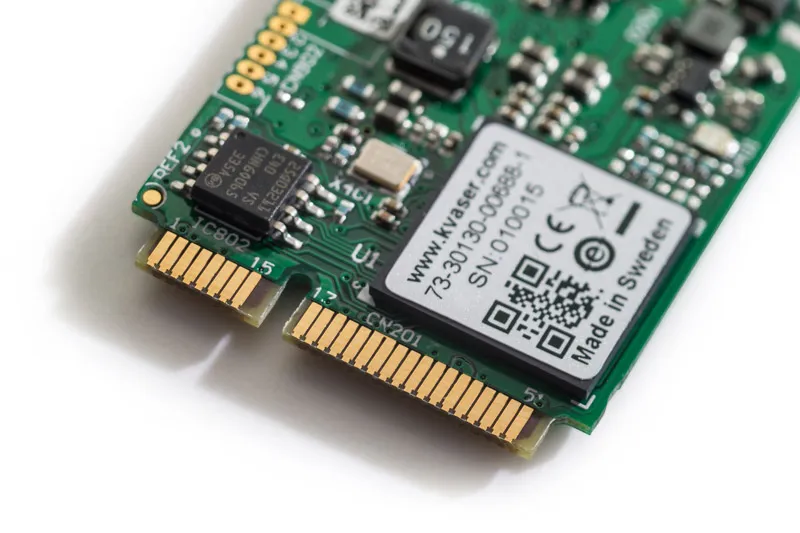

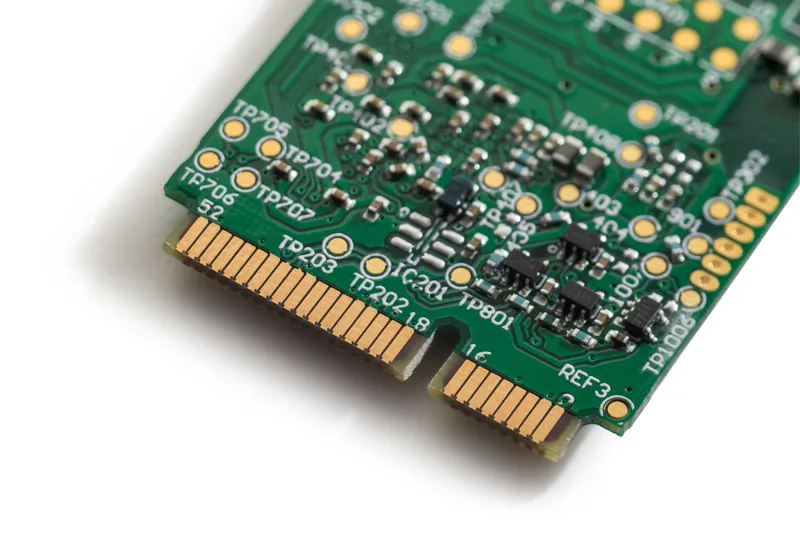

Images

Videos

Kvaser Mini PCI Express HS

The Kvaser Mini PCI Express HS is a highly-integrated CAN add-on board that allows embedded system developers to add CAN functionality to any standard computer board with mini PCI Express capability.
