Price: USD 500.00

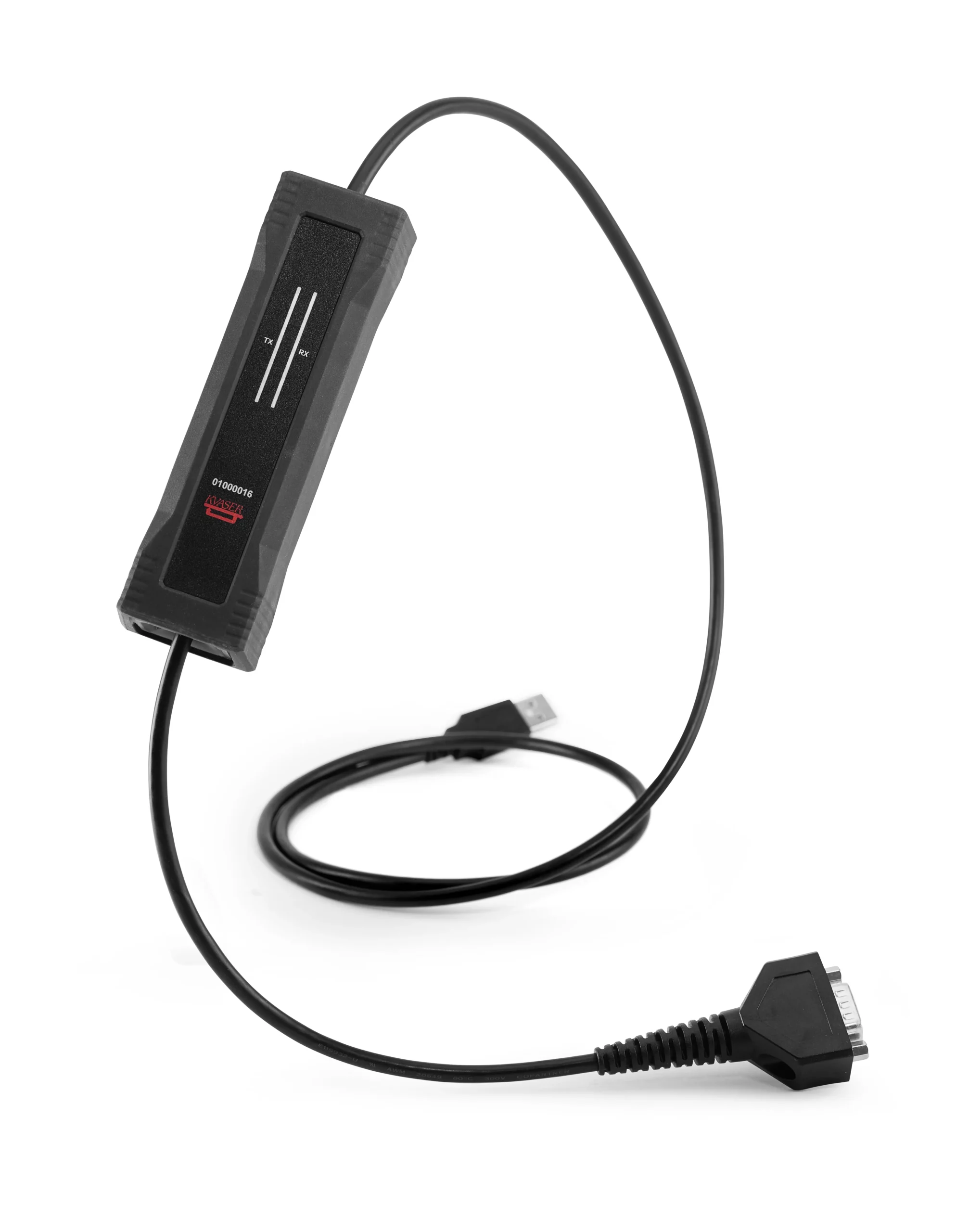

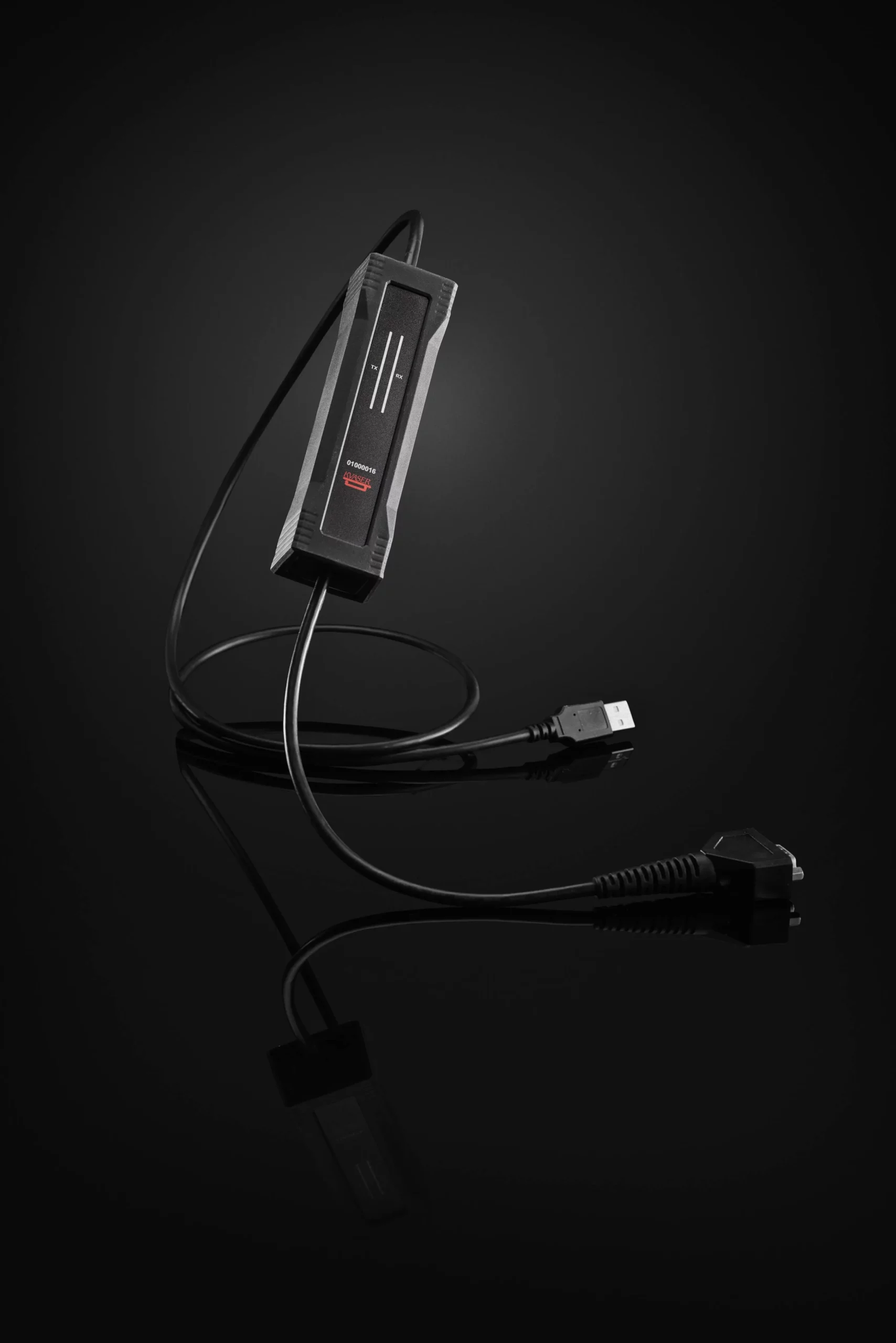

The Kvaser U100 is a robust, single-channel CAN/CAN FD to USB interface with reinforced galvanic isolation that squarely addresses the needs of the evolving automotive development market. Fully compatible with J1939, CANopen, NMEA 2000® and DeviceNet, this is the first in a new range of interfaces that is also suited to rugged applications in marine, industrial, heavy duty vehicle and heavy industries.
With enhanced protection of its own electrical circuits, a vibration, shock and drop-proof housing and high-quality cabling, the Kvaser U100 establishes a new reference in CAN interface design. At the same time, the U100 promises to drive down cost of ownership, whilst providing additional revenue opportunities for partners.
- Supports CAN FD, up to 8 Mbit/s (with correct physical layer implementation).
- Supports both 11-bit (CAN 2.0A) and 29-bit (CAN 2.0B active) identifiers.
- Powered through the USB connector.
- Supports bit rates from 10 Kbit/sec up to 1 Mbit/sec.

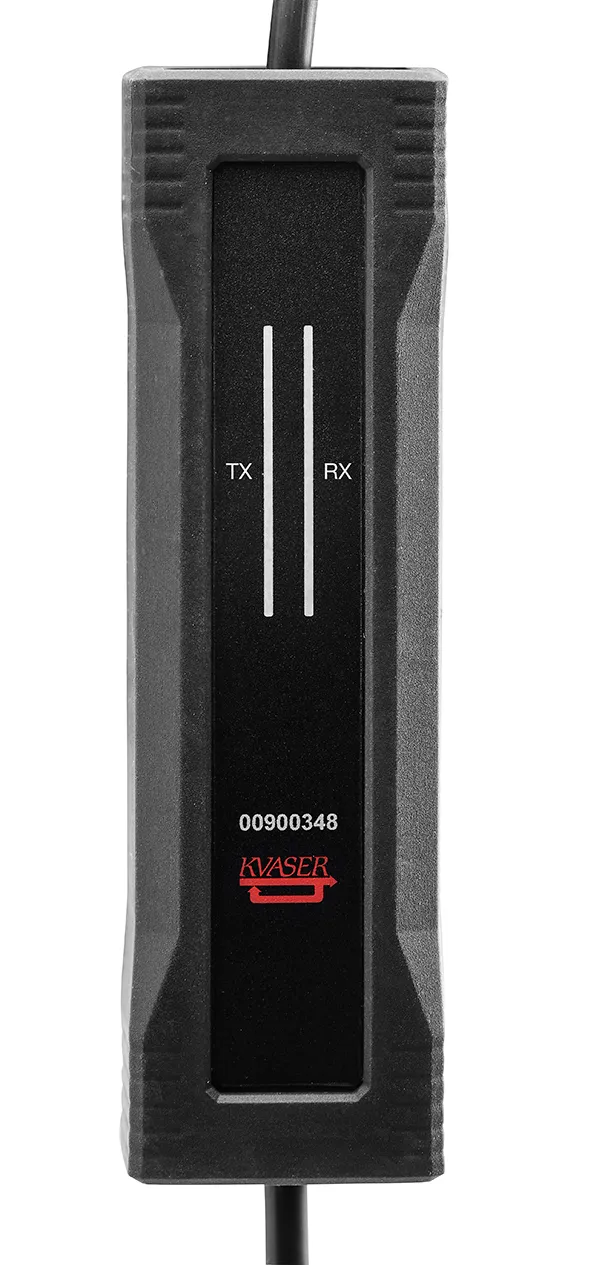

- Lightweight, glass fibre reinforced polyamide housing, overmolded with TPE.
- IP67 rated.

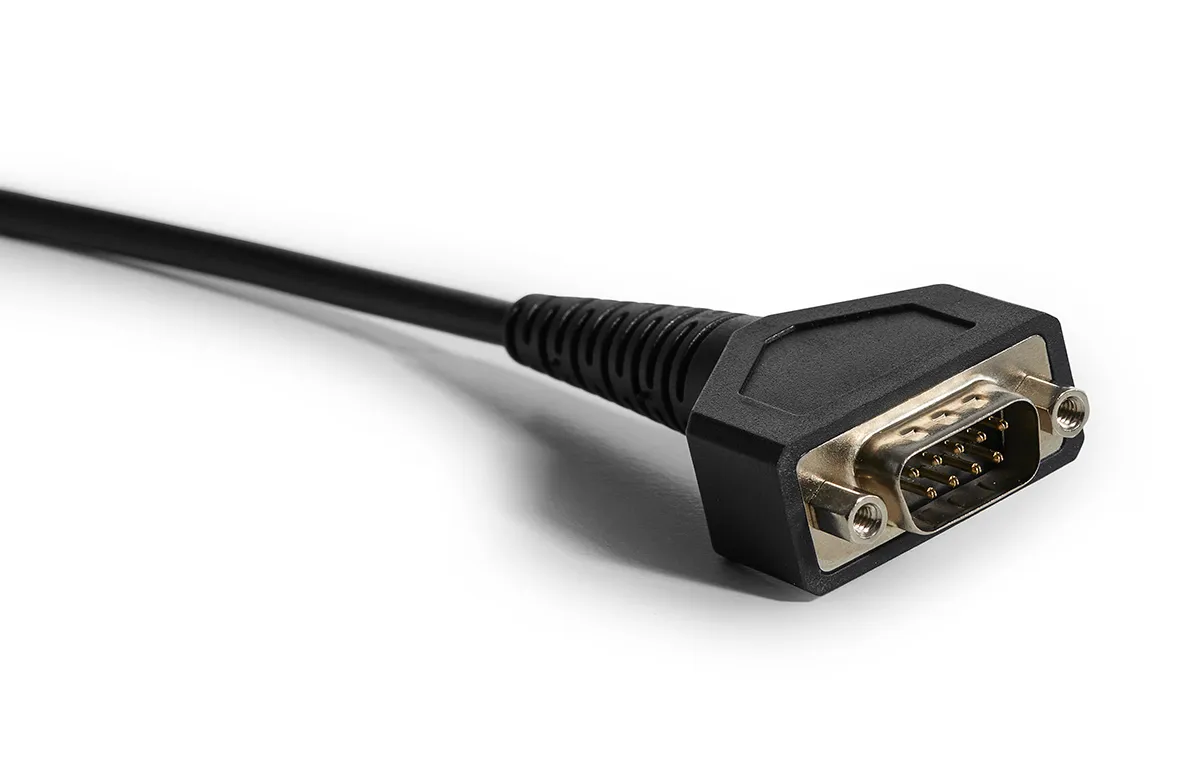

- DB-9 connector (other connectors available soon).

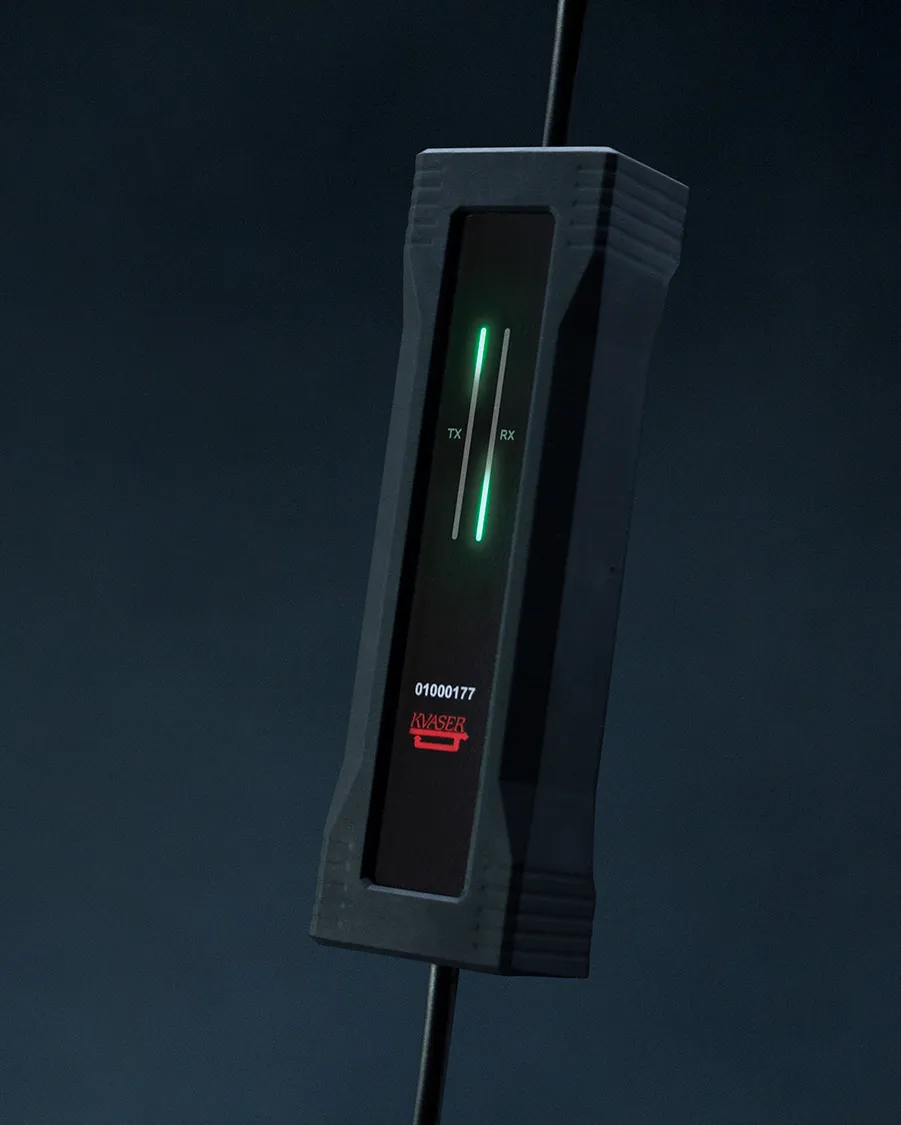

- Intelligent LED UI. (Learn about how the LEDs work here.)
- Reinforced galvanic isolation, design validated with 5000 VAC rms applied for 60 seconds.
- Industrial grade temperature range, −40 °C to +85 °C.
- 20000 msg/s, each timestamped with a resolution of 100 μs.
- Support for SocketCAN.
- Compatible with J1939, CANopen, NMEA 2000® and DeviceNet.
- Fully compatible with applications written for other Kvaser CAN hardware with Kvaser CANlib.
- Documentation, software and drivers can be downloaded for free at www.kvaser.com/downloads.
- Kvaser CANLIB SDK is a free resource that includes everything you need to develop software for the Kvaser CAN interfaces. Includes full documentation and many program samples, written in C, C++, C#, Delphi, and Visual Basic.
- All Kvaser CAN interface boards share a common software API. Programs written for one interface type will run without modifications on the other interface types!
- J2534 Application Programming Interface available.
- RP1210A Application Programming Interface available.
- On-line documentation in Windows HTML-Help and Adobe Acrobat format.
- 2-Year Warranty. See our General Conditions and Policies for details.
- For extended 3-year warranty, please register the product on the Getting Started page or through your Kvaser MyAccount.
- Free Technical Support on all products available by contacting [email protected]
3rd-Party Software Support
The Kvaser U100 is supported in a number of Kvaser Technical Associate software packages:
- Accurate Technologies (ATI): VISION and CANLab
- emotas: CANopen DeviceExplorer, CANopen UpdateManager, CANinterpreter and CANopen and J1939 stack
- MathWorks: MATLAB Vehicle Network Toolbox (Coming Sept 2021)
- MeasX: DASYlab
- Michael Eisele: XTM
- New Eagle: Raptor
- Udoka Electronics: Sumac
- Warwick Controls: X-Analyser
Request a Quote from a Qualified Sales Representative:
The Kvaser U100 is ready to ship from select distributors.
CAN FD Bitrate
Up to 8 Mbit/s
CABLES, Interfaces, Hardware, CAN
Typical 250 mA
Error Counters Reading
Error Frame Generation
2K, TPE surface on top of glass fibre reinforced polyamide
Messages Per Second Receive
Messages Per Second Sending
Linux, Win 7, Win 10, Win 8
-40 °C to +85 °C
Timestamp Resolution (µs)
Kvaser SocketCAN Device Drivers
Kvaser SocketCAN Drivers for Linux
Kvaser Linux Drivers and SDK
Linux drivers and SDK for most Kvaser devices.
Kvaser DIADEM driver
This free driver for National Instrument's DIAdem supports all CAN hardware from Kvaser.
Kvaser Drivers for Windows
Windows drivers for all our CAN hardware. Please check the release notes for information on which Windows versions are supported. The package also contains a driver for a virtual CAN bus, for testing and evaluation when you don't have access to a physical CAN bus.
Development Kits and Tools
The Canlib module is a Python wrapper for Kvaser CANlib SDK.
Kvaser LabView VI Library for CAN
Library for National Instrument's LabView. Version for all Kvaser CAN hardware.
Kvaser CANlib SDK
Software development kit - everything you need to develop software for the Kvaser CAN and LIN interfaces. Libraries, header files, sample programs for e.g. C, C++, C#, Visual Basic and Delphi, documentation, and more. Note: you need to download and install the appropriate device drivers separately.
