Kvaser U100-C

EAN: 73-30130-01340-7

Price: USD 575.00

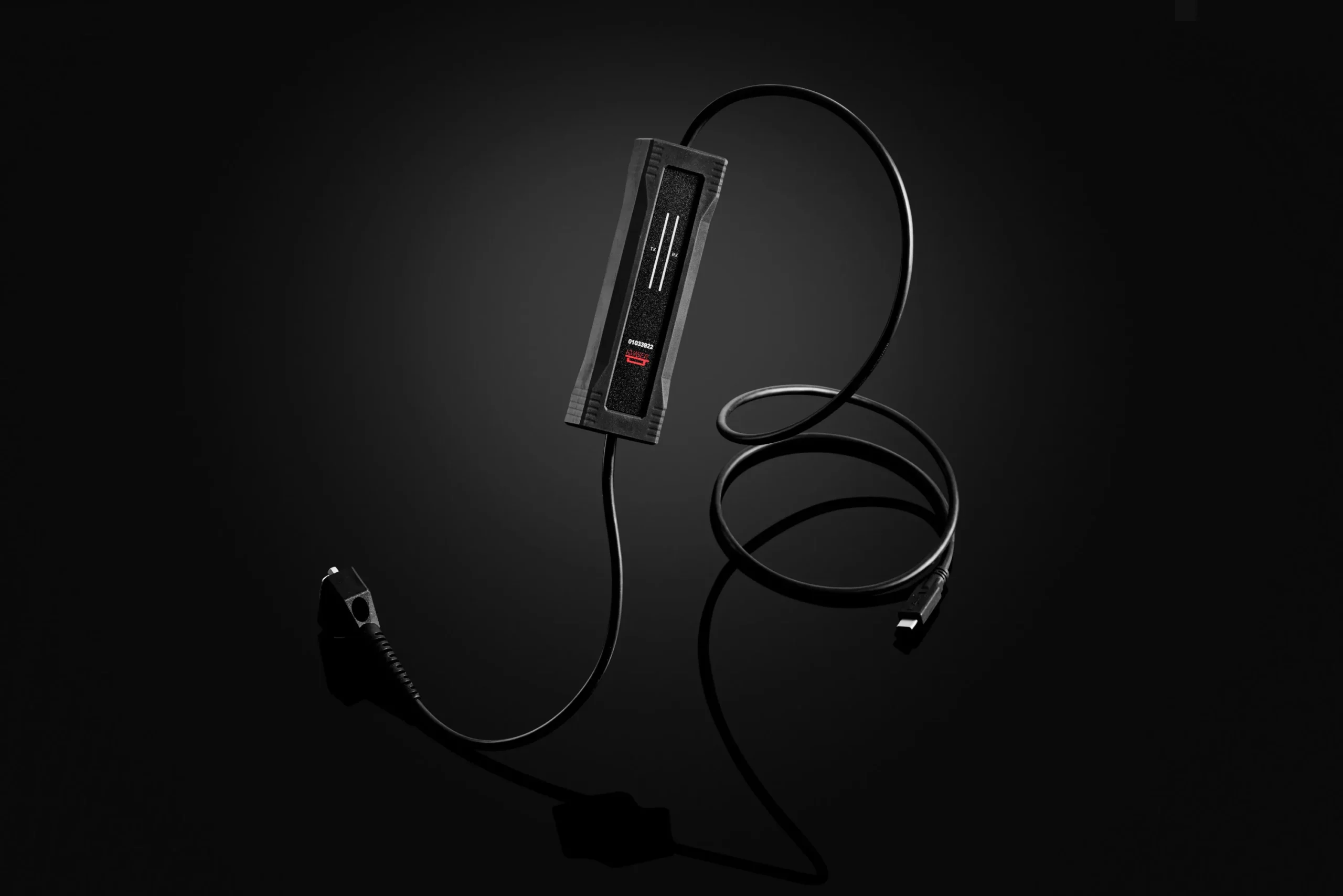

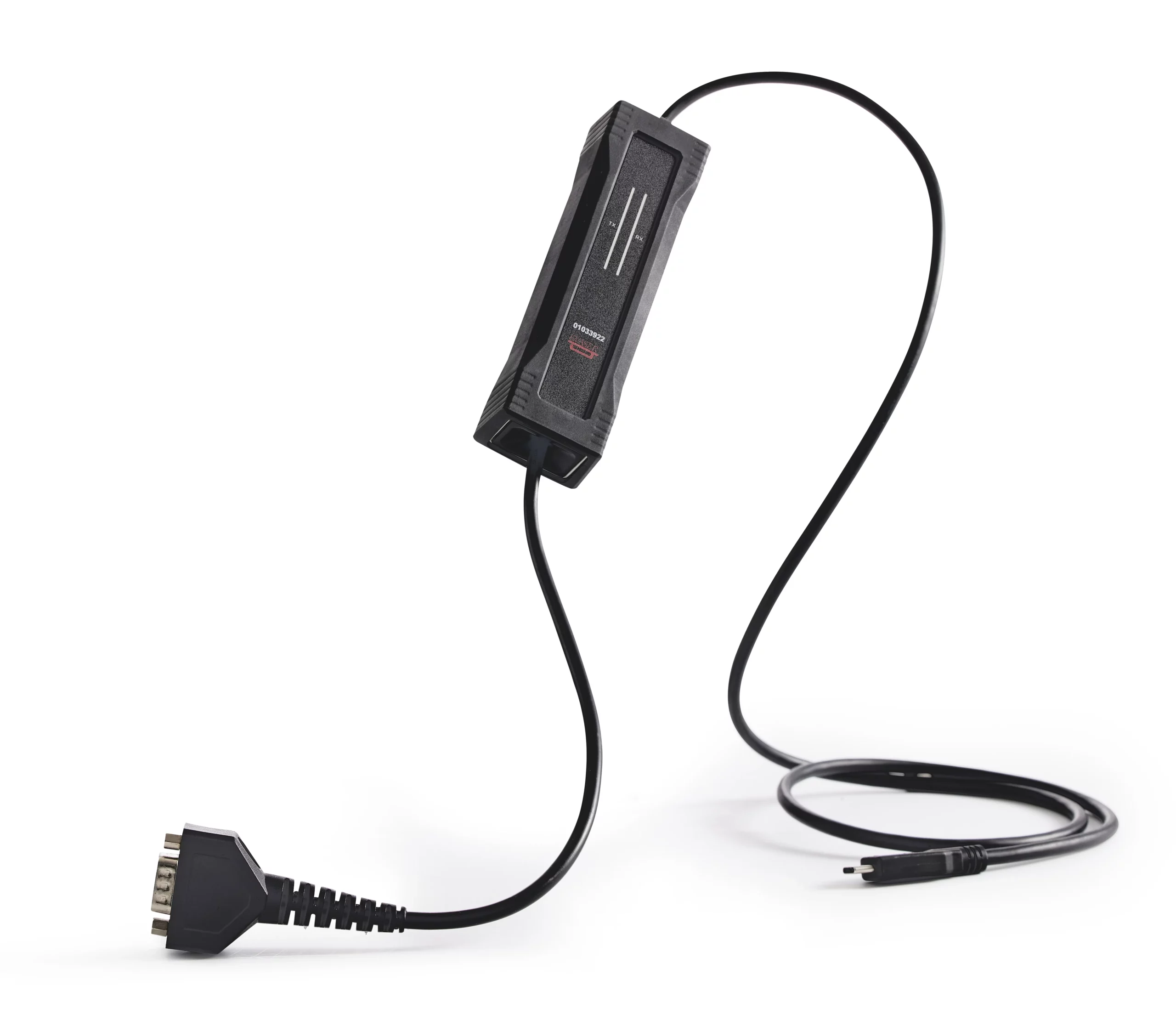

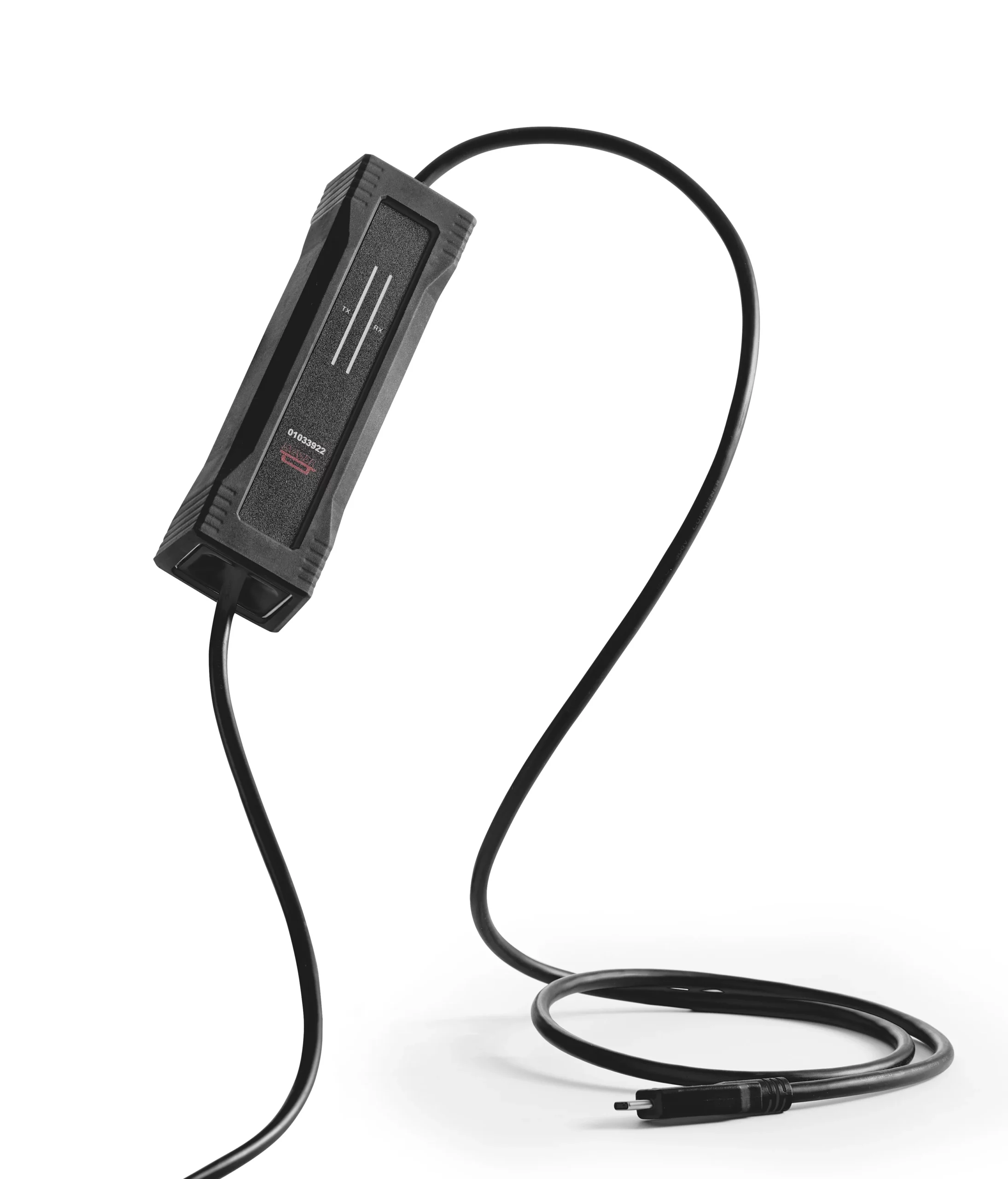

The latest laptops and PCs come with USB-C slots only, so the Kvaser U100-C (01340-7) has been added to Kvaser’s U100 range of robust, single-channel CAN/CAN FD to USB interfaces. This interface is based on the standard Kvaser U100 with DB-9 connector, but replaces the standard USB type “A” connector with the smaller USB-C format. As with other devices in the range, this is powered via the USB bus.

Robust, galvanically-reinforced (Tested according EN 60335) and signal and power isolated, the Kvaser U100 range offers enhanced electrical protection, a vibration, shock and drop-proof housing and high-quality cabling that establishes a new reference in CAN interface design.

Other variants of the U100 range pair a standard USB type “A” connector with a 9-pin D-SUB, M12 or OBD-II CAN connector. A Precision version is also available - the Kvaser U100P - with a standard USB type “A” connector to a 9-pin D-SUB.

Datasheet(A4) Copy link

Save

Compare

Goto Compare

Create a New Account

Major Features

Supports CAN FD, up to 8 Mbit/s (with correct physical layer implementation).
Supports both 11-bit (CAN 2.0A) and 29-bit (CAN 2.0B active) identifiers.
Supports silent mode for analysis tools – listen to the bus without interfering.
Reinforced Galvanic Isolation. (Tested according EN 60335-1:2012 paragraph 13, 5000VAC rms applied for 60 seconds)
20 000 msg/s, timestamped with a resolution of 100 µs.
Industrial grade temperature range, −40 oC to +85 oC.
USB-C connector.
Powered through the Type-C USB connector (a Type-A USB connector is also available).
DB-9 connector (other connectors available).
Supports bit rates from 10 Kbit/sec up to 1 Mbit/sec.
Lightweight, glass fibre reinforced polyamide housing, overmolded with TPE.
IP67 rated.

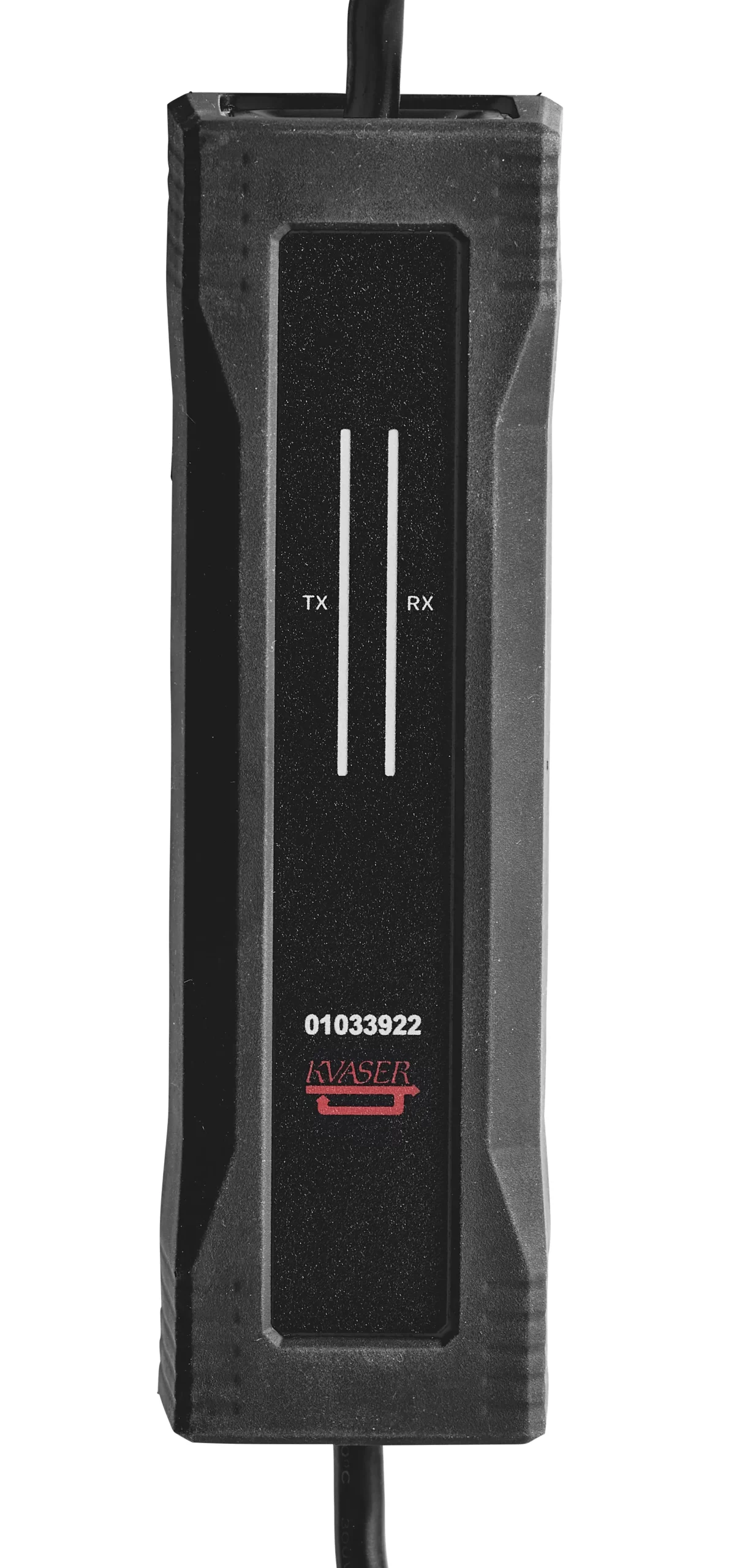

Intuitive LED UI.
Support for SocketCAN.
Compatible with J1939, CANopen, NMEA 2000® and DeviceNet.
Fully compatible with applications written for other Kvaser CAN hardware with Kvaser CANlib.

Warranty

2-Year Warranty. See our General Conditions and Policies for details.

Support

Free Technical Support on all products available by contacting [email protected].

Software

Documentation, software and drivers can be downloaded for free at www.kvaser.com/downloads.
Kvaser CANLIB SDK is a free resource that includes everything you need to develop software for the Kvaser CAN interfaces. Includes full documentation and many program samples, written in C, C++, C#, Delphi, and Visual Basic.
All Kvaser CAN interface boards share a common software API. Programs written for one interface type will run without modifications on the other interface types!
J2534 Application Programming Interface available.
RP1210A Application Programming Interface available.
On-line documentation in Windows HTML-Help and Adobe Acrobat format.

Bitrate

10-1000 kbps

CAN FD Bitrate

Up to 8 Mbit/s

Categories

Interfaces, Hardware, CAN

Certificates

CE, RoHS

Channels

Connectors

DSUB 9

Current Consumption

Typical 250 mA

Error Counters Reading

Error Frame Generation

Galvanic Isolation

Yes

Height

26 mm

Interfaces

USB

Length

128 mm

Material

2K, TPE surface on top of glass fibre reinforced polyamide

Messages Per Second Receive

20000 mps

Messages Per Second Sending

20000 mps

Linux, Win 7, Win 10, Win 8

Silent mode

Sound

Temp range

-40 °C to +85 °C

Timestamp Resolution (µs)

100 µs

Weight

167 g

Documentation

Kvaser U100-C User's Guide

Kvaser U100-C User's Guide

Download
Version V1.2.240218
