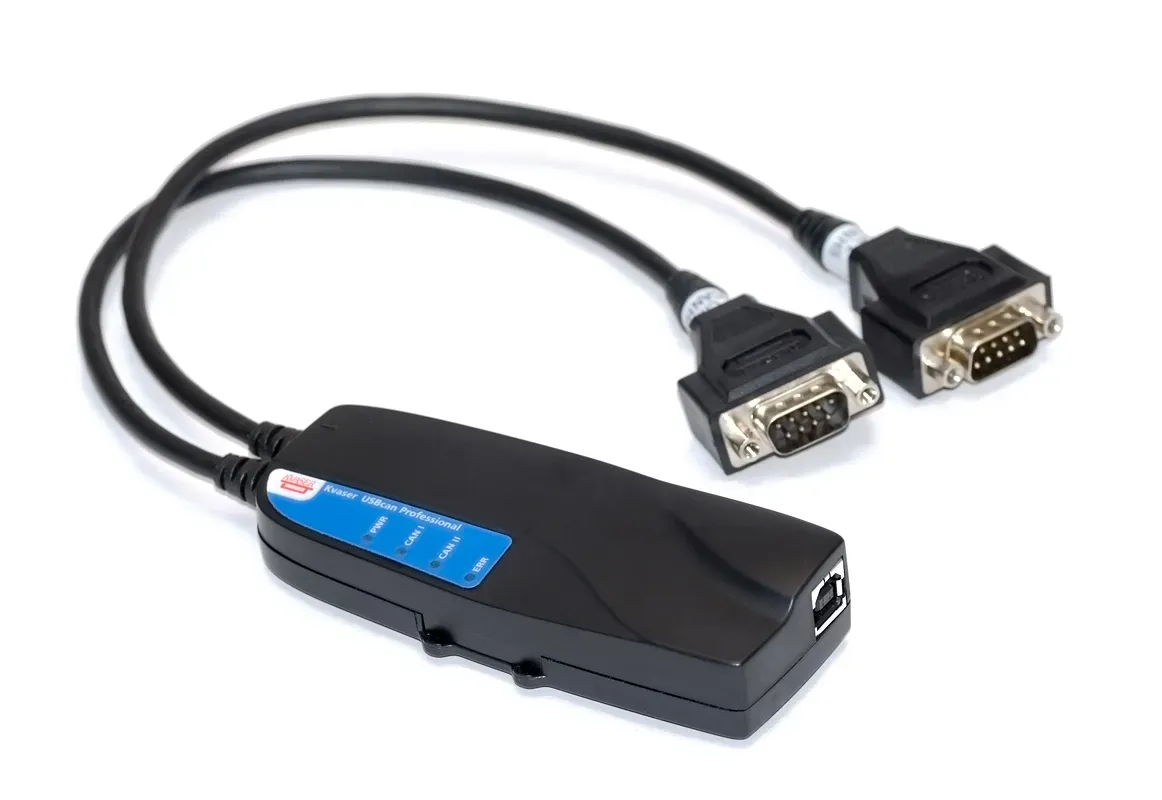

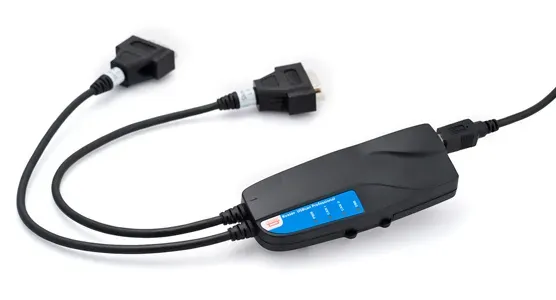

Kvaser USBcan Professional

EAN: 73-30130-00357-6

NOTE:  The Kvaser USBcan Professional (73-30130-00357-6) has been marked "Not For New Designs".  Existing customers are encouraged to migrate to the Kvaser USBcan Pro 2xHS v2 (73-30130-00752-9)

For more information, please contact us.

___________

The Kvaser USBcan Professional with MagiSync is a high performance, two channel CAN bus interface with a standard USB1.1 connection. It enables several interfaces to be easily connected to a desktop or laptop PC. With quick reaction times and high data throughput, the Kvaser USBcan Professional is perfect for rapid ECU re-flashing, advanced bus analyzers, and efficient development work.

Major Features

  • Two high-speed channels with ISO 11898-2 compliant CAN transceivers, 10 kbit/s up to 1 Mbit/s
  • Supports 11-bit (CAN 2.0A) and 29-bit (CAN 2.0B active) identifiers.
  • Kvaser's MagiSync™ technology to synchronize time stamps across multiple units without extra wires.
  • Quick and easy plug-and-play installation.
  • When combined with the Kvaser Linx, it also supports the J1587 bus.
  • CAN messages time-stamped and synchronized with a precision of 2 microseconds.
  • Silent mode for analyzing tools.
  • Galvanic isolation of the CAN bus driver stage to protect the hardware.
  • Designed for USB 2.0, backward compliant with USB 1.1.
  • Large on-board RAM buffer for CAN message.
  • Plastic housing with dimension W*L*H about 50*90*25 mm (approx 2 x 3,5 x 1 inch).
  • A practically unlimited number of Kvaser USBcan Professional devices can be connected via standard USB hubs for simultaneous use on a single PC.
  • Excellent error handling.
  • Labeled CAN channel for easy identification of the supported physical layer.

Warranty

  • 2-Year Warranty. See our General Conditions and Policies for details.

Support

Software

  • Documentation, software and drivers can be downloaded for free at www.kvaser.com/downloads.
  • Kvaser CANLIB SDK [link} is a free resource that includes everything you need to develop software for the Kvaser CAN interfaces. Includes full documentation and many program samples, written in C, C++, C#, Delphi, and Visual Basic.
  • All Kvaser CAN interface boards share a common software API. Programs written for one interface type will run without modifications on the other interface types!
  • J2534 Application Programming Interface available.
  • RP1210A Application Programming Interface available.
  • On-line documentation in Windows HTML-Help and Adobe Acrobat format.
Bitrate

5-1000 kbps

Categories

Interfaces, Hardware

Certificates

CE, RoHS

Channels

2

Connectors

DSUB 9

Current Consumption

~5V and 130mA when powered from the USB.

Error Counters Reading

Yes

Error Frame Generation

Yes

Galvanic Isolation

Yes

Height

25 mm

Interfaces

USB

Length

90 mm

Material

PC-ABS

Messages Per Second Receive

20000 mps

Messages Per Second Sending

20000 mps

OS

Win XP, Linux, Win 7, Win Vista, Win 10, Win 8

Silent mode

Yes

Sound

No

Temp range

-40 °C to +85 °C

Timestamp R (µ)

2 µs

Weight

150 g

Driver

Kvaser SocketCAN Device Drivers

Kvaser SocketCAN Drivers for Linux

Version V1.4.0 Download

Kvaser Linux Drivers and SDK

Linux drivers and SDK for most Kvaser devices.

Version V5.33.212 Download

Kvaser DIADEM driver

This free driver for National Instrument's DIAdem supports all CAN hardware from Kvaser.

Version V4.1.0 Download

Kvaser Drivers for Windows

Windows drivers for all our CAN hardware. Please check the release notes for information on which Windows versions are supported. The package also contains a driver for a virtual CAN bus, for testing and evaluation when you don't have access to a physical CAN bus.

Version V5.33.212 Download
Firmware

Kvaser Firmware Update Tool

Firmware Update tool for most Kvaser devices.

Version V4.22.212 Download
Development Kits and Tools

Python module

The Canlib module is a Python wrapper for Kvaser CANlib SDK.

Version V1.15.483 Download

Kvaser LabView VI Library for CAN

Library for National Instrument's LabView. Version for all Kvaser CAN hardware.

Version V19.3.0 Download

Kvaser CANlib SDK

Software development kit - everything you need to develop software for the Kvaser CAN and LIN interfaces. Libraries, header files, sample programs for e.g. C, C++, C#, Visual Basic and Delphi, documentation, and more. Note: you need to download and install the appropriate device drivers separately.

Version V5.33.212 Download
Other

Kvaser CANKing

A free of charge, general-purpose CAN bus monitor. It works with all CAN interfaces from Kvaser and also with the virtual CAN bus.

Version V6.16.978 Download
Documentation

Kvaser USBcan Professional Users Guide

Kvaser USBcan Professional User's Guide

Version V5.1.0 Download

Kvaser USBcan Comparison Table

Kvaser USBcan Product Comparison Table

Version Download
