Kvaser DIN Rail S020-X10 Analog add-on
Price: USD 325.00

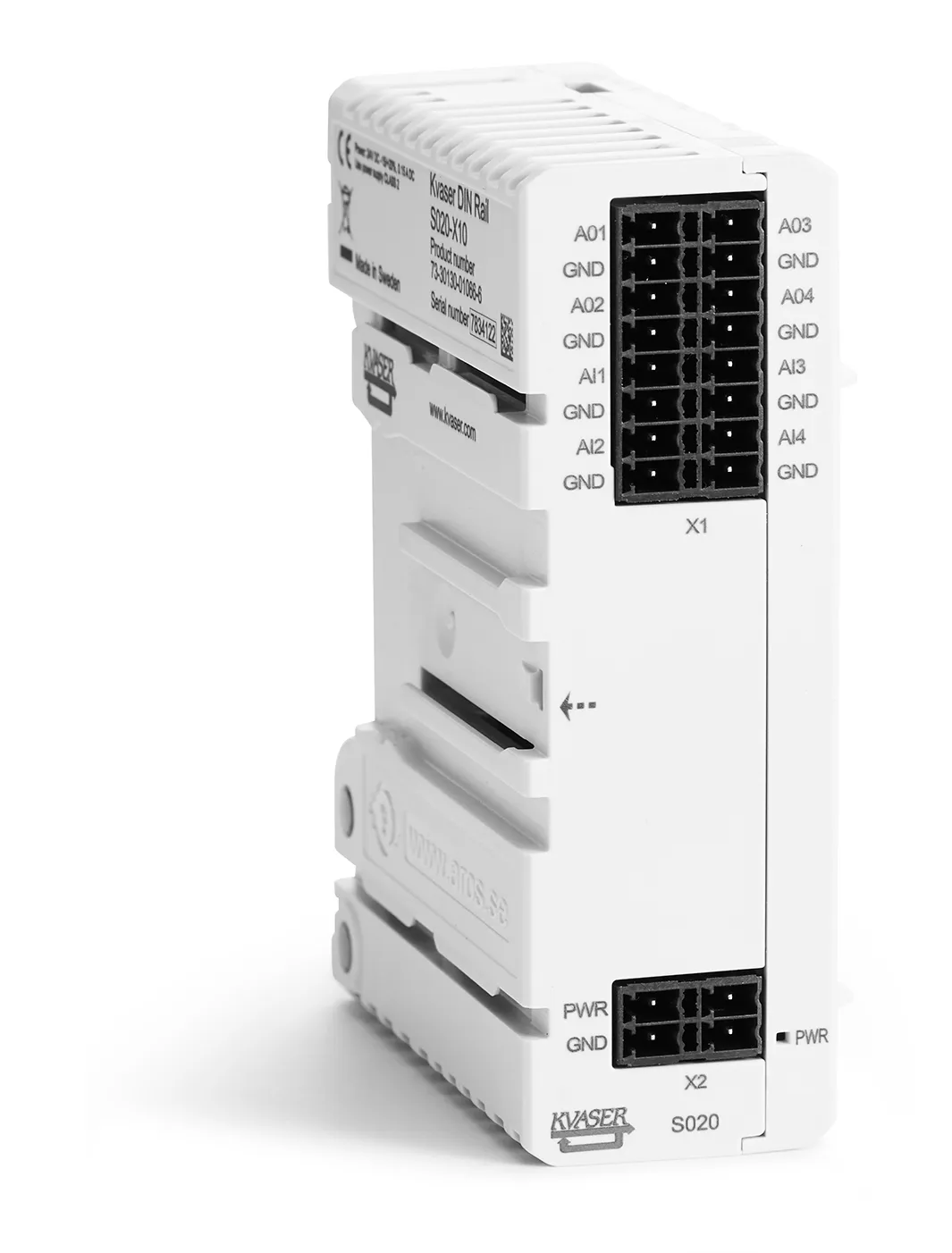

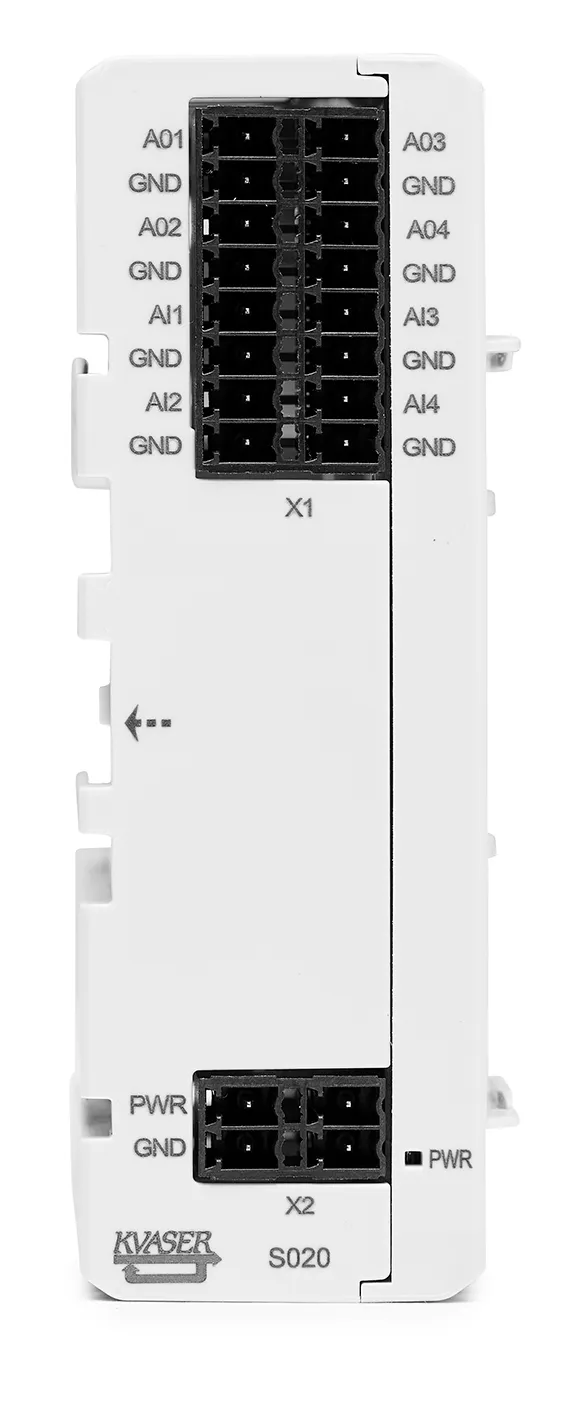

Kvaser DIN Rail S020-X10 Analog is an optional add-on module to the Kvaser DIN Rail SE400S-X10 base module. With four analog inputs and four outputs, this IP20-rated module is thermal, reverse-polarity protected and surge power supply protected. The input voltage range is fixed (between 0 and 10V), and resolution is 12 bits. A power LED displays the state of the module.
- Supports four analog inputs and four analog outputs, controllable through the Kvaser DIN Rail SE400S-X10.
- IP20 rated, plus thermal, reverse-polarity and surge protection.

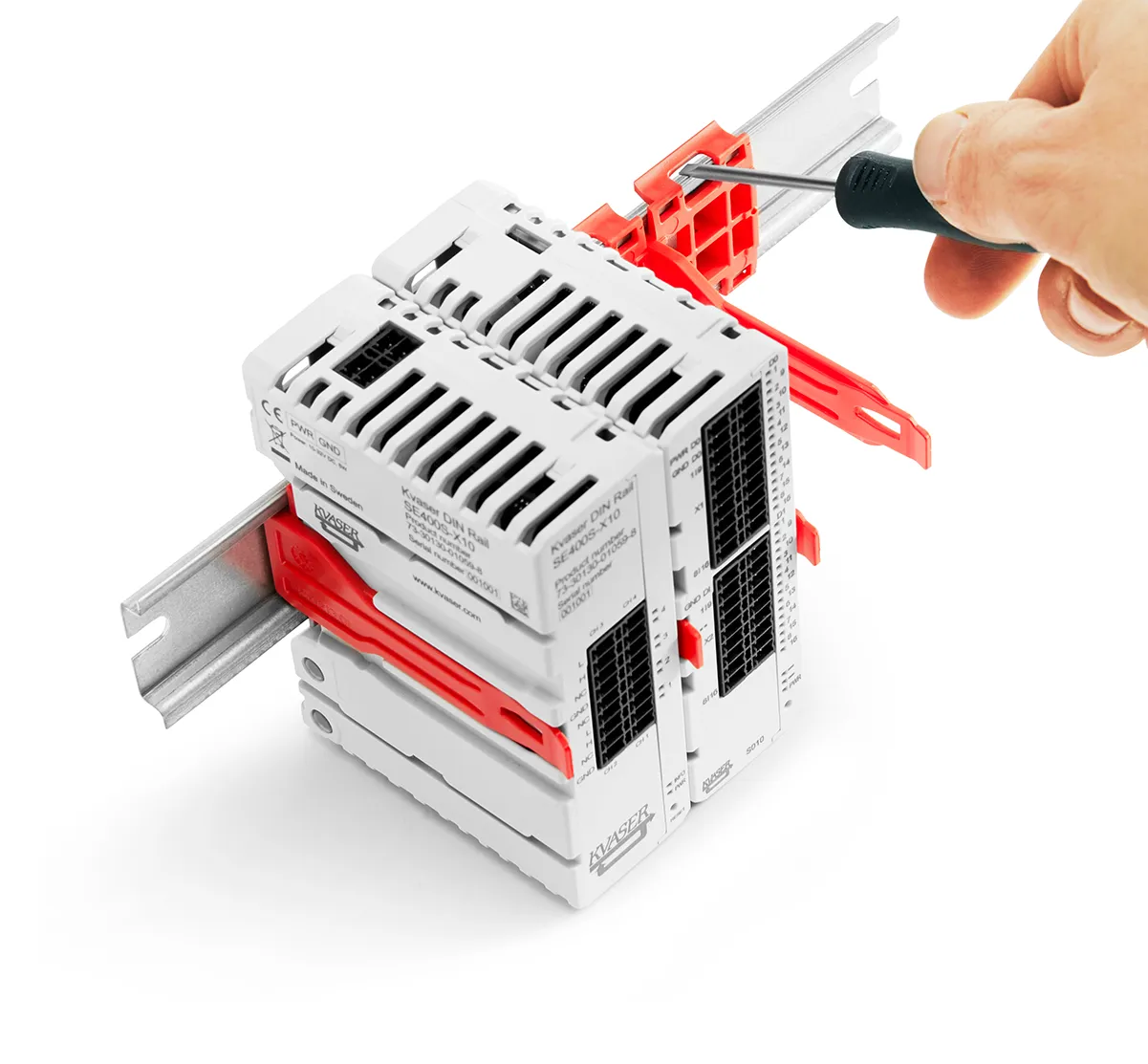

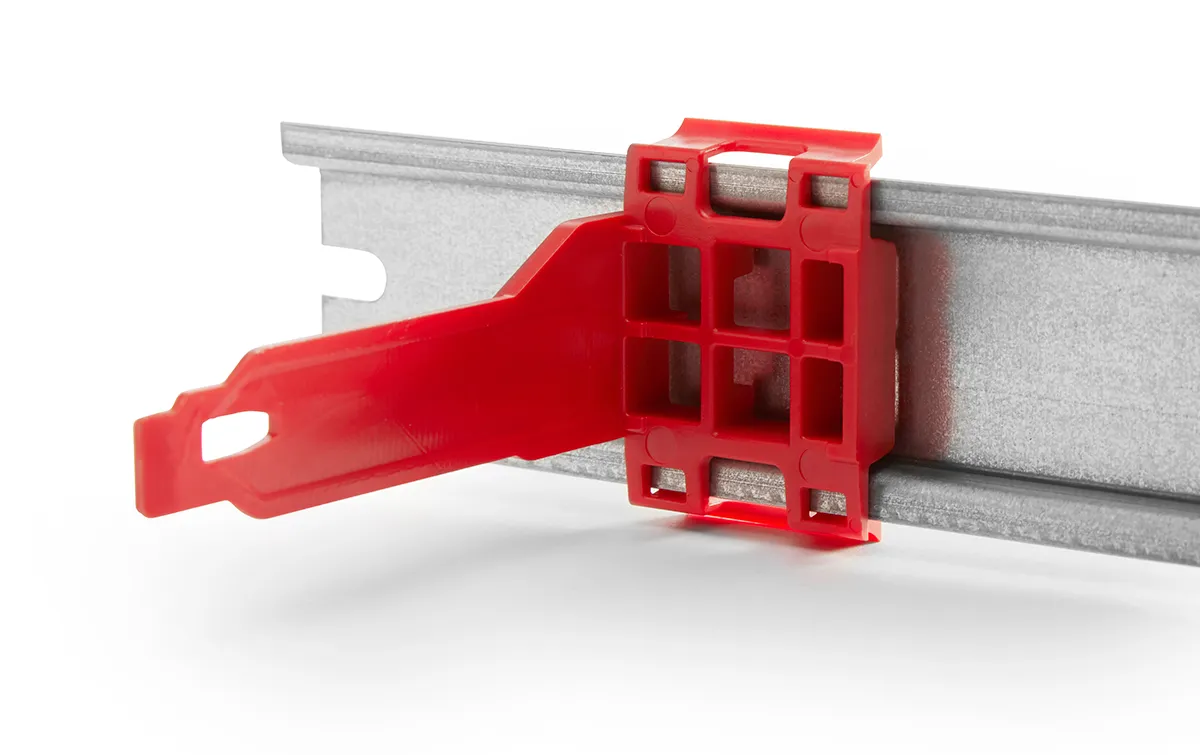

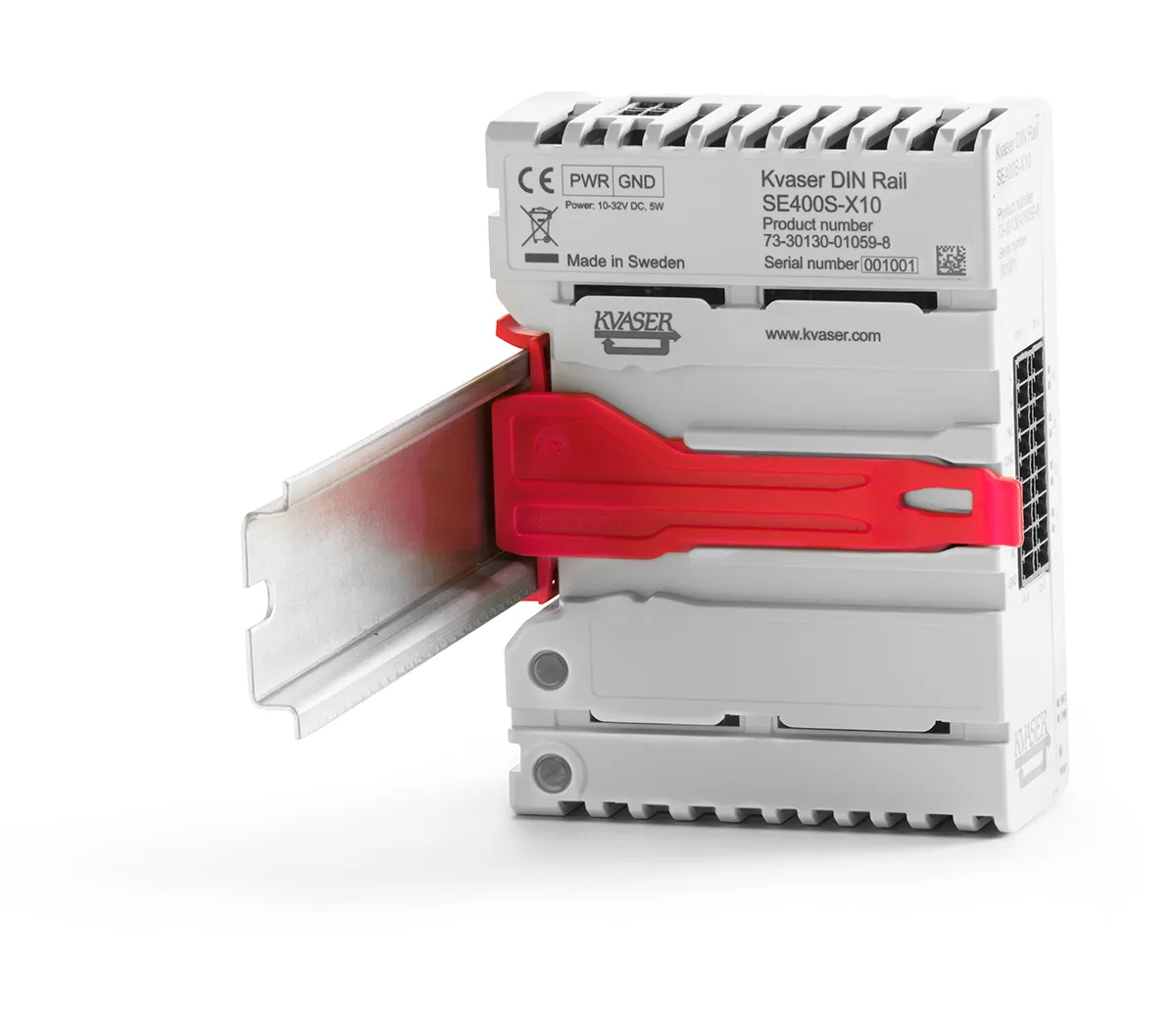

- Smart clip system for easy mounting on DIN Rail; no tools needed.
- Requires a power supply from Class 2 / SELV.
- *Please note: Add-on modules require a Kvaser DIN Rail SE400S-X10 to be able to work.
- For instructions on physical installation, visit the "Getting Started With DIN Rail" page.

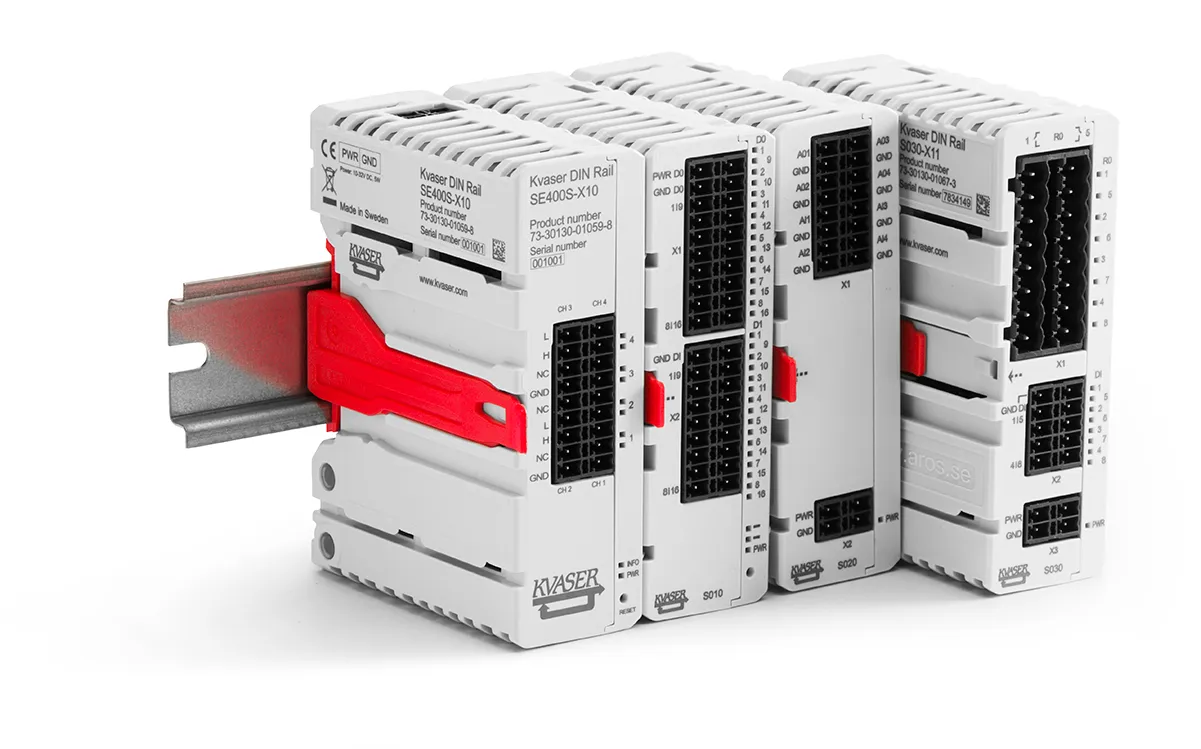

- Kvaser DIN Rail SE400S-X10 (EAN 73-30130-01059-8)
- Kvaser DIN Rail S010-X10 Digital add-on (EAN 73-30130-01065-9)
- Kvaser DIN Rail S030-X11 Relay add-on (EAN 73-30130-01067-3)
- 2-Year Warranty. See our General Conditions and Policies for details. Register your product at www.kvaser.com/getting-started for an additional 1-year Warranty Extension.
- Free Technical Support on all products available by contacting [email protected]
