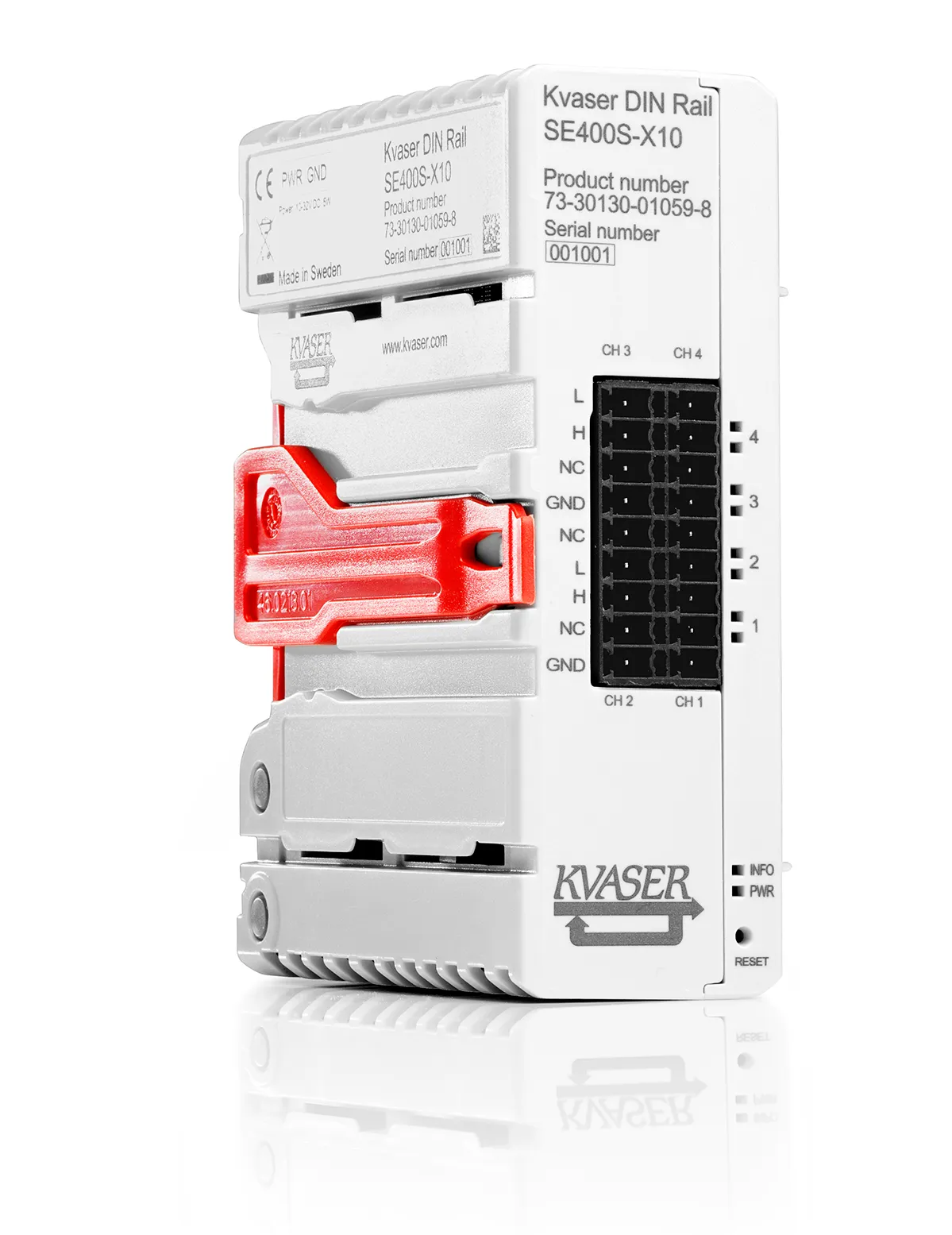

Kvaser DIN Rail SE400S-X10

EAN: 73-30130-01059-8
Price: USD 1,600.00

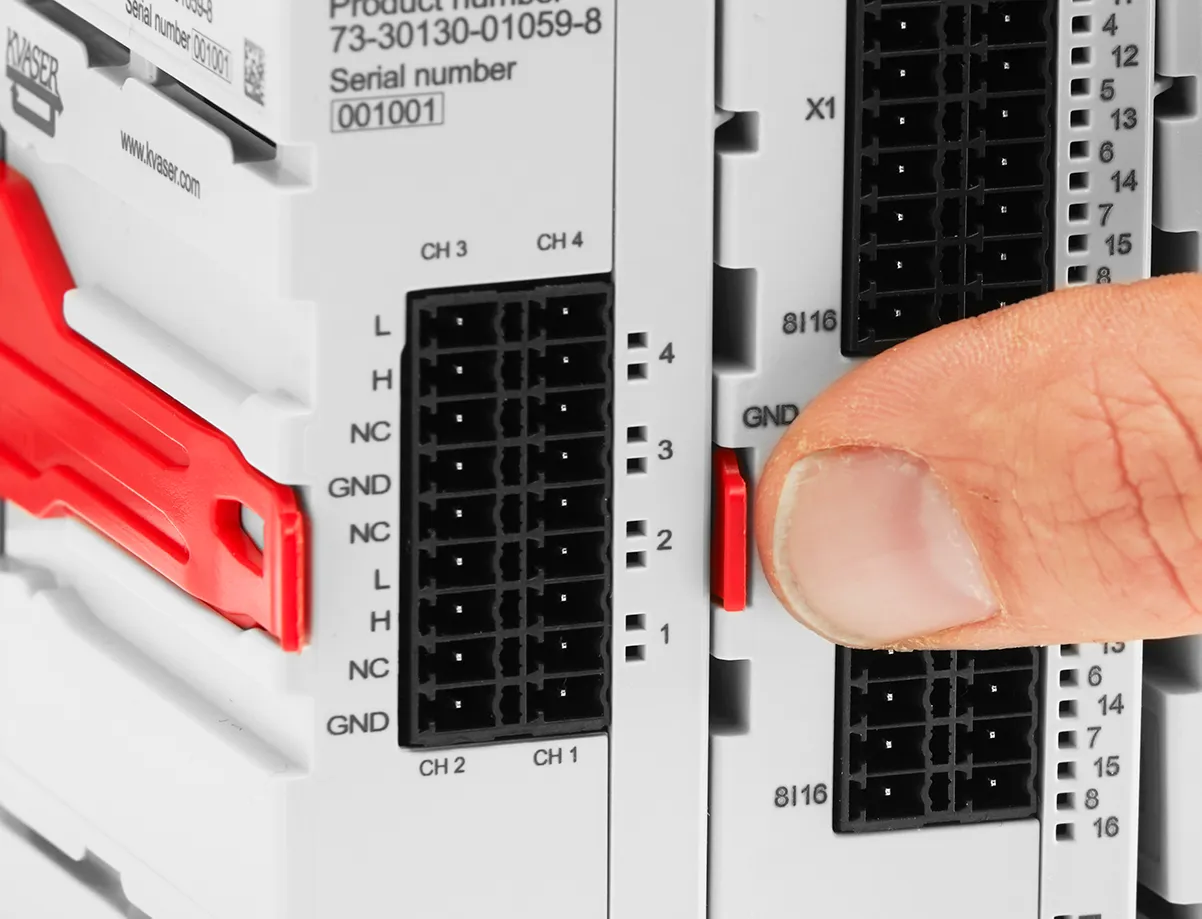

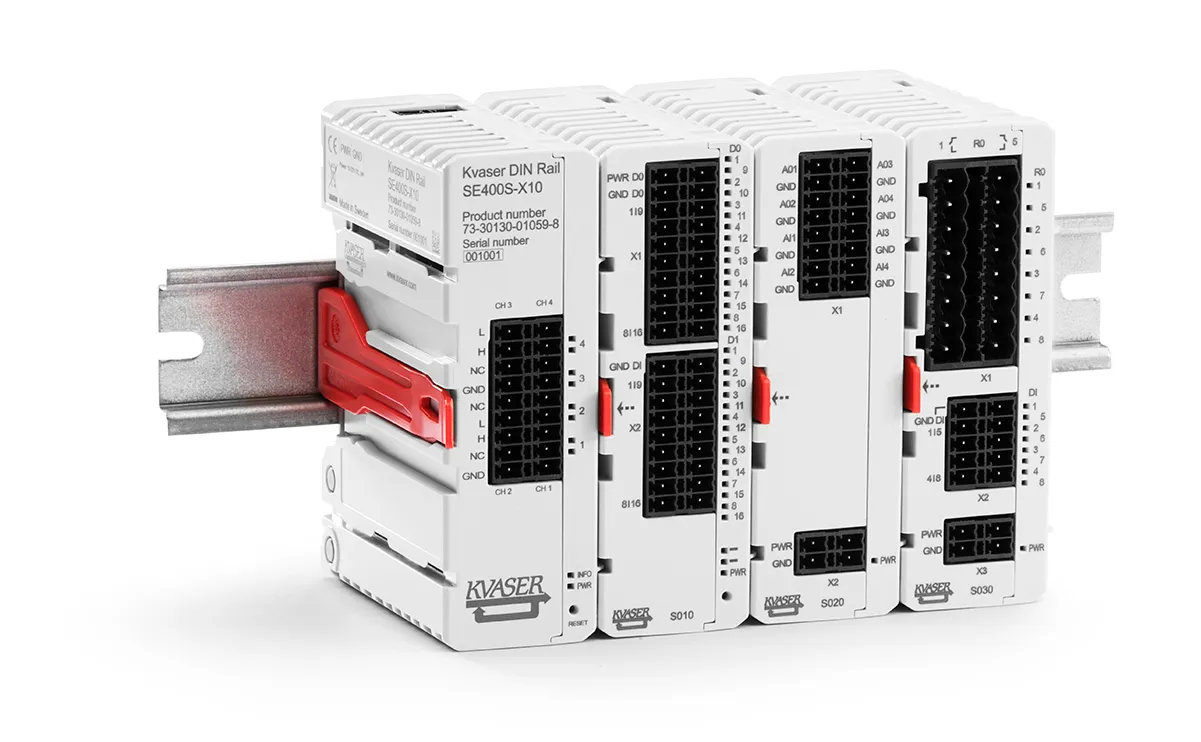

The Kvaser DIN Rail SE400S-X10 is a multichannel, programmable Ethernet to CAN/CAN FD interface for DIN Rail mounting. This device has four CAN/CAN FD channels and supports up to four optional Kvaser DIN Rail SE400S-X10 I/O add-on modules of which there are three different types; analog, digital and relay. Ideal for automotive test cell or end-of-line production test applications, the SE400S-X10 can download and run programs created in the Kvaser t programming language, such as diagnostics routines to test automotive body control modules.

Main Features

  • Quick and easy installation.
  • Multi-channel CAN to Ethernet interface.
  • Supports CAN FD, up to 8 Mbit/s (with correct physical layer implementation).
  • Networked CAN interface with Kvaser t programmability to e.g. monitor and respond to CAN messages, develop I/O functionality and optimize protocol handling.
  • Capable of sending up to 20000 messages per second, per CAN channel.

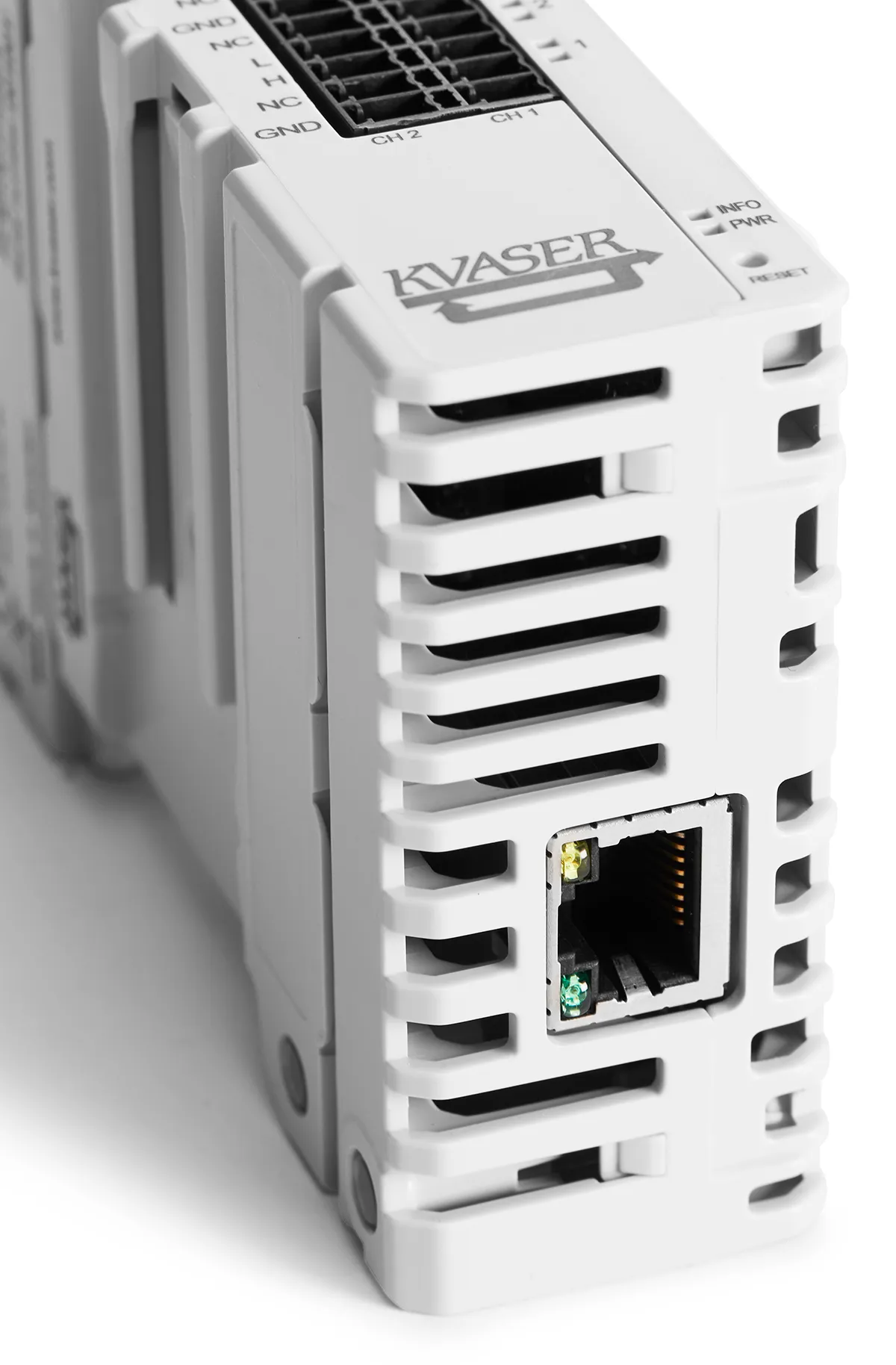

  • Ethernet connection with auto-MDIX using a standard shielded RJ45 socket.

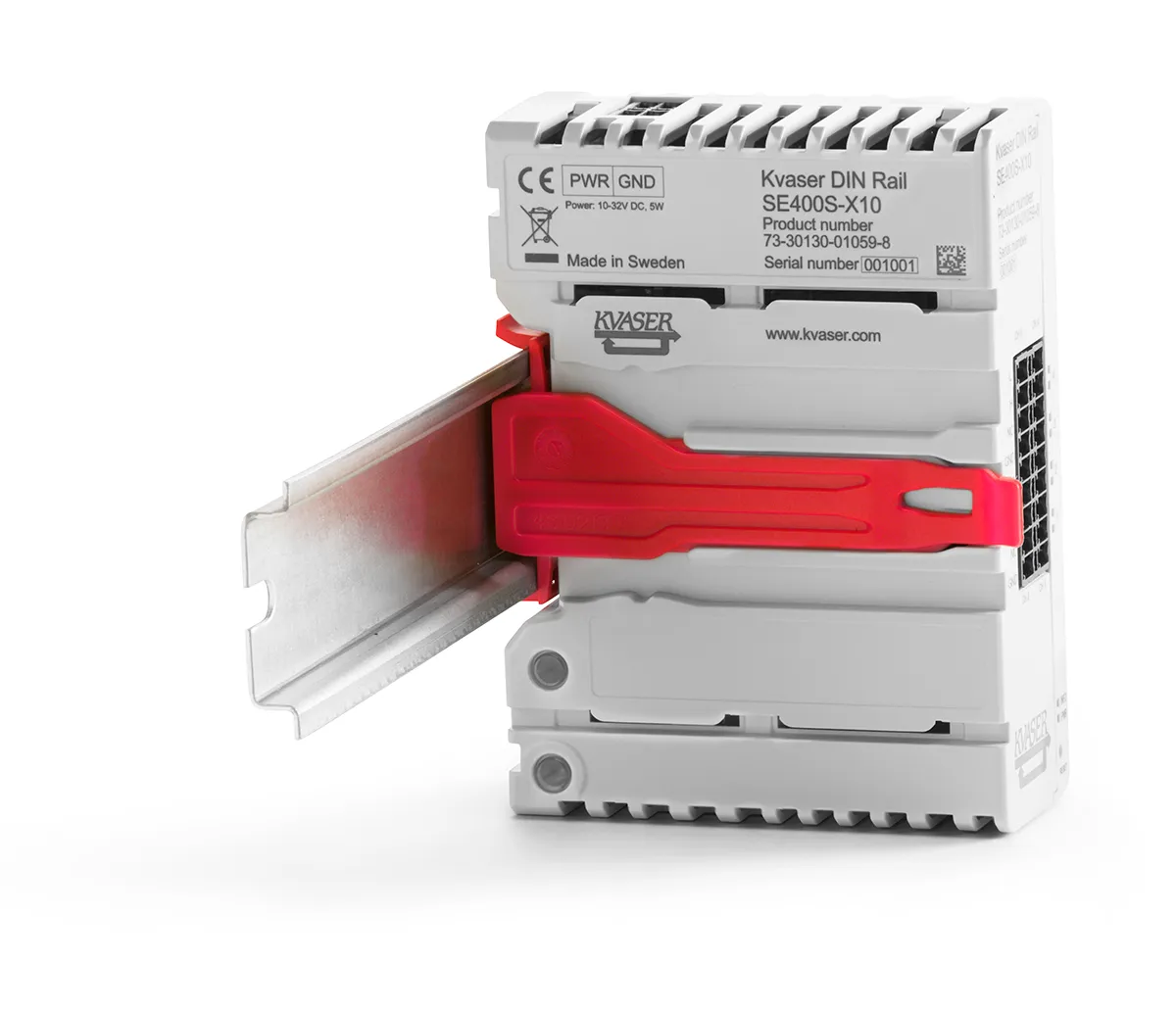

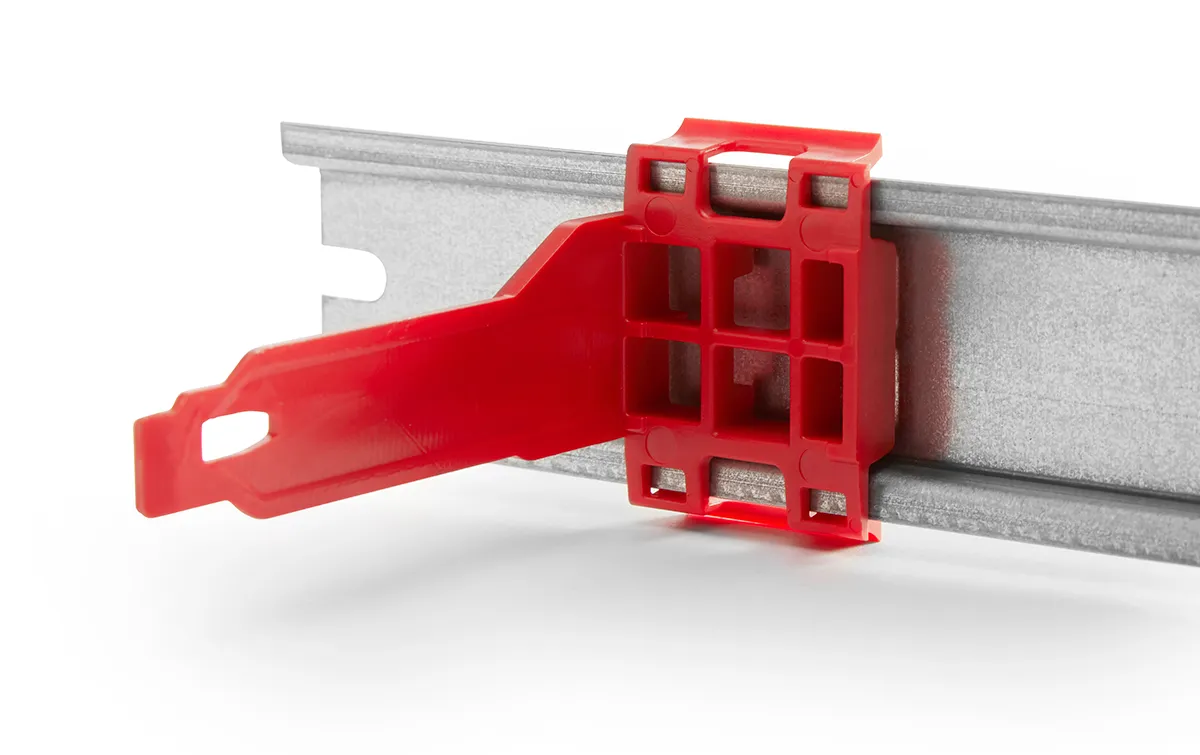

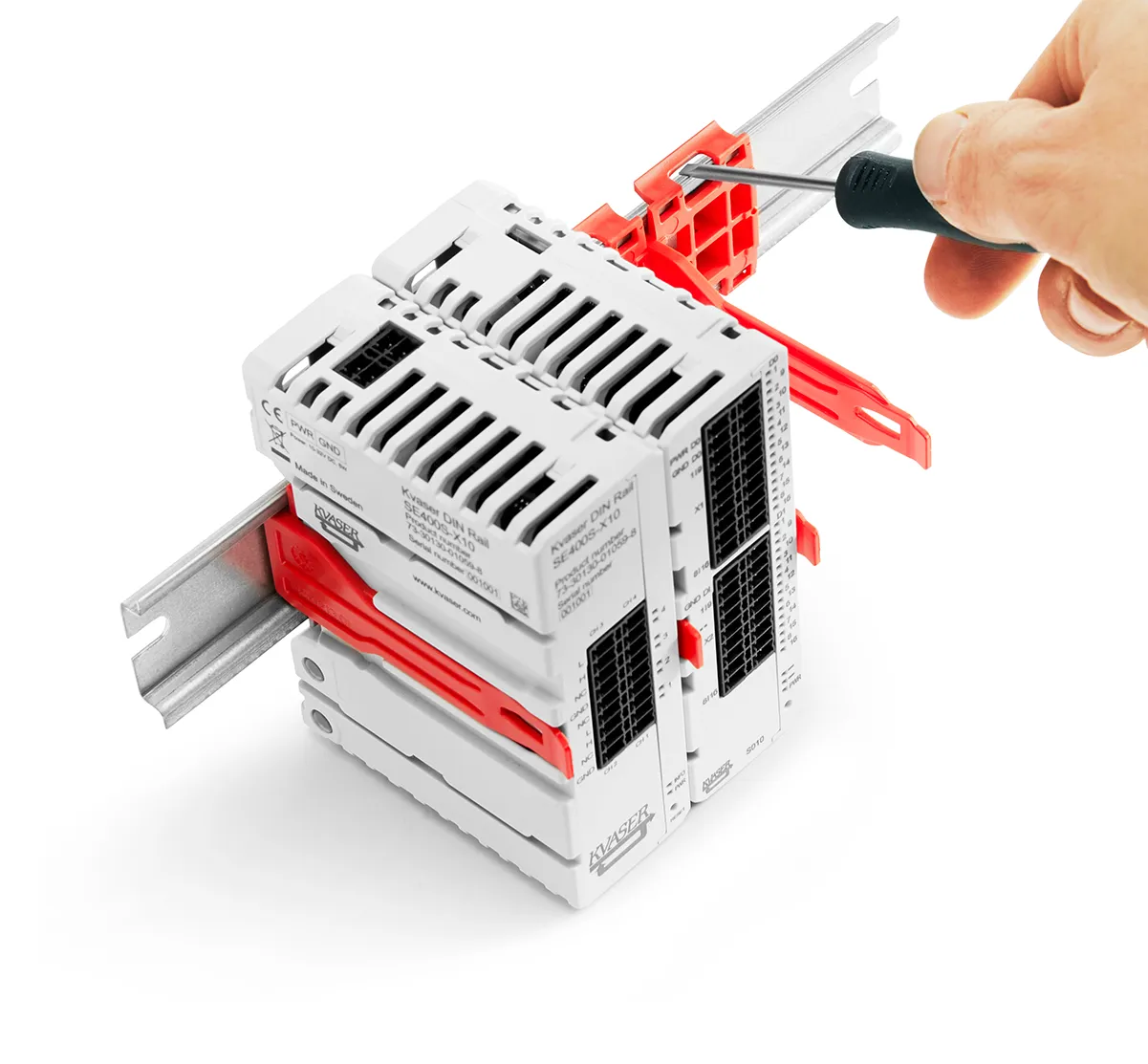

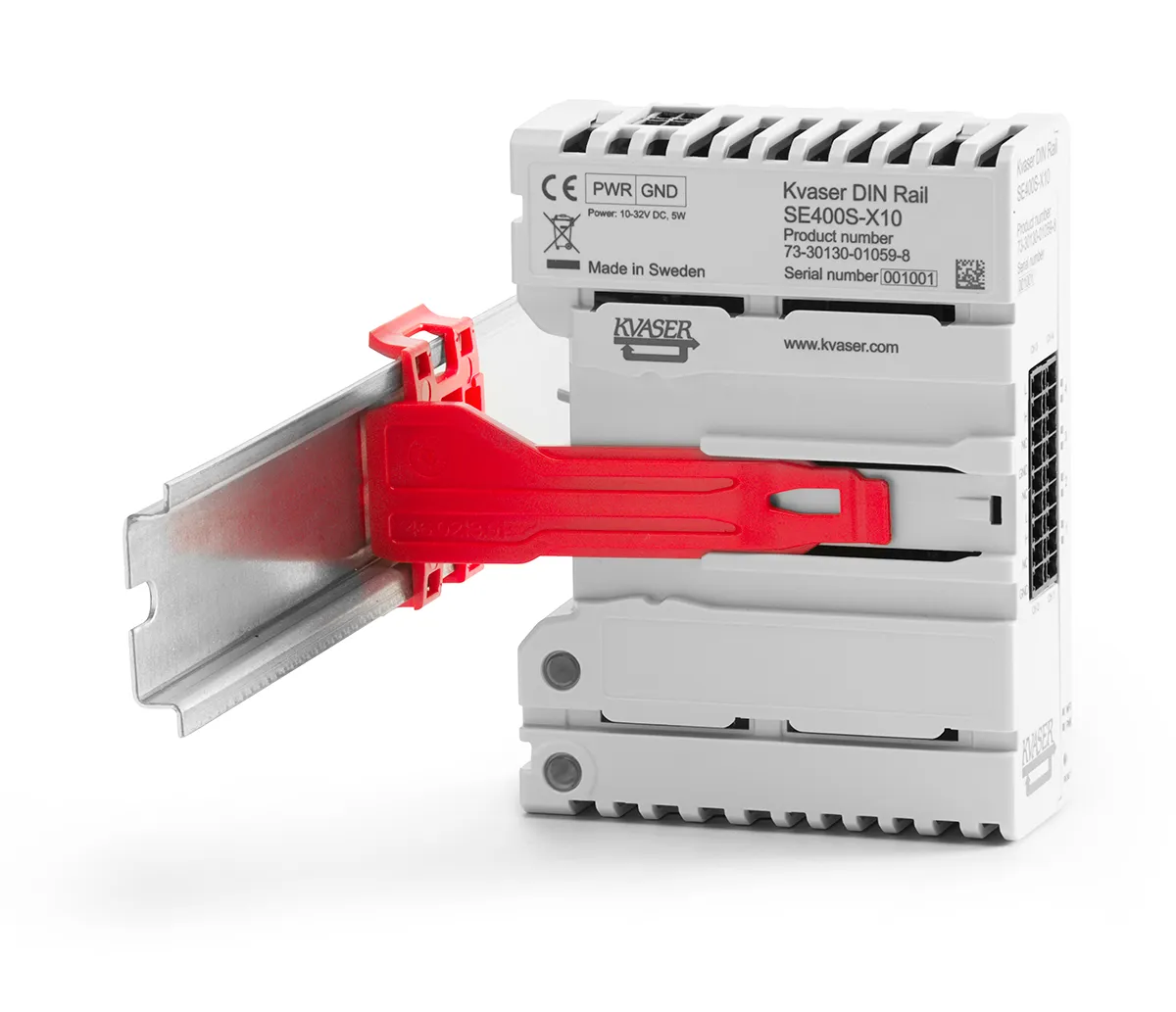

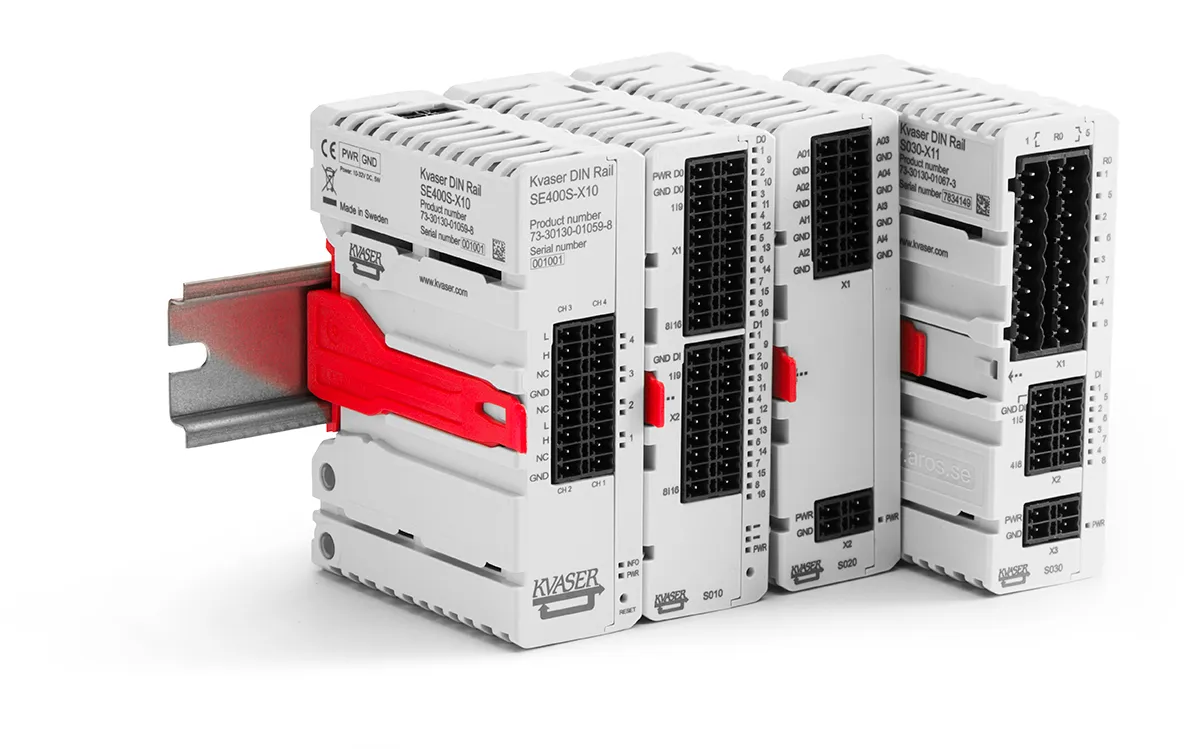

  • Smart clip system for easy mounting on DIN Rail; no tools needed.
  • Supports up to four add-on modules for digital and/or analog inputs and outputs, controllable through Kvaser CANlib and t programs.
  • Compatible with applications written for Kvaser hardware in Kvaser CANlib.

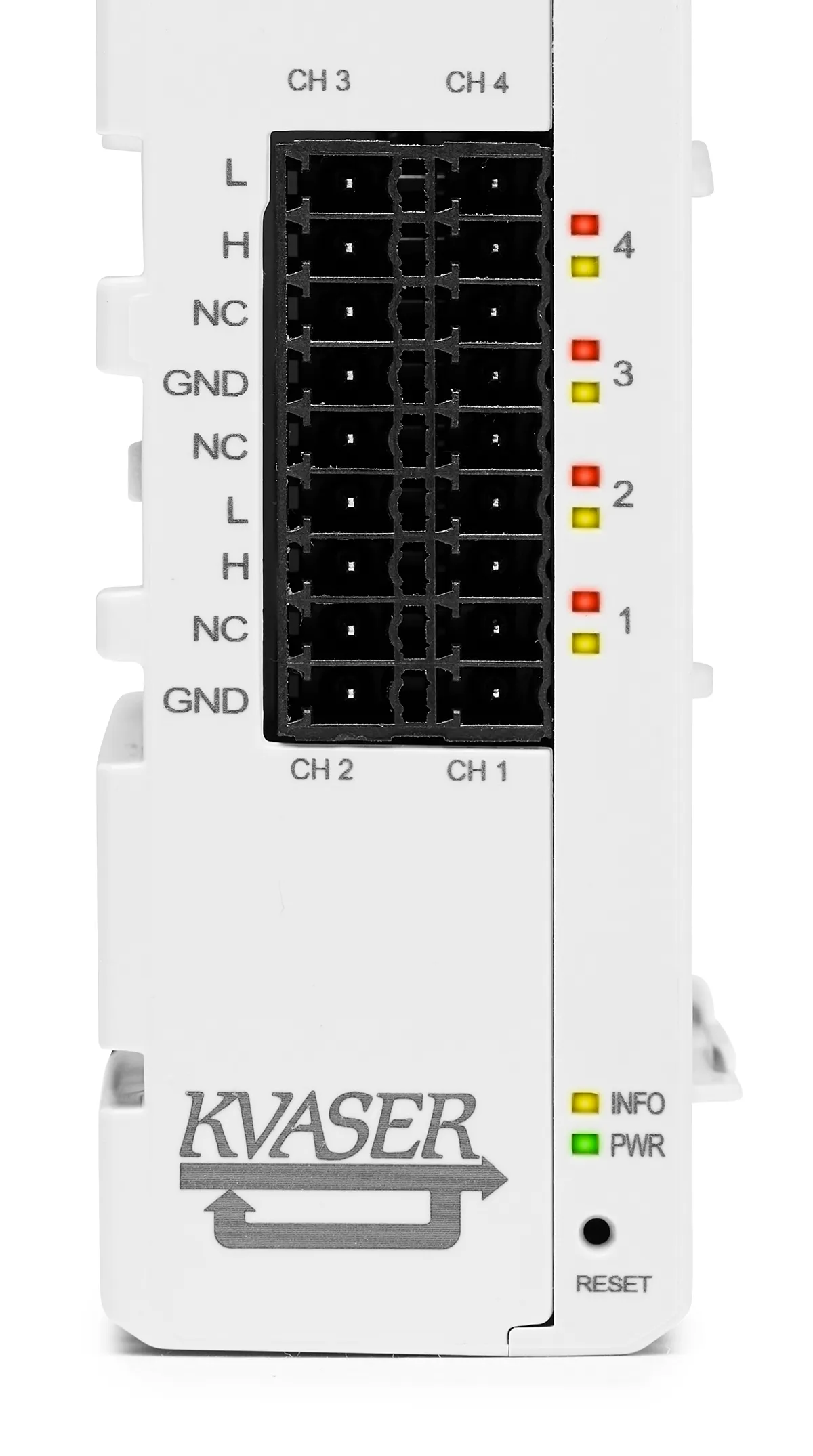

  • Galvanically isolated CAN channels.

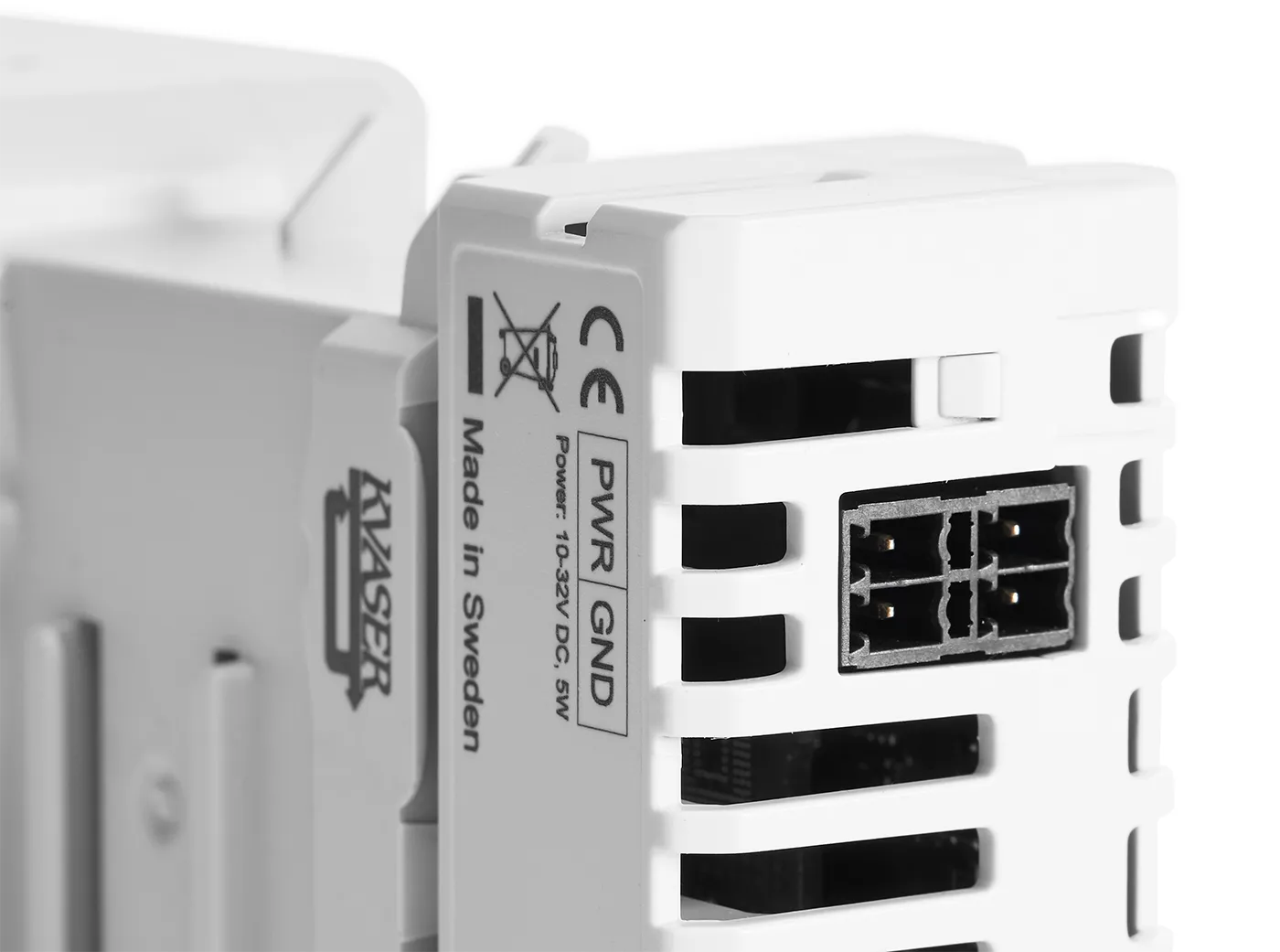

  • Requires a power supply from Class 2 / SELV.
Resources


Related Products

Warranty

  • 2-Year Warranty. See our General Conditions and Policies for details. Register your product at www.kvaser.com/getting-started for an additional 1-year Warranty Extension.

Support

Software

  • Documentation, Kvaser CANlib SDK and drivers can be downloaded for free at www.kvaser.com/downloads.
  • Kvaser CANlib SDK is a free resource that includes everything you need to develop software for the Kvaser CAN interfaces. Includes full documentation and many program samples, written in C, C++, C#, Delphi, Visual Basic, Python and t programming language.
  • Kvaser CAN hardware is built around the same common software API. Applications developed using one device type will run without modification on other device types.
  • J2534 Application Programming Interface available.
  • RP1210A Application Programming Interface available.
  • HTML-Help and online documentation in Windows.
Bitrate

50-1000 kbps

CAN FD Bitrate

Up to 8 Mbit/s

Categories

DIN Rail, Hardware

Certificates

CE, RoHS

Channels

4

Connectors

RJ45

Error Counters Reading

No

Error Frame Generation

Yes

Galvanic Isolation

Yes

Interfaces

Ethernet RJ45

Messages Per Second Receive

20000 mps

Messages Per Second Sending

20000 mps

OS

Win 7, Win Vista, Win 10, Win 8

Silent mode

Yes

Temp range

+5 °C to +65 °C

Timestamp R (µ)

100 µs

Weight

110 g

Firmware

Kvaser Firmware Update Tool

Firmware Update tool for most Kvaser devices.

Version V4.23.317 Download
Driver

Kvaser DIADEM driver

This free driver for National Instrument's DIAdem supports all CAN hardware from Kvaser.

Version V4.1.0 Download

Kvaser Drivers for Windows

Windows drivers for all our CAN hardware. Please check the release notes for information on which Windows versions are supported. The package also contains a driver for a virtual CAN bus, for testing and evaluation when you don't have access to a physical CAN bus.

Version V5.34.317 Download
Documentation

Kvaser DIN Rail SE400S-X10 User's Guide

Kvaser DIN Rail SE400S-X10 User's Guide

Version V2.5.200909 Download

Kvaser Remote Device Configuration XML Format

Description of the XML configuration format for Kvaser Remote devices.

Version V4.10.200909 Download
Development Kits and Tools

Python module

The Canlib module is a Python wrapper for Kvaser CANlib SDK.

Version V1.16.588 Download

Kvaser LabView VI Library for CAN

Library for National Instrument's LabView. Version for all Kvaser CAN hardware.

Version V19.3.0 Download

Kvaser CANlib SDK

Software development kit - everything you need to develop software for the Kvaser CAN and LIN interfaces. Libraries, header files, sample programs for e.g. C, C++, C#, Visual Basic and Delphi, documentation, and more. Note: you need to download and install the appropriate device drivers separately.

Version V5.34.317 Download
Other

Kvaser CANKing

A free of charge, general-purpose CAN bus monitor. It works with all CAN interfaces from Kvaser and also with the virtual CAN bus.

Version V6.17.1031 Download
