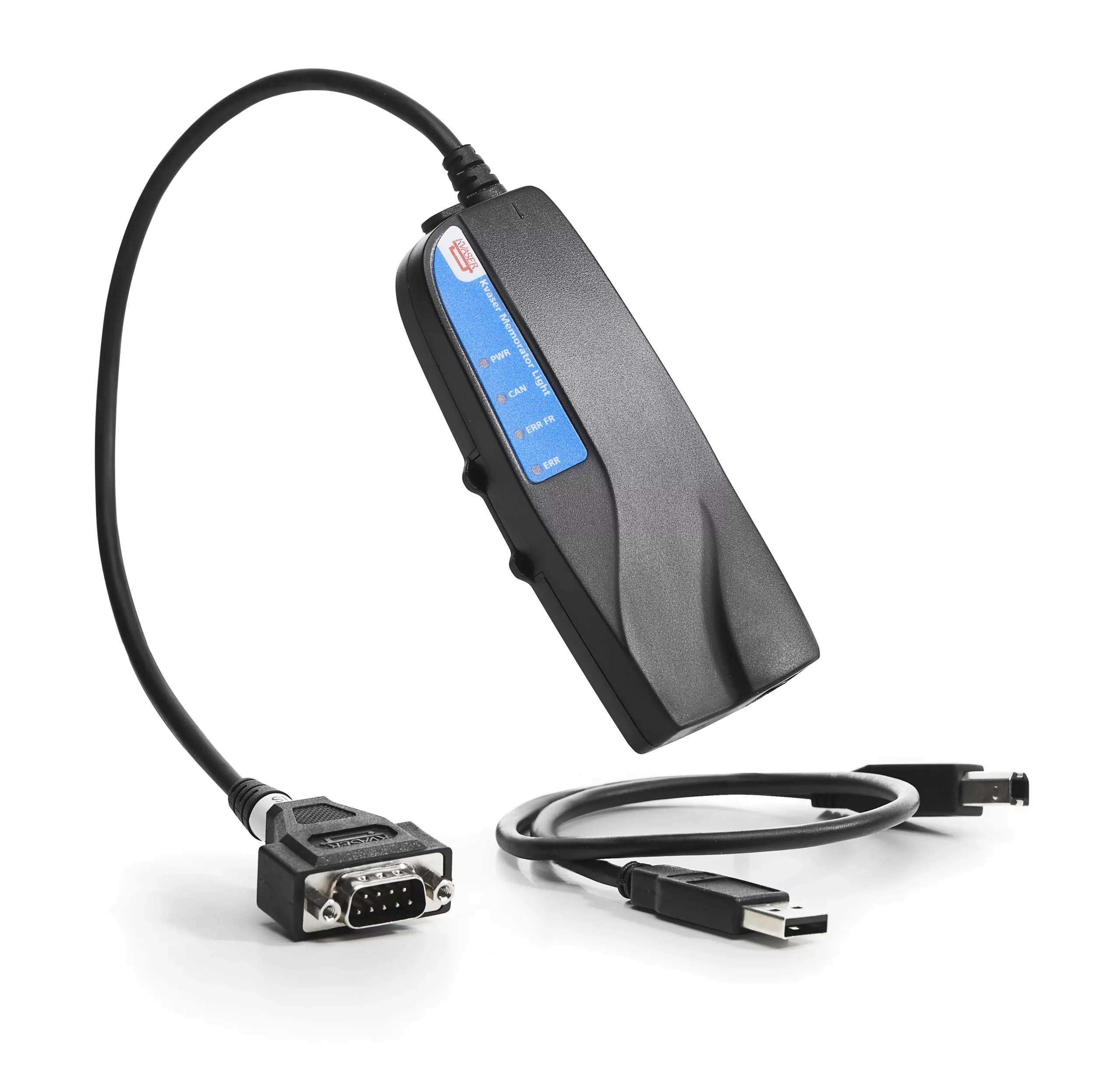

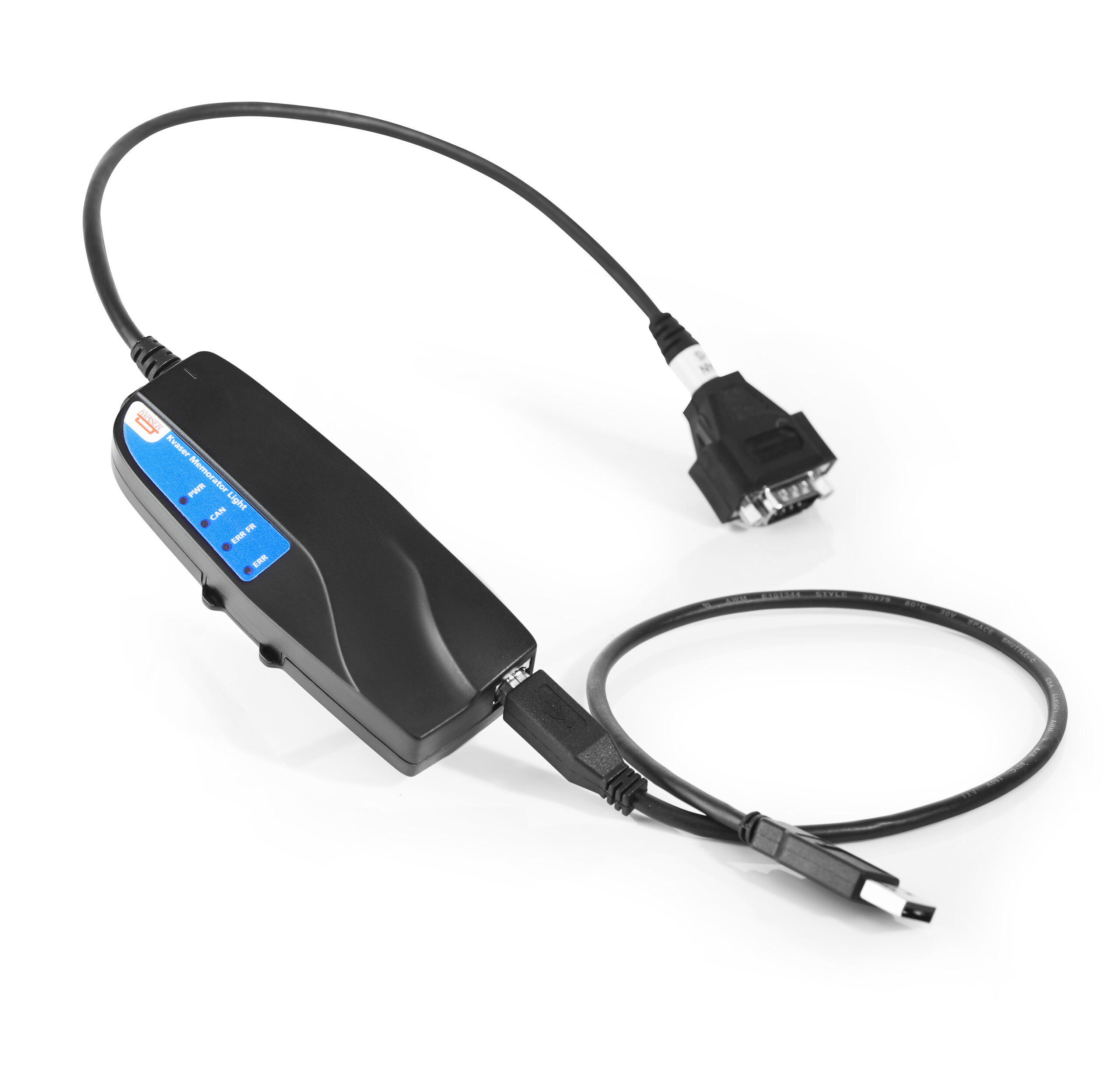

Kvaser Memorator Light HS v2

EAN: 73-30130-01058-1
Price: USD 627.00

Designed for troubleshooting any CAN-based (controller area network) system, the Kvaser Memorator Light HS v2 is an easy-to-use tool for logging serial data, with no software setup required. With an autobaud function that determines CAN bus bit rate, the Kvaser Memorator Light can be attached to any high-speed CAN bus without configuration. All CAN bus traffic is logged in a circular buffer, overwriting the oldest data when the buffer becomes full. A separate circular buffer keeps track of error frame conditions and the message traffic that occurs near the conditions.

Major Features

  • Single high-speed CAN channel (compliant with ISO 11898-2).
  • Supports both 11-bit (CAN 2.0A) and 29-bit (CAN 2.0B active) identifiers.
  • Supports bit rates from 50 Kbit/sec up to 1 Mbit/sec.
  • Autobaud function determines CAN bus bit rate.
  • Always in silent mode - log bus traffic without interfering.
  • Fixed 1GB internal storage.
  • Two FIFO buffers; one logs all messages on the bus, the other buffer logs approximately 1000 messages before and after an error frame.
  • Built-in real time clock (calendar) with battery backup.

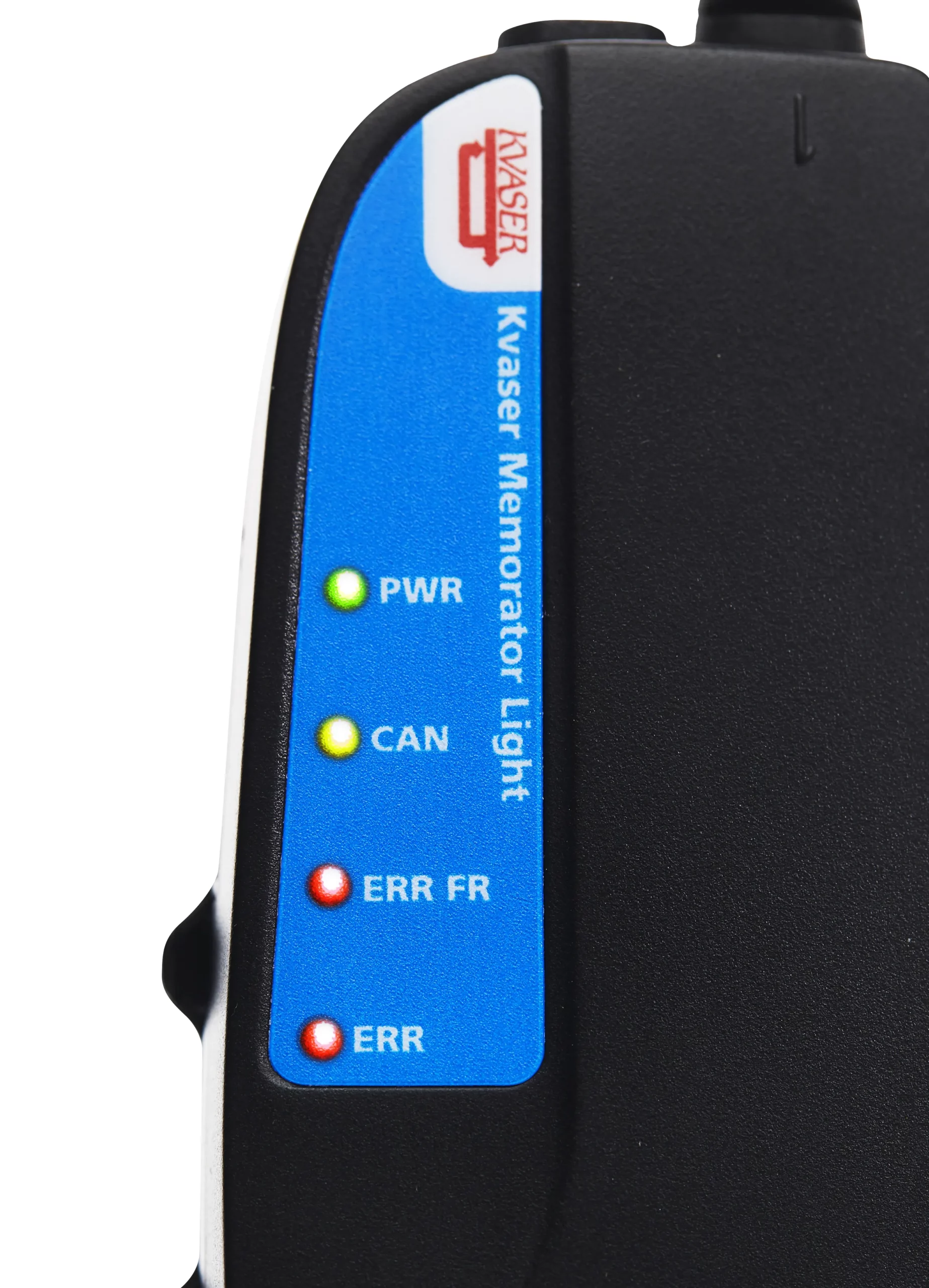

  • LEDs alert the user to device status.
  • Note: The Kvaser Memorator Light HS v2 does not operate as an interface (i.e. provide real-time access to the CANbus). For a device that functions as both a standalone datalogger and CANbus interface, the Kvaser Memorator 2xHS v2Kvaser Memorator Pro 2xHS v2, and Kvaser Memorator Pro 5xHS are recommended.

Software

  • Documentation, Kvaser CANlib SDK and drivers can be downloaded for free at www.kvaser.com/downloads.
  • Kvaser CANlib SDK is a free resource that includes everything you need to develop software for the Kvaser CAN interfaces. Includes full documentation and many program samples, written in C, C++, C#, Delphi, Visual Basic, Python and t programming language.
  • Kvaser CAN hardware is built around the same common software API. Applications developed using one device type will run without modification on other device types.

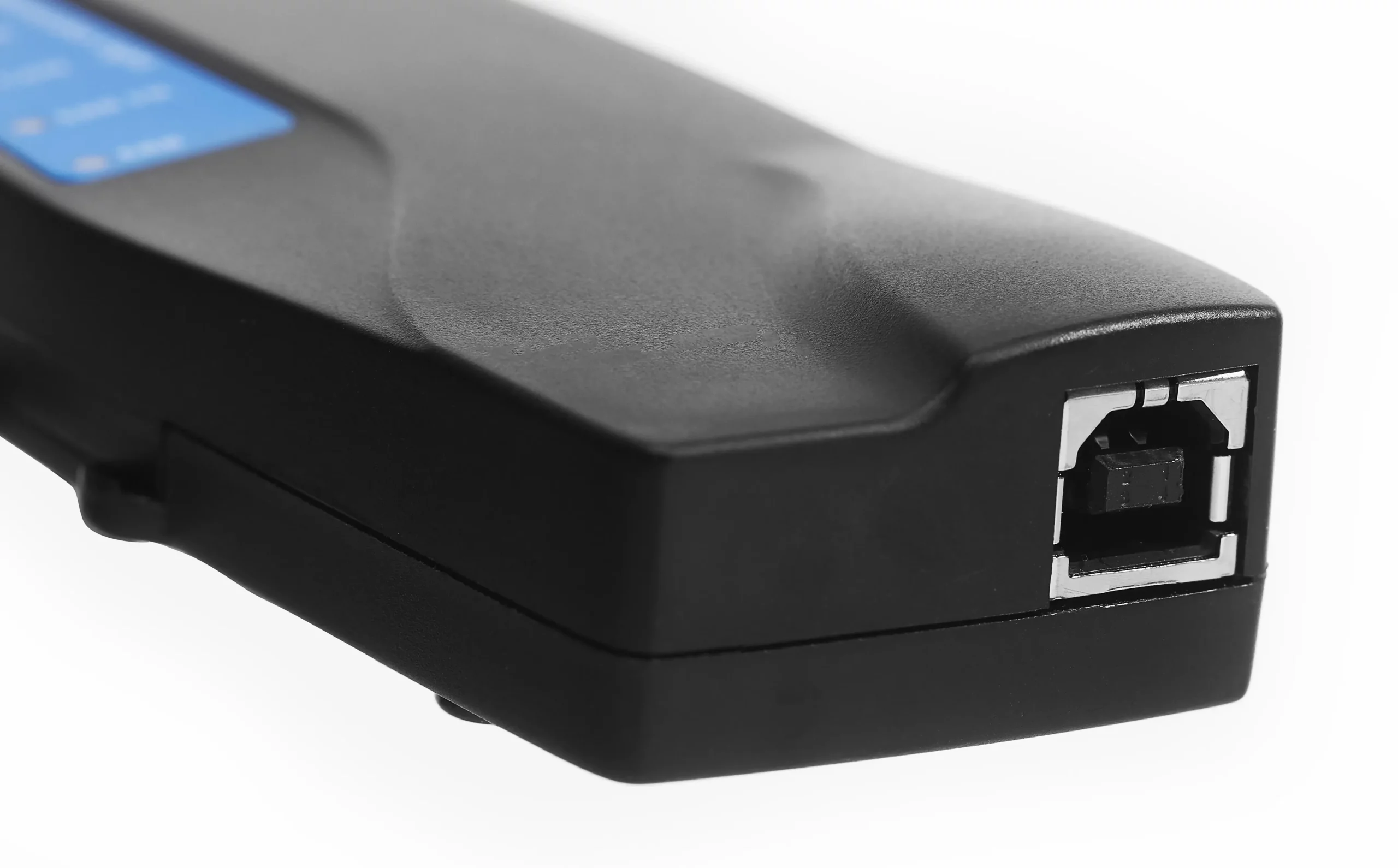

  • The Kvaser Memorator Config Tool provides easy access to the recorded data when connected to the device via a USB port. The tool supports multiple formats used by popular analysis software. In addition, the extraction software allows the user to clear and reinitialize the device's memory.

Warranty

  • 2-Year Warranty. See our General Conditions and Policies for details.

Support

Bitrate

50-1000 kbps

Categories

Interfaces, Hardware, Dataloggers, CAN

Certificates

CE, RoHS

Channels

1

Connectors

DSUB 9

Current Consumption

Up to 3W

Error Counters Reading

No

Error Frame Generation

No

Galvanic Isolation

No

Height

22 mm

Interfaces

USB

Internal Memory

1

Length

127 mm

Material

PC-ABS

Messages Per Second Receive

20000 mps

Messages Per Second Sending

20000 mps

OS

Linux, Win 7, Win Vista, Win 10, Win 8

Silent mode

Yes

Sound

No

Temp range

-40 °C to +85 °C

Timestamp R (µ)

2 µs

Weight

150 g

Firmware

Kvaser Firmware Update Tool

Firmware Update tool for most Kvaser devices.

Version V4.23.317 Download
Driver

Kvaser Drivers for Windows

Windows drivers for all our CAN hardware. Please check the release notes for information on which Windows versions are supported. The package also contains a driver for a virtual CAN bus, for testing and evaluation when you don't have access to a physical CAN bus.

Version V5.34.317 Download
Documentation

Kvaser Memorator Light HS v2 User's Guide

Kvaser Memorator Light HS v2 User's Guide

Version V2.4.200909 Download
Development Kits and Tools

Linux SDK library

Linux SDK library.

Version V5.34.317 Download

Python module

The Canlib module is a Python wrapper for Kvaser CANlib SDK.

Version V1.16.588 Download

Kvaser CANlib SDK

Software development kit - everything you need to develop software for the Kvaser CAN and LIN interfaces. Libraries, header files, sample programs for e.g. C, C++, C#, Visual Basic and Delphi, documentation, and more. Note: you need to download and install the appropriate device drivers separately.

Version V5.34.317 Download
Other

Kvaser Database Editor 3

Kvaser Database Editor 3 (candbfd)

Version V3.13.317 Download

Kvaser Memorator Configuration tool

Configuration tool for Kvaser Memorator Pro 5xHS, Kvaser Memorator 2xHS v2, Kvaser Memorator Light HS v2 and Kvaser Eagle

Version V5.24.317 Download
