Kvaser Memorator Pro 5xHS

EAN: 73-30130-00778-9
Price: USD 3,135.00

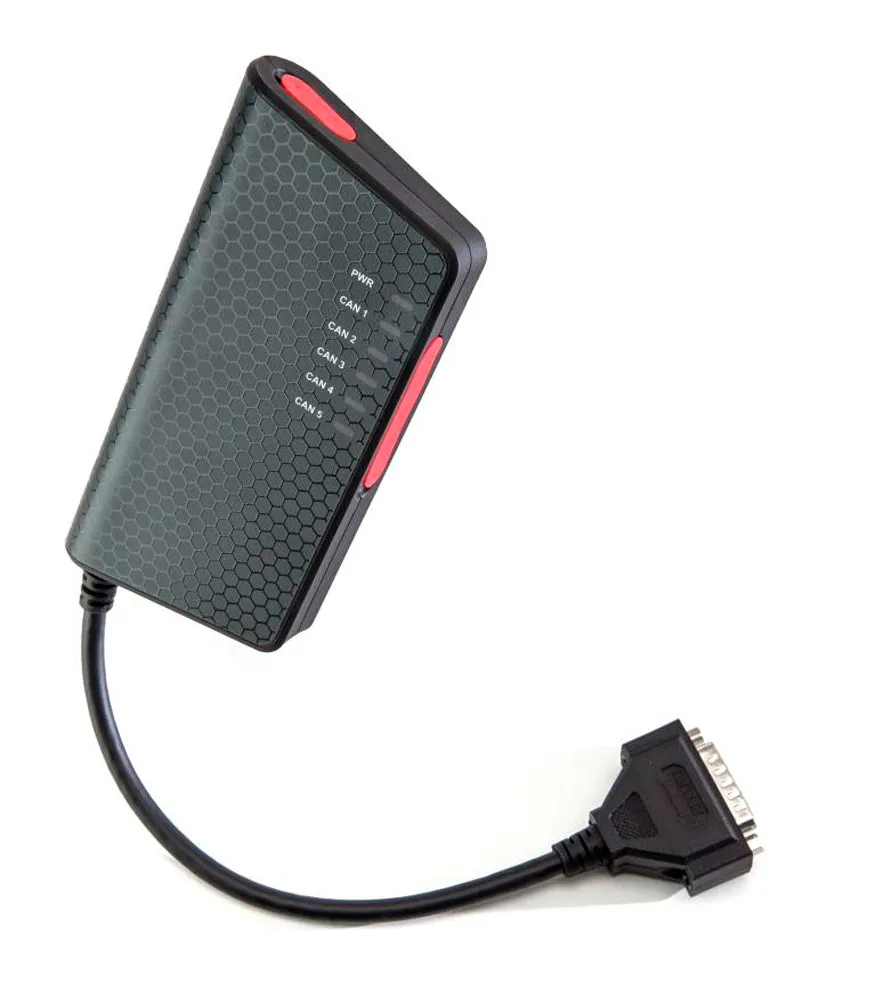

Kvaser Memorator Pro 5xHS is a five channel, high performance, CAN (controller area network) bus interface and standalone datalogger that allows users to monitor and collect data from up to five CAN channels using just one device. Standalone mode logs data to an SD card; interface mode connects to the PC via USB. This device supports CAN FD.

Configurable using Kvaser's Memorator Config Tool, Memorator Professional 5xHS is also capable of running user-developed scripts, written in the Kvaser t programming language. Guidance in creating t programs is supplied.

Major Features

  • Monitor 5 CAN channels simultaneously using just one device, or connect the USB cable with a single 9 pin DSUB for single CAN channel monitoring.
  • Supports CAN FD, up to 8 Mbit/s (with proper physical layer).
  • Automatically time synchronises the data transmitted and received across all five buses.
  • Built-in Kvaser MagiSync technology time synchronises with other Kvaser interfaces connected to the same PC, resulting in simpler and more accurate multichannel data capture.
  • Script functionality allows users to develop customised t-script applications written in the Kvaser t programming language.
  • Plug and play installation, and a comprehensive user guide to help make t script development quick and easy.
  • Log data to an expandable SD card slot.
  • LED lights alert user to device status, including signalling a full SD card or card error.
  • Power derived from the USB connection, CAN or an in-built power supply.
  • Compatible with J1939, CANopen, NMEA 2000® and DeviceNet.
  • Supports CAN FD.
  • Supported by SocketCAN.
  • NOTE:  Product ships with Commercial Grade SD card (-25 to +85°C).  Industrial Grade SD cards (-40 to +85°C) are available for additional purchase.  Contact your local Kvaser office for details.

Filters

  • Log continuously, or logging can be triggered by creating advanced triggers based on messages, data signal values, error messages, external trigger's falling or rising edge, and I/O signals.
  • Pre- and post-triggers are available without buffer size restrictions, limited by disk space only.
  • Filter out selectable messages and/or signals to be logged. The identifiers can be picked from a database, or all messages can be logged.
  • Support for pass as well as stop filters.
  • Create a counting pass filter to have a message logged at enumerated occurrence.
  • Handles up to 20,000 msgs/s in standalone logger mode.
  • External digital output that can drive an LED or a buzzer.
  • Supports Silent Mode - Log bus traffic safely without interfering and "listen-only" mode for bus analysis tools

Memory Cards and Functions

  • Supports SD and SDHC memory card formats.
  • Set up several devices in a daisy chain for larger logging capacity.
  • NOTE:  Product ships with Commercial Grade SD card (-25 to +85°C).  Industrial Grade SD cards (-40 to +85°C) are available for additional purchase.  Contact your local Kvaser office for details.

Configuration Software in the PC

  • Easy to use graphic configuration tool - Memorator Tools.
  • Configuration of the CAN controller, i.e. bit rate and filters.
  • Configuration of the trigger conditions.
  • Configuration of filter for messages to be stored.
  • Configuration upload and download via USB.
  • Using the included Kvaser Dispatcher software, a complete measurement setup can be turned into a self-installing package that is sent to a remote location to carry out a specific logging task.

Warranty

  • 2-Year Warranty. See our General Conditions and Policies for details.

Support

Software

  • Documentation, software and drivers can be downloaded for free at www.kvaser.com/downloads.
  • Kvaser CANLIB SDK is a free resource that includes everything you need to develop software for the Kvaser CAN interfaces. Includes full documentation and many program samples, written in C, C++, C#, Delphi, and Visual Basic.
  • All Kvaser CAN interface boards share a common software API. Programs written for one interface type will run without modifications on the other interface types!
  • J2534 Application Programming Interface available.
  • RP1210A Application Programming Interface available.
  • On-line documentation in Windows HTML-Help and Adobe Acrobat format.
Bitrate

40-1000 kbps

Buffers

Auto RX Buffers, Auto TX Buffers, On Board Buffer

Categories

Dataloggers, PC INTERFACES

Certificates

CE, RoHS

Channels

5

Connectors

26-pin HD D-SUB

Current Consumption

Up to 3W

Error Counters Reading

Yes

Error Frame Generation

Yes

Galvanic Isolation

Yes

Height

68 mm

Included Card Size

16GB

Interfaces

USB

Length

170 mm

Material

PA66

Max Card Size

64+

Messages Per Second Receive

20000 mps

Messages Per Second Sending

20000 mps

OS

Linux, Win 7, Win Vista, Win 10, Win 8

Silent mode

Yes

Sound

No

Temp range

-40 - 85 °C

Timestamp R (µ)

1 µs

Weight

150 g

Driver

Kvaser Drivers for Windows

Windows drivers for all our CAN hardware. Please check the release notes for information on which Windows versions are supported. The package also contains a driver for a virtual CAN bus, for testing and evaluation when you don't have access to a physical CAN bus.

Version V5.26.679 Download

Kvaser Linux Drivers and SDK

Linux drivers and SDK for most Kvaser devices.

Version V5.26.679 Download

Kvaser DIADEM driver

This free driver for National Instrument's DIAdem supports all CAN hardware from Kvaser.

Version V4.1.0 Download
Firmware

Kvaser Firmware Update Tool

Firmware Update tool for most Kvaser devices.

Version V4.15.682 Download
Development Kits and Tools

Kvaser CANlib SDK

Software development kit - everything you need to develop software for the Kvaser CAN and LIN interfaces. Libraries, header files, sample programs for e.g. C, C++, C#, Visual Basic and Delphi, documentation, and more. Note: you need to download and install the appropriate device drivers separately.

Version V5.26.679 Download

Python module

The Canlib module is a Python wrapper for Kvaser CANlib SDK.

Version V1.8.812 Download

Kvaser LabView VI Library for CAN

Library for National Instrument's LabView. Version for all Kvaser CAN hardware.

Version V6.1.0 Download

Linux SDK library

Linux SDK library.

Version V5.26.679 Download
Other

Kvaser CANKing

A free of charge, general-purpose CAN bus monitor. It works with all CAN interfaces from Kvaser and also with the virtual CAN bus.

Version V6.9.704 Download

Kvaser Database Editor 3

Kvaser Database Editor 3 (candbfd)

Version V3.5.548 Download

Kvaser Memorator Configuration tool

Configuration tool for Kvaser Memorator Pro 5xHS, Kvaser Memorator 2xHS v2 and Kvaser Eagle

Version V5.16.681 Download
Documentation

Kvaser Database Editor Users Guide

Kvaser Database Editor User's Guide

Version V2.0.0 Download

Kvaser t Programming Language

Documentation for the t programming language

Version V4.13.181126 Download

Memorator Pro 5xHS Users Guide

Users guide for Kvaser Memorator Professional 5xHS

Version V4.0.181126 Download

Specification of Kvaser Memorator Device configuration XML format

Specification of Kvaser Memorator Device configuration XML format

Version V2.0.181126 Download
