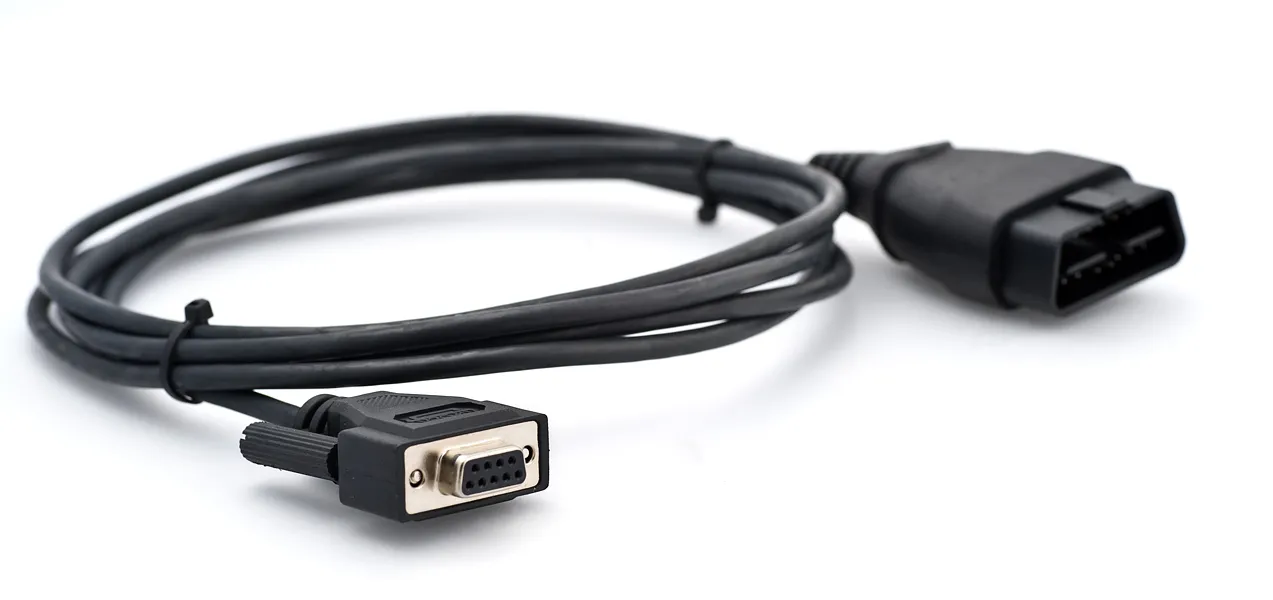

Kvaser OBD II to Dsub9 Adapter Cable

EAN: 73-30130-00723-9
Price: USD 72.00

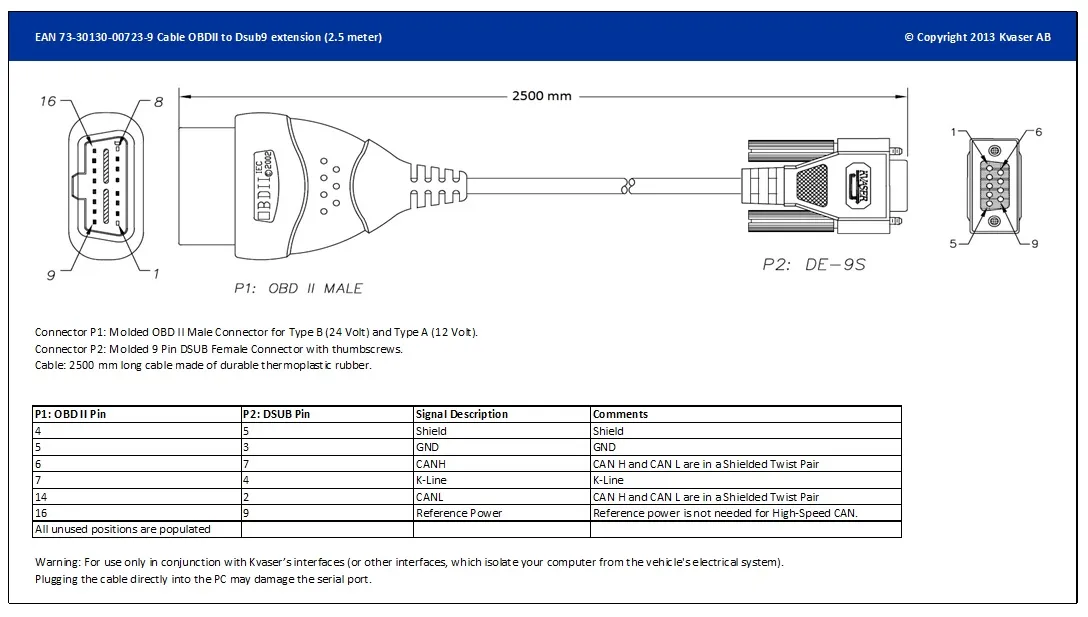

A Kvaser OBD II Adapter Cable connects any Kvaser CAN bus interface with a DSUB9 female connector to any vehicle with an OBD II (J1962) connector. Supports K-Line.

Major Features

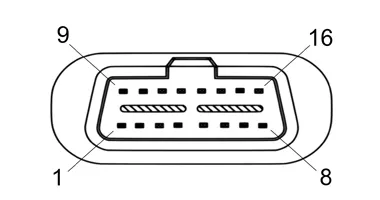

  • Molded OBD II (SAE J1962) male connector, for Type A (12 Volt) as well as Type B (24 Volt).
  • Molded 9 pin DSUB female connector with thumbscrews.
  • 2500 mm (approx. 8 ft) long cable made of durable thermoplastic rubber.
  • Designed for Kvaser's High-Speed, Low-Speed and Single-Wire CAN interfaces.
  • Perfect for Kvaser Memorator, Kvaser Leaf Professional, etc.
  • Supports K-Line.

Warranty

  • 2-Year Warranty. See our General Conditions and Policies for details.

Support

Categories

CABLES, Hardware

Certificates

CE, RoHS

Channels

1

Error Counters Reading

No

Error Frame Generation

No

Galvanic Isolation

No

Interfaces

Cable

Length

2500 mm

Material

Durable thermoplastic rubber

OS

Win XP, Linux, Win 7, Win Vista, Win 10, Win 8

Silent mode

No

Temp range

-30 °C to +85 °C

Weight

160 g

Images
