Kvaser Ethercan Light HS
EAN: 73-30130-00713-0
Price: USD 826.00
Log in for tax and shipping information.

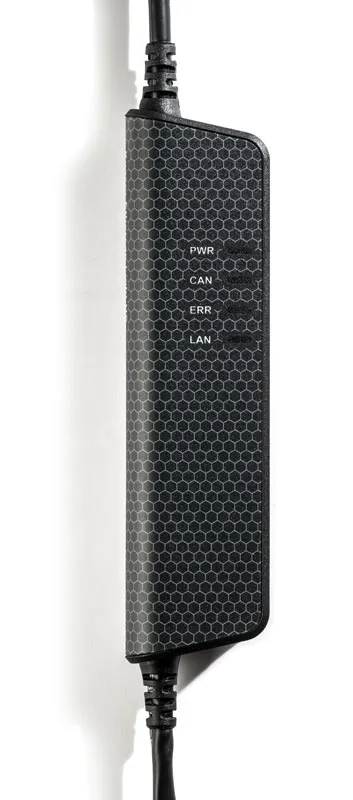

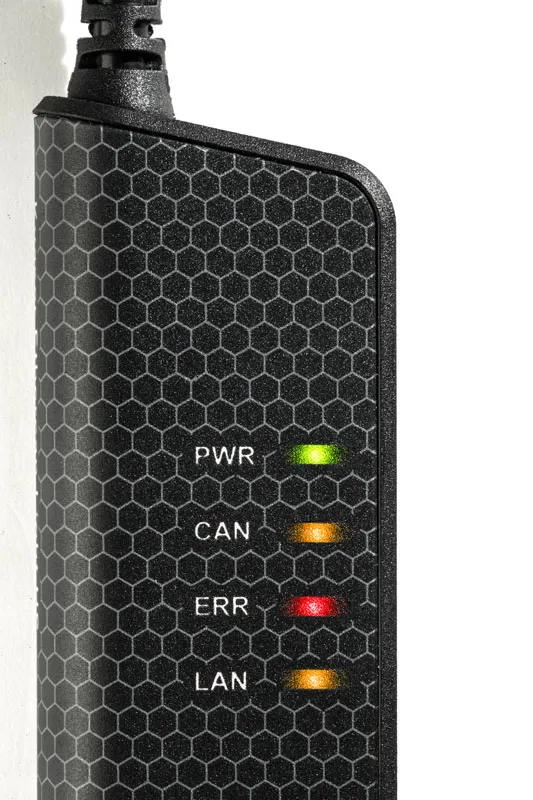

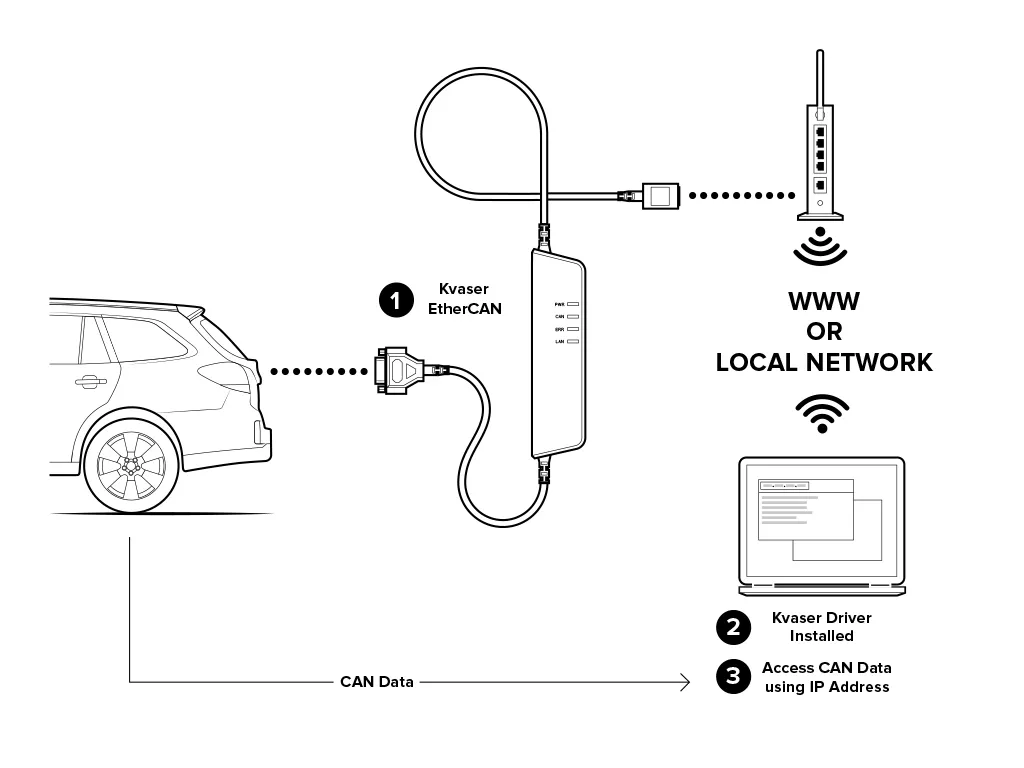

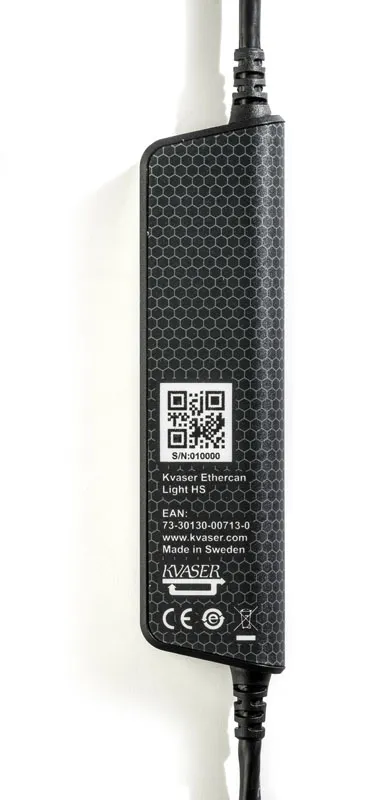

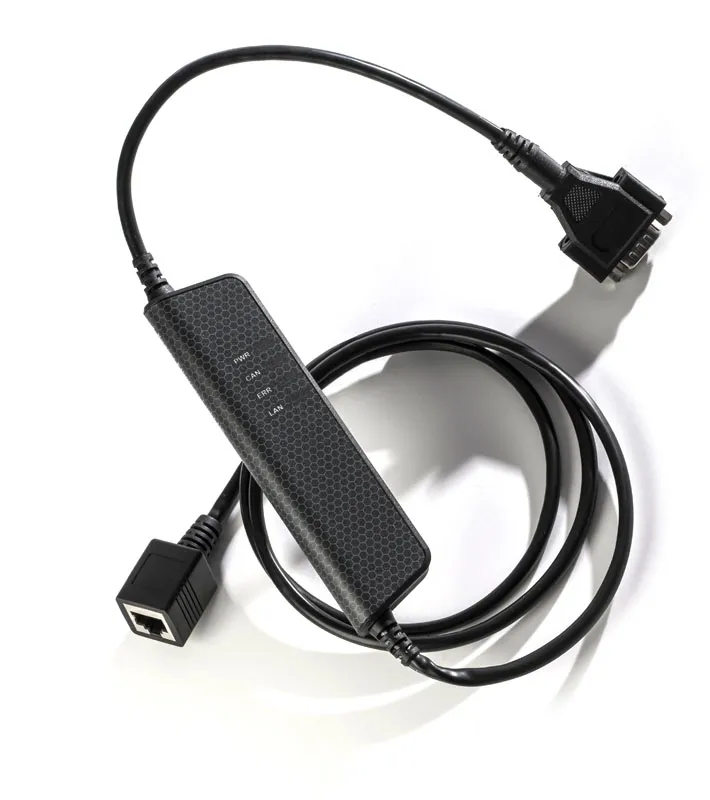

The Kvaser Ethercan Light HS is a CAN to Ethernet interface that, when linked over the Internet to an Ethernet-equipped PC, allows CAN data to be remotely accessed from anywhere in the world.
Ethercan makes it easy to implement the Internet of Things (IoT) concept by enabling data from any CAN product or system to be sent over a corporate network or the Cloud, using the standard Kvaser API. The Kvaser Ethercan device can be configured with a static IP and comes with an Ethercan Factory Reset Device to reset the configuration to factory default DHCP settings at the push of a button.
Share
Major Features
- High-speed CAN connection (compliant with ISO 11898-2), up to 1 Mbit/s.
- Ethernet connection has auto-MDIX, so it automatically detects and adjusts for Ethernet cable being used.
- Built-in Power over Ethernet (PoE) - receives data and power over the Ethernet cable.
- Also receives power over CAN so the Ethercan can be powered through devices like our T-Cannector v2.
- Small, lightweight plastic housing with galvanic isolation.
- Fully compatible with J1939, CANopen, NMEA 2000R and DeviceNet.

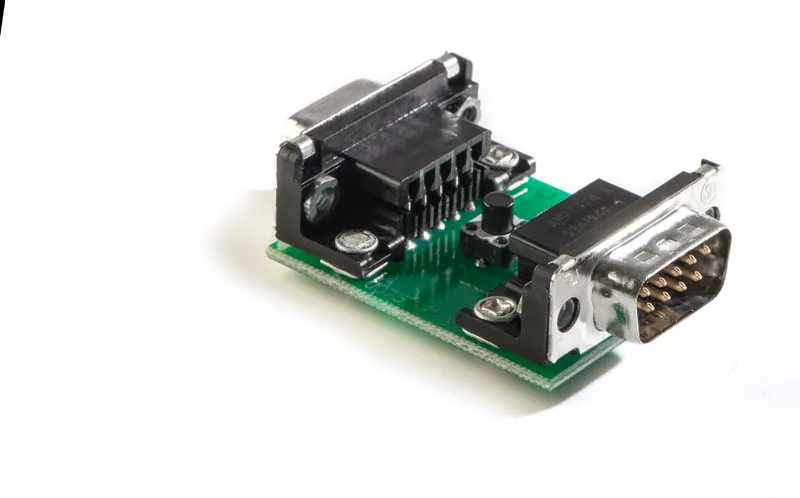

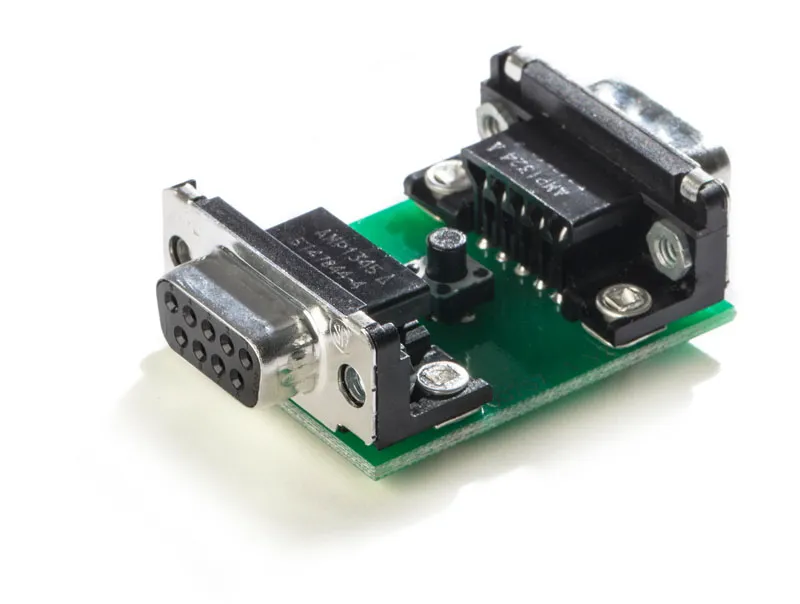

- Includes Ethercan Factory Reset Device. This device provides the ability to reset the Ethercan's IP address to factory defaults at the push of a button.
Warranty
- 2-Year Warranty. See our General Conditions and Policies for details. Register your product at kvaser.com/getting-started for an additional 1-year Warranty Extension.
Support
- Free Technical Support on all products available by contacting [email protected].
Software
- Documentation, software and drivers can be downloaded for free at kvaser.com/downloads.
- Kvaser CANLIB SDK is a free resource that includes everything you need to develop software for the Kvaser CAN interfaces. Includes full documentation and many program samples, written in C, C++, C#, Delphi, and Visual Basic.
- All Kvaser CAN interface boards share a common software API. Programs written for one interface type will run without modifications on the other interface types!
- J2534 Application Programming Interface available.
- RP1210A Application Programming Interface available.
- On-line documentation in Windows HTML-Help and Adobe Acrobat format.
40-1000 kbps
Interfaces, Hardware
CE, RoHS
1

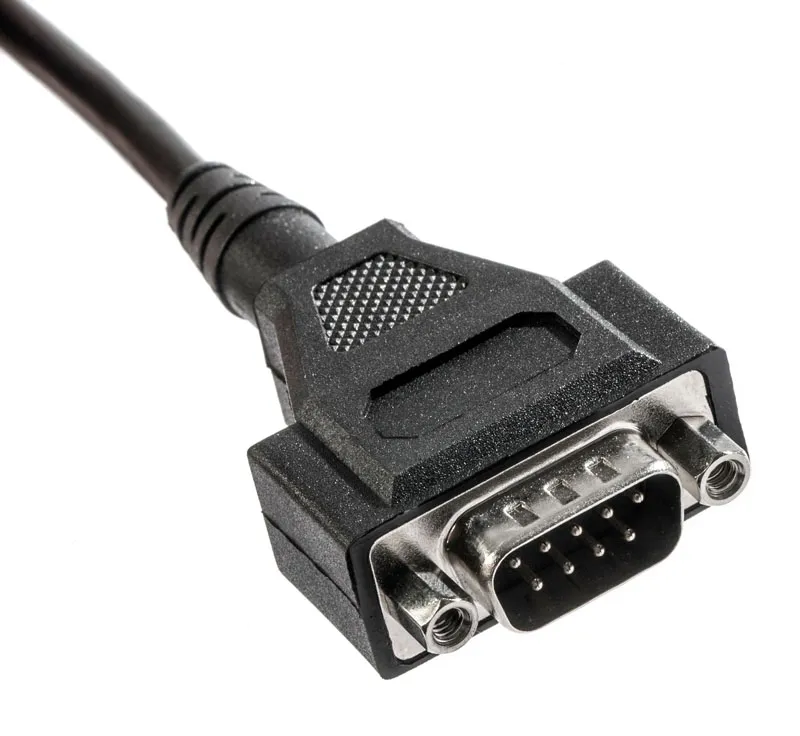

DSUB 9
1.2W
No
No
Yes
17 mm

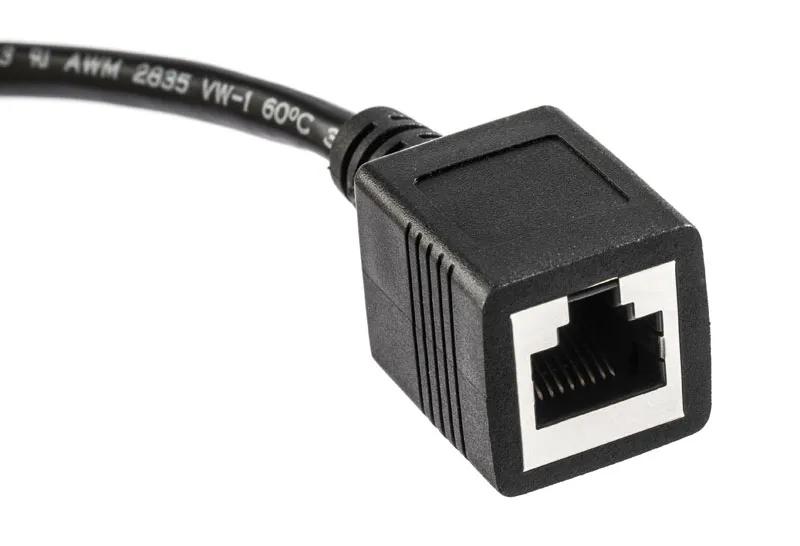

Ethernet RJ45
165 mm
PA66
8000 mps
8000 mps
Win 7, Win 10, Win 8
No
No
-20 °C to +70 °C
100 µs
100 g
Firmware Update tool for most Kvaser devices.
This free driver for National Instrument's DIAdem supports all CAN hardware from Kvaser.
Windows drivers for all our CAN hardware. Please check the release notes for information on which Windows versions are supported. The package also contains a driver for a virtual CAN bus, for testing and evaluation when you don't have access to a physical CAN bus.
The Canlib module is a Python wrapper for Kvaser CANlib SDK.
Library for National Instrument's LabView. Version for all Kvaser CAN hardware.
Software development kit - everything you need to develop software for the Kvaser CAN and LIN interfaces. Libraries, header files, sample programs for e.g. C, C++, C#, Visual Basic and Delphi, documentation, and more. Note: you need to download and install the appropriate device drivers separately.
A free of charge, general-purpose CAN bus monitor. It works with all CAN interfaces from Kvaser and also with the virtual CAN bus.
