Kvaser OBD II Extension Cable 15m
EAN: 73-30130-00349-1
Price: USD 351.00
Log in for tax and shipping information.

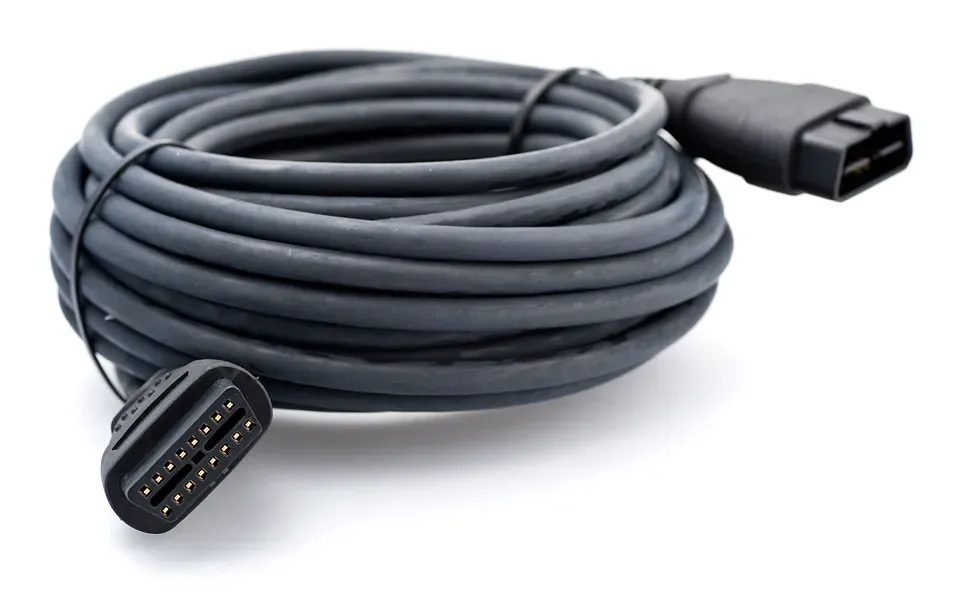

Kvaser's OBD II Extension Cable is a highly durable extension cable of 15 metres in length with male to female OBD II connectors. The cable is made of high quality thermoplastic rubber to ensure excellent flexibility and resilience. All pins are connected.
Share
Major Features

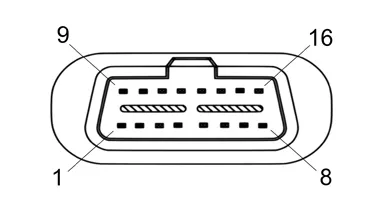

- Molded OBD II (SAE J1962) male connector, Type B (24 Volt).
- Molded OBD II (SAE J1962) female connector, Type B (24 Volt).
- Made of durable thermoplastic rubber.
- Gold plated pins on OBDII connectors for extra reliable contact.
- Termination is built in with a 120 Ohm terminating resistor.
- Available in other cable lengths.
- RoHS compliant.
- This cable can save wear and tear on your CAN interface's OBD2 connector.
Warranty
- 2-Year Warranty. See our General Conditions and Policies for details. Register your product at kvaser.com/getting-started for an additional 1-year Warranty Extension.
Support
- Free Technical Support on all products available by contacting [email protected].
Bitrate
- kbps
Categories
CABLES, Hardware
Certificates
CE, RoHS
Channels
1
Galvanic Isolation
No
Interfaces
Cable
Length
15000 mm
Material
Durable thermoplastic rubber
OS
Linux, Win 7, Win 10, Win 8
Silent mode
No
Temp range
-30 °C to +85 °C
Weight
1400 g
Documentation
Kvaser OBD II Extension Cable Schematics
Detailed schematic for the Kvaser OBD II extension cable.
