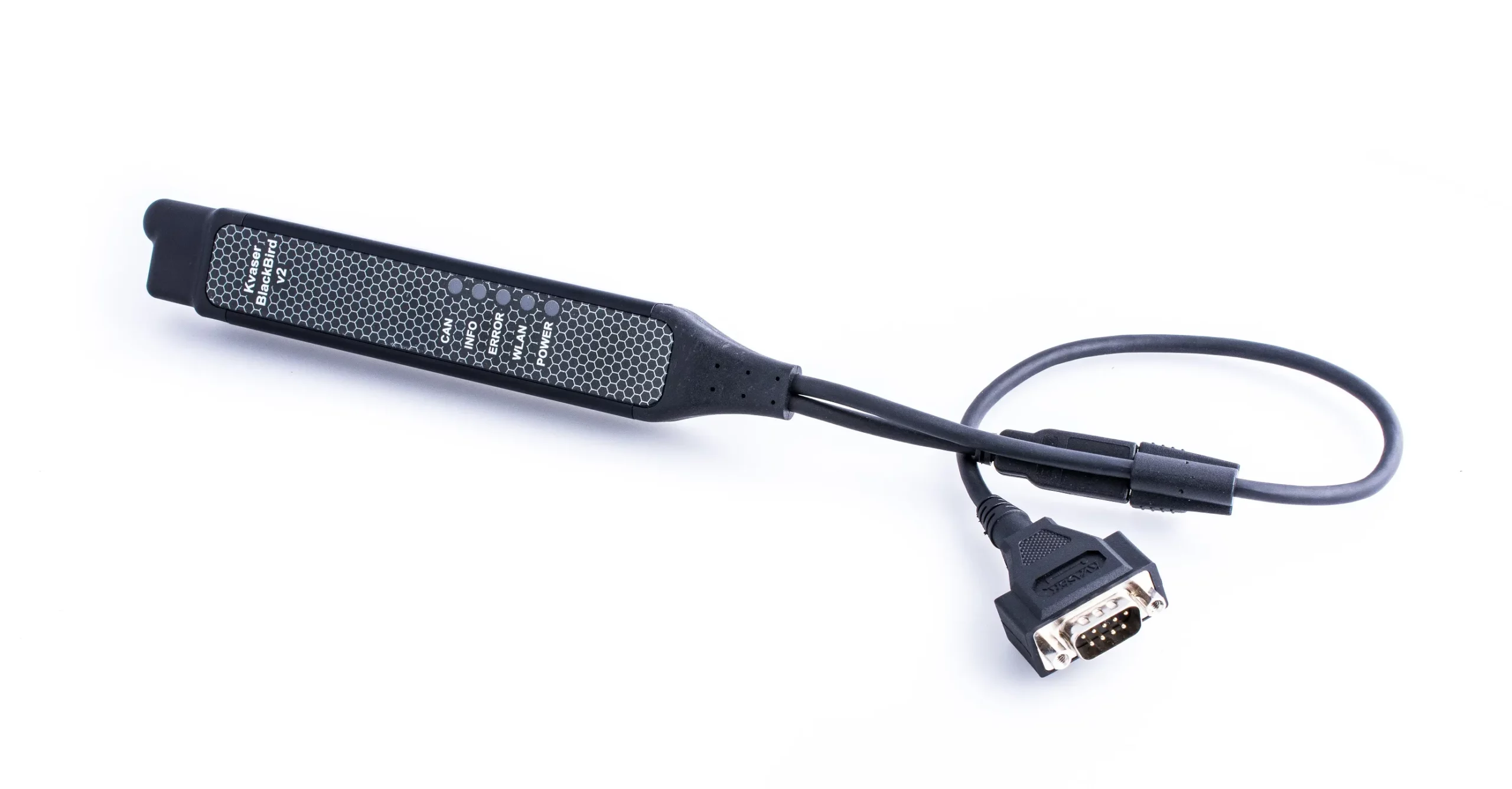

Kvaser BlackBird v2
EAN: 73-30130-00671-3
Price: USD 1,045.00
Log in for tax and shipping information.
Kvaser BlackBird v2 is a high performance wireless (WLAN) communication link for the High Speed CAN bus. More powerful and versatile a WLAN solution than Kvaser's original BlackBird, Kvaser BlackBird v2 incorporates a new radio chip with up to 75% better range.
The BlackBird v2's ability to leverage existing wireless infrastructure makes it ideal for replacing cumbersome cable, accessing hard-to-reach CAN networks, or for monitoring a CANbus while in motion.
Share
Major Features
- WLAN version 802.11b/g/n.
- IP65-rated for protection against water and dust.
- Responds to increased market demand for iOS and Android API with a “device agnostic” HTTP-based REST API (more info on REST >>)
- Up to 75% increased range.
- Works in AdHoc and Infrastructure mode.
- Lightweight but highly rugged aluminum housing.
- Polyurethane cabling suitable for extreme environments.
- Galvanic isolation of the CAN bus driver stage to protect the hardware.
- Interfaces the CAN bus with a standard D-SUB connector.
- Configured via USB connection.
- Can be used as a wired interface.
- Operating voltage CAN bus (7 - 40 V DC).
- Messages are time-stamped and synchronized with a precision of 25 microsecond.
- Supports High Speed CAN (ISO 11898-2).
- Supports 11-bit and 29-bit identifiers.
- For configuration instructions, see User Guide, or reference the Developer Blog article, "How to connect multiple Kvaser BlackBirds".
Warranty
- 2-Year Warranty. See our General Conditions and Policies for details. Register your product at kvaser.com/getting-started for an additional 1-year Warranty Extension.
Support
- Free Technical Support on all products available by contacting [email protected].
Software
- Documentation, software and drivers can be downloaded for free at kvaser.com/downloads.
- Kvaser CANLIB SDK is a free resource that includes everything you need to develop software for the Kvaser CAN interfaces. Includes full documentation and many program samples, written in C, C++, C#, Delphi, and Visual Basic.
- All Kvaser CAN interface boards share a common software API. Programs written for one interface type will run without modifications on the other interface types!
- J2534 Application Programming Interface available.
- RP1210A Application Programming Interface available.
- On-line documentation in Windows HTML-Help and Adobe Acrobat format.
Bitrate
40-1000 kbps
Categories
Interfaces, Hardware
Certificates
CE, RoHS
Channels
1
Connectors
DSUB 9
Current Consumption
Typical values are: 370mA if powered from the USB (~5 V). 4.2W for single channel powered from the CAN bus.
Error Counters Reading
Yes
Error Frame Generation
Yes
Galvanic Isolation
Yes
Height
20 mm
Interfaces
WiFi
Length
170 mm
Material
Aluminium
Messages Per Second Receive
15000 mps
Messages Per Second Sending
15000 mps
OS
Win 7, Win 10, Win 8
Silent mode
Yes
Sound
No
Temp range
-40 °C to +70 °C
Timestamp Resolution (µs)
25 µs
Weight
200 g
Driver
Kvaser Linux Drivers and SDK
Linux drivers and SDK for most Kvaser devices.
Kvaser DIADEM driver
This free driver for National Instrument's DIAdem supports all CAN hardware from Kvaser.
Kvaser Drivers for Windows
Windows drivers for all our CAN hardware. Please check the release notes for information on which Windows versions are supported. The package also contains a driver for a virtual CAN bus, for testing and evaluation when you don't have access to a physical CAN bus.
Firmware
Kvaser Firmware Update Tool
Firmware Update tool for most Kvaser devices.
Development Kits and Tools
Python module
The Canlib module is a Python wrapper for Kvaser CANlib SDK.
Kvaser LabView VI Library for CAN
Library for National Instrument's LabView. Version for all Kvaser CAN hardware.
Kvaser CANlib SDK
Software development kit - everything you need to develop software for the Kvaser CAN and LIN interfaces. Libraries, header files, sample programs for e.g. C, C++, C#, Visual Basic and Delphi, documentation, and more. Note: you need to download and install the appropriate device drivers separately.
Documentation
Other
Kvaser CANKing
A free of charge, general-purpose CAN bus monitor. It works with all CAN interfaces from Kvaser and also with the virtual CAN bus.
