Kvaser USBcan Light 4xHS

EAN: 73-30130-00831-1
Price: USD 765.00

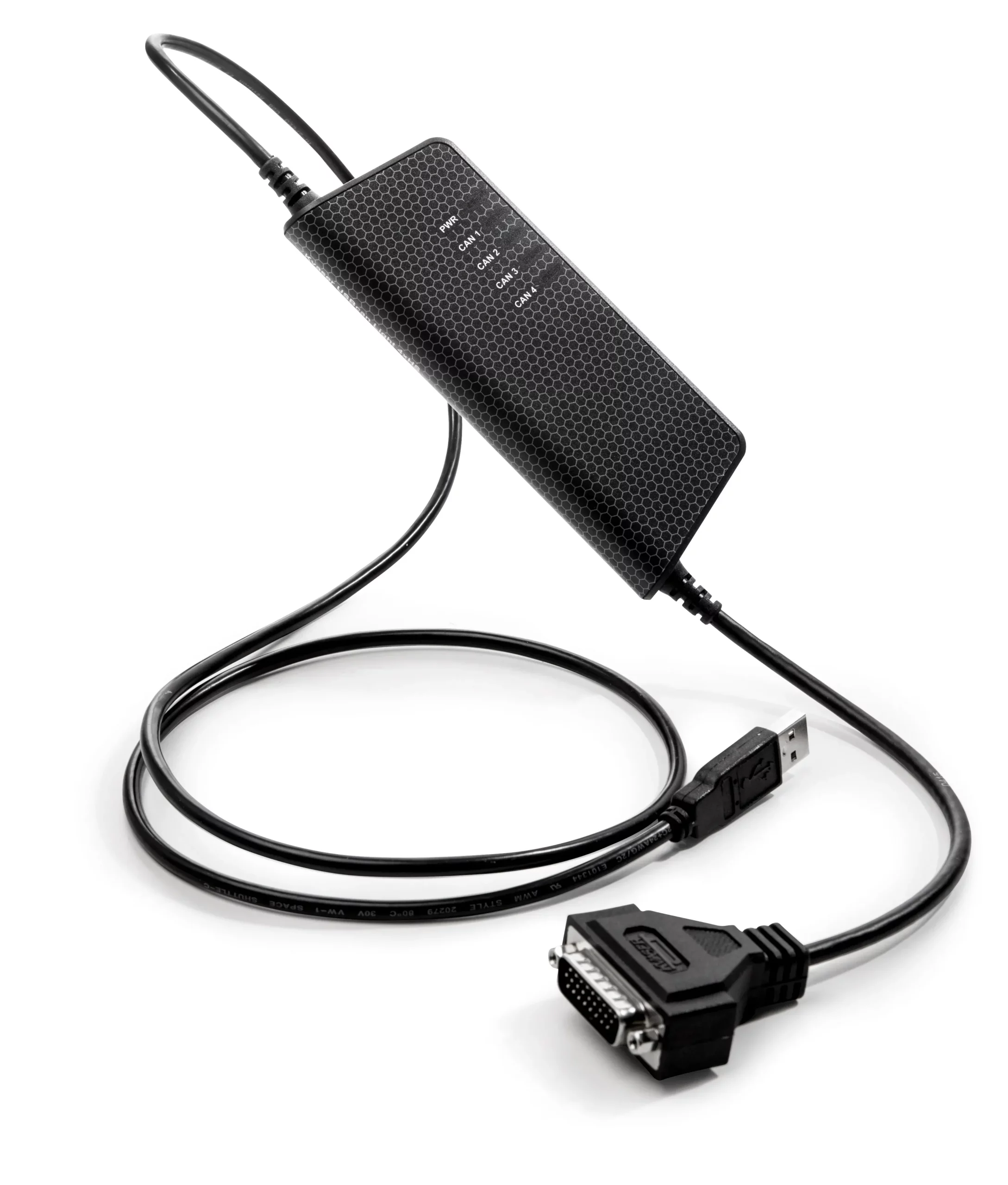

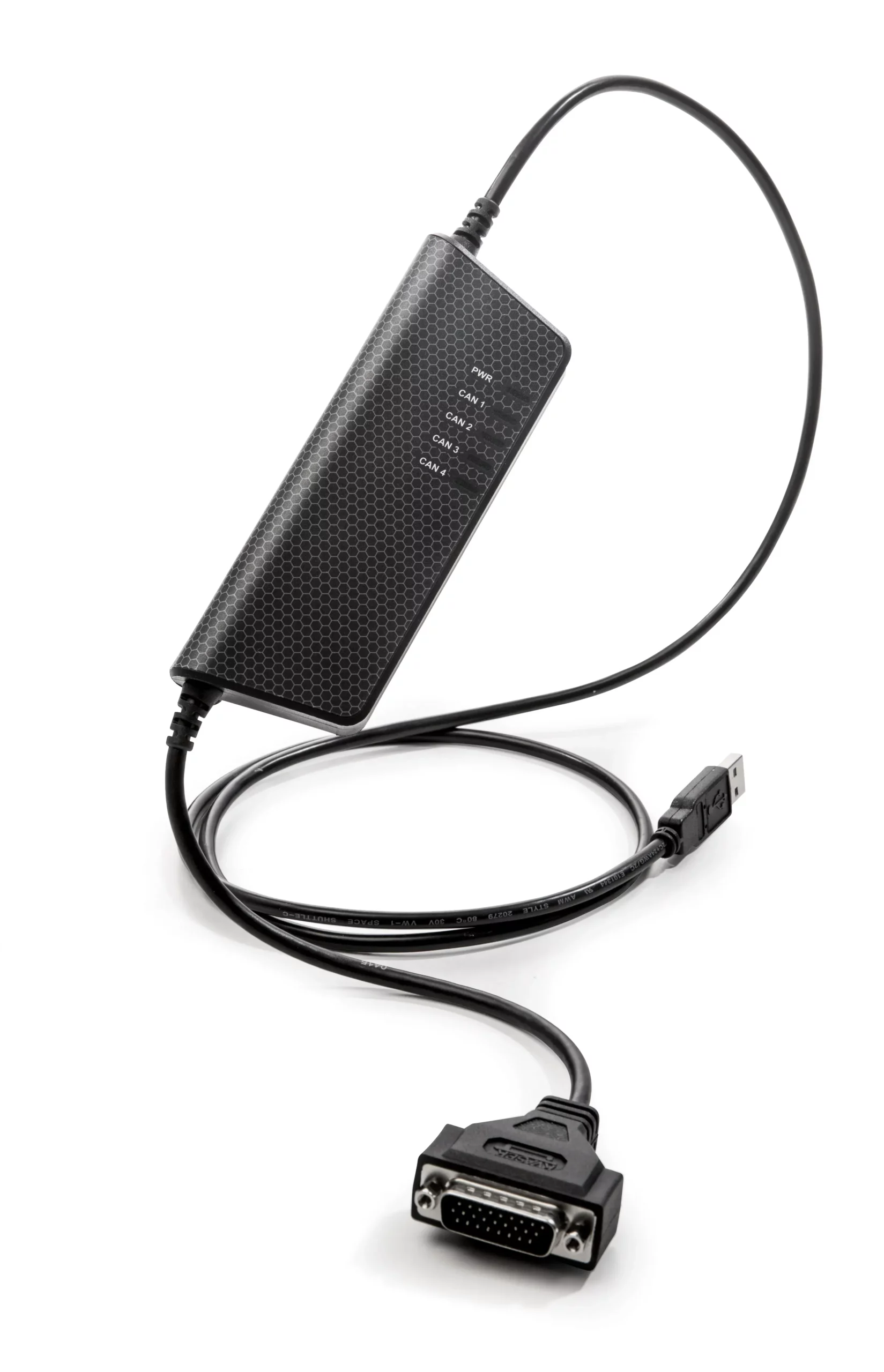

The USBcan Light 4xHS is a compact, reliable and cost-effective means of connecting four high speed CAN buses to a PC or mobile computer. With galvanic isolation as standard, this USB to quad channel CAN interface has a standard USB connector at one end and four high speed CAN channels in a single 26-pin HD D-SUB CAN connector at the other. The supplied HD26-4xDS9 splitter can be used to connect to four separate 9pin DSUB connectors.

Features

• Low cost USB CAN interface.
• Quick and easy plug-and-play installation.
• Supports both 11-bit (CAN 2.0A) and 29-bit (CAN 2.0B active) identifiers.
• Power is taken from the USB bus.
• Galvanic isolation.
• High-speed CAN connection (compliant with ISO 11898-2), up to 1 Mbit/s.
• Fully compatible with J1939, CANopen, NMEA 2000 and DeviceNet.
• Simultaneous operation of multiple devices.

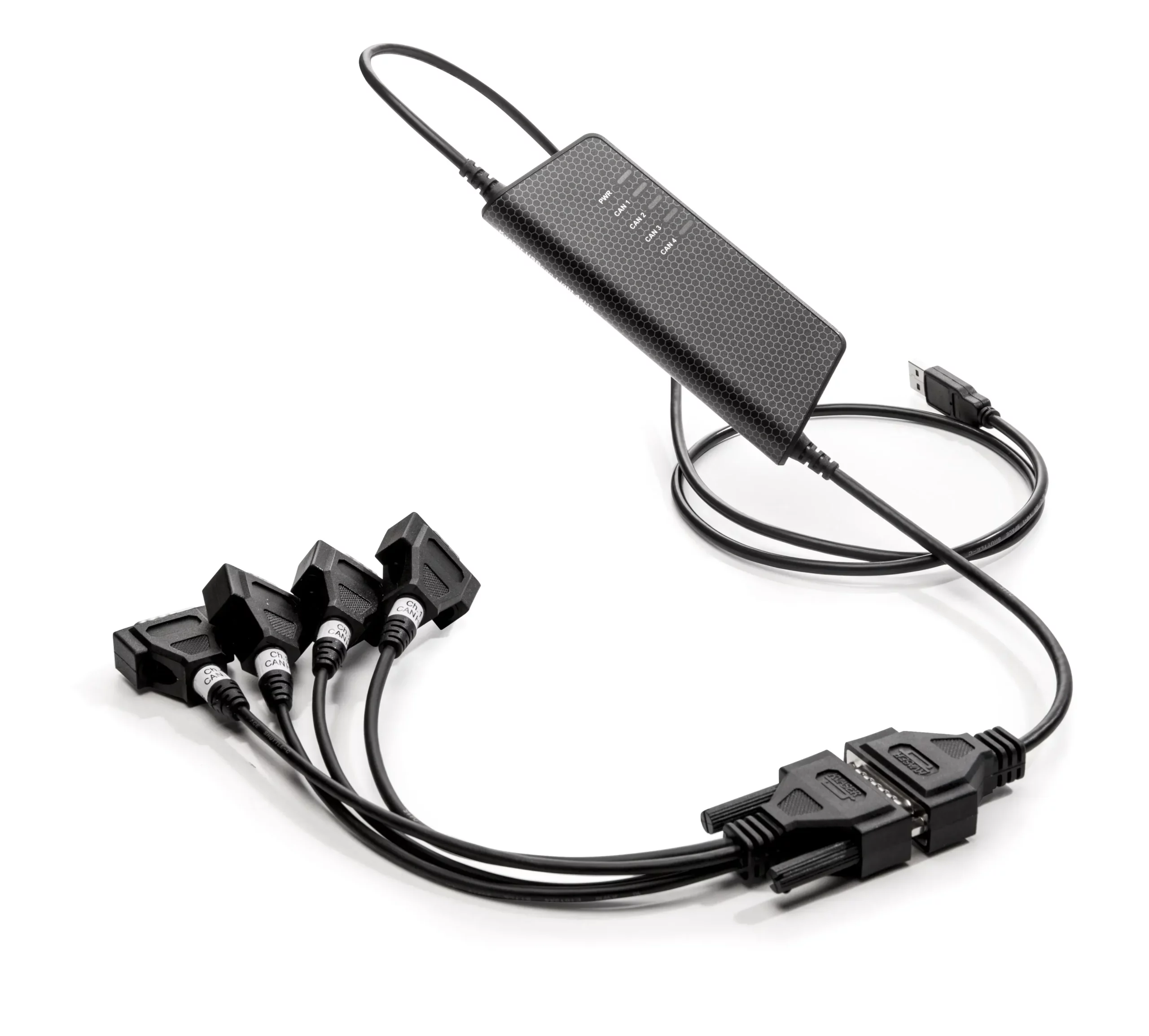

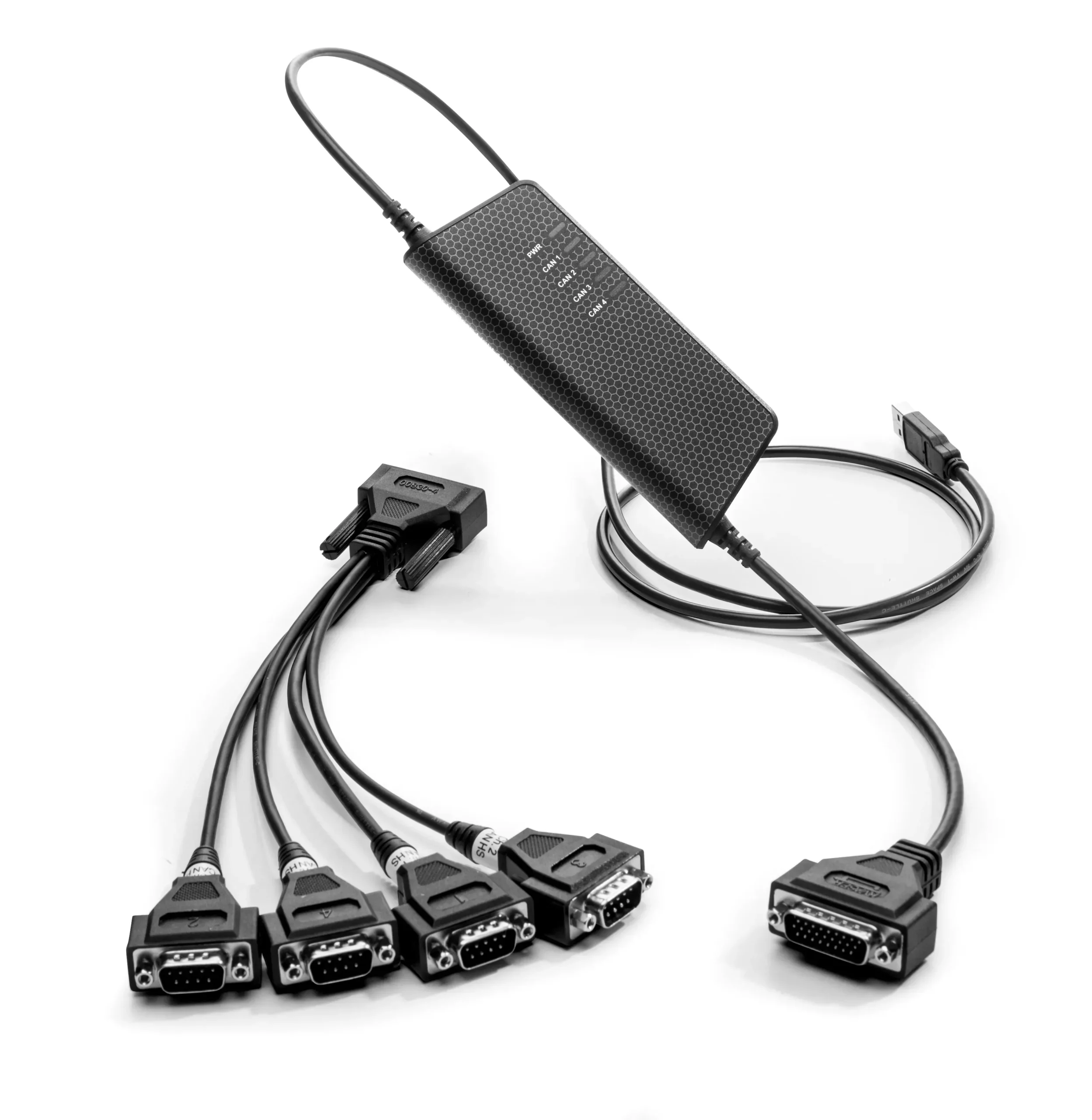

• Includes 4 channel breakout cable.
• Support for SocketCAN, see elinux.org for details.

Warranty

• 2-Year Warranty. See our General Conditions and Policies for details.

Support

• Free Technical Support on all products available by contacting [email protected]

Software

• Documentation, software and drivers can be downloaded for free at www.kvaser.com/downloads.
• Kvaser CANLIB SDK is a free resource that includes everything you need to develop software for the Kvaser CAN interfaces. Includes full documentation and many program samples, written in C, C++, C#, Delphi, and Visual Basic.
• All Kvaser CAN interface boards share a common software API. Programs written for one interface type will run without modifications on the other interface types!
• J2534 Application Programming Interface available.
• RP1210A Application Programming Interface available.
• On-line documentation in Windows HTML-Help and Adobe Acrobat format.

Bitrate

50-1000 kbps

Categories

Interfaces, PC INTERFACES

Certificates

CE, RoHS

Channels

4

Connectors

26-pin HD D-SUB

Current Consumption

Max 500mA

Error Counters Reading

No

Error Frame Generation

No

Galvanic Isolation

Yes

Height

68 mm

Interfaces

USB

Length

170 mm

Material

PA66

Messages Per Second Receive

8000 mps

Messages Per Second Sending

8000 mps

OS

Win XP, Linux, Win 7, Win Vista, Win 10, Win 8

Silent mode

No

Sound

No

Temp range

-20 - 70 °C

Timestamp R (µ)

100 µs

Weight

150 g

Firmware

Kvaser Firmware Update Tool

Firmware Update tool for most Kvaser devices.

Version V4.17.849 Download
Driver

Kvaser Linux Drivers and SDK

Linux drivers and SDK for most Kvaser devices.

Version V5.28.846 Download

Kvaser DIADEM driver

This free driver for National Instrument's DIAdem supports all CAN hardware from Kvaser.

Version V4.1.0 Download

Kvaser Drivers for Windows

Windows drivers for all our CAN hardware. Please check the release notes for information on which Windows versions are supported. The package also contains a driver for a virtual CAN bus, for testing and evaluation when you don't have access to a physical CAN bus.

Version V5.28.846 Download
Development Kits and Tools

Python module

The Canlib module is a Python wrapper for Kvaser CANlib SDK.

Version V1.10.102 Download

Kvaser LabView VI Library for CAN

Library for National Instrument's LabView. Version for all Kvaser CAN hardware.

Version V6.1.0 Download

Kvaser CANlib SDK

Software development kit - everything you need to develop software for the Kvaser CAN and LIN interfaces. Libraries, header files, sample programs for e.g. C, C++, C#, Visual Basic and Delphi, documentation, and more. Note: you need to download and install the appropriate device drivers separately.

Version V5.28.846 Download
Documentation

Kvaser USBcan Light 4xHS Users Guide

Kvaser USBcan Light 4xHS User's Guide

Version V4.1.190512 Download
Other

Kvaser CANKing

A free of charge, general-purpose CAN bus monitor. It works with all CAN interfaces from Kvaser and also with the virtual CAN bus.

Version V6.11.788 Download
