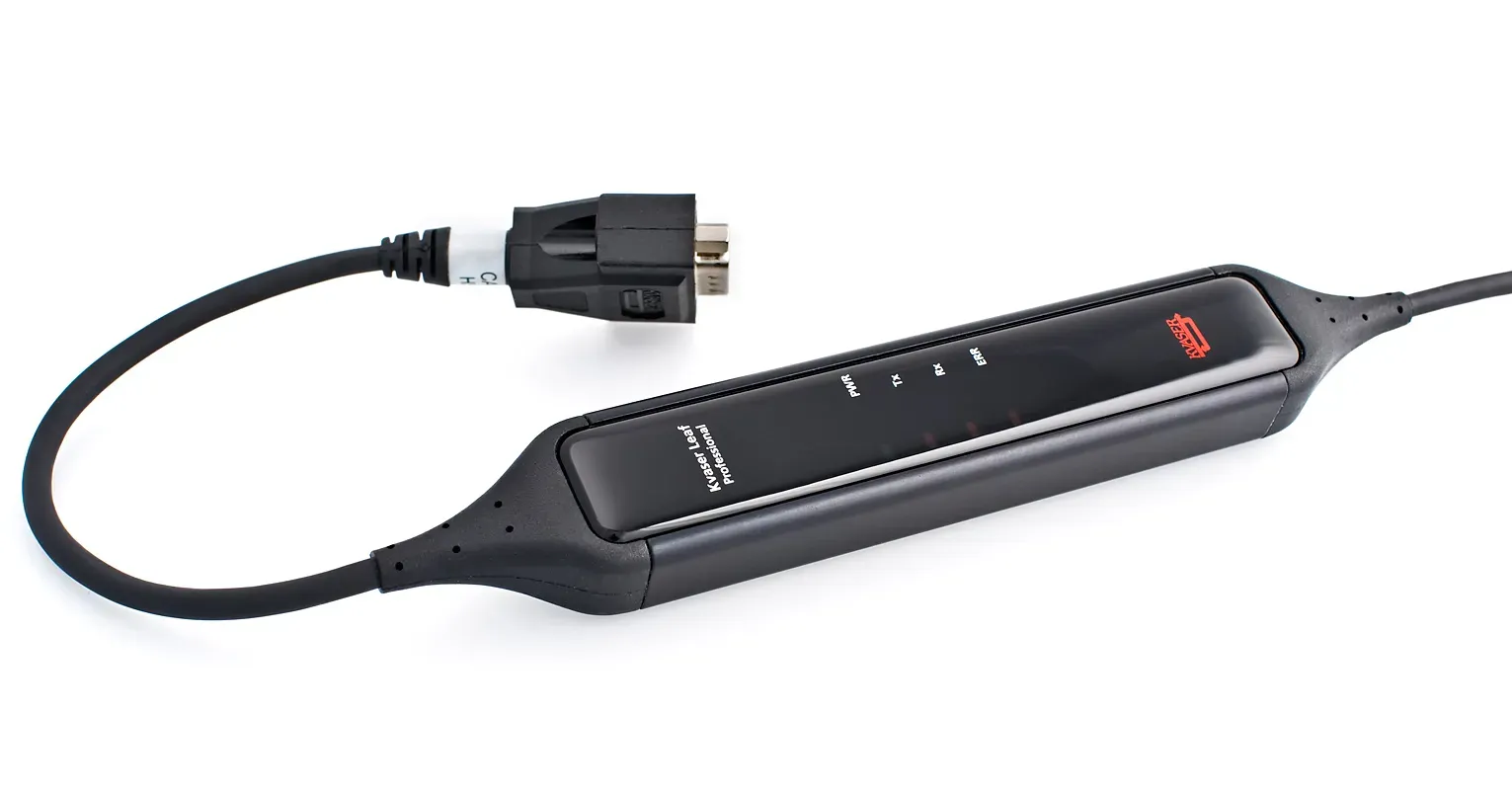

Kvaser Leaf Professional Rugged HS

EAN: 73-30130-00509-9
Price: USD 946.00

Kvaser Leaf Professional Rugged is a one channel, very high performance, USB interface for CAN. With a IP65 rated aluminium housing, it offers the possibility to easily connect your PC and CANbus network. Includes Kvaser's patented MagiSync feature for synchronized time-stamping, and Galvanic Isolation for protection against voltage spikes.

Major features

  • IP65 rated lightweight aluminium housing.
  • Automatic and accurate clock synchronization between several Kvaser MagiSync-equipped interfaces through Kvaser MagiSync™. The technical solution is unique and patented by Kvaser.
  • Supports both 11-bit (CAN 2.0A) and 29-bit (CAN 2.0B active) identifiers.
  • Supports silent mode for analyzing tools.
  • Low power consumption.
  • Excellent EMC performance.
  • Polyurethane cabling for extreme environments.
  • Galvanic isolation of the CAN bus driver stage to protect the hardware.
  • 100% compatible with applications written for all Kvaser hardware with Kvaser's CANlib.
  • Equipped with a 110 cm (44 in.) long USB cable and a 30 cm (12 in.) long CAN cable.
  • Interfaces the CAN bus with a 9-pin D-SUB connector.
  • Designed for USB 2.0, backward compliant with USB 1.1.
  • Quick and easy Plug-and-Play installation.

Warranty

2-Year Warranty. See our General Conditions and Policies for details.

Support

Free Technical Support on all products available by contacting [email protected]

Software

  • Documentation, software and drivers can be downloaded for free at www.kvaser.com/downloads.
  • Kvaser CANLIB SDK is a free resource that includes everything you need to develop software for the Kvaser CAN interfaces. Includes full documentation and many program samples, written in C, C++, C#, Delphi, and Visual Basic.
  • All Kvaser CAN interface boards share a common software API. Programs written for one interface type will run without modifications on the other interface types!
  • J2534 Application Programming Interface available.
  • RP1210A Application Programming Interface available.
  • On-line documentation in Windows HTML-Help and Adobe Acrobat format

Bitrate

5-1000 kbps

Categories

Interfaces, PC INTERFACES

Certificates

CE, RoHS

Channels

1

Connectors

DSUB 9

Current Consumption

Typical 70mA

Error Counters Reading

Yes

Error Frame Generation

Yes

Galvanic Isolation

Yes

Height

20 mm

Interfaces

USB

Length

200 mm

Material

Aluminium

Messages Per Second Receive

20000 mps

Messages Per Second Sending

20000 mps

OS

Win XP, Linux, Win 7, Win Vista, Win 10, Win 8

Silent mode

Yes

Sound

Yes

Temp range

-40 - 85 °C

Timestamp R (µ)

1 µs

Weight

150 g

Firmware

Kvaser Firmware Update Tool

Firmware Update tool for most Kvaser devices.

Version V4.17.849 Download
Driver

Kvaser Linux Drivers and SDK

Linux drivers and SDK for most Kvaser devices.

Version V5.28.846 Download

Kvaser DIADEM driver

This free driver for National Instrument's DIAdem supports all CAN hardware from Kvaser.

Version V4.1.0 Download

Kvaser Drivers for Windows

Windows drivers for all our CAN hardware. Please check the release notes for information on which Windows versions are supported. The package also contains a driver for a virtual CAN bus, for testing and evaluation when you don't have access to a physical CAN bus.

Version V5.28.846 Download
Development Kits and Tools

Python module

The Canlib module is a Python wrapper for Kvaser CANlib SDK.

Version V1.10.102 Download

Kvaser LabView VI Library for CAN

Library for National Instrument's LabView. Version for all Kvaser CAN hardware.

Version V6.1.0 Download

Kvaser CANlib SDK

Software development kit - everything you need to develop software for the Kvaser CAN and LIN interfaces. Libraries, header files, sample programs for e.g. C, C++, C#, Visual Basic and Delphi, documentation, and more. Note: you need to download and install the appropriate device drivers separately.

Version V5.28.846 Download
Other

Kvaser CANKing

A free of charge, general-purpose CAN bus monitor. It works with all CAN interfaces from Kvaser and also with the virtual CAN bus.

Version V6.11.788 Download
Documentation

Kvaser Leaf User Guide

Kvaser Leaf User Guide

Version V15.0.190512 Download

Kvaser Leaf Installation Guide

Kvaser Leaf Installation Guide

Version V4.1.0 Download
