Kvaser J1939-13 Type II to Dsub9 Adapter Cable 2.5 m
EAN: 73-30130-01408-4
Price: USD 144.00
Log in for tax and shipping information.

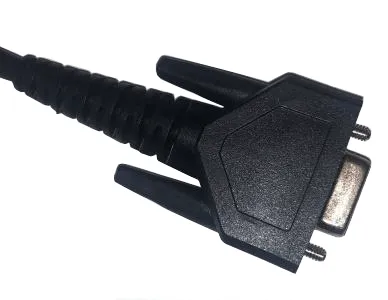

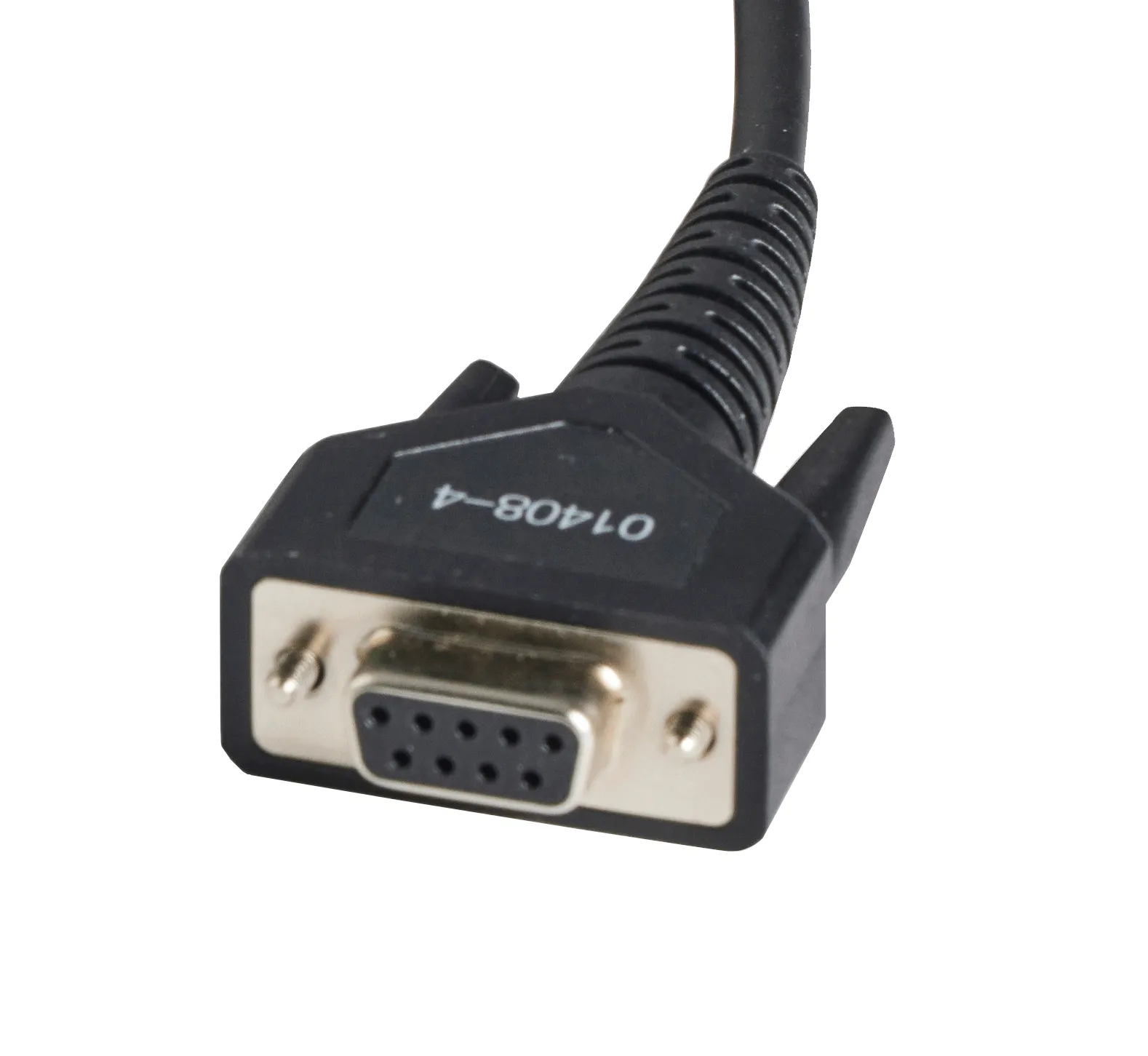

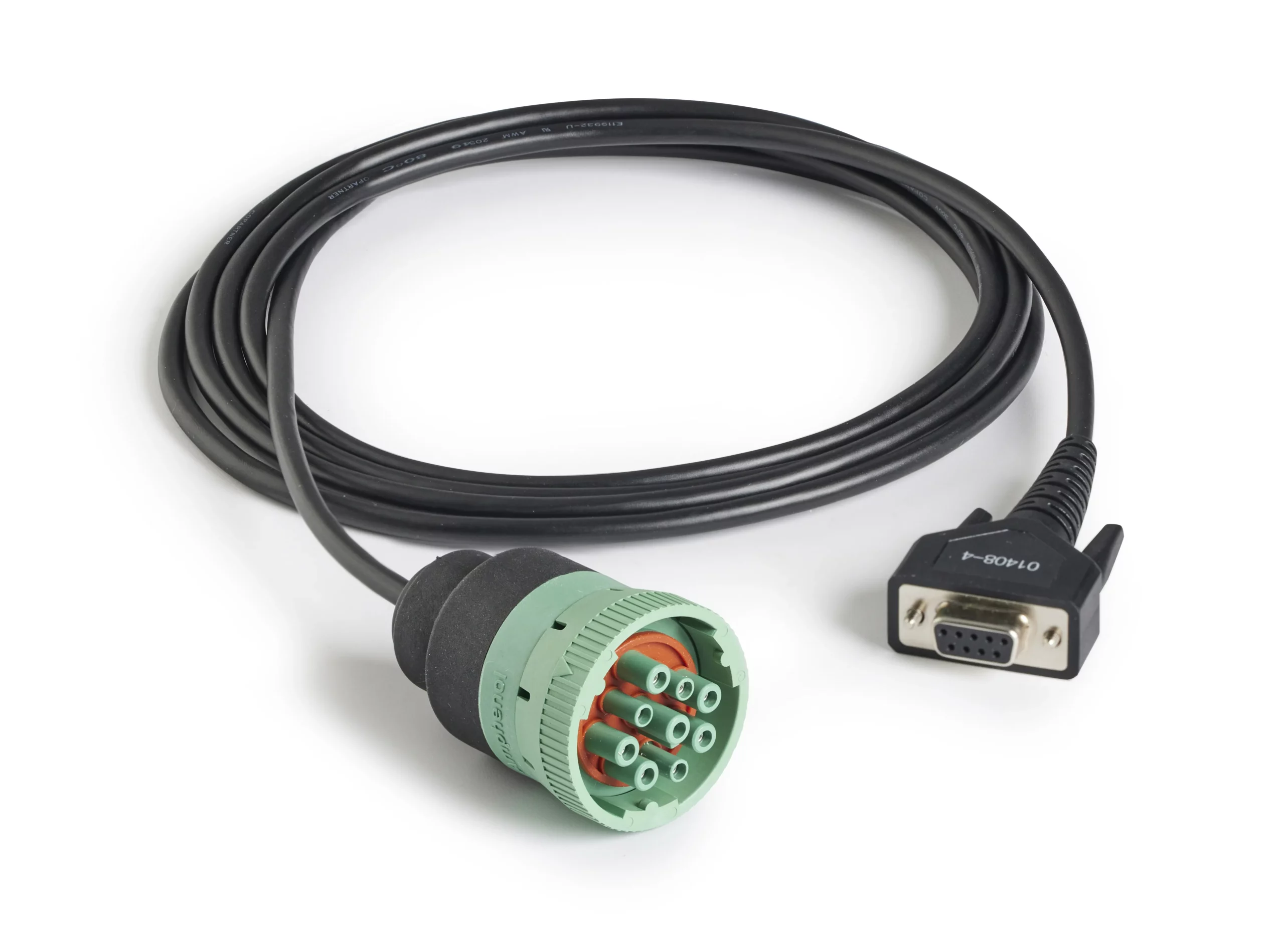

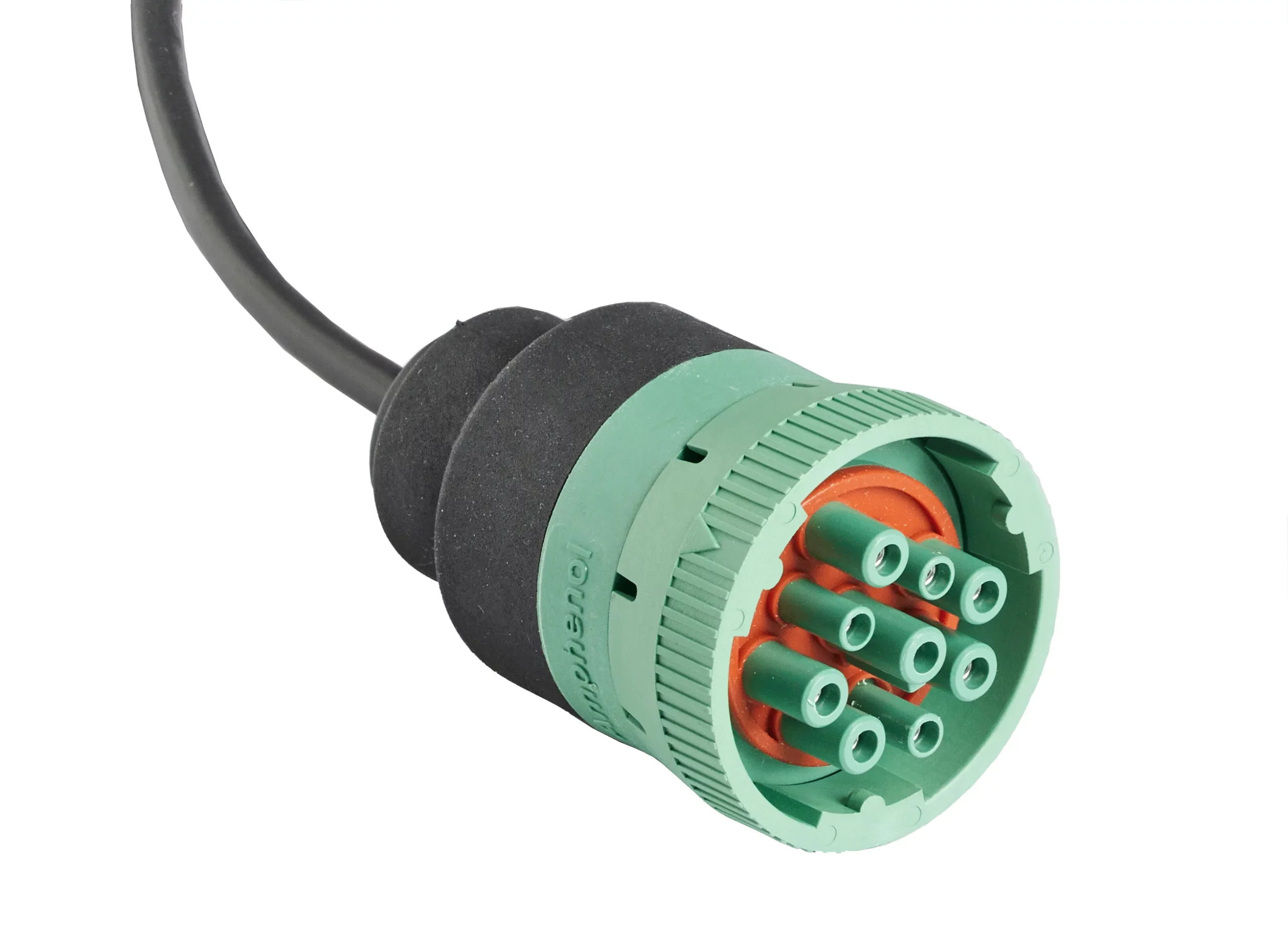

A high-quality 2.5 m long, shielded 9-pin J1939-13 Type II to 9-pin D-SUB cable. This halogen-free, flame-retardant CAN-bus cable provides reinforced strain relief for both connectors, essential for repeat connections in harsh environments. The Type II connector is used for trucks, buses and other heavy-duty vehicles and is compatible with older models where Type I sockets are used.
Share
Major Features
- Connector J1939-13 Type II
- Connector Dsub9 socket
- Strong and flexible strain reliefs
- 2500 mm (approx. 8 ft) long cable with jacket made of durable TPU
- Perfect for connect Kvaser CAN products with Dsub 9 pluggs to 500 kbs and 250 kbs J1939 buses.
Warranty
2-Year Warranty. See our General Conditions and Policies for details. Register your product at kvaser.com/getting-started for an additional 1-year Warranty Extension.
Support
Free Technical Support on all products available by contacting [email protected].
CABLES, Hardware
CE, RoHS
1
J1939-13 Type II
No
2500 mm
No
-40 °C to +85 °C
170 g
