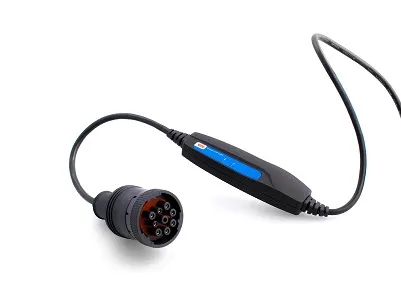

Kvaser Leaf Light J1939-13

EAN: 73-30130-00642-3

NOTE:  The Kvaser Leaf Light J1939-13 (73-30130-00642-3) has been marked "End of Life".  Existing customers are encouraged to migrate to the Kvaser Leaf Light HS v2 J1939-13 Type II (73-30130-00915-8).

For more information, please contact us.

________________

The Kvaser Leaf Light supports full speed USB interface for CAN with high performance at a low cost.  The Leaf Light J1939 is our standard Leaf Light HS, but with a J1939-13 connector included for easy connection to the J1939 bus.

Loss free transmission and reception of standard and extended CAN messages on the CAN bus is transmitted with a time stamp precision of 100 microseconds.



  • The Kvaser Leaf Light supports full speed USB interface for CAN with high performance at a low cost.
  • Kvaser Leaf Light is a reliable low cost product. Loss free transmission and reception of standard and extended CAN messages on the CAN bus is transmitted with a time stamp precision of 100 microseconds.
  • The low current consumption, 70 mA, reduces the power drain from your laptop.
  • Application Areas: Human Interfaces, testing equipment, different types of one channel tools, multi channel tools not requiring channel synchronization, etc.
  •

Bitrate

5-1000 kbps

Buffers

On Board Buffer

Categories

Interfaces, PC INTERFACES

Certificates

CE, RoHS

Channels

1

Connectors

J1939-13 Type I

Error Counters Reading

No

Error Frame Generation

No

Galvanic Isolation

No

Height

20 mm

Interfaces

USB

Length

100 mm

Material

Glass Fiber Reinforced PA6

Messages Per Second Receive

8000 mps

Messages Per Second Sending

8000 mps

OS

Win XP, Linux, Win 7, Win Vista, Win 10, Win 8

Silent mode

No

Sound

No

Temp range

-20 - 70 °C

Timestamp R (µ)

100 µs

Weight

100 g

Driver

Kvaser Drivers for Windows

Windows drivers for all our CAN hardware. Please check the release notes for information on which Windows versions are supported. The package also contains a driver for a virtual CAN bus, for testing and evaluation when you don't have access to a physical CAN bus.

Version V5.27.776 Download

Kvaser Linux Drivers and SDK

Linux drivers and SDK for most Kvaser devices.

Version V5.27.776 Download

Kvaser DIADEM driver

This free driver for National Instrument's DIAdem supports all CAN hardware from Kvaser.

Version V4.1.0 Download
Firmware

Kvaser Firmware Update Tool

Firmware Update tool for most Kvaser devices.

Version V4.16.779 Download
Development Kits and Tools

Kvaser CANlib SDK

Software development kit - everything you need to develop software for the Kvaser CAN and LIN interfaces. Libraries, header files, sample programs for e.g. C, C++, C#, Visual Basic and Delphi, documentation, and more. Note: you need to download and install the appropriate device drivers separately.

Version V5.27.776 Download

Kvaser LabView VI Library for CAN

Library for National Instrument's LabView. Version for all Kvaser CAN hardware.

Version V6.1.0 Download

Python module

The Canlib module is a Python wrapper for Kvaser CANlib SDK.

Version V1.9.909 Download
Other

Kvaser CANKing

A free of charge, general-purpose CAN bus monitor. It works with all CAN interfaces from Kvaser and also with the virtual CAN bus.

Version V6.10.753 Download
Documentation

Kvaser Leaf Installation Guide

Kvaser Leaf Installation Guide

Version V4.1.0 Download

Kvaser Leaf User Guide

Kvaser Leaf User Guide

Version V15.0.190303 Download
