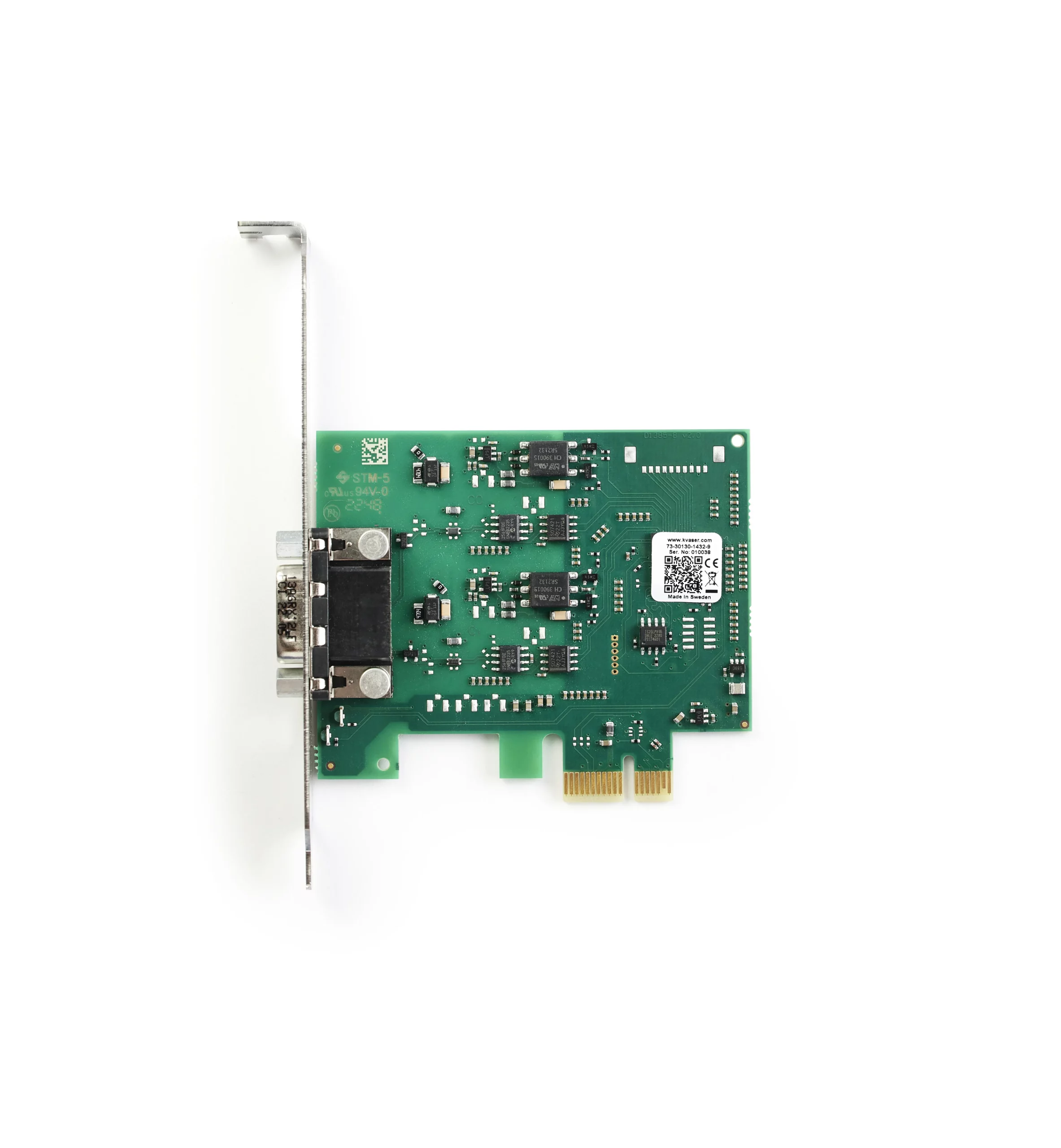

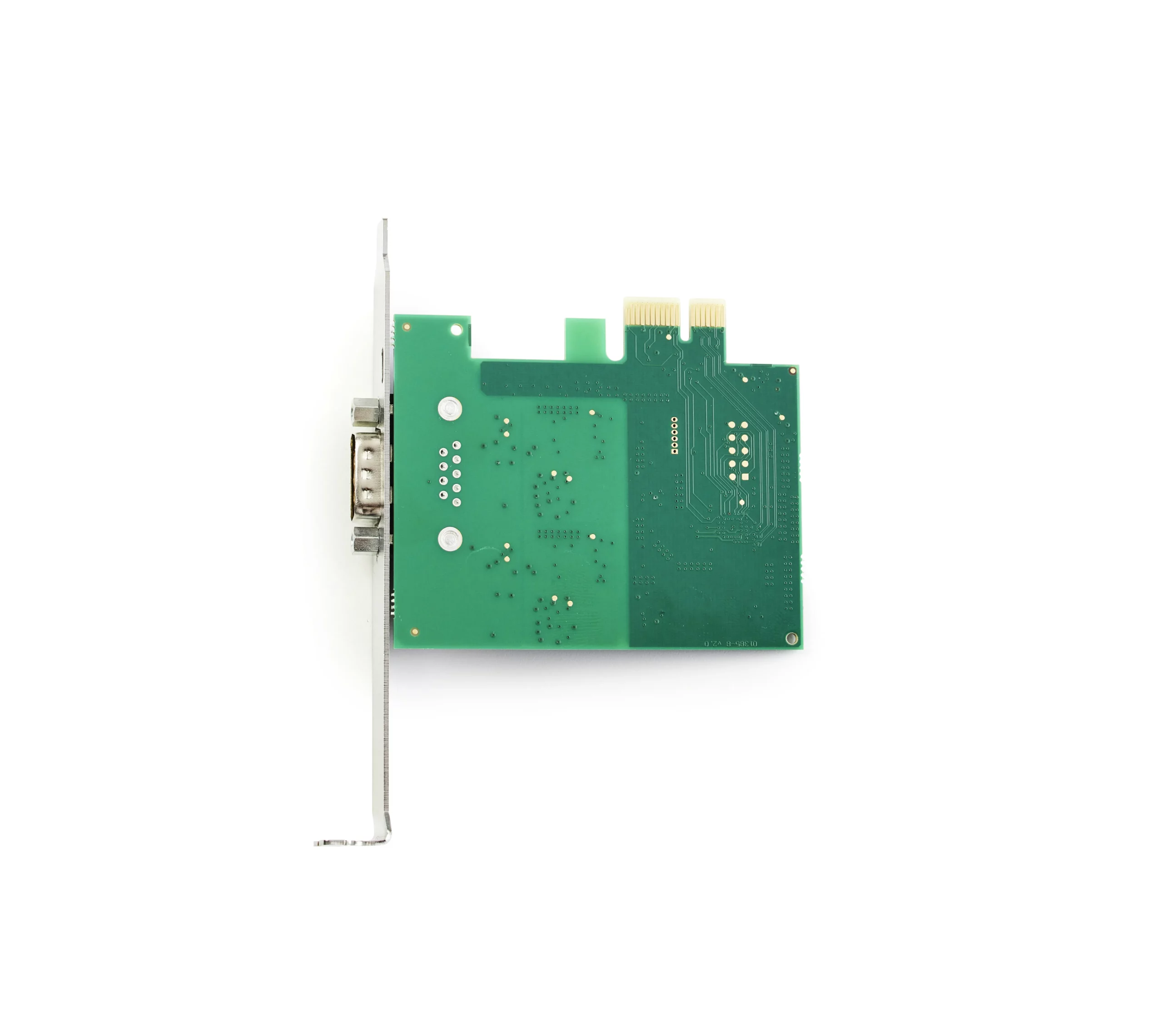

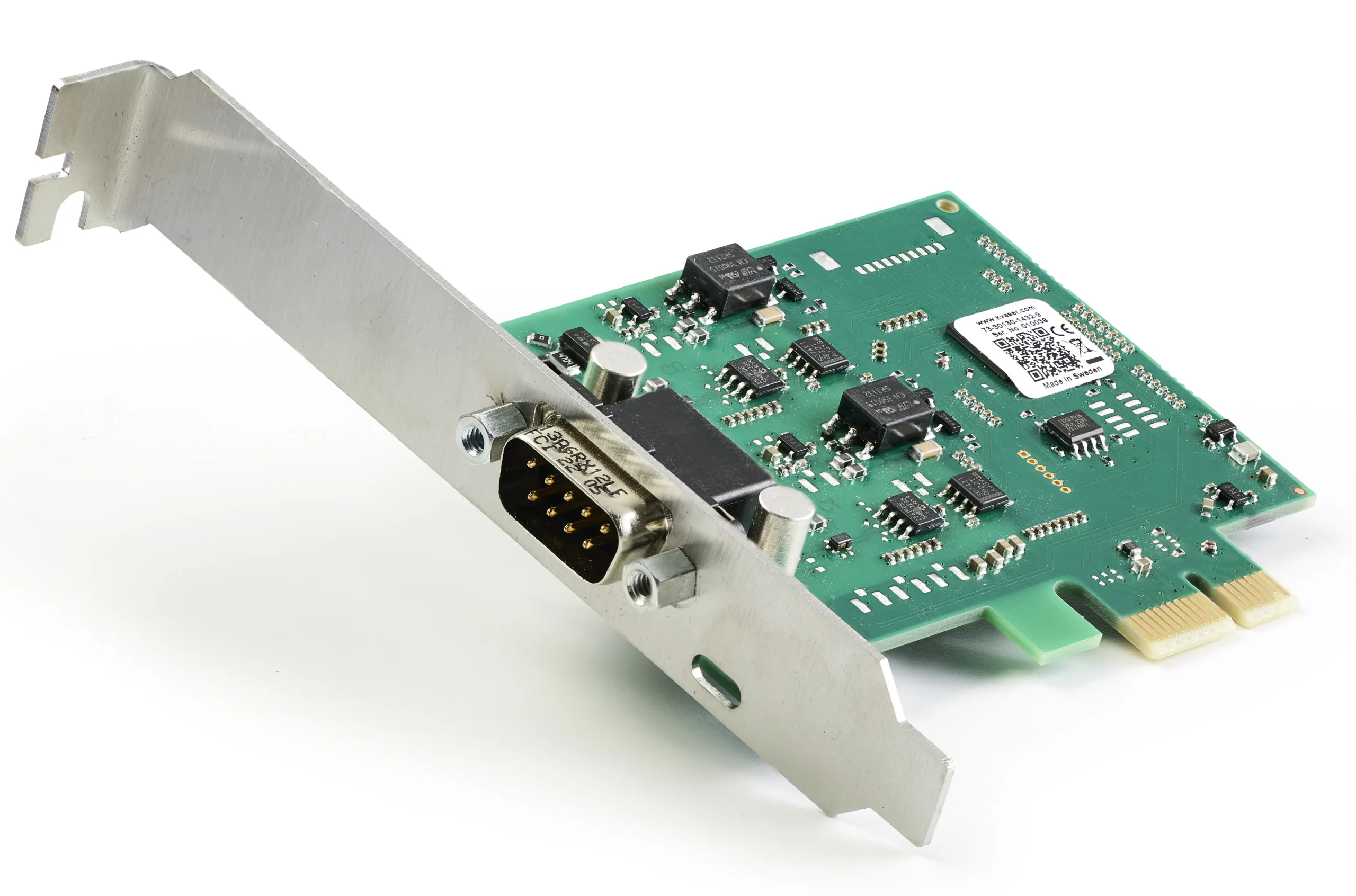

Kvaser PCIEcan 2xCAN v3

EAN: 73-30130-01432-9
Price: USD 663.00

Kvaser PCIEcan 2xCAN v3 is a small, yet advanced, CAN multi-channel real time CAN interface that handles transmission and reception of standard and extended CAN messages on the bus with a high time stamp precision. The Kvaser PCIEcan 2xCAN v3 is compatible with applications that use Kvaser‘s CANlib.

Major features

  • PCI Express CAN interface.
  • Supports CAN FD, up to 8 Mbit/s.
  • Quick and easy plug-and-play installation.
  • Supports both 11-bit (CAN 2.0A) and 29-bit (CAN 2.0B active) identifiers.
  • 100 % compatible with applications written for other Kvaser CAN hardware with Kvaser CANlib.
  • High-speed CAN connection (compliant with ISO 11898-2), up to 1 Mbit /s.
  • Fully compatible with J1939, CANopen, NMEA 2000® and DeviceNet.
  • Support for SocketCAN.
  • Supports silent mode for analysis tools – listen to the bus without interfering.
  • Supports simultaneous usage of multiple Kvaser interfaces.

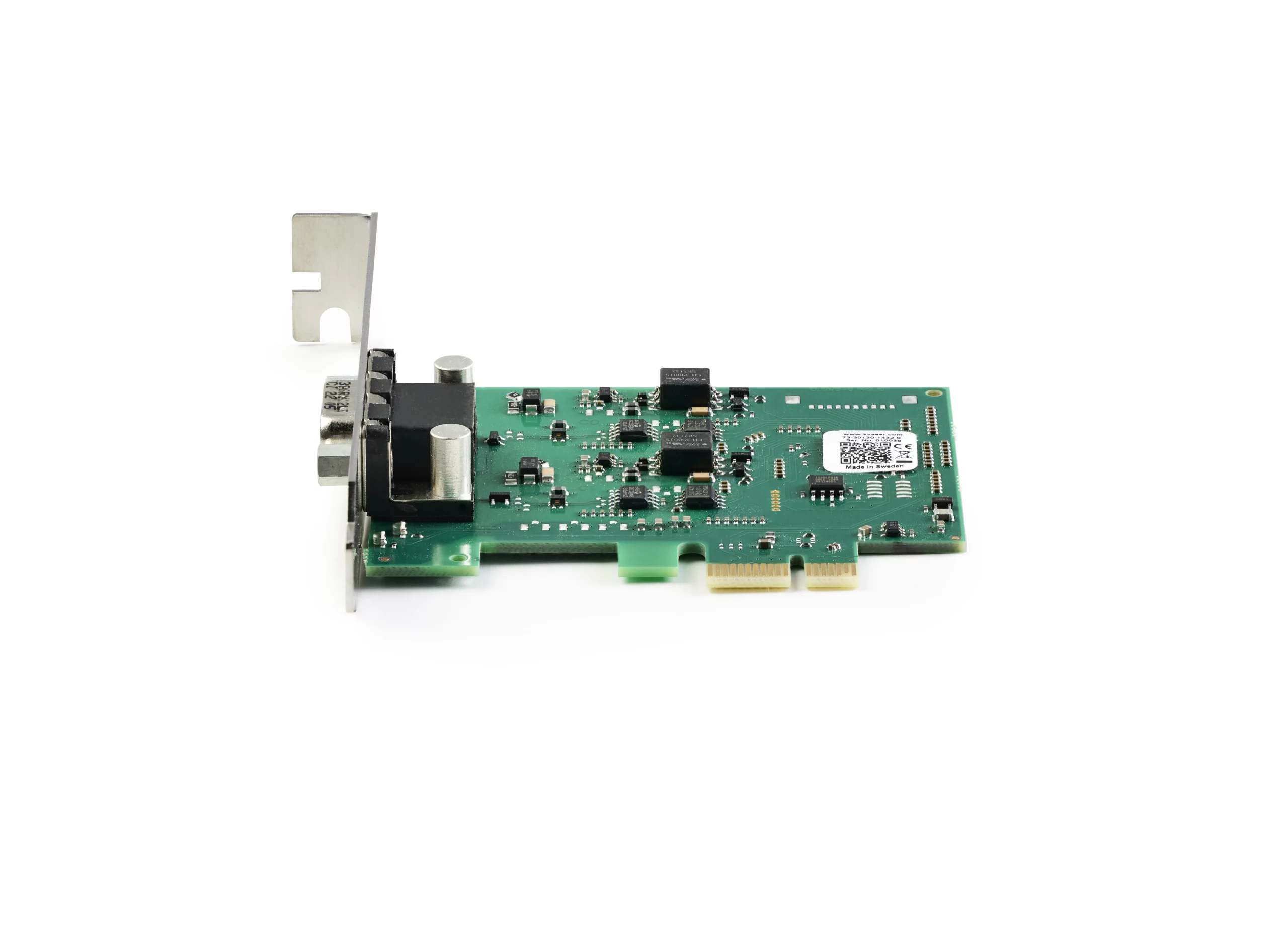

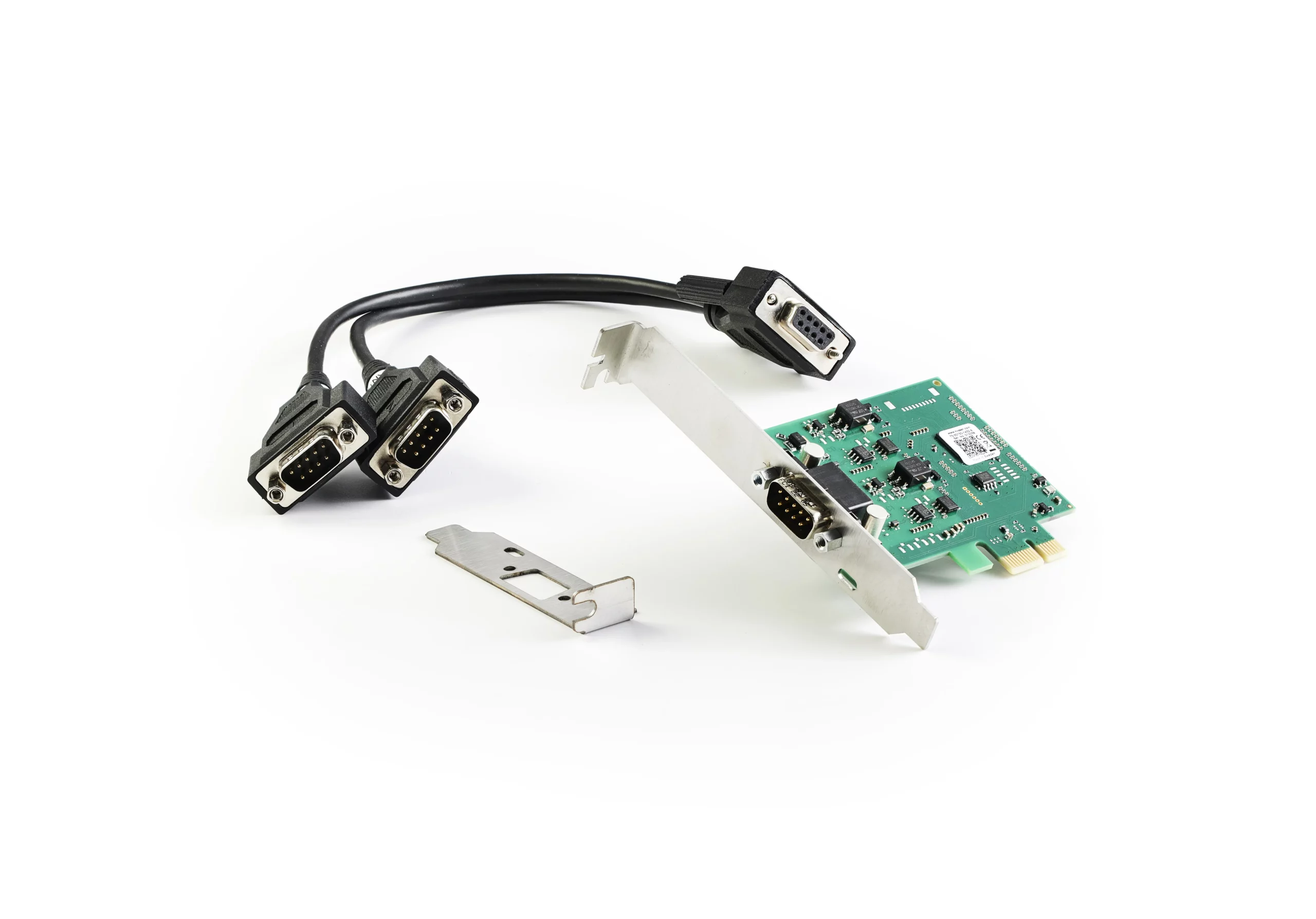

  • Low profile board, includes low and high profile brackets.

Warranty

  • 2-Year Warranty. See our General Conditions and Policies for details.

Support

Software

  • Documentation, software and drivers can be downloaded for free at www.kvaser.com/downloads.
  • Kvaser CANLIB SDK is a free resource that includes everything you need to develop software for the Kvaser CAN interfaces. Includes full documentation and many program samples, written in C, C++, C#, Delphi, and Visual Basic.
  • All Kvaser CAN interface boards share a common software API. Programs written for one interface type will run without modifications on the other interface types!
  • J2534 Application Programming Interface available.
  • RP1210A Application Programming Interface available.
  • On-line documentation in Windows HTML-Help and Adobe Acrobat format.
Bitrate

20-1000 kbps

CAN FD Bitrate

Up to 8 Mbit/s

Categories

Interfaces, Hardware, CAN

Certificates

CE, RoHS

Channels

2

Connectors

DSUB 9

Current Consumption

Typically 700 mW idle plus max 150 mW per channel, i.e. max 1000 mW for a two channel interface. Only uses 3.3 V.

Error Counters Reading

Yes

Error Frame Generation

Yes

Galvanic Isolation

Yes

Interfaces

PCI Express

Length

86 mm

Messages Per Second Receive

20000 mps

Messages Per Second Sending

20000 mps

OS

Linux, Win 7, Win 10, Win 8

Silent mode

Yes

Sound

No

Temp range

-40 °C to +85 °C

Timestamp Resolution (µs)

1 µs

Weight

49 g

Driver
Kvaser Linux Drivers and SDK

Linux drivers and SDK for most Kvaser devices. For using Kvaser proprietary API. Do not install if using SocketCAN.

Download
Version V5.44.630
Kvaser DIADEM driver

This free driver for National Instrument's DIAdem supports all CAN hardware from Kvaser.

Download
Version V4.1.0
Kvaser Drivers for Windows

Windows drivers for all our CAN hardware. Please check the release notes for information on which Windows versions are supported. The package also contains a driver for a virtual CAN bus, for testing and evaluation when you don't have access to a physical CAN bus.

Download
Version V5.44.630
Documentation
Kvaser PCIEcan 2xCAN v3 User's Guide

User's Guide for Kvaser PCIEcan 2xCAN v3

Download
Version V1.2.240218
Development Kits and Tools
Python module

The Canlib module is a Python wrapper for Kvaser CANlib SDK.

Download
Version V1.25.393
Kvaser LabView VI Library for CAN

Library for National Instrument's LabView. Version for all Kvaser CAN hardware.

Download
Version V23.1.0
Kvaser CANlib SDK

Software development kit - everything you need to develop software for the Kvaser CAN and LIN interfaces. Libraries, header files, sample programs for e.g. C, C++, C#, Visual Basic and Delphi, documentation, and more. Note: you need to download and install the appropriate device drivers separately.

Download
Version V5.44.630
Other
Kvaser CANKing

A free of charge, general-purpose CAN bus monitor. It works with all CAN interfaces from Kvaser and also with the virtual CAN bus.

Download
Version V6.26.654
