Kvaser T-Cannector Expansion L
EAN: 73-30130-01300-1
Price: USD 249.00
Log in for tax and shipping information.

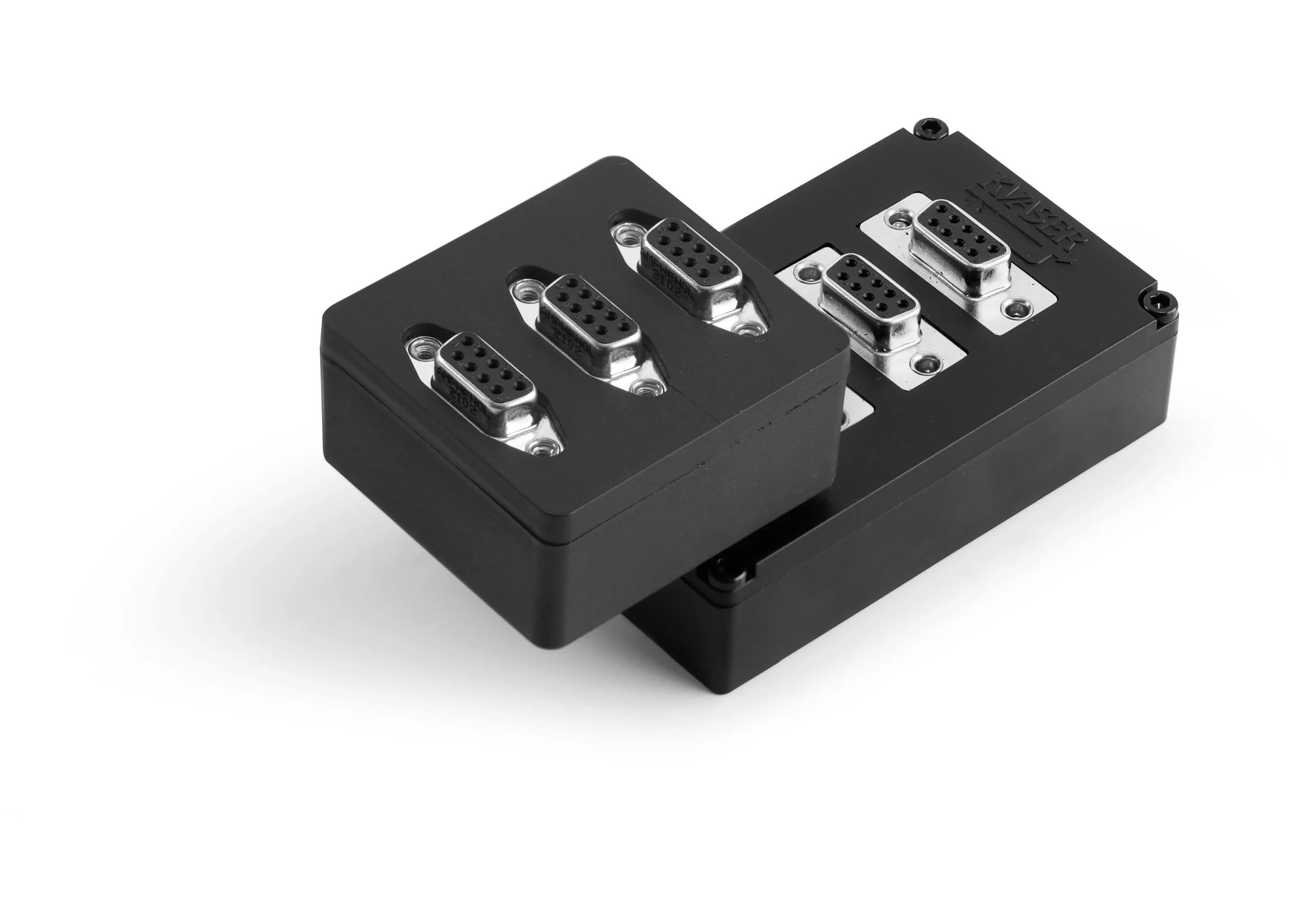

The Kvaser T-Cannector Expansion L (01300-1) is a CAN bus hub and extension unit that offers six D-SUB9 socket connectors in total. With adjustable CAN termination (connecting a load of 120, 60 or 0), the Kvaser T-Cannector Expansion L provides an affordable and safe way of terminating the CAN bus when using Kvaser interfaces on a development board, as well as powering devices without internal power.
Share
The Kvaser T-Cannector Expansion L product includes:
- (1) T-Cannector expansion unit
Additional products required in order to utilize the Kvaser T-Cannector Expansion:
- (1) Kvaser T-Cannector

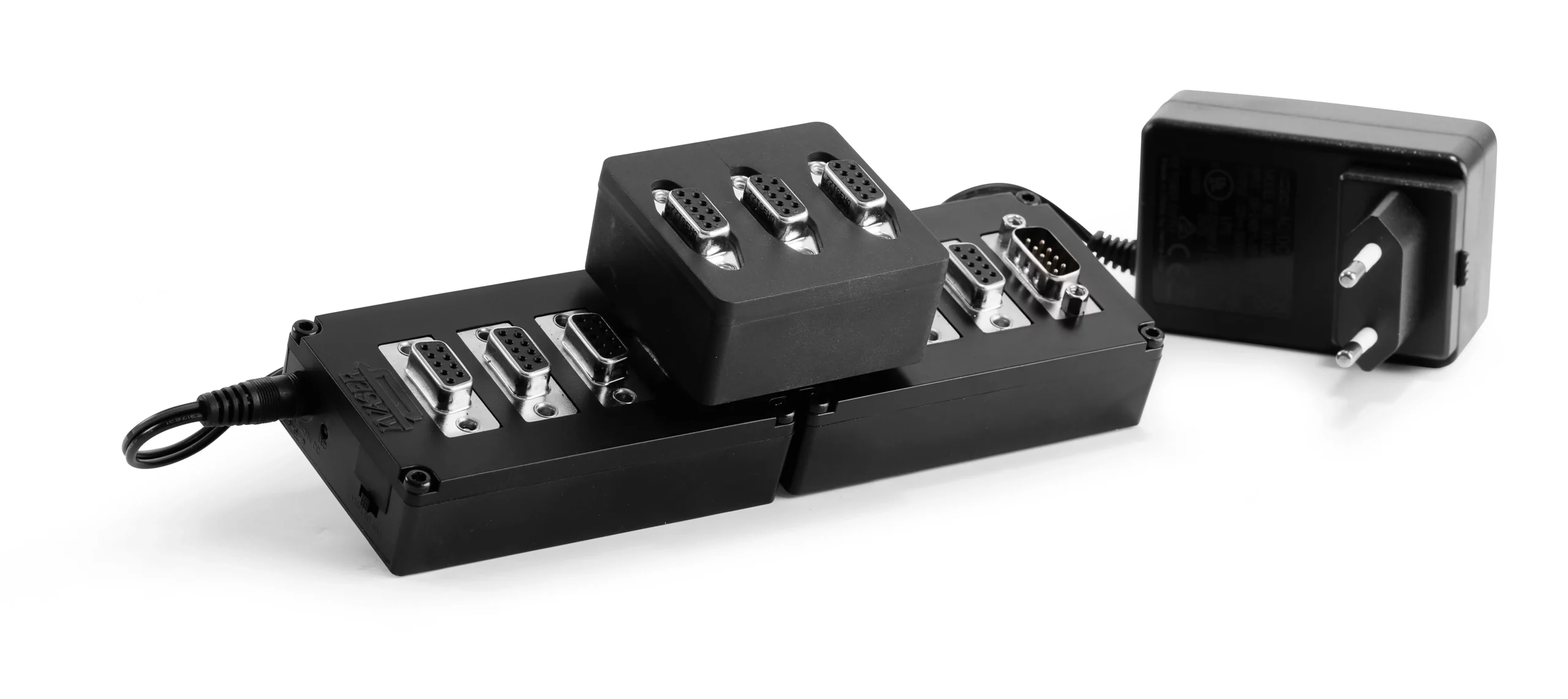

- (1) Power supply (included in Kvaser T-Cannector)
Major Features
- Acts as a CAN bus hub with six D-SUB9 connectors
- Modular and compatible with Kvaser T-cannector v2 (00776-5) for larger CAN bus hubs
- Each D-SUB9 has screws to secure the connection to the Kvaser CAN interface
- Adjustable termination via easy-to-use switch (Base unit)
- LED to indicate power on (Base unit)
- Voltage range of 12 V- 24 V DC
LIN, CABLES, DIN Rail, Interfaces, Hardware, Dataloggers, CAN, Accessories
3
DSUB 9
-
No
34 mm
55 mm
12-24VDC, max 2A
No
No
-40 °C to +85 °C
80 g

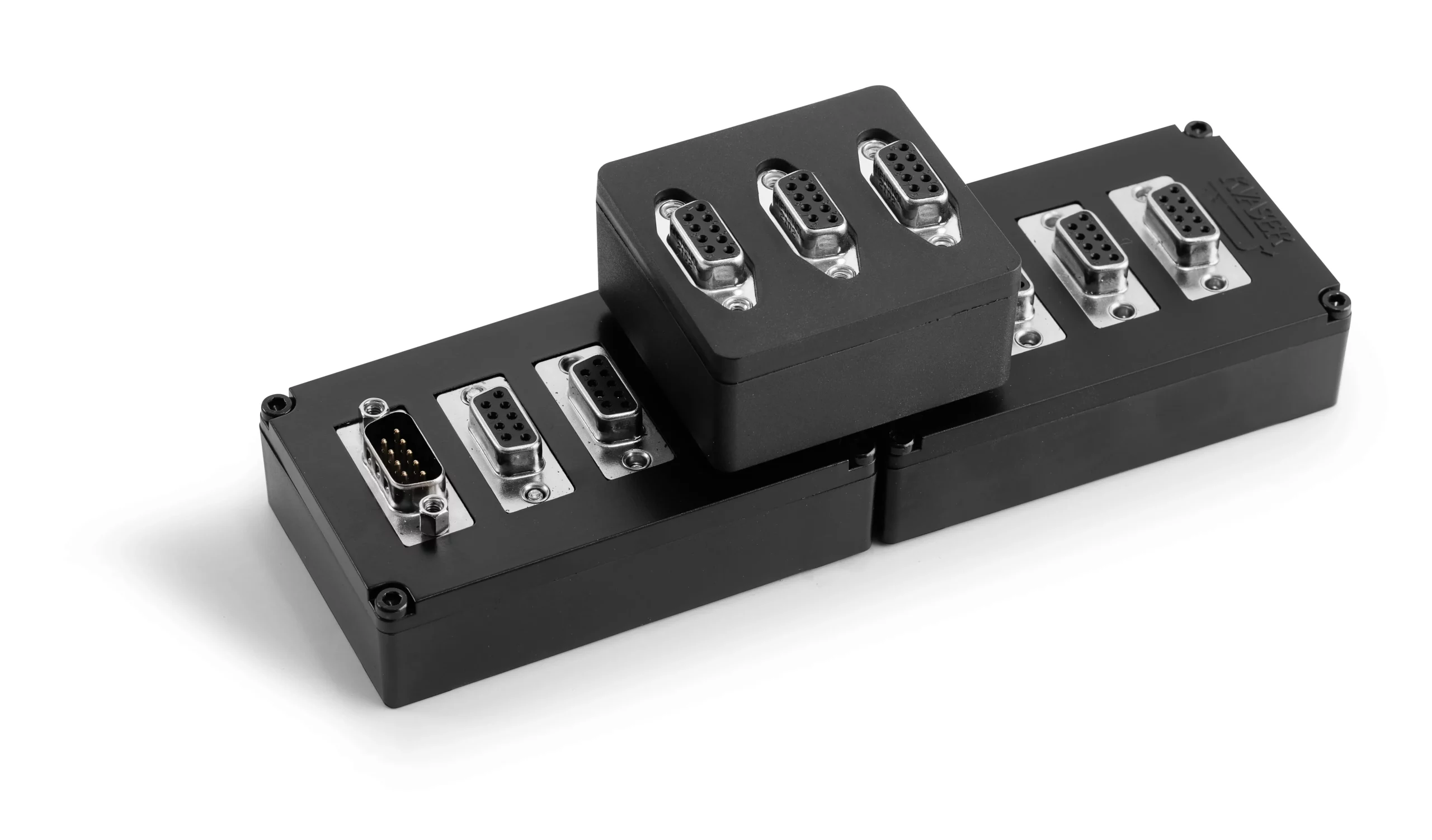

The Kvaser T-Cannector Expansion L, which consists of a Kvaser T-cannector v2 (Base unit) and a Kvaser T-cannector L (Extension unit), expands the Kvaser T-cannector v2 (00776-5) to a CAN bus hub that in total offers eight D-SUB9 socket connectors.
